Link Pressure Sensor (PS150) — New Enclosure

Link Pressure Sensor (PS150) - - New Enclosure

Available from JDM Mods NQ, the Link Pressure Sensor (PS150) - - New Enclosure is a measurement component for a compatible engine-management installation. Use the fitment, technical and package details below to select the correct part for your build.

Manufacturer part number: 101-0326

Models Supported

• All Link ECUs.
• Other aftermarket ECUs with a 0.5-4.5V analogue input.

Warnings

• Designed for use with a regulated 5V sensor supply. Compatible with fuel, oil, coolant, air and other compatible media. Ensure the correct pressure range is selected for your application.

Highlights

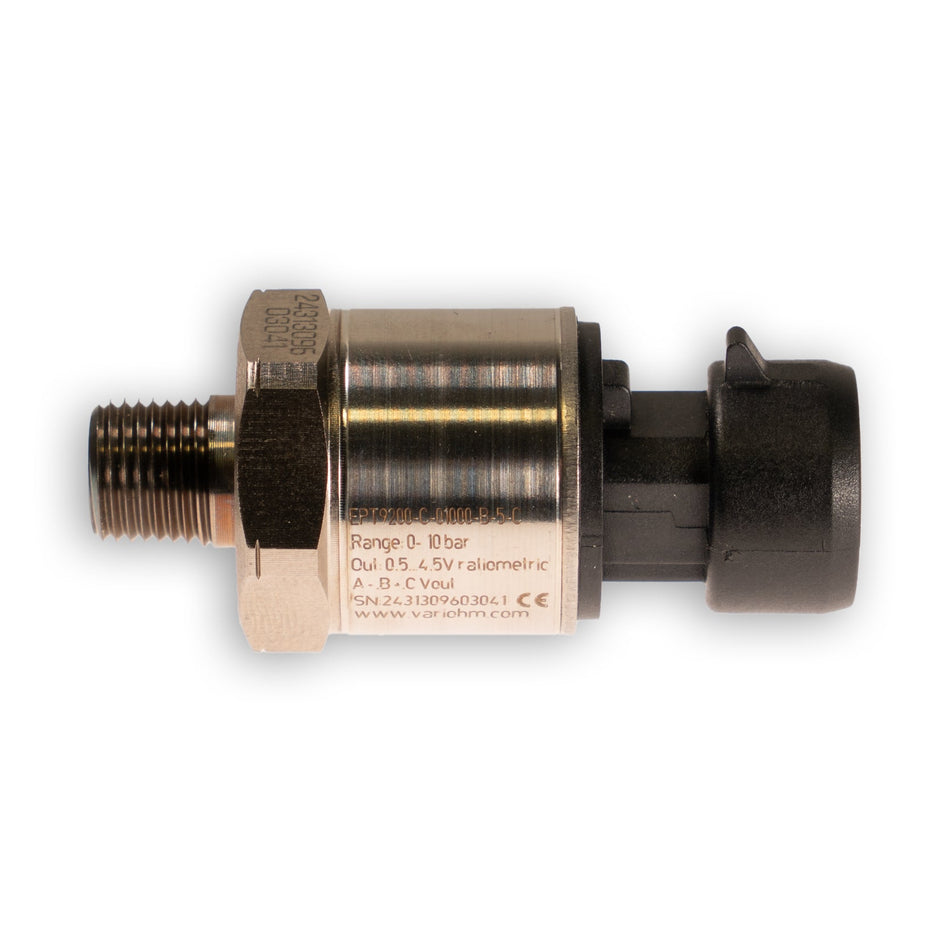

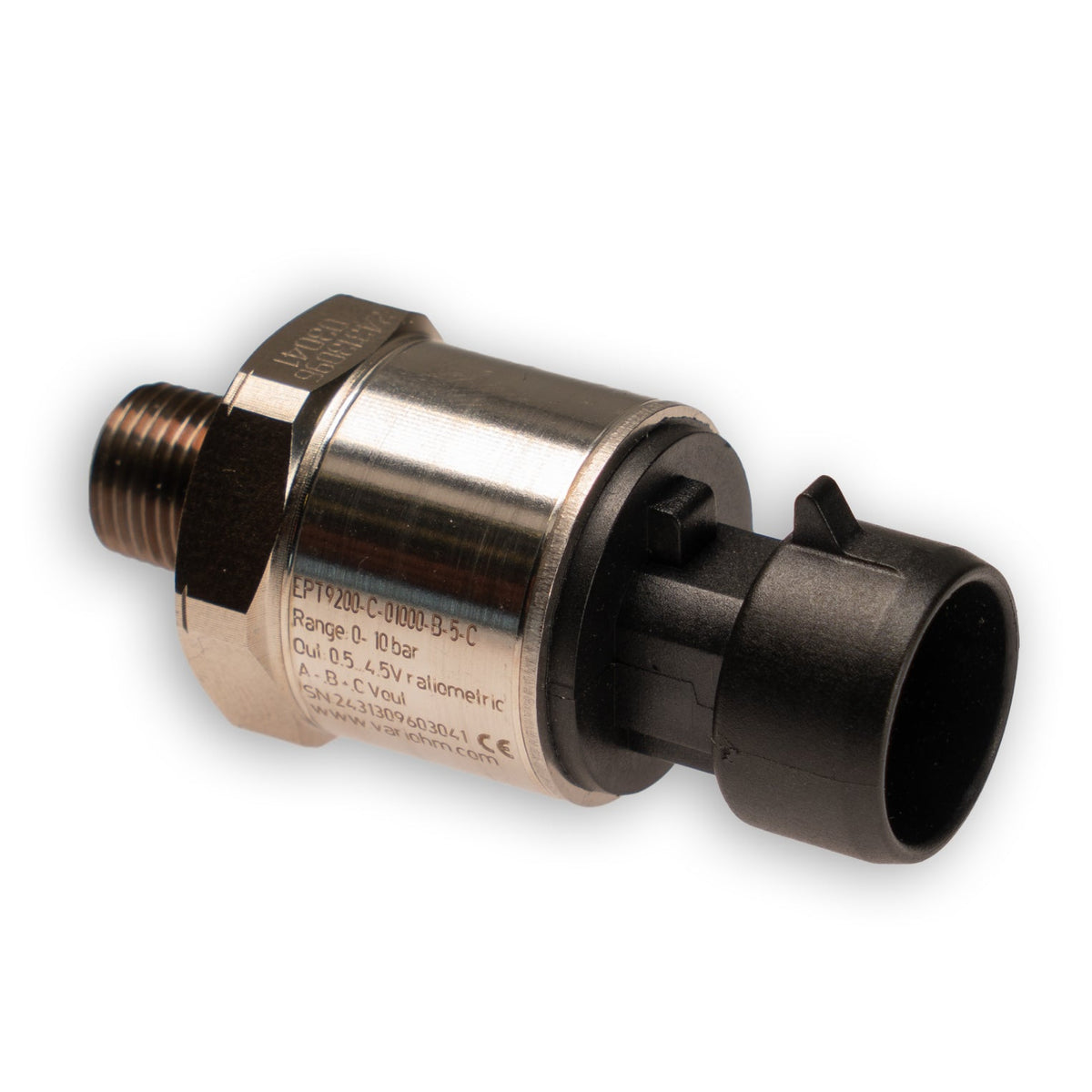

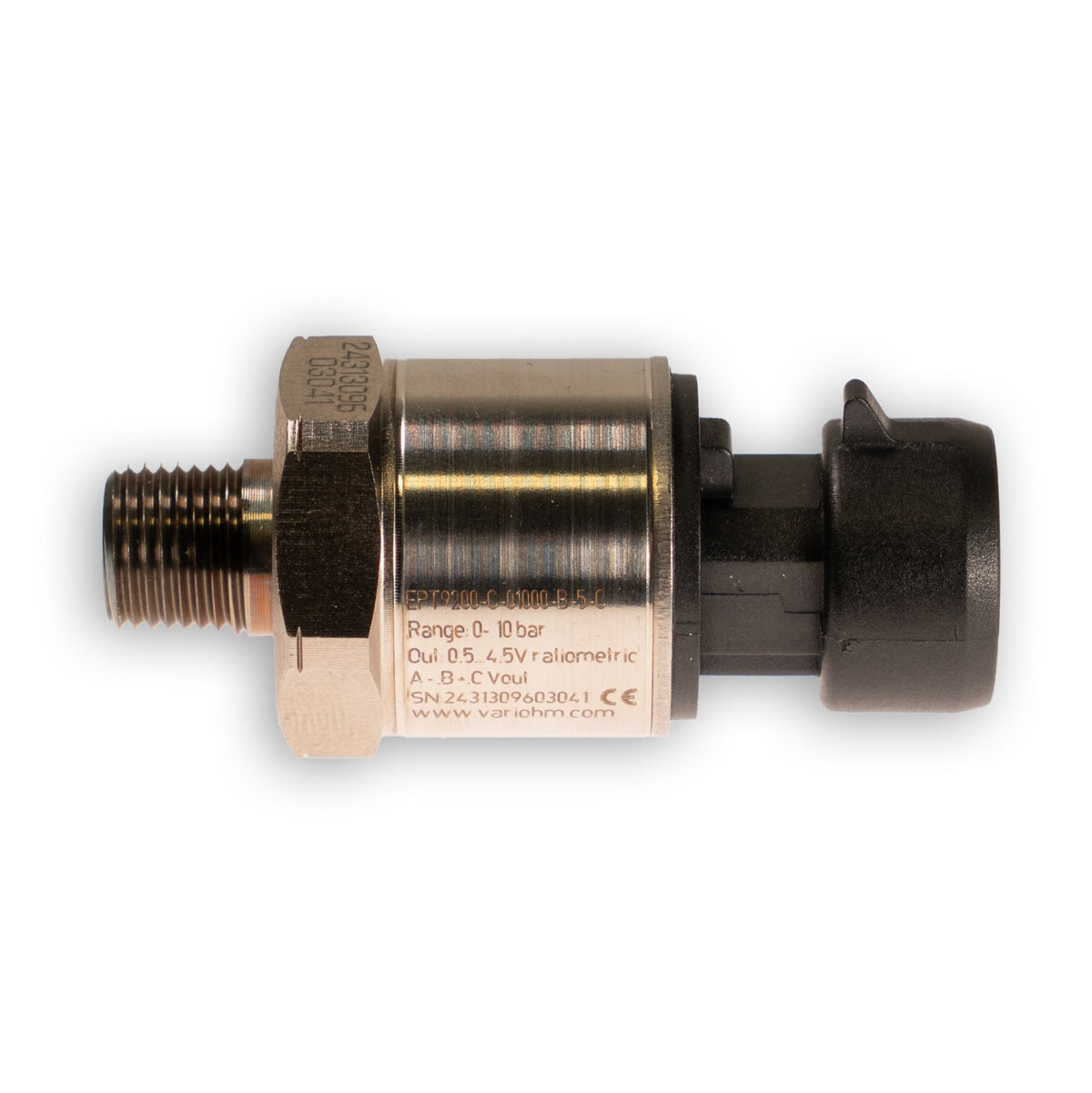

• The Link PS150 Pressure Sensor has the following specifications:
• Pressure range: 0-150 psi (0-10 bar).
• 0.5-4.5V ratiometric output.
• 5V supply voltage.
• Stainless steel sensing element and housing.
• High accuracy (+/-0.5% full scale at 25degC).
• Long-term stability of <=0.1% full scale per year
• 1ms response time.
• Excellent vibration and shock resistance.
• Operating temperature: -40degC to +125degC.
• IP67-rated (connector dependent).

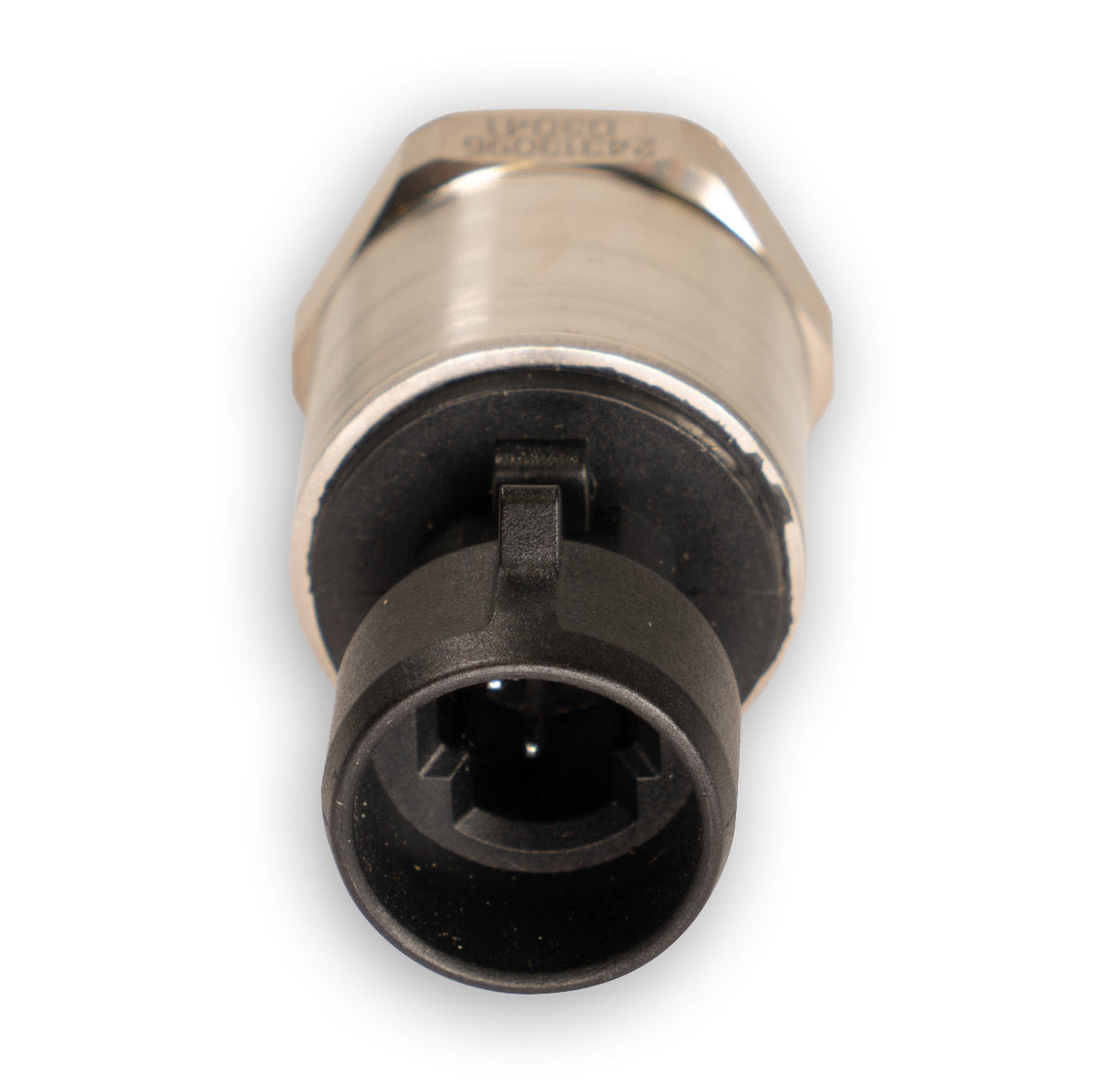

• Packard Metri-Pack electrical connector.

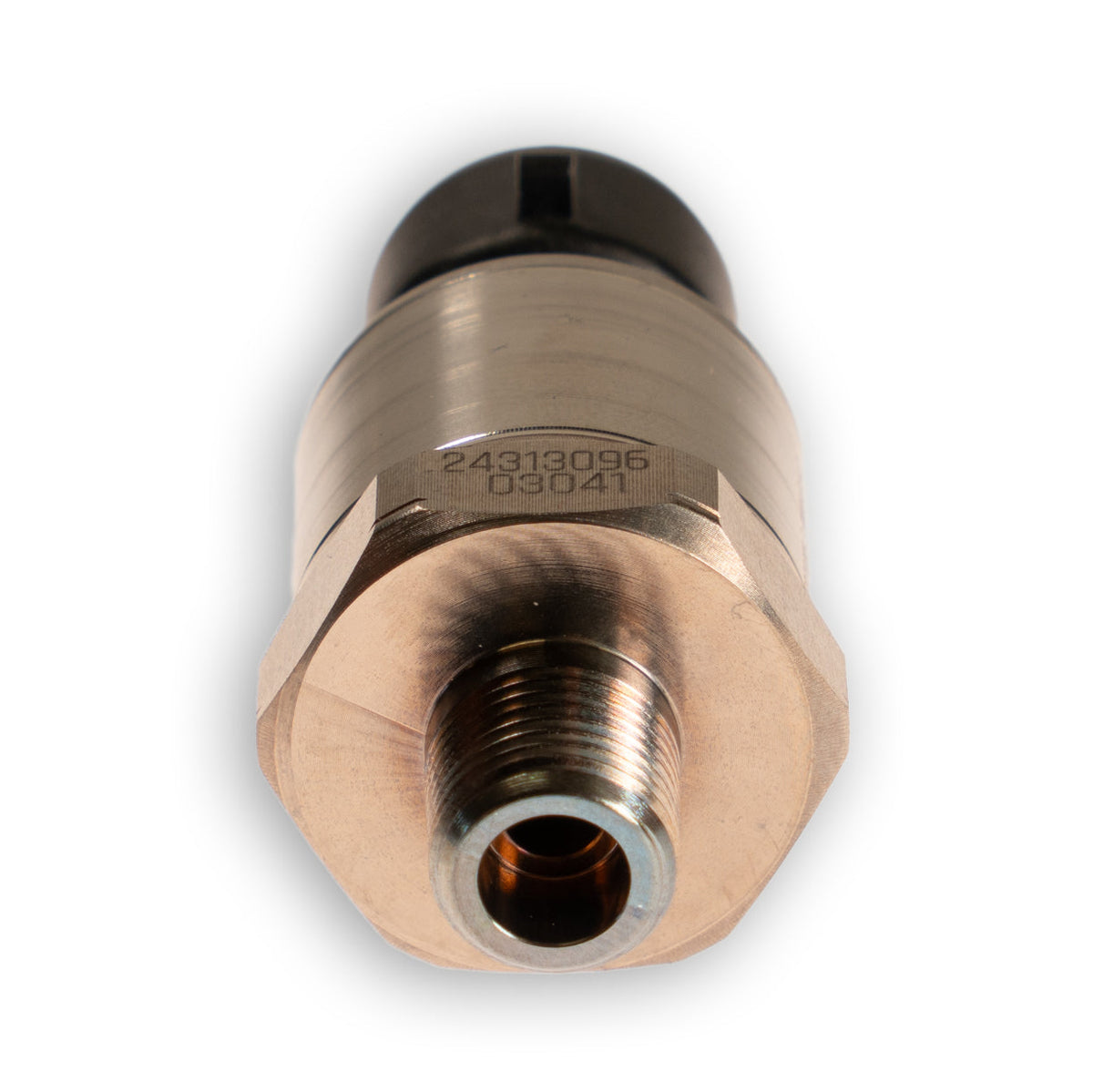

• 1/4"-18 NPT male pressure port.

Product Dimensions

• 50mm(L)x25mm(W)x25mm(H)
• 1.97in(L)x0.98in(W)x0.98in(H)

Product Weight

• 50 grams (1.76 ounces)

Electrical

• Operating Voltage Range: 5V
• Maximum Input Voltage: 5V

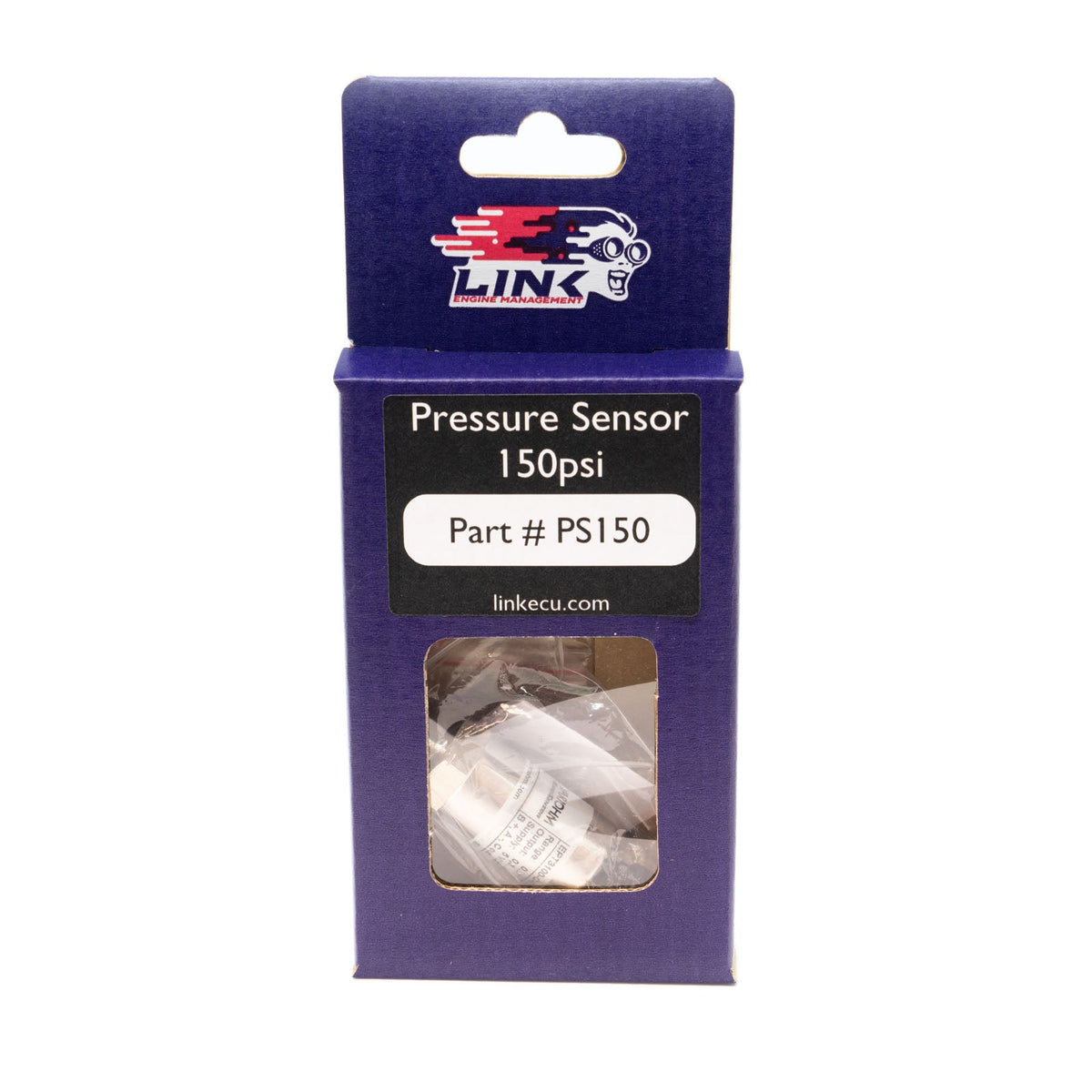

What's in the Box

• PS150 Pressure Sensor
• TI Sensor Connector Kit
• Printed Accessory instructions

PCLink Calibration Name

• "Bosch 10 Bar 0 261 230 340"

Raw Calibration Specs

• 0.5V = 0kPa, 4.5V = 1000kPa

Connector

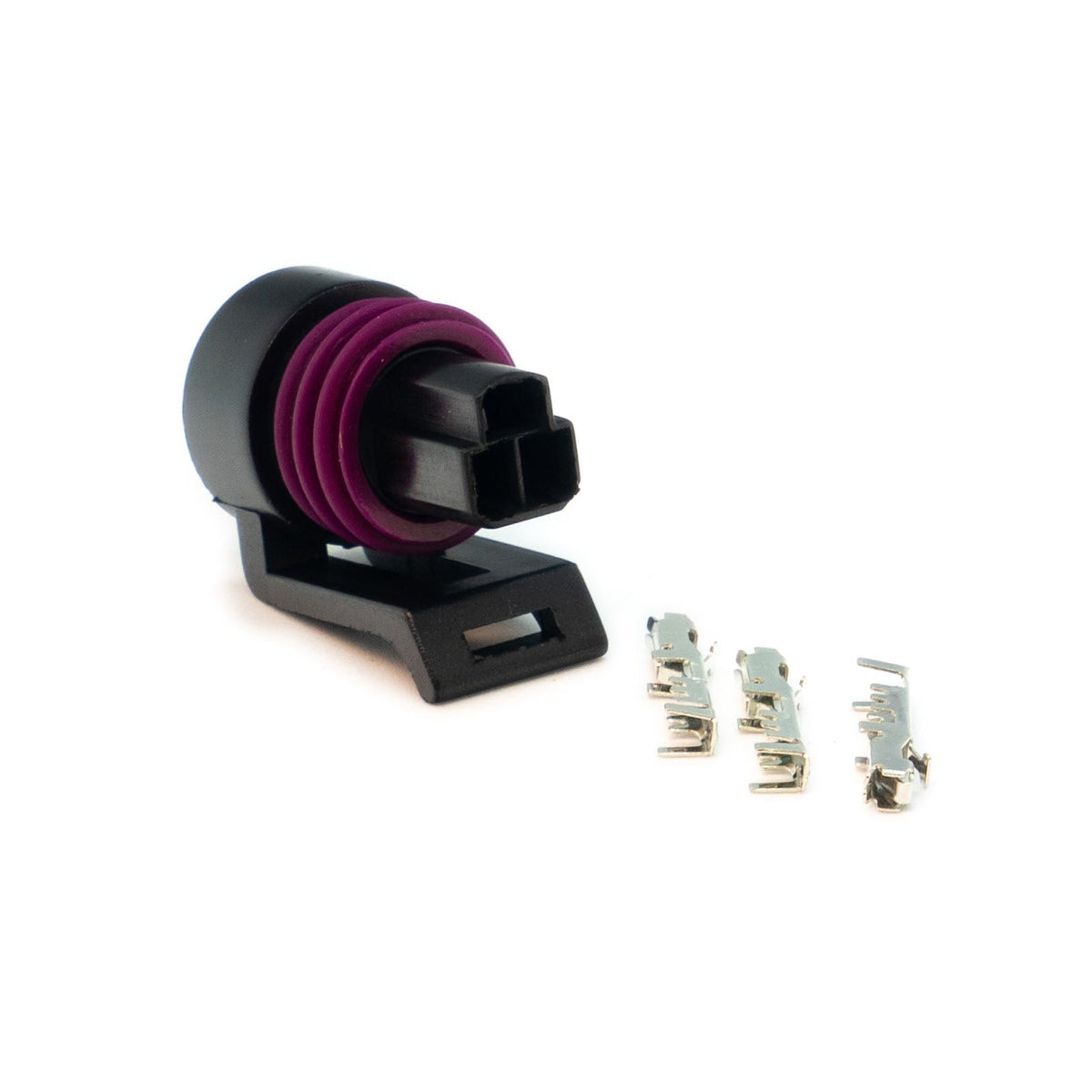

• TI Sensor Connector Kit 101-0130

Installation and ordering

Confirm connector type, wiring, supply voltage and compatibility with the ECU or connected device before purchase. Follow the relevant Link wiring diagram, calibration and mounting instructions. CAN devices require a compatible CAN configuration and correct bus termination. Accessories are included only where they are explicitly listed below.

Installation and Compatibility Checks

Verify the measurement range, pressure reference, thread and supply voltage. Set the correct sensor calibration in the ECU and confirm leak-free mounting.
