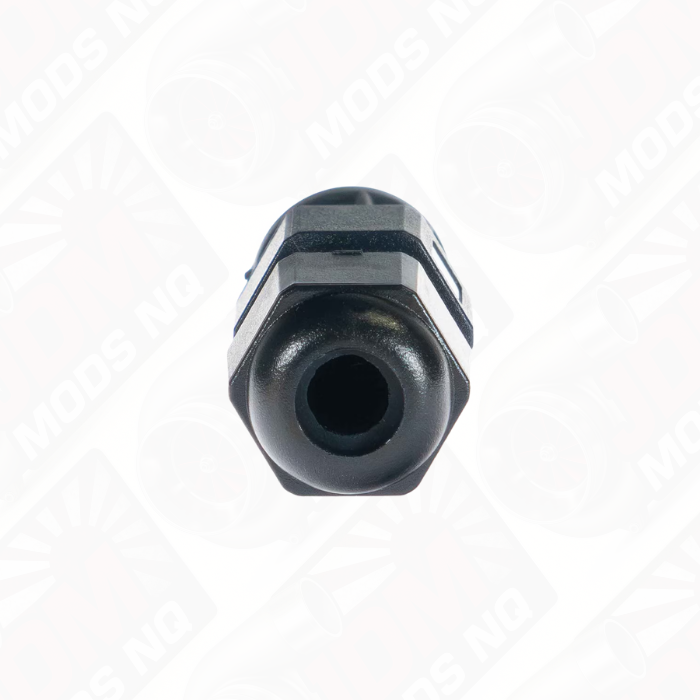

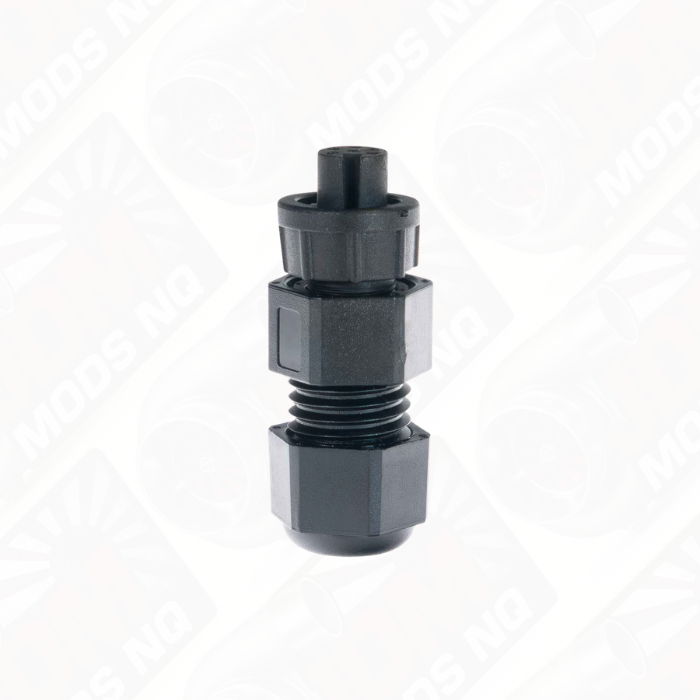

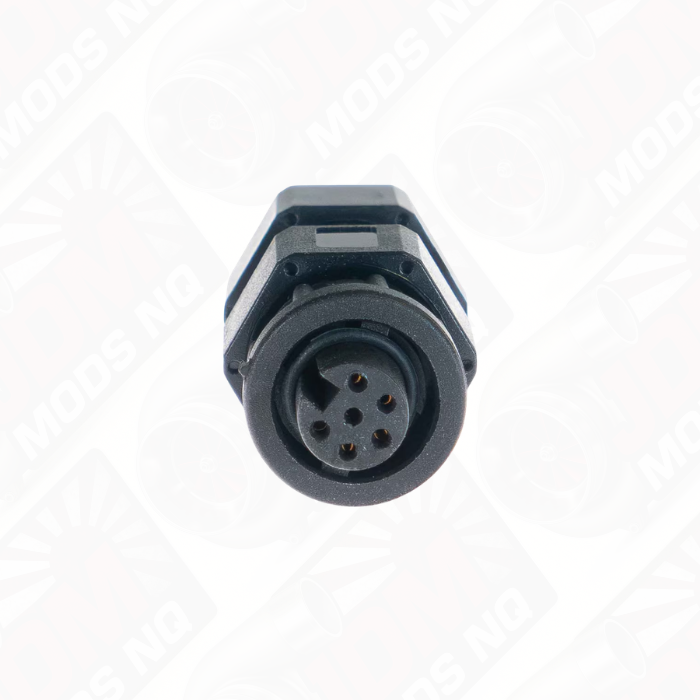

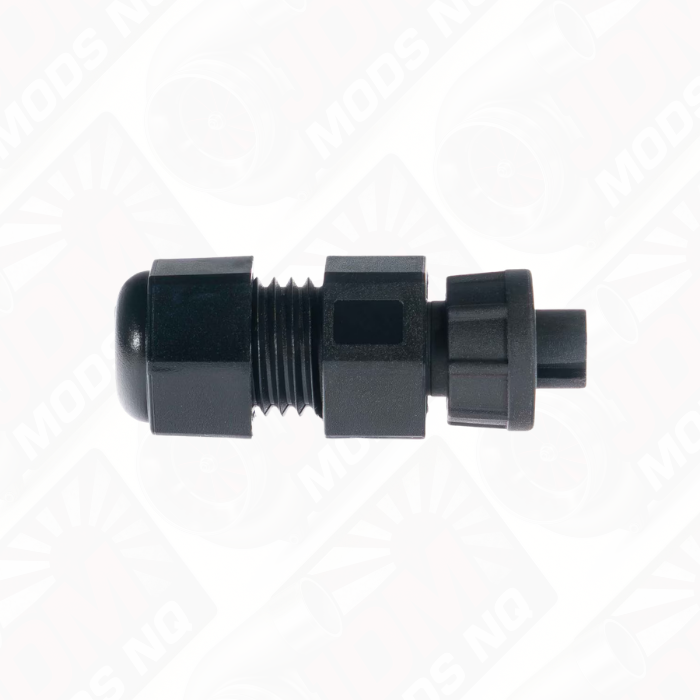

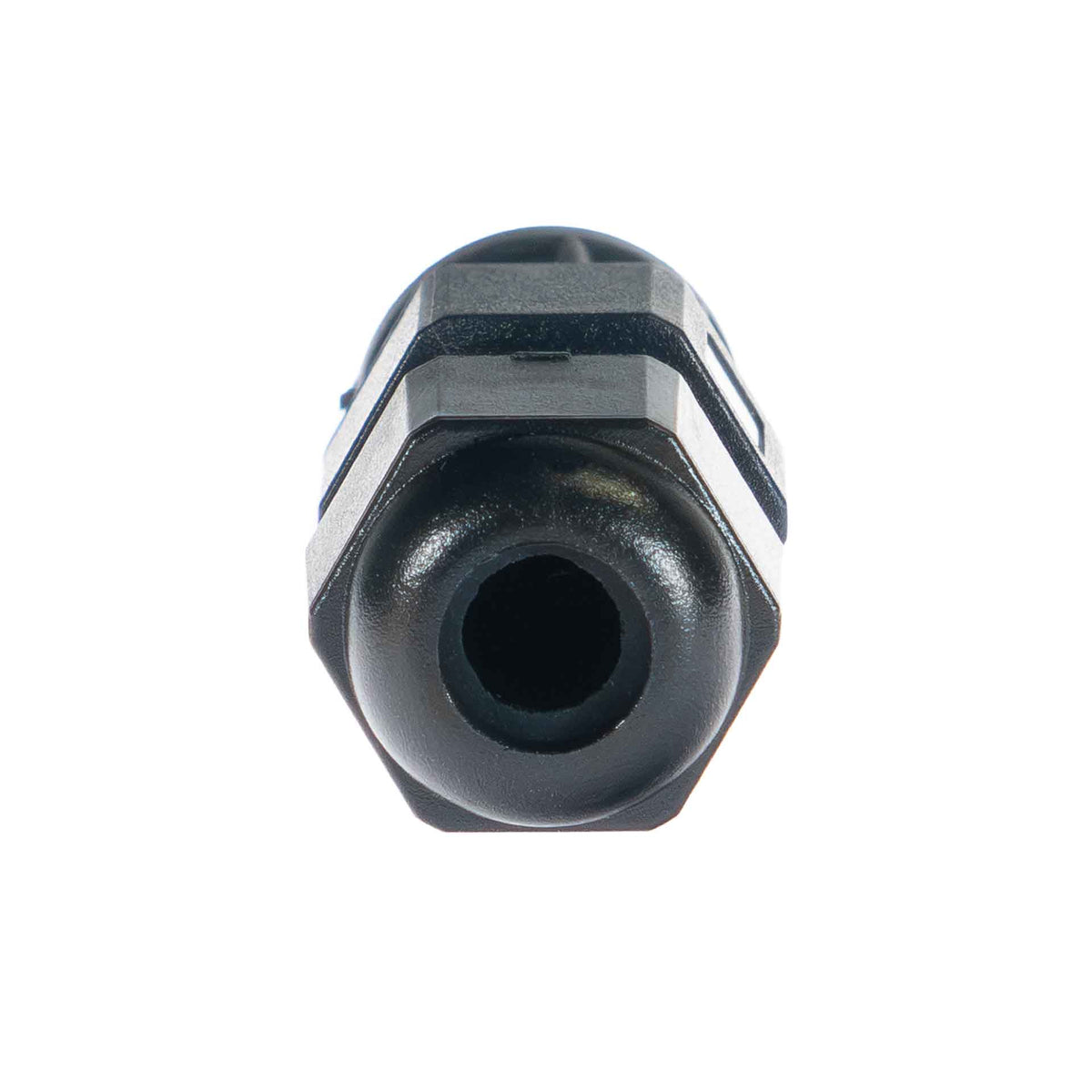

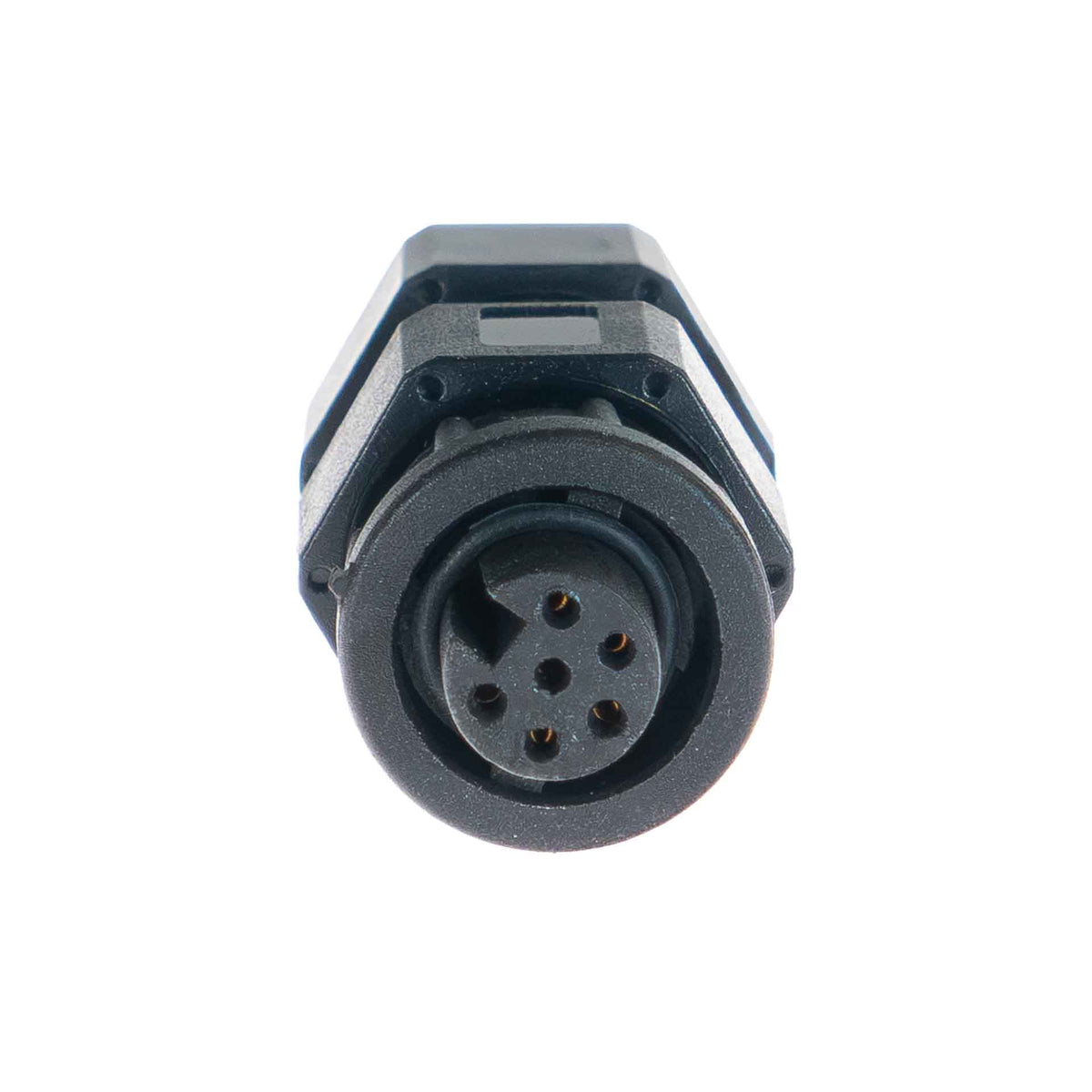

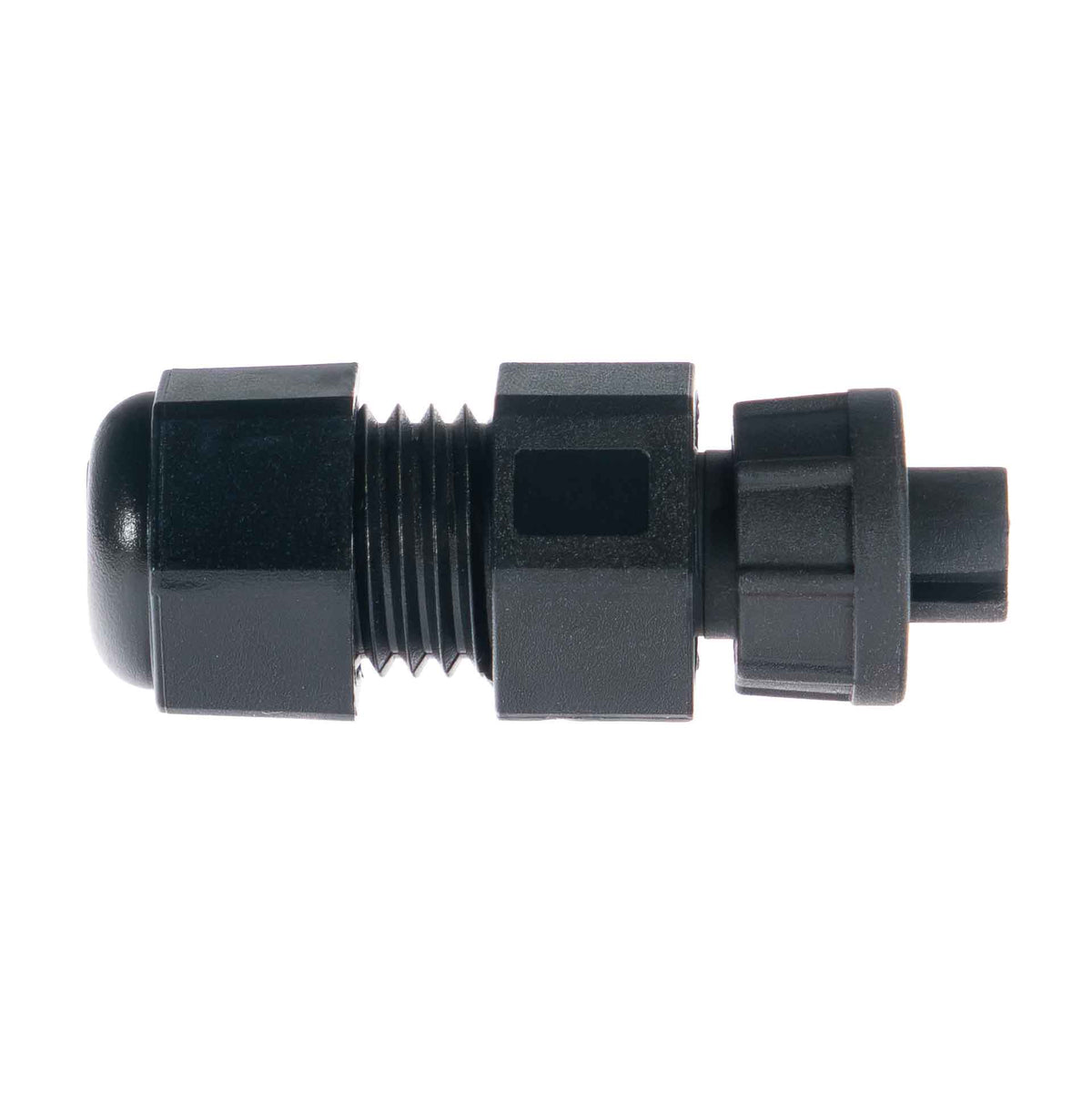

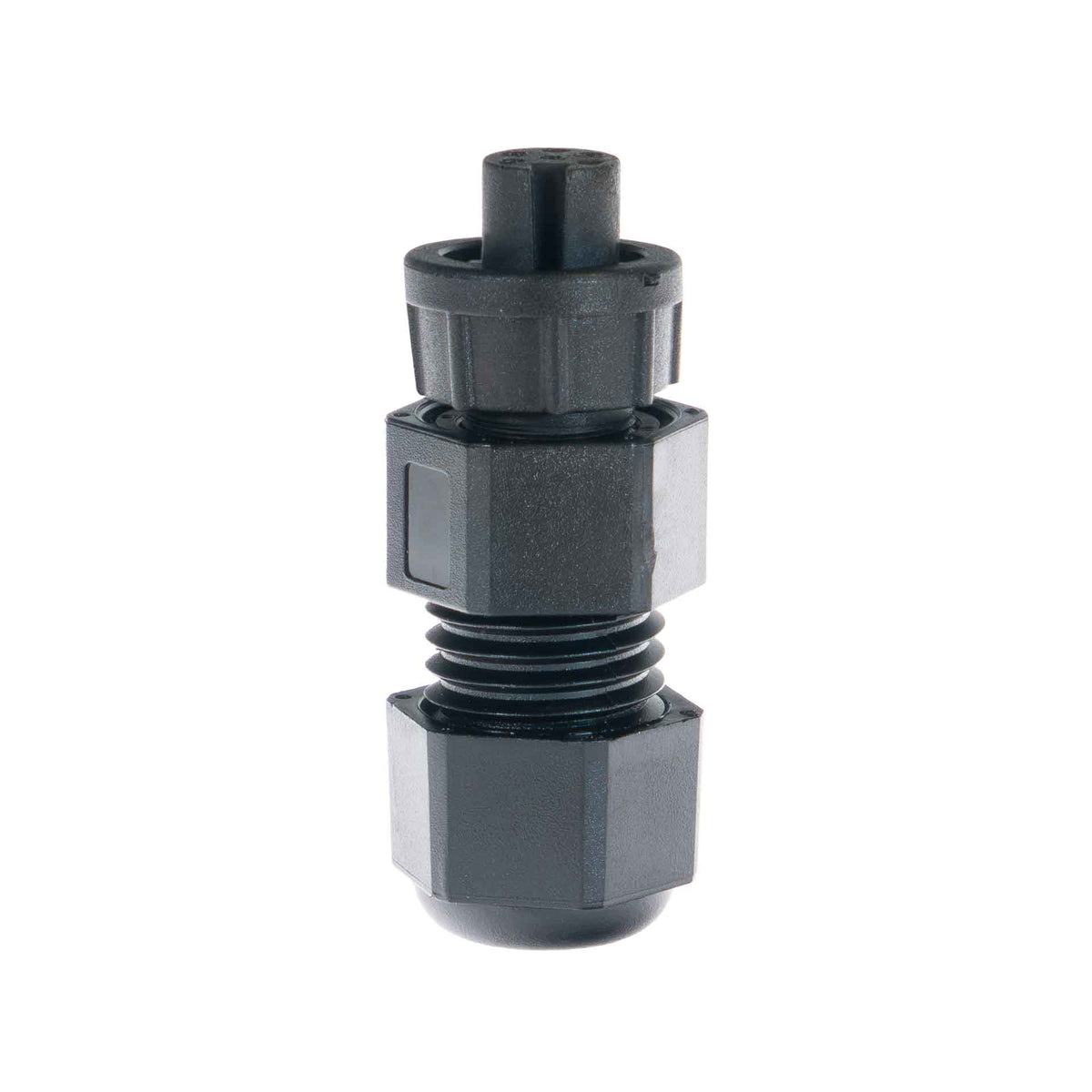

Link Plug (CANF)

Link Plug (CANF)

Available from JDM Mods NQ, the Link Plug (CANF) is a Link performance-electronics component for the compatible installation described below. Use the fitment, technical and package details below to select the correct part for your build.

Manufacturer part number: 101-0020

Models Supported

• Intended for wiring into the 6-pin CAN port on Link G4/G4+/G4X ECUs that have a round 6 pin CAN communication port.

Warnings

• Requires soldering for assembly.

Product Dimensions

• 45mm(L)x20mm(W)x20mm(H)
• 1.77in(L)x0.79in(W)x0.79in(H)

Product Weight

• 5 grams (0.18 ounces)

Electrical

• Maximum Input Voltage: 500V
• Maximum Continuous Current Draw: 2A
• Gauges of wire: 26-24 AWG/0.14-0.25mm2

What's in the Box

• Field installable CAN plug
• Printed Accessory instructions

Installation and ordering

Check the specified application, dimensions and package contents before ordering. Install and configure this part according to the relevant manufacturer instructions.

Installation and Compatibility Checks

Confirm the specified ECU or device connector, wire routing and pin assignments. Electrical installation should follow the correct wiring diagram, with protection and CAN termination where required.
