Link ECU Pin Kit E (TKE) – 26-Pin Superseal Connector Kit
Build or repair the E connector on a compatible Link ECU loom with this genuine Link connector kit from JDM Mods NQ. MPN 101-0293 supplies the connector housing and terminals for custom wiring or replacement of a damaged connector.
Compatibility
The 26-position E connector is used on the Link G5 Voodoo Pro ECU. Check the exact connector designation and ECU pinout before ordering. This kit is a connector and terminal set; it is not an ECU or a complete wiring loom.
Technical Specifications
| Connector | 26-position Superseal E housing |
|---|---|
| Terminal finish | Gold contact finish |
| Wire sizes | 22 AWG / 0.3mm² to 16 AWG / 1.25mm² |
| Dimensions | 30 × 35 × 35mm |
| Weight | 15g |
| Manufacturer-listed electrical ratings | Operating voltage 6–18V; maximum input voltage 250V; continuous current 3–15A, subject to terminal and wire size. These connector ratings are not the ECU operating limits. |

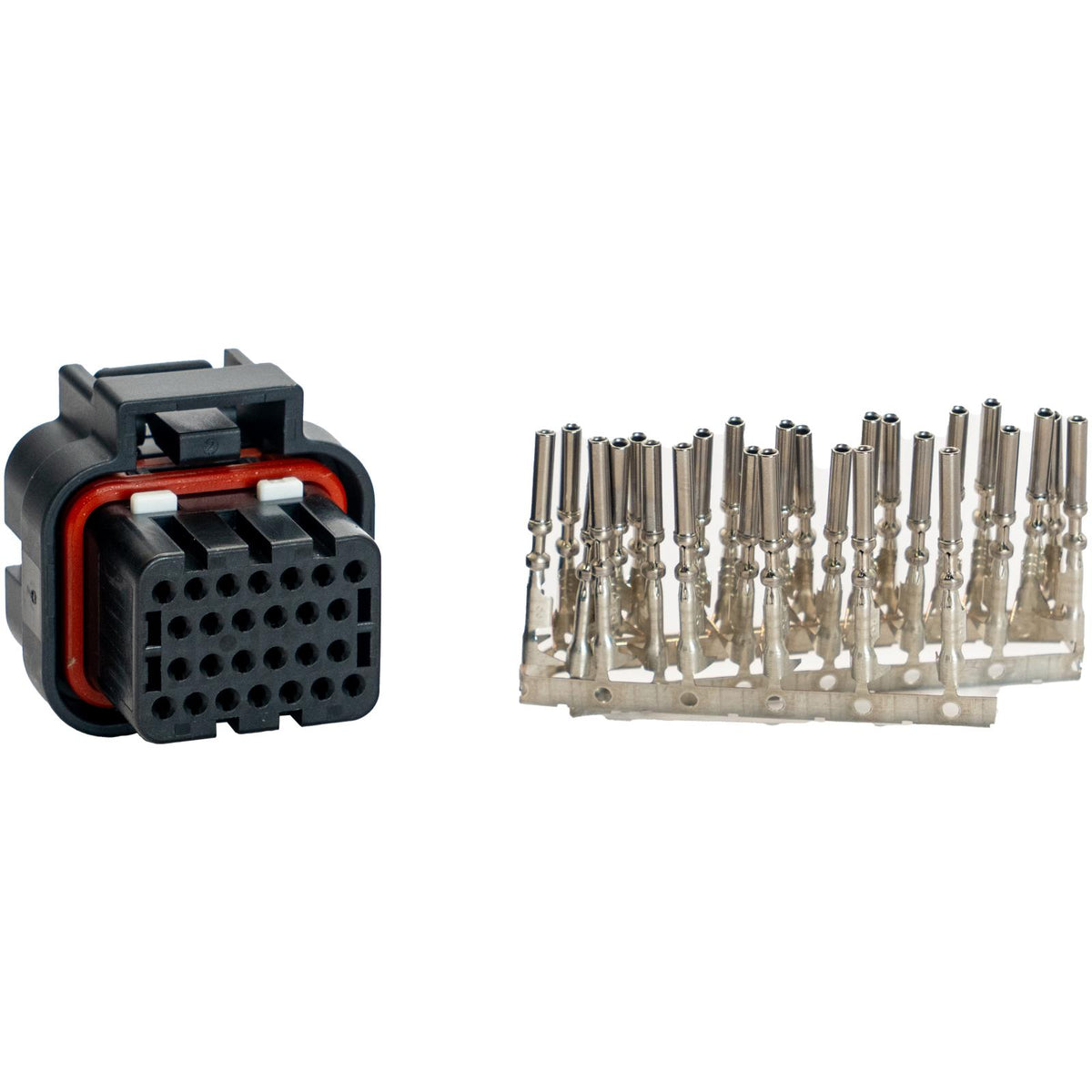

Package Contents

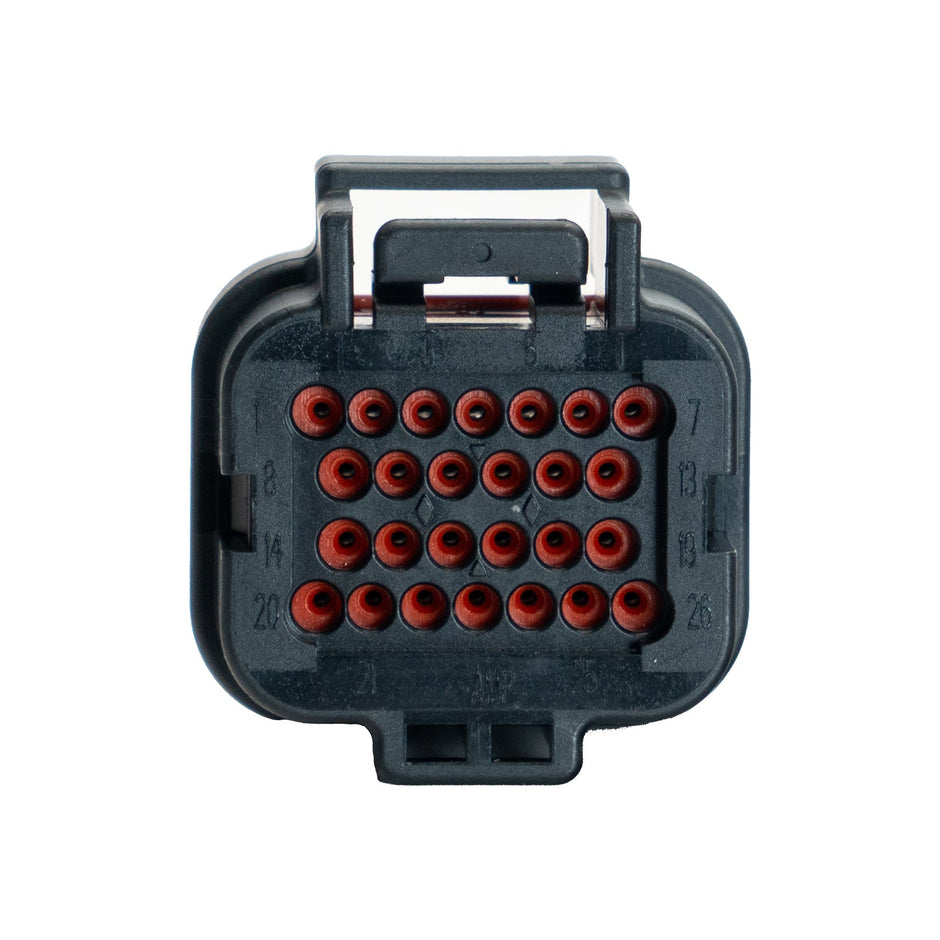

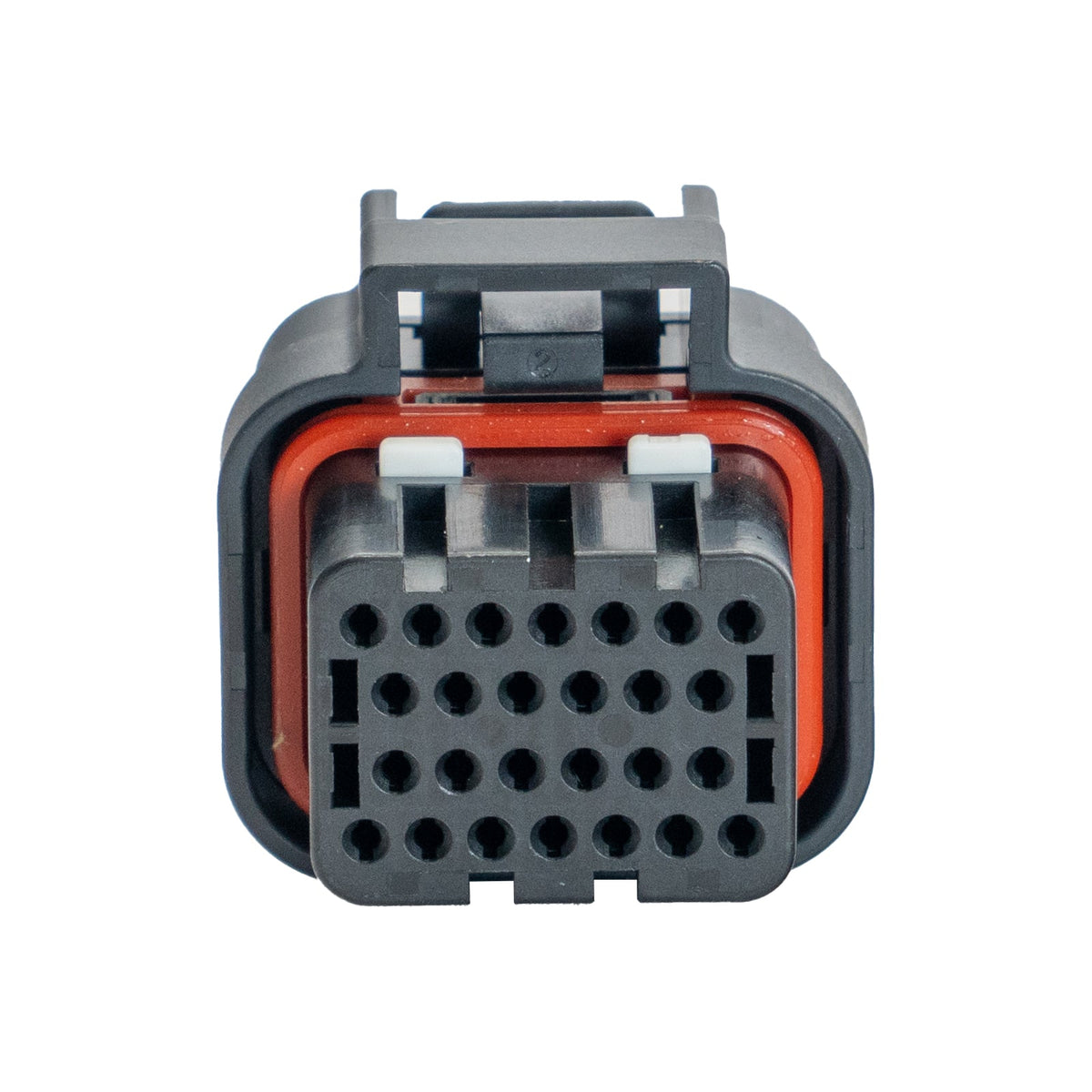

- 1 × 26-position Superseal E connector housing

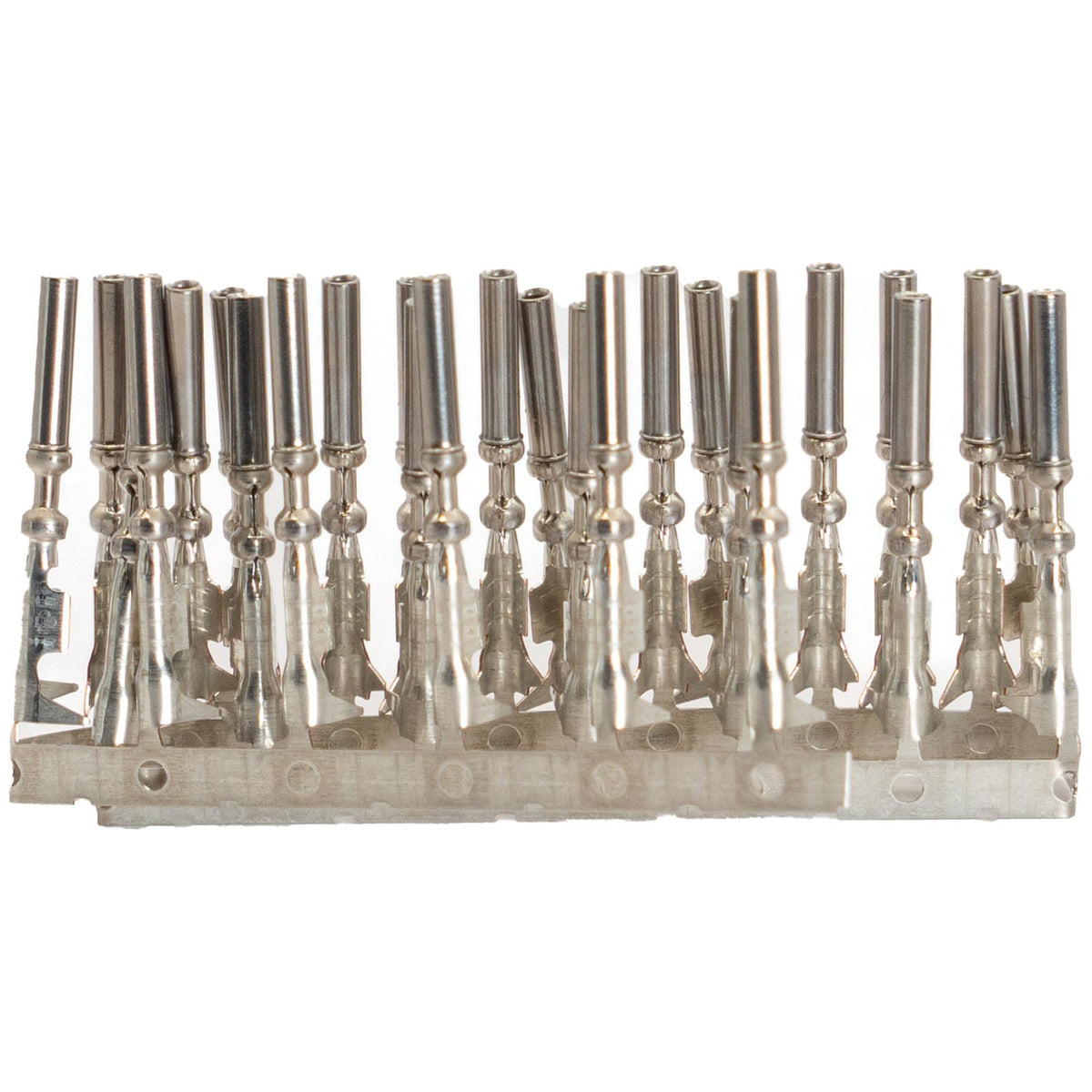

- 26 × gold-contact Superseal terminals
Installation Requirements
Use the correct Superseal terminal crimping tool and the wiring diagram for the specific ECU. Verify terminal retention, pin assignments and continuity before connecting power. Wiring and additional installation components are purchased separately.
Manufacturer part number: 101-0293
