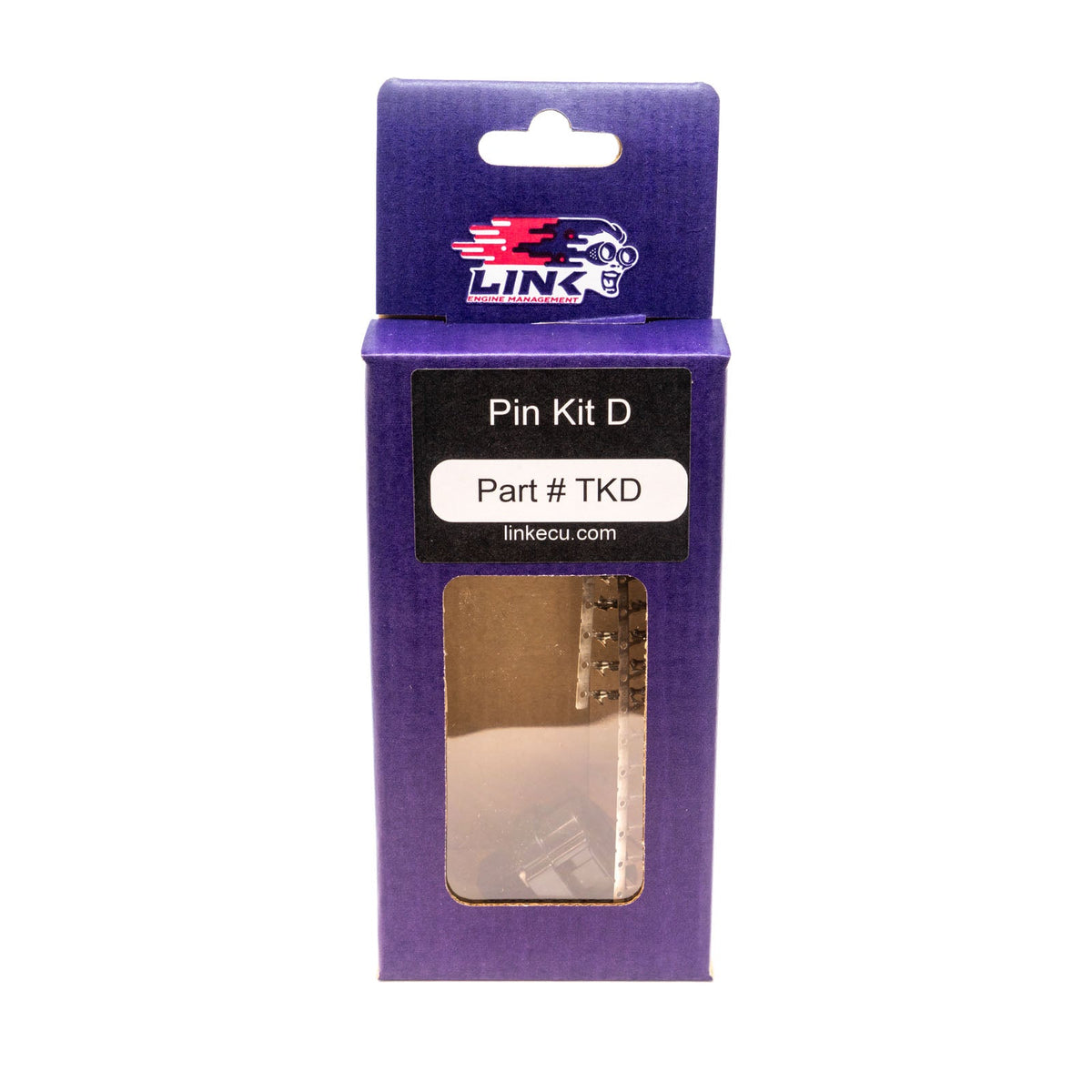

Link Pin Kit D (TKD)

Link Pin Kit D (TKD)

Available from JDM Mods NQ, the Link Pin Kit D (TKD) is a Link performance-electronics component for the compatible installation described below. Use the fitment, technical and package details below to select the correct part for your build.

Manufacturer part number: 101-0120

Models Supported

• Suitable for the G4+ Thunder ECU.

Product Dimensions

• 30mm(L)x30mm(W)x30mm(H)
• 1.18in(L)x1.18in(W)x1.18in(H)

Product Weight

• 20 grams (0.71 ounces)

Electrical

• Operating Voltage Range: 6-18V
• Maximum Input Voltage: 250V
• Maximum Continuous Current Draw: 3-15A
• Gauges of wire: 22AWG/0.3mm2 - 16AWG/1.25mm2

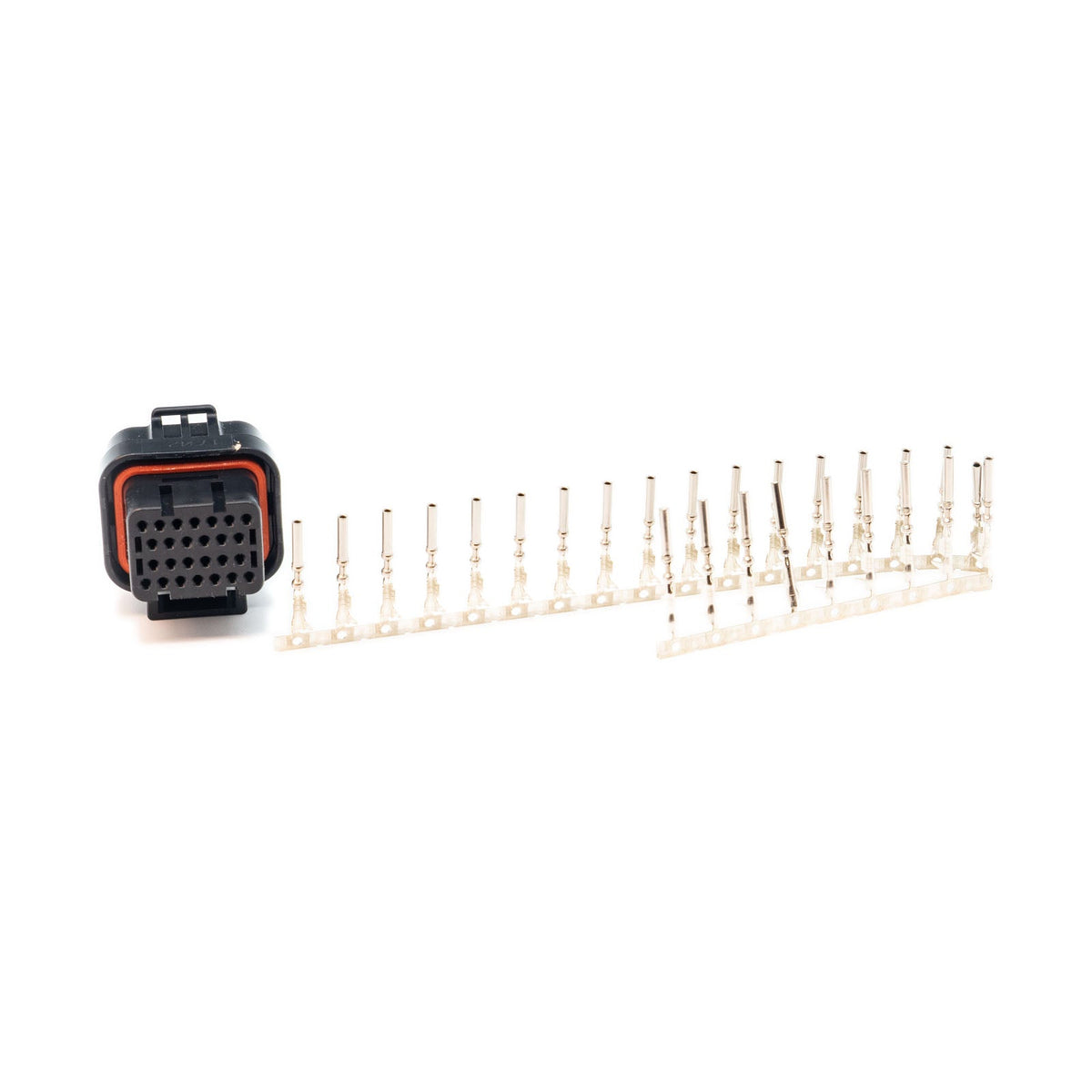

What's in the Box

• Connector Plug Housing 26POS 4 ROW
• 26x Superseal terminal

Installation and ordering

Check the specified application, dimensions and package contents before ordering. Install and configure this part according to the relevant manufacturer instructions.

Installation and Compatibility Checks

Use the correct terminal crimping tool and the pinout for the intended connector. Verify terminal retention, continuity and pin assignments before applying power.
