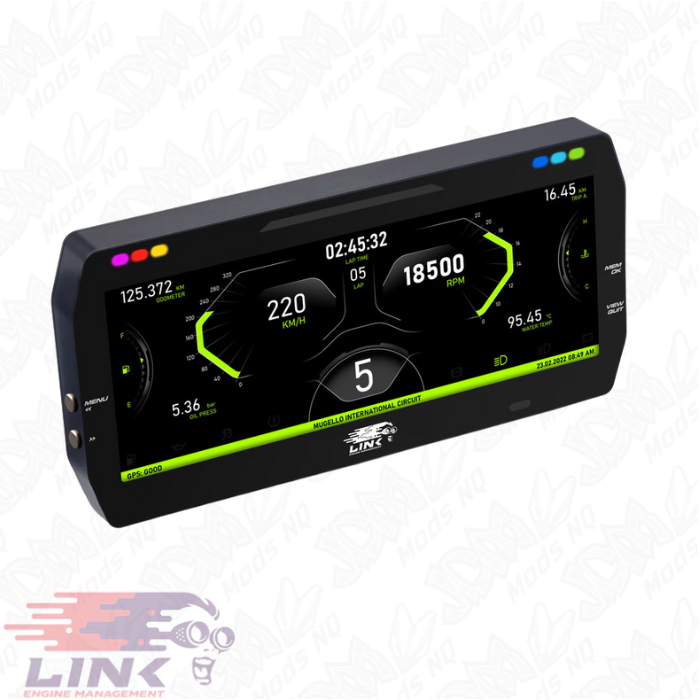

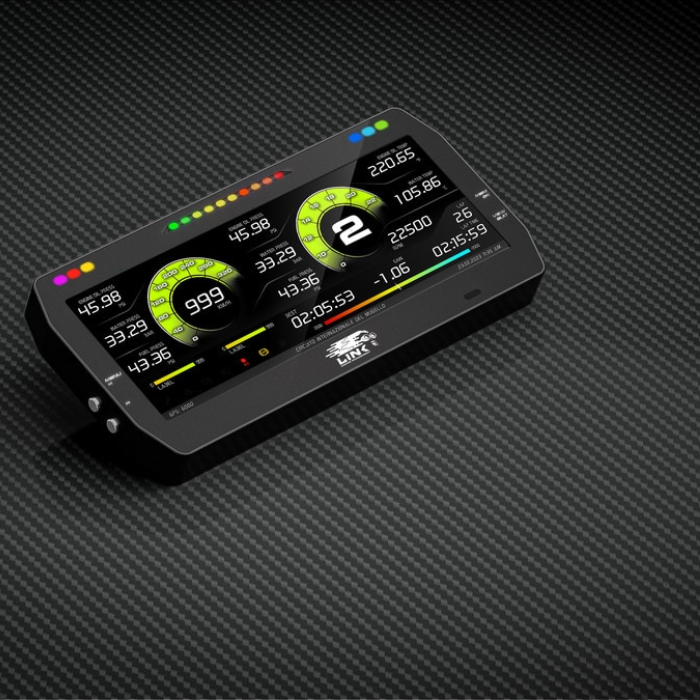

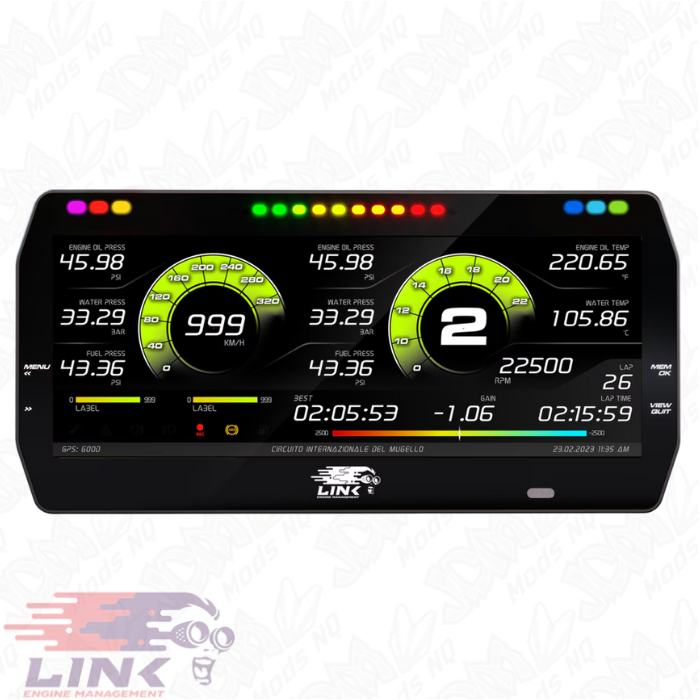

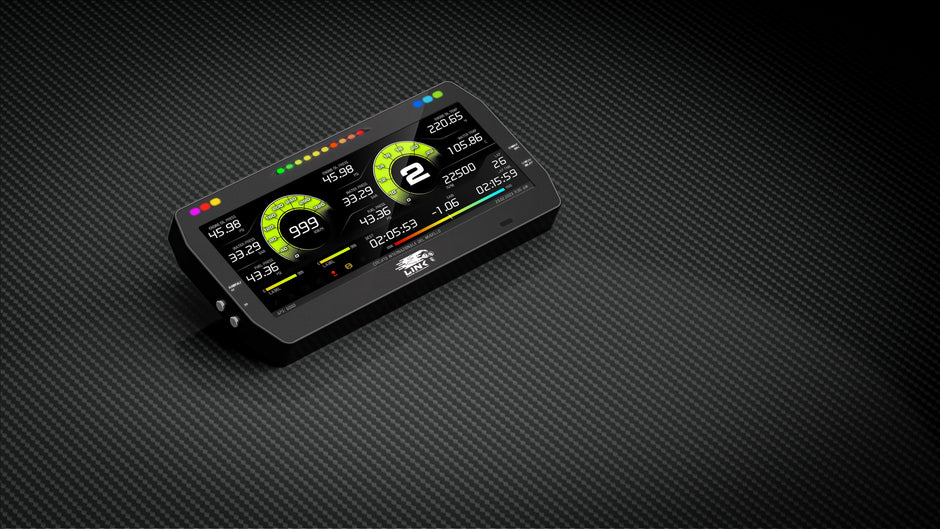

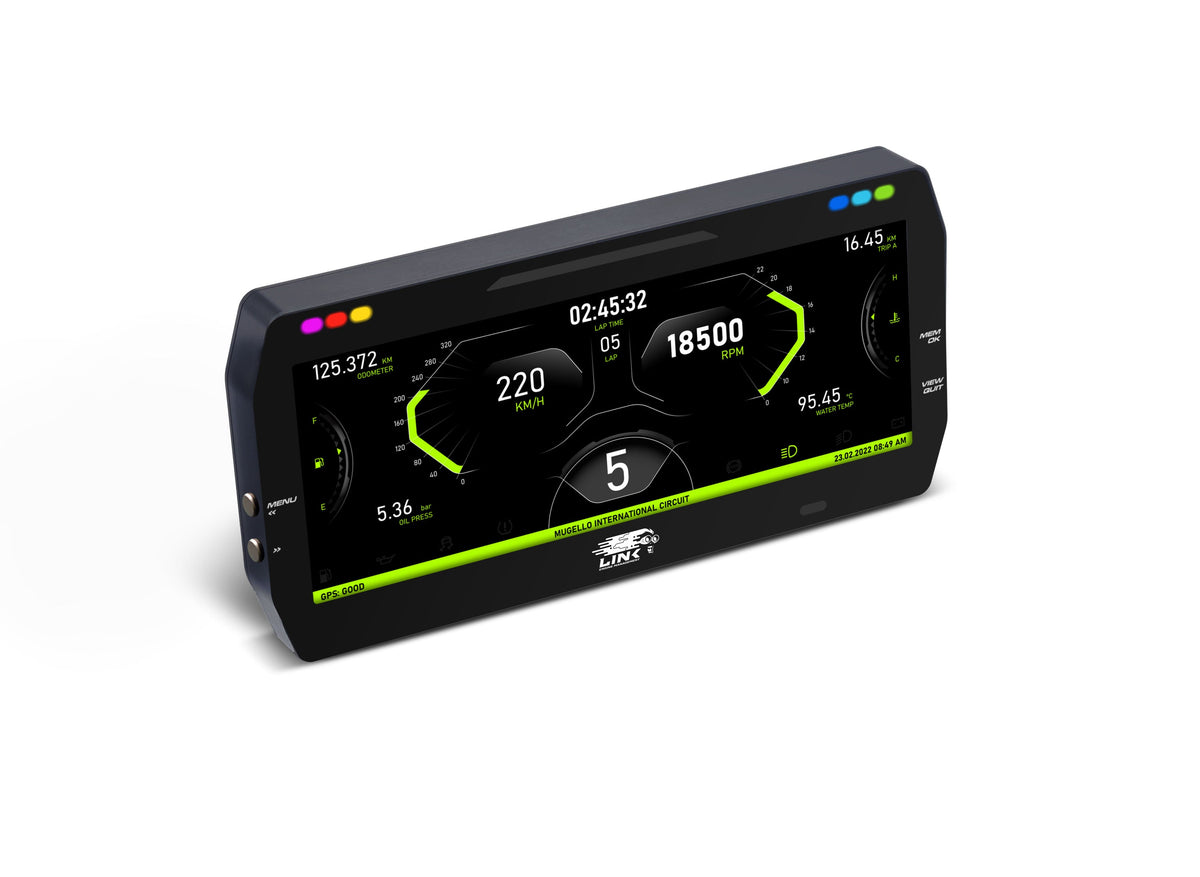

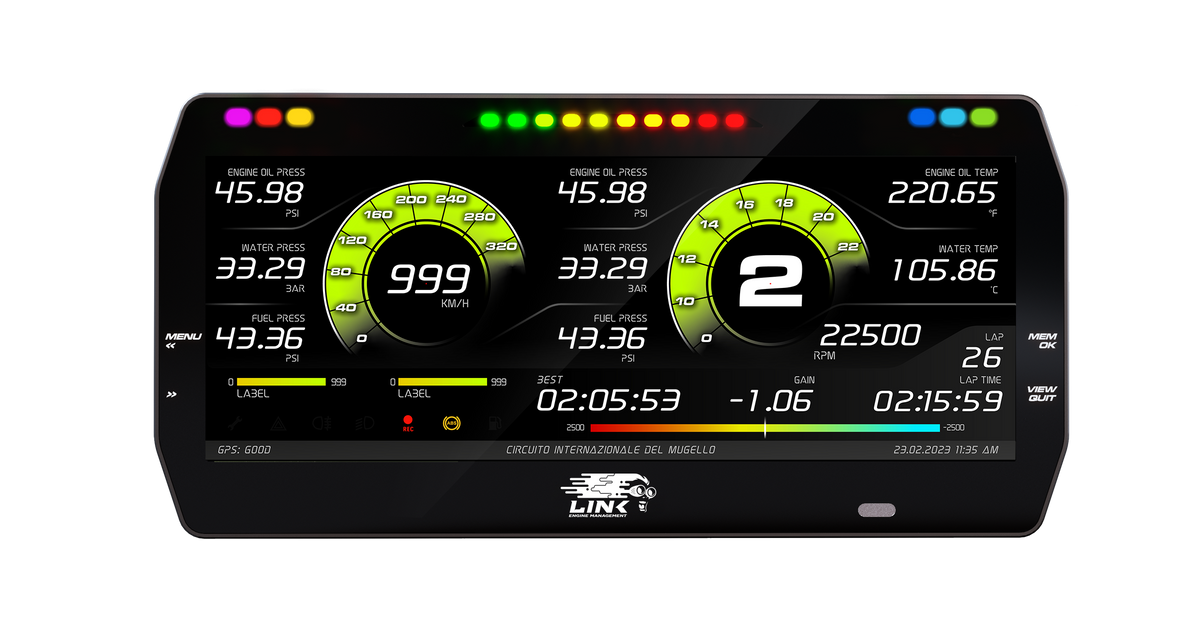

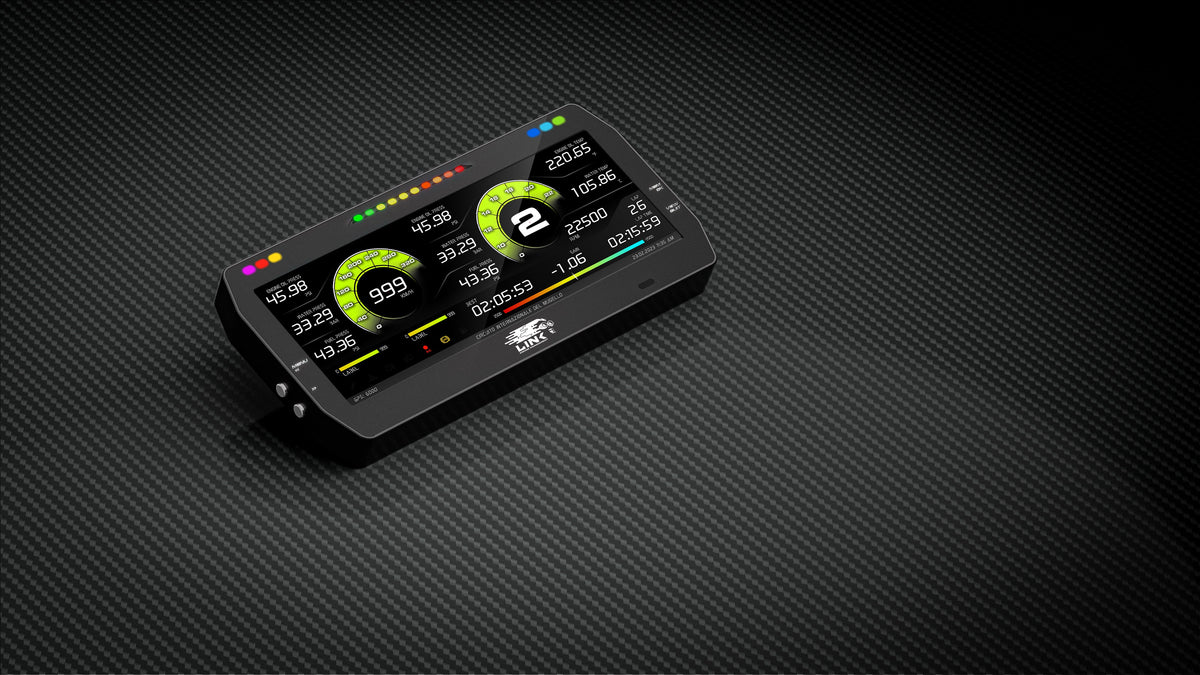

Link AIM MXT 10" Dash - LinkECU Strada Race Edition

Link AIM MXT 10" Dash - LinkECU Strada Race Edition

Available from JDM Mods NQ, the Link AIM MXT 10" Dash - LinkECU Strada Race Edition is an engine-data display for a compatible vehicle electronics installation. Use the fitment, technical and package details below to select the correct part for your build.

Manufacturer part number: 100-0177

Models Supported

• The AiM MXT Strada 10 inch display is pre-configured to work with all Link G4+/G4X/G5 Wire-in and Plug-in ECU's.

Important

• This listing is for the 'Race edition', please see the 'Street edition' if you are looking for a dash for street use. The Strada dash is also available in 5-inch (MXS) and 7-inch (MXG) versions.

Highlight Features

• 10" high-contrast TFT display
• 1280 x 480 pixel resolution
• Automatic brightness adjustment via ambient light sensor
• 10 freely configurable RGB shift lights
• 6 freely configurable RGB warning LEDs
• Multiple configurable display pages and layouts
• Three CAN connections
• Compatible with CAN, RS232 and K-Line ECU communications
• Compatible with a range of ECUs including Link ECUs
• Seamless Link ECU CAN integration
• Supports AiM CAN accessories including GPS, Channel Expansion, TC Hub, Lambda Controller and SmartyCam HD
• 8 fully configurable analogue inputs (up to 1 kHz each)
• Dedicated speed input and coil RPM input
• Configurable digital output

Screen Display

• Display: 10" Thin-Film Transistor (TFT)
• Resolution: 1,280 × 480 pixels
• Contrast Ratio: 1,100:1
• Brightness: 800 cd/m² (1,100 Lumens)
• CAN Ports: 3
• Analogue Inputs: 8
• Digital Inputs: 1 speed input, 1 coil RPM input
• Digital Outputs: 1 (1A max)
• Connectors: 2 AMPSEAL connectors + 1 Binder connector

Product Dimensions

• 278mm(L) x 135mm(W) x 43.2mm(H)10.95in(L) × 5.31in(W) × 1.70in(H)

Product Weight

• 1,100 grams (38.80 ounces)

Material

• Anodised Aluminium with Metallic Pushbuttons

Electrical

• Maximum Continuous Current Draw: 450mA

Misc.

• IP67 rated

What's in the Box

• Link MXT Strada 10" Race Edition Display
• USB cable
• 14 pin standard wiring
• 23 pin connector + contacts

Connector

• AMPSEAL 3 Row 23 Position, Part number 770680-1
• AMPSEAL 3 Row 14 Position, Part number 776273-2

Installation and ordering

Installation and Compatibility Checks

Confirm the ECU communication protocol, connectors and supplied harness. Configure display pages, warnings and the CAN data stream in the appropriate software.
