Available from JDM Mods NQ, the Link AIM MXS 5" Dash - LinkECU Strada Street Edition is an engine-data display for a compatible vehicle electronics installation. Use the fitment, technical and package details below to select the correct part for your build.

Manufacturer part number: 100-0168

Models Supported

• The AiM MXS Strada 5 inch display is pre-configured to work with all Link G4+/G4X/G5 Wire-in and Plug-in ECU's.

Important

• This listing is for the 'Street edition', please see the 'Race edition' if you are looking for a dash for motorsport purposes. The Strada dash is also available in 7-inch (MXG) and 10-inch (MXT) versions.

Highlight Features

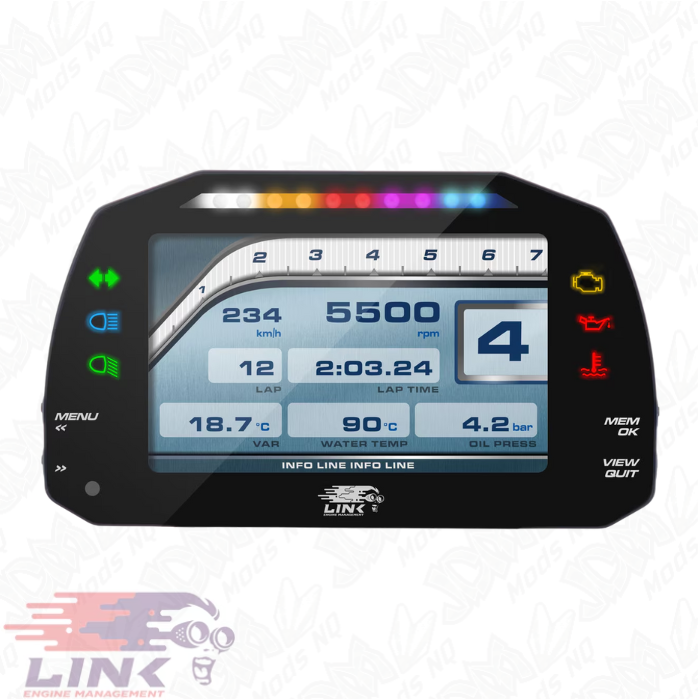

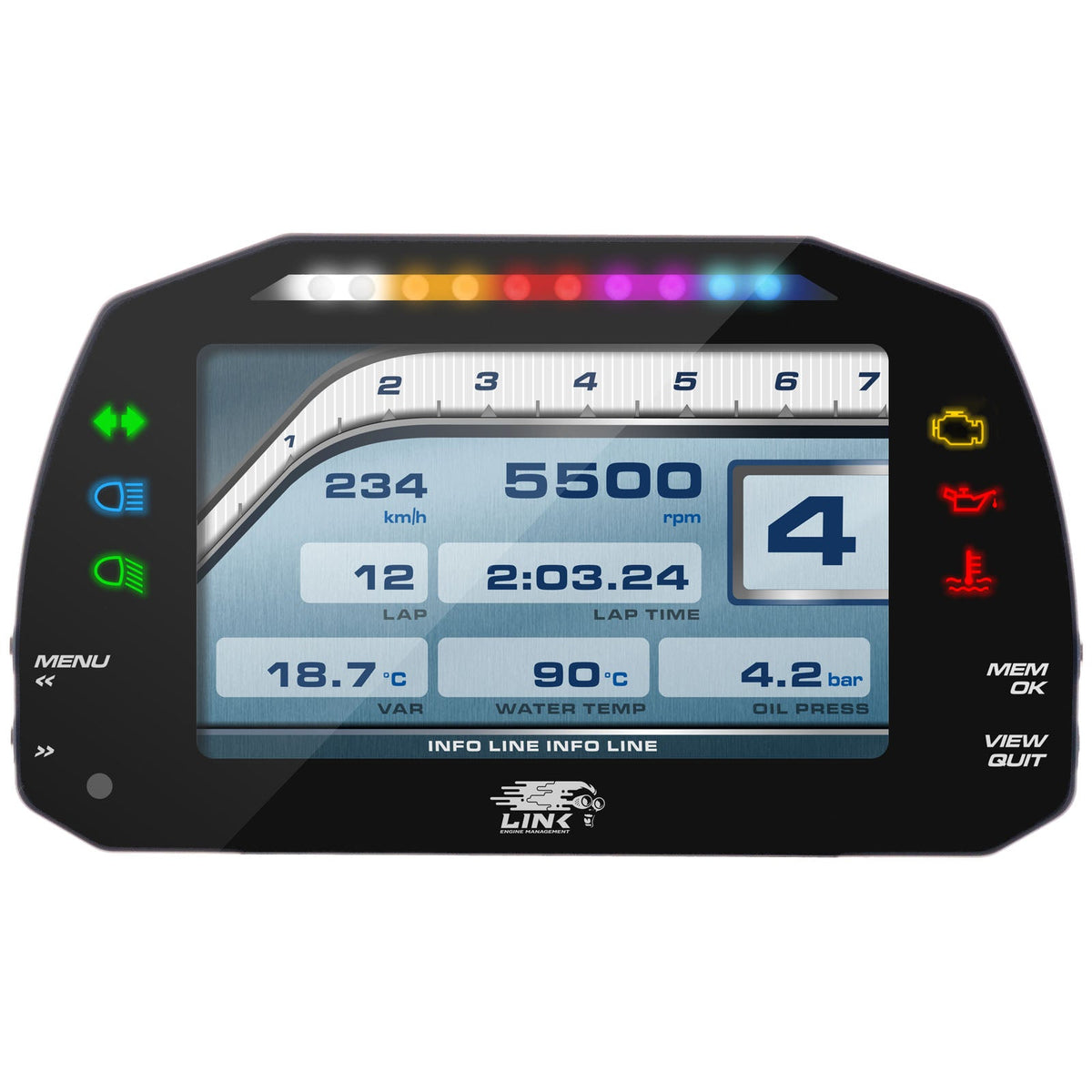

• 5" high-contrast TFT display
• 800 x 480 pixel resolution
• Automatic brightness adjustment via ambient light sensor
• 10 freely configurable RGB shift lights
• 6 freely configurable RGB warning LEDs
• Multiple configurable display pages and layouts
• Dual CAN connections
• Compatible with CAN, RS232 and K-Line ECU communications
• Compatible with a range of ECUs including Link ECUs
• Seamless Link ECU CAN integration
• Supports AiM CAN accessories including GPS, Channel Expansion, TC Hub, Lambda Controller and SmartyCam HD
• 4 fully configurable analogue inputs (up to 1 kHz each)
• Dedicated speed input and coil RPM input
• Configurable digital output

Screen Display

• Display: 5" Thin-Film Transistor (TFT)
• Resolution: 800 x 480 pixels
• Contrast Ratio: 600:1
• Brightness: 700 cd/m² (1,100 Lumens)
• CAN Ports: 2
• Analogue Inputs: 8
• Digital Inputs: 1 speed input, 1 coil RPM input
• Digital Outputs: 1 (1A max)
• Connectors: 2 AMPSEAL connectors
• Power Consumption: 400 mA

Product Dimensions

• 169.4mm(L) x 97mm(W) x 23mm(H) 6.67in(L) x 3.82in(W) x 0.91in(H)

Product Weight

• 480 grams (16.93 ounces)

Material

• Anodised Aluminium with Metallic Pushbuttons

Electrical

• Maximum Continuous Current Draw: 400mA

Misc.

• IP65 rated

What's in the Box

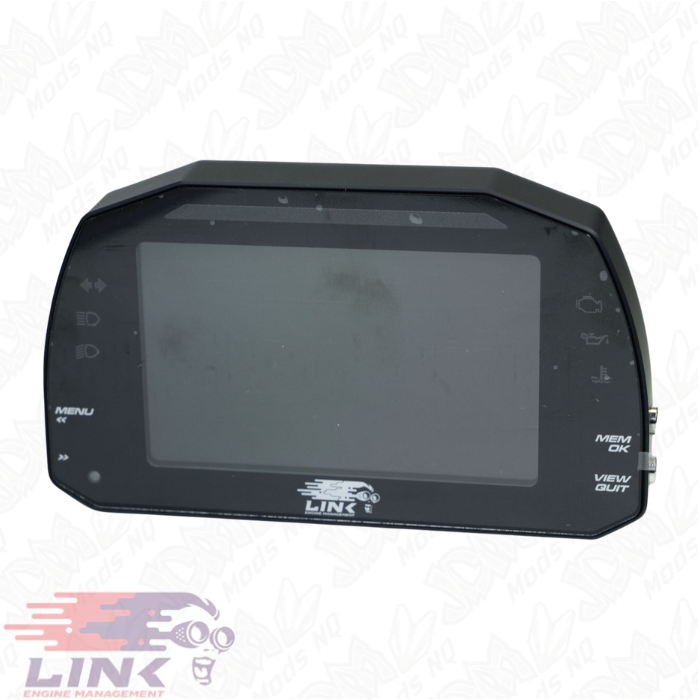

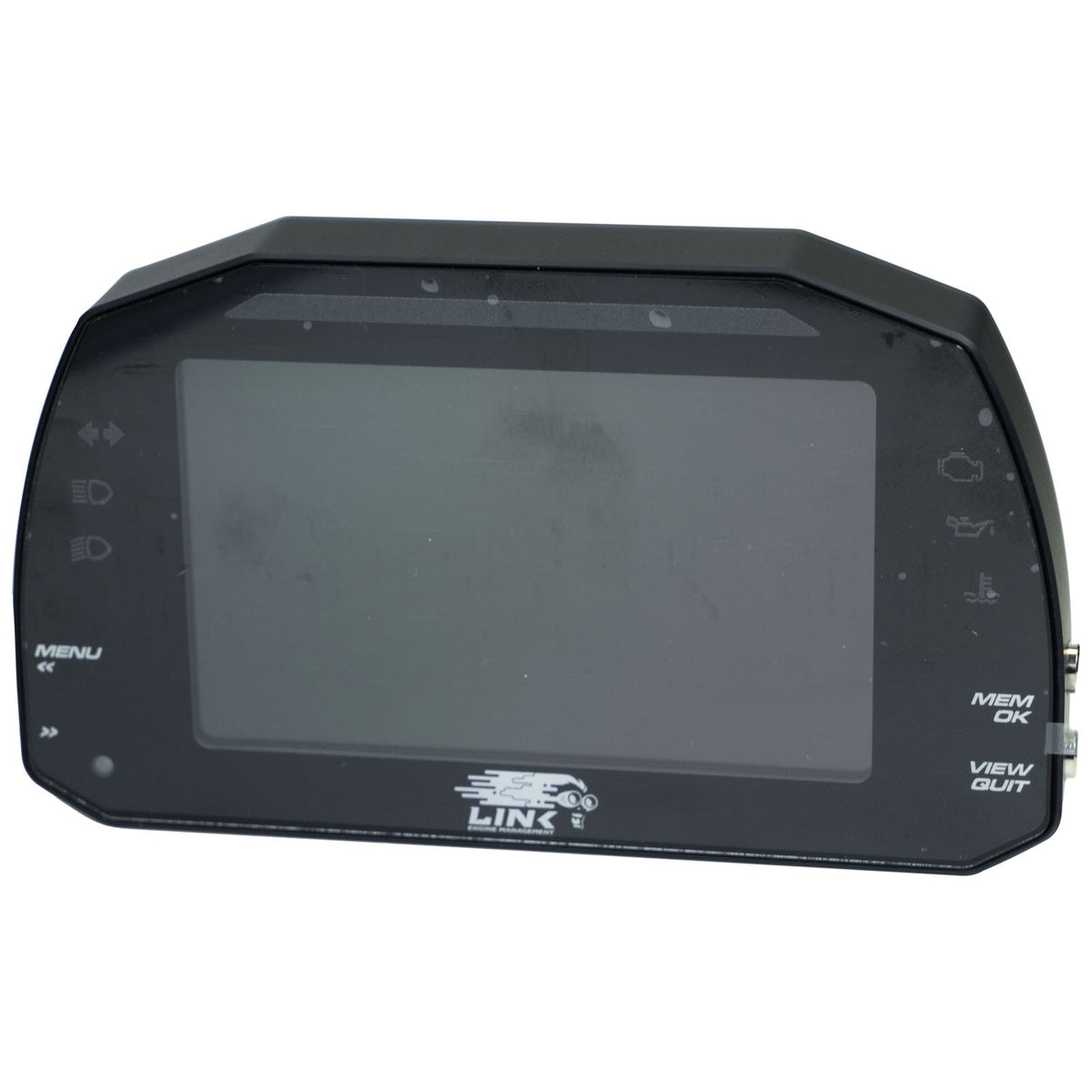

• Link MXS Strada 5" Street Edition Display
• USB cable
• 14 pin standard wiring
• 23 pin connector + contacts

Connector

• AMPSEAL 3 Row 23 Position, Part number 770680-1
• AMPSEAL 3 Row 14 Position, Part number 776273-2
