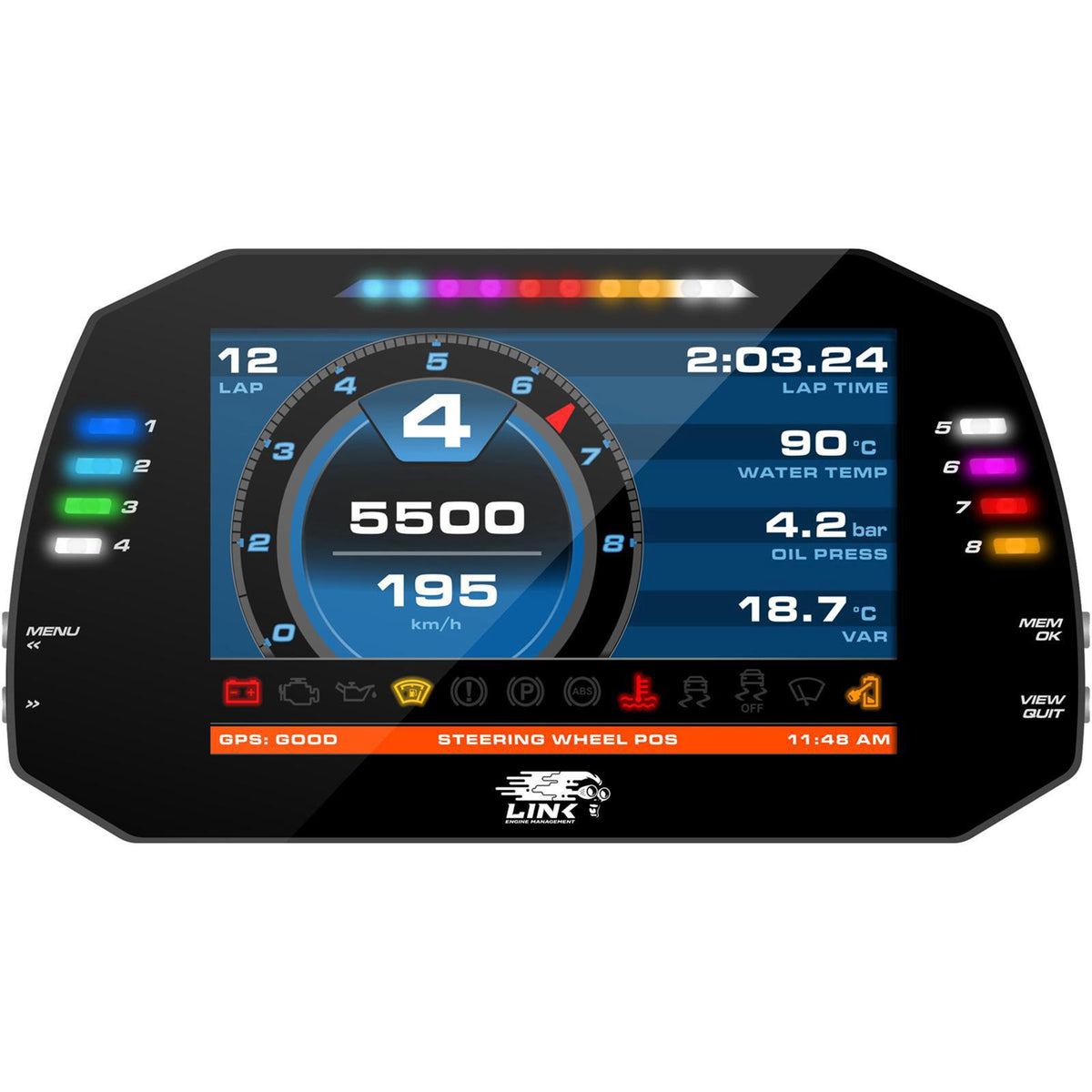

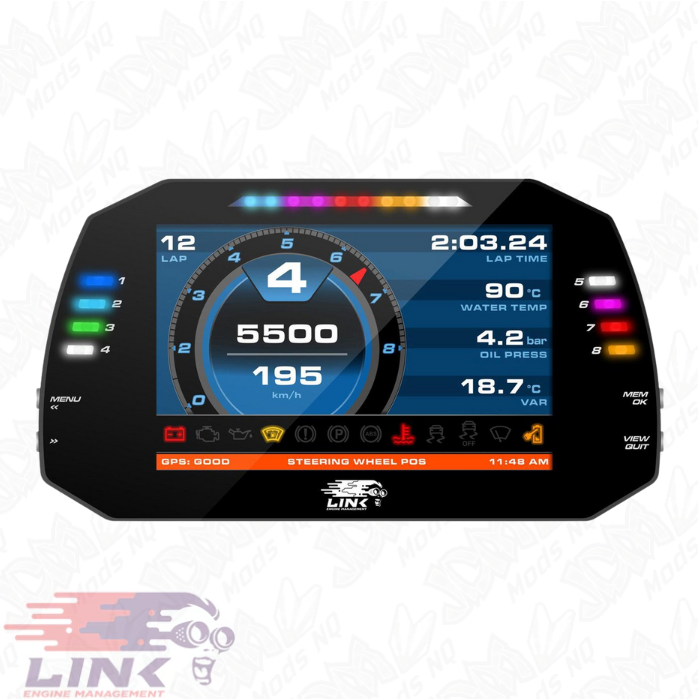

Link AIM MXG 7" Dash - LinkECU Strada Race Edition

Link AIM MXG 7" Dash - LinkECU Strada Race Edition

Available from JDM Mods NQ, the Link AIM MXG 7" Dash - LinkECU Strada Race Edition is an engine-data display for a compatible vehicle electronics installation. Use the fitment, technical and package details below to select the correct part for your build.

Manufacturer part number: 100-0173

Models Supported

• The AiM MXG Strada 7 inch display is pre-configured to work with all Link G4+/G4X/G5 Wire-in and Plug-in ECU's.

Important

• This listing is for the ‘Race edition’ please see the 'Street edition' if you are looking for a dash for street purposes.
• The Strada dash is also available in 5-inch (MXS) and 10-inch (MXT) versions.

Highlight Features

• 7" high-contrast TFT display
• 800 × 480 pixel resolution
• Automatic brightness adjustment via ambient light sensor
• 10 freely configurable RGB shift lights
• 8 freely configurable RGB warning LEDs

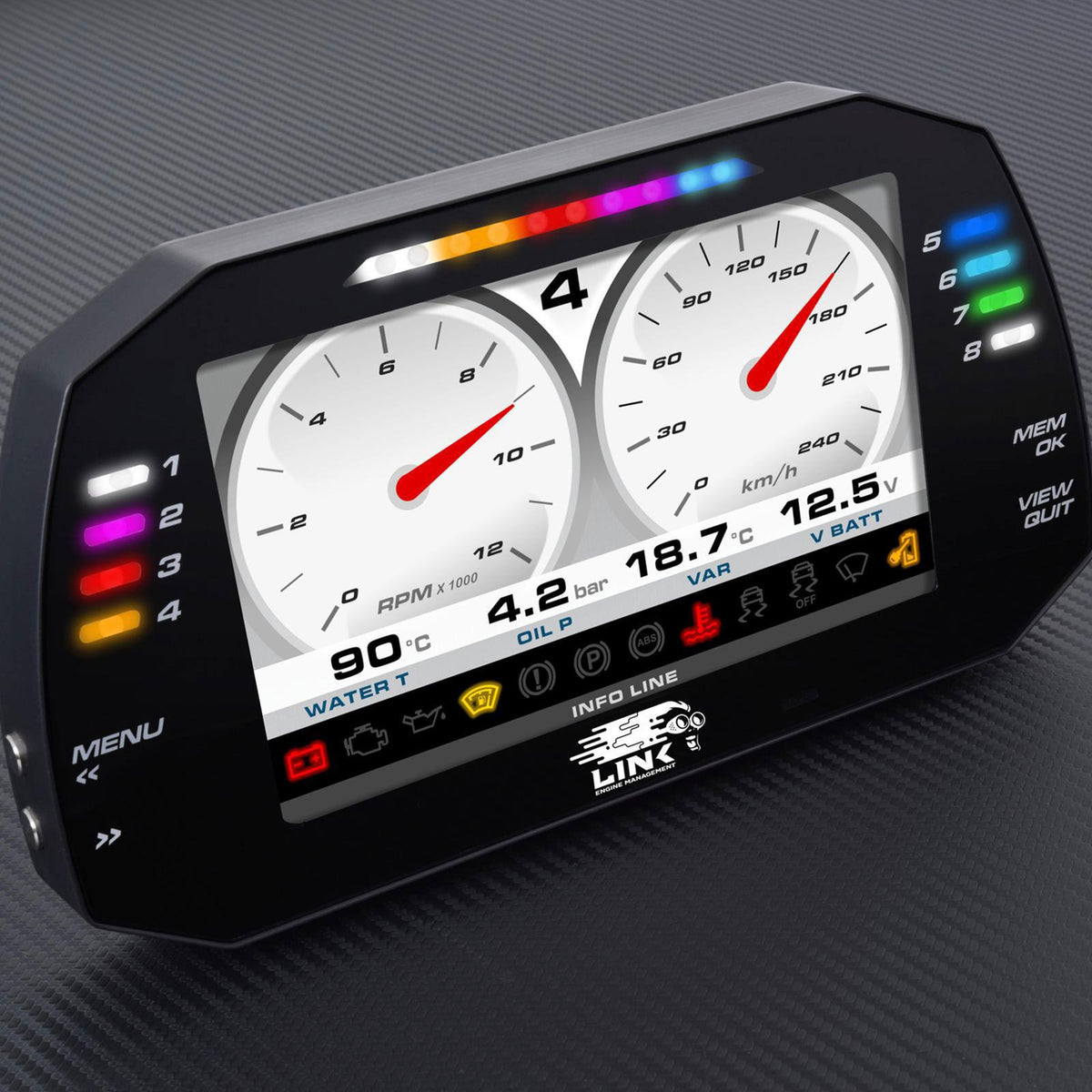

• Multiple configurable display pages and layouts
• Three CAN connections
• Compatible with CAN, RS232 and K-Line ECU communications
• Compatible with a range of ECUs including Link ECUs
• Seamless Link ECU CAN integration
• Supports AiM CAN accessories including GPS, Channel Expansion, TC Hub, Lambda Controller and SmartyCam HD
• 8 fully configurable analogue inputs (up to 1 kHz each)
• Dedicated speed input and coil RPM input
• Configurable digital output

Screen Display

• Display: 7" Thin-Film Transistor (TFT)
• Resolution: 800 × 480 pixels
• Contrast Ratio: 1000:1
• Brightness: 700 cd/m² (1,100 Lumens)
• CAN Ports: 3
• Analogue Inputs: 8
• Digital Inputs: 1 speed input, 1 coil RPM input
• Digital Outputs: 1 (1A max)
• Connectors: 2 AMPSEAL connectors + 1 Binder connector

Product Dimensions

• 237mm(L) x 127.6mm(W) x 26mm(H)9.33in(L) × 5.02in(W) × 1.02in(H)

Product Weight

• 950 grams (33.51 ounces)

Material

• Anodised Aluminium with Metallic Pushbuttons

Electrical

• Maximum Continuous Current Draw: 400mA

Misc.

• IP67 rated

What's in the Box

• Link MXG Strada 7" Race Edition Display
• USB cable
• 14 pin standard wiring
• 23 pin connector + contacts

Connector

• AMPSEAL 3 Row 23 Position, Part number 770680-1
• AMPSEAL 3 Row 14 Position, Part number 776273-2

Installation and ordering

Have an experienced installer confirm the engine, transmission, connector layout and available inputs and outputs before ordering. Follow the model-specific Link installation manual and configure the ECU in PCLink. Check sensor calibration, trigger settings, fuel and ignition setup, and engine-protection limits before running the engine. A supplied startup map requires calibration for the actual engine.

Listed tuning features depend on the vehicle hardware, firmware, available I/O and configuration. Shared or repurposed channels cannot perform every listed function simultaneously.
