Link LS Harness - Fuse and Relay Box
Available from JDM Mods NQ, the Link LS Harness - Fuse and Relay Box is a wiring component for the compatible Link installation listed below. Use the fitment, technical and package details below to select the correct part for your build.
Manufacturer part number: 101-0310
Models Supported
- Link Terminated LS Engine Harness (PN 101-0300).
- GM Gen 3 LS1 and LS6 engines.
- GM Gen 4 LS2, LS3, LS7 and LSA engines.
- Drive-by-Cable (DBC) and Drive-by-Wire (DBW) LS applications.
Warnings
- Designed exclusively for use with the Link Terminated LS Engine Harness.
- Drive-by-Wire (DBW) applications provide three ECU-controlled high-current relay outputs.
- Drive-by-Cable (DBC) applications using a stepper idle air control valve provide two ECU-controlled high-current relay outputs.
- Refer to the Link LS Engine Harness Manual for wiring and installation details.
Highlights
- The Link LS Drive-by-Wire Adapter has the following specifications:
- Plug-and-play fuse and relay box.
- Provides fused power distribution for the ECU and engine electrical system.
- Simplifies chassis wiring with as few as two required vehicle connections (battery and ignition), with optional fuel pump and cooling fan connections.
- Integrated ECU-controlled relay outputs for fuel pump and cooling fan operation.
- Supports ECU hold-power circuitry for stepper idle air control valve applications.
- IP67-rated sealed Busman enclosure.
- Manufactured in the USA using genuine Song Chuan automotive relays, TXL wire and ultrasonic welded splices.

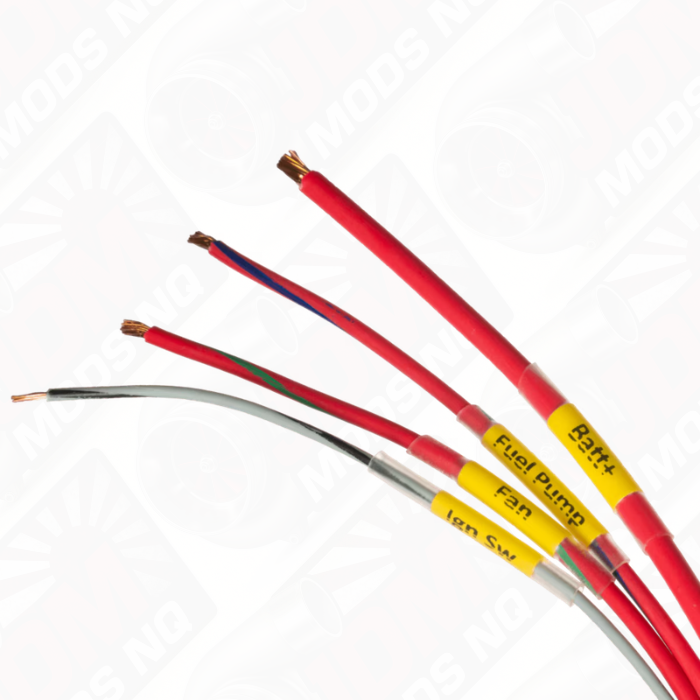

- Four 1500mm flying leads for battery, ignition switch, fuel pump and cooling fan connections

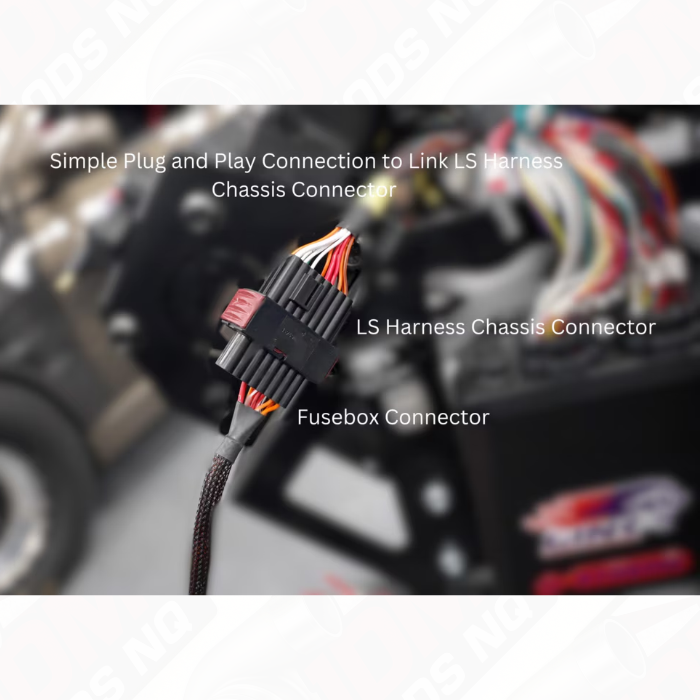

- 500mm harness connection to the Link LS Engine Harness.
Electrical
- Operating Voltage Range: 6-30V
Installation and ordering
Confirm connector type, wiring, supply voltage and compatibility with the ECU or connected device before purchase. Follow the relevant Link wiring diagram, calibration and mounting instructions. CAN devices require a compatible CAN configuration and correct bus termination. Accessories are included only where they are explicitly listed below.
Installation and Compatibility Checks
Confirm the specified device compatibility, connectors and installation requirements before ordering. Use a qualified installer for vehicle electrical work.
