Link LS Gen 4 Map Adapter Harness

Link LS Gen 4 Map Adapter Harness

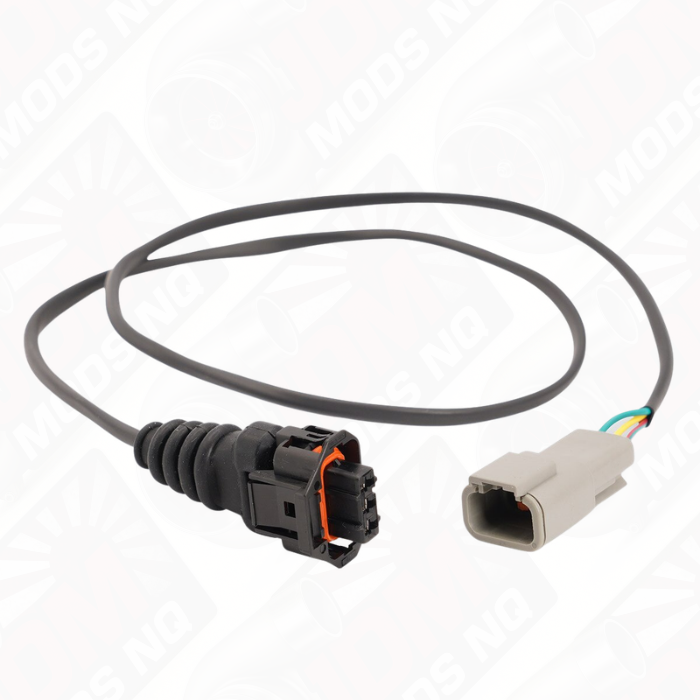

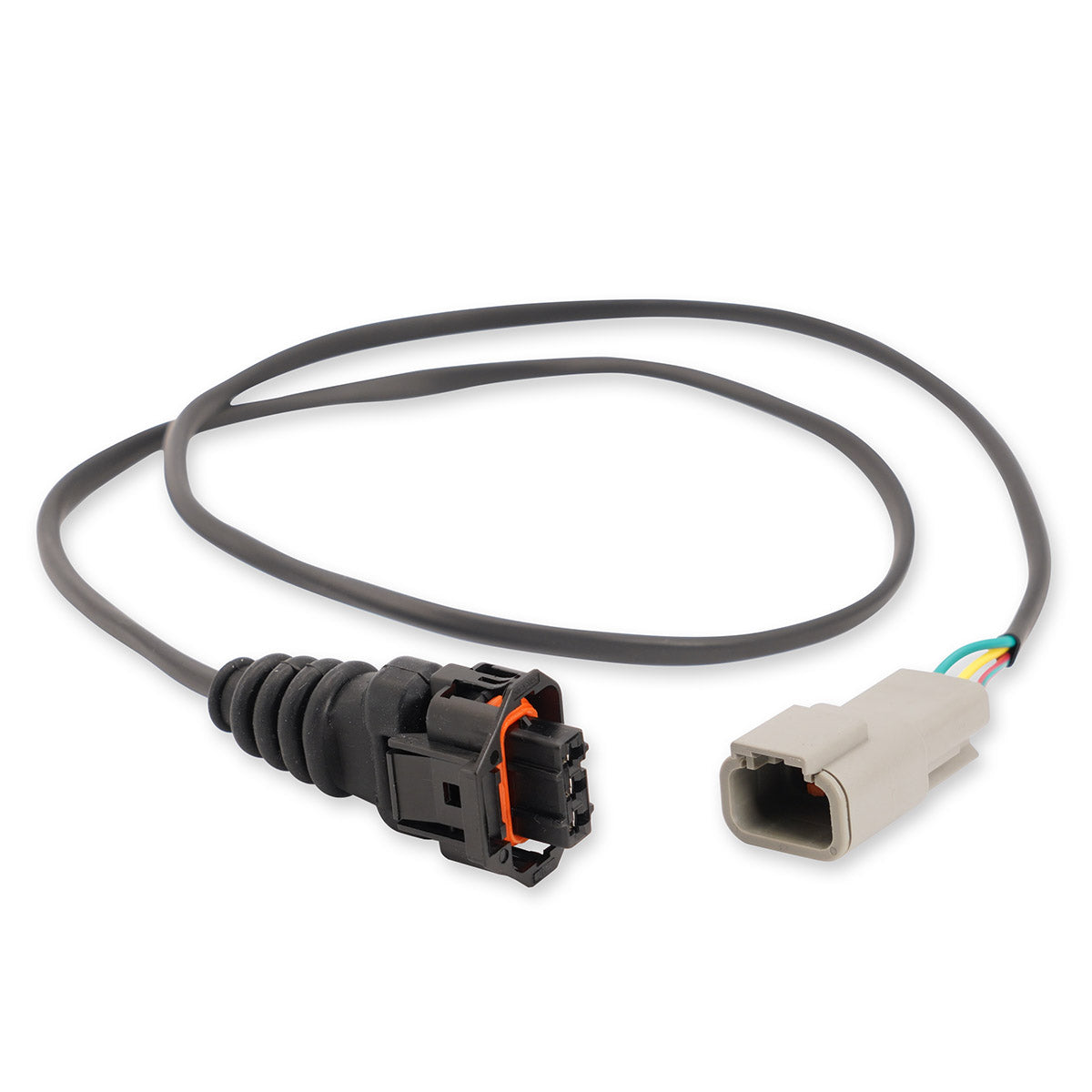

Available from JDM Mods NQ, the Link LS Gen 4 Map Adapter Harness is a wiring component for the compatible Link installation listed below. Use the fitment, technical and package details below to select the correct part for your build.

Manufacturer part number: 101-0308

Models Supported

• GM Gen 4 LS2, LS3 and LS7 engines.
• Factory GM Gen 4 MAP sensors
• Link Terminated LS Engine Harness (PN 101-0300).

Warnings

• Designed exclusively for use with the Link Terminated LS Engine Harness.
• Intended for Gen 4 GM LS engines using a factory MAP sensor.
• Not required when using a Link MAP sensor, which connects directly to the Link LS Engine Harness.

Highlights

• The Link LS Drive-by-Wire Adapter has the following specifications:
• Plug-and-play adapter loom.
• Connects the Link LS Engine Harness to factory Gen 4 MAP sensors.
• No wiring modifications required.
• Compatible with the Link Terminated LS Engine Harness (PN 101-0300).
• Manufactured in the USA.

Product Dimensions

• 820mm(L)x25mm(W)x20mm(H)
• 32.28in(L)x0.98in(W)x0.79in(H)

Product Weight

• 35 grams (1.23 ounces)

What's in the Box

• LS Gen 4 MAP Adapter Loom

Installation and ordering

Confirm connector type, wiring, supply voltage and compatibility with the ECU or connected device before purchase. Follow the relevant Link wiring diagram, calibration and mounting instructions. CAN devices require a compatible CAN configuration and correct bus termination. Accessories are included only where they are explicitly listed below.

Installation and Compatibility Checks

Confirm the specified ECU or device connector, wire routing and pin assignments. Electrical installation should follow the correct wiring diagram, with protection and CAN termination where required.
