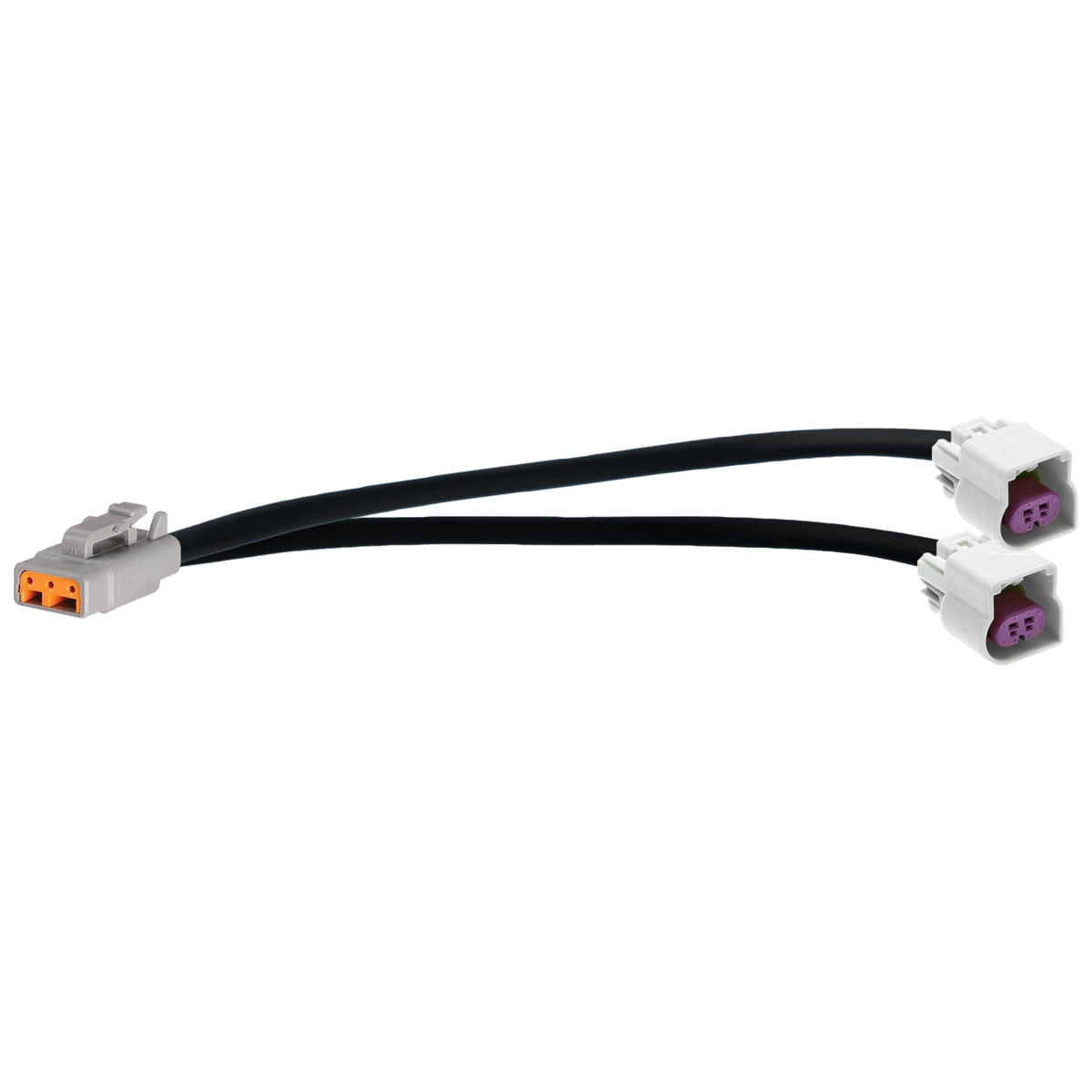

Link LS Gen 4 Knock Adapter Loom

Link LS Gen 4 Knock Adapter Loom

Available from JDM Mods NQ, the Link LS Gen 4 Knock Adapter Loom is a wiring component for the compatible Link installation listed below. Use the fitment, technical and package details below to select the correct part for your build.

Manufacturer part number: 101-0306

Models Supported

• GM Gen 4 LS2, LS3 and LS7 engines.
• Factory GM Gen 4 knock sensors.
• Link Terminated LS Engine Harness (PN 101-0300).

Warnings

• Designed exclusively for use with the Link Terminated LS Engine Harness.
• Intended for Gen 4 GM LS engines using factory knock sensors.
• For Gen 3 LS engines, use the Link LS Gen 3 Knock Adapter Loom (PN 101-0305).

Highlights

• The LS Gen 4 Knock Adapter Loom has the following specifications:
• Plug-and-play adapter loom.
• Connects the Link LS Engine Harness to factory Gen 4 knock sensors.
• No wiring modifications required.
• Compatible with the Link Terminated LS Engine Harness (PN 101-0300).
• Manufactured in the USA.

Installation and ordering

Confirm connector type, wiring, supply voltage and compatibility with the ECU or connected device before purchase. Follow the relevant Link wiring diagram, calibration and mounting instructions. CAN devices require a compatible CAN configuration and correct bus termination. Accessories are included only where they are explicitly listed below.

Installation and Compatibility Checks

Confirm the specified ECU or device connector, wire routing and pin assignments. Electrical installation should follow the correct wiring diagram, with protection and CAN termination where required.
