    Link LS Gen 3 Knock Adapter Loom

    SKU: 101-0305

    4Low stock

    Sale price $44.00 -100% Regular price
    Regular price $44.00
    Tax included. Shipping calculated at checkout.
    Link LS Gen 3 Knock Adapter Loom
    Sale price $44.00 Regular price
    Regular price $44.00

    Fast Shipping

    Returns & Support

    View returns policy

    Best Deals

    Product Description

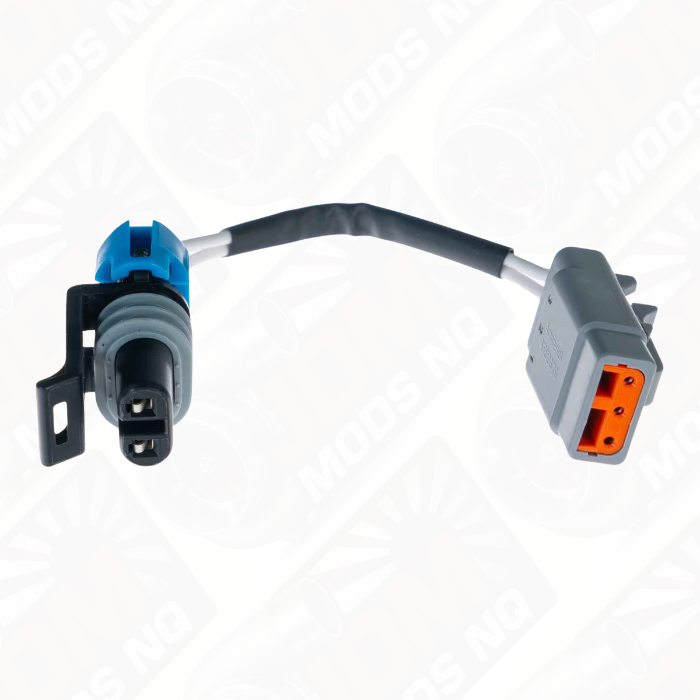

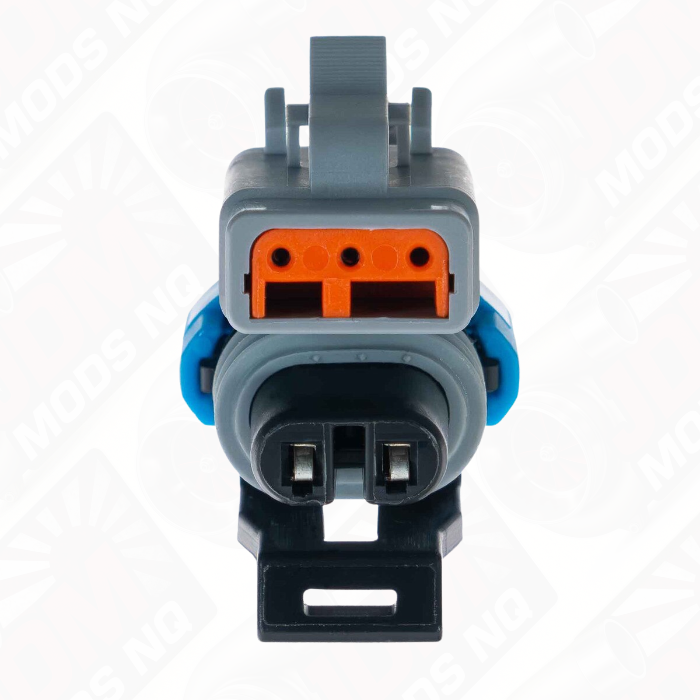

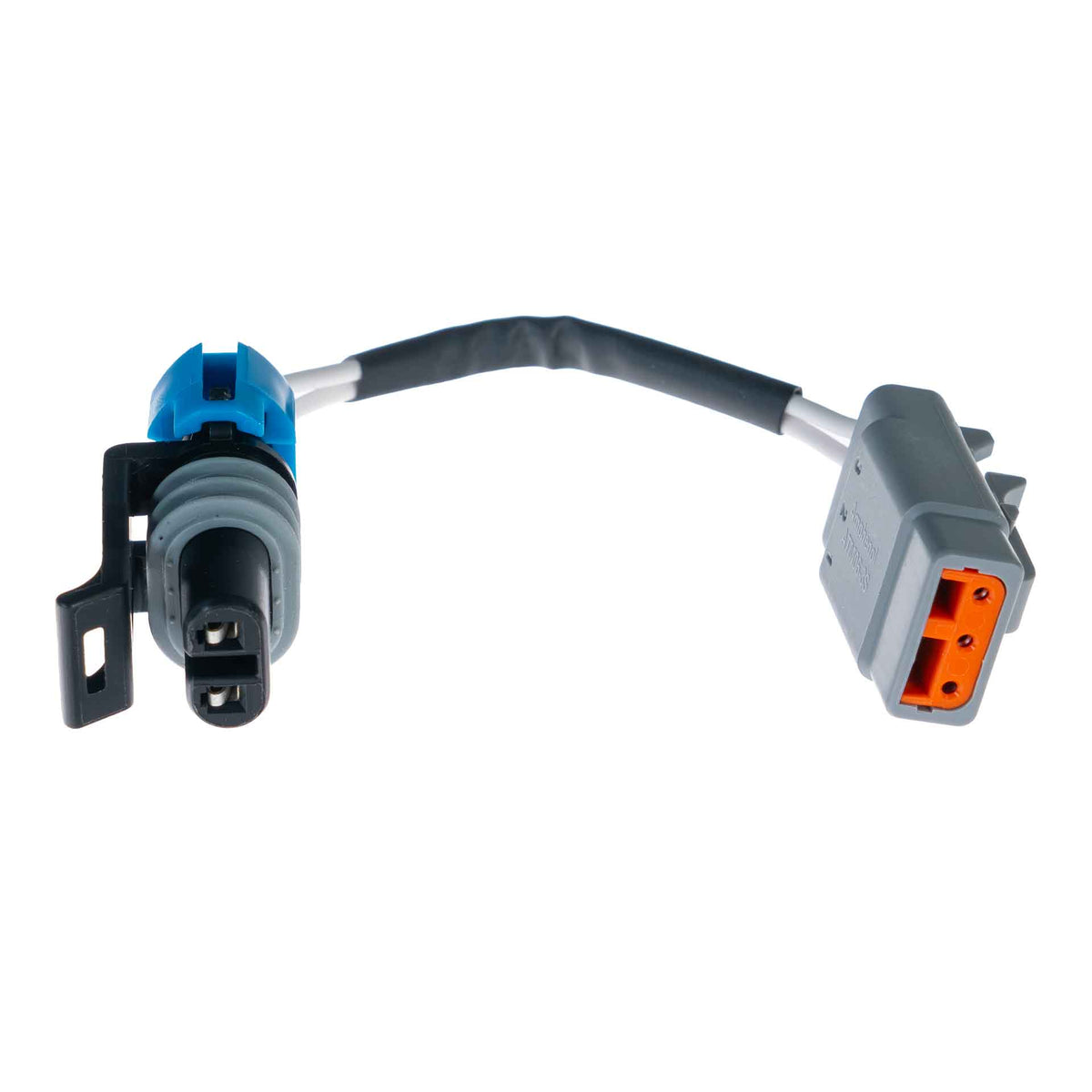

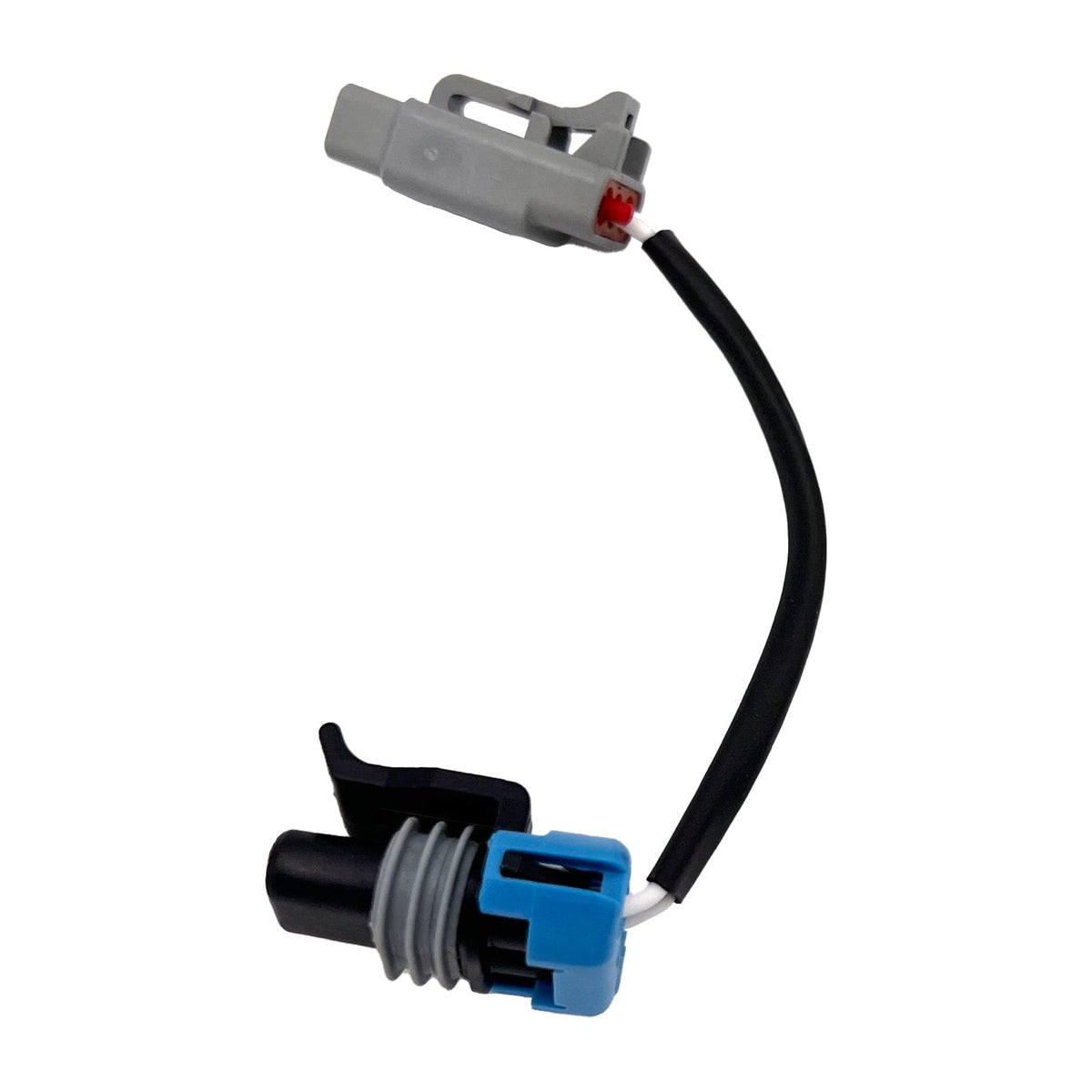

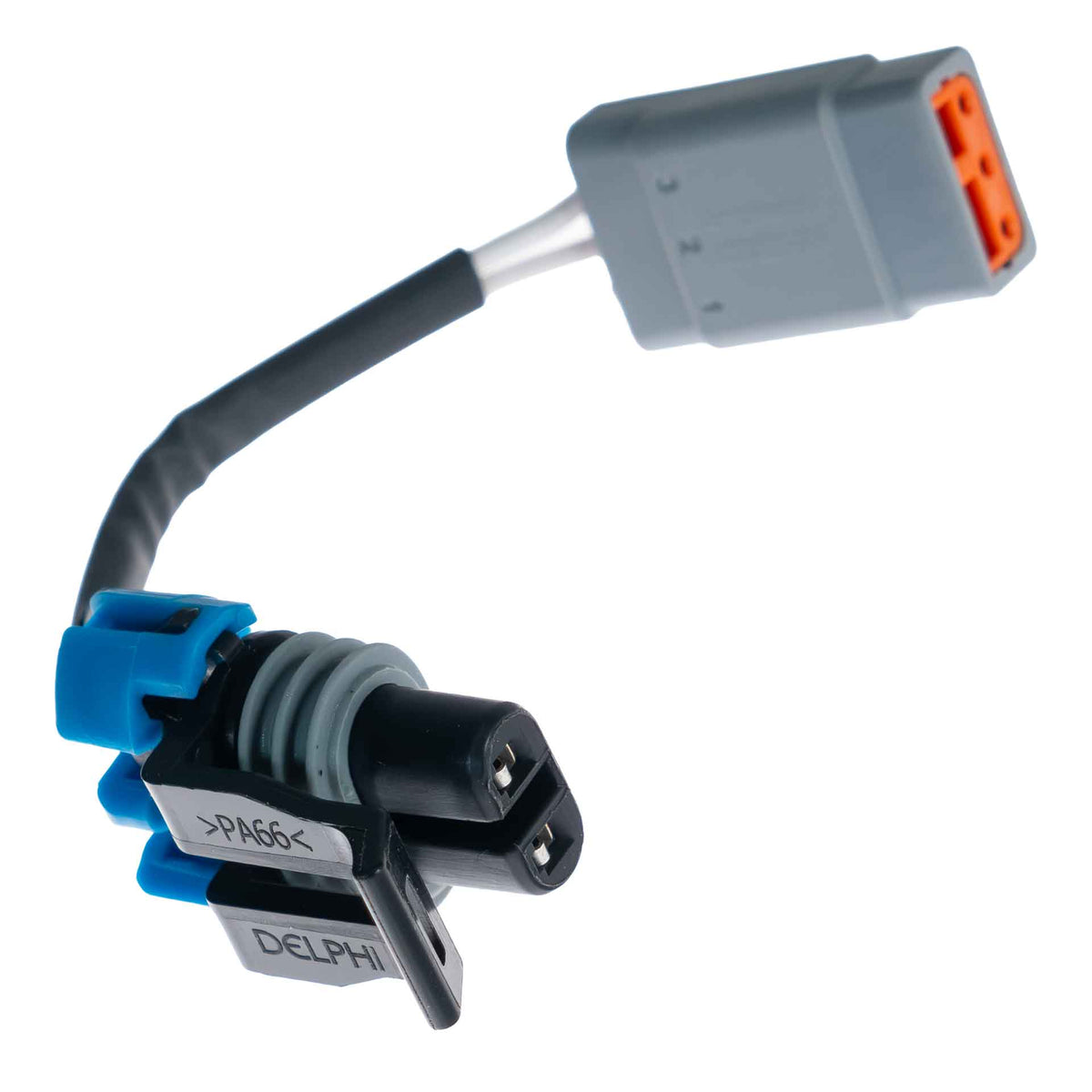

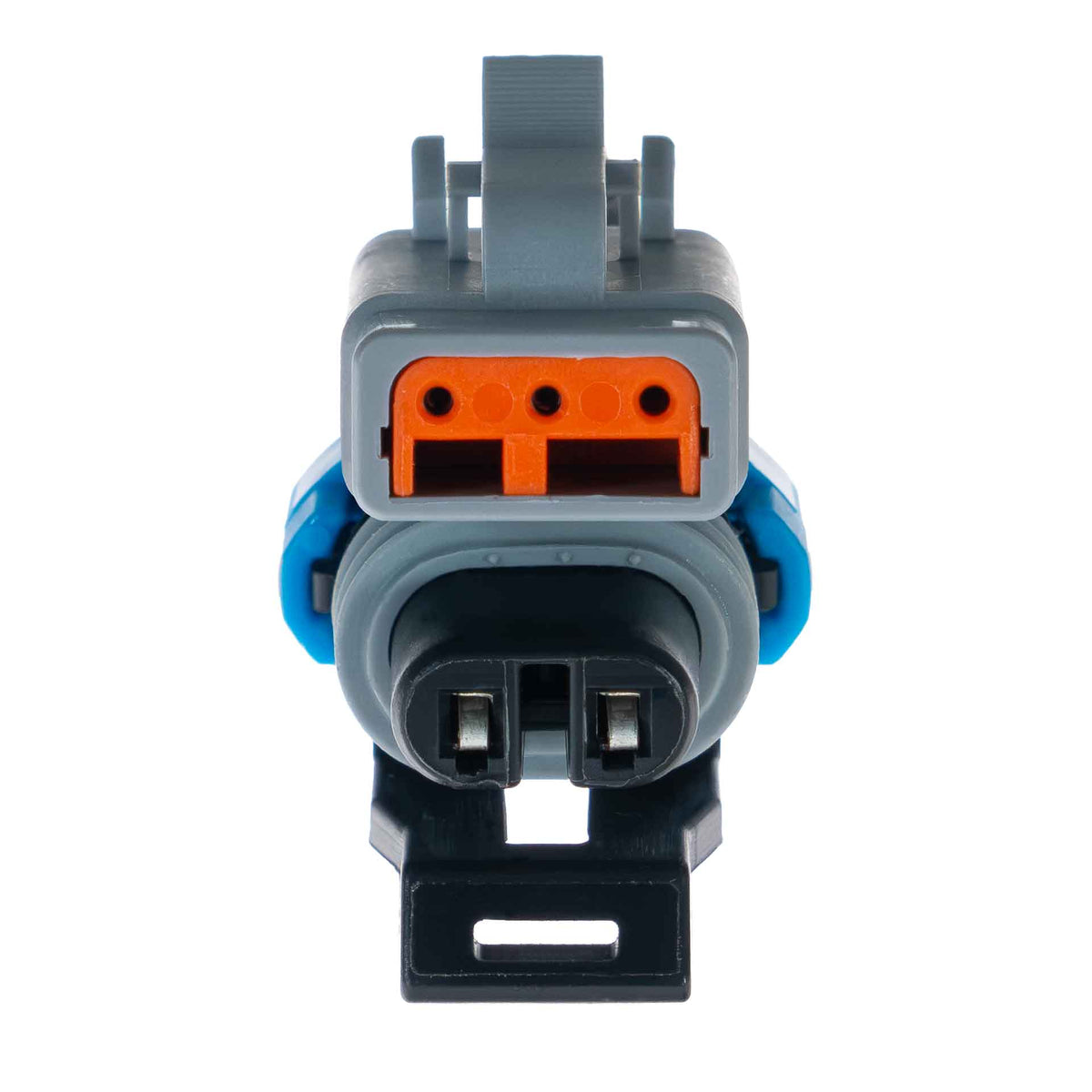

    Link LS Gen 3 Knock Adapter Loom

    Available from JDM Mods NQ, the Link LS Gen 3 Knock Adapter Loom is a wiring component for the compatible Link installation listed below. Use the fitment, technical and package details below to select the correct part for your build.

    Manufacturer part number: 101-0305

    Models Supported

    • GM Gen 3 LS1 and LS6 engines.
    • Factory GM Gen 3 knock sensor loom (located in the engine valley).
    • Link Terminated LS Engine Harness (PN 101-0300).

    Warnings

    • Designed exclusively for use with the Link Terminated LS Engine Harness.
    • Intended for Gen 3 GM LS engines using the factory knock sensor loom located in the engine valley.
    • For Gen 4 LS engines, use the Link LS Gen 4 Knock Adapter Loom (PN 101-0306).

    Highlights

    • The Link LS Gen 3 Knock Adapter Loom has the following specifications:
    • Plug-and-play adapter loom.
    • Connects the Link LS Engine Harness to the factory Gen 3 knock sensor loom.
    • No wiring modifications required.
    • Designed for the factory Gen 3 knock sensor location in the engine valley.
    • Compatible with the Link Terminated LS Engine Harness (PN 101-0300).
    • Manufactured in the USA.

    Product Dimensions

    • 125mm(L)x25mm(W)x20mm(H)
    • 4.92in(L)x0.98in(W)x0.79in(H)

    Product Weight

    • 5 grams (0.18 ounces)

    What's in the Box

    • LS Gen 3 Knock Adapter Loom

    Installation and ordering

    Confirm connector type, wiring, supply voltage and compatibility with the ECU or connected device before purchase. Follow the relevant Link wiring diagram, calibration and mounting instructions. CAN devices require a compatible CAN configuration and correct bus termination. Accessories are included only where they are explicitly listed below.

    Installation and Compatibility Checks

    Confirm the specified ECU or device connector, wire routing and pin assignments. Electrical installation should follow the correct wiring diagram, with protection and CAN termination where required.
