Available from JDM Mods NQ, the Link LS DBW Adapter Loom is a wiring component for the compatible Link installation listed below. Use the fitment, technical and package details below to select the correct part for your build.

Manufacturer part number: 101-0304

Models Supported

• GM Gen 4 LS2, LS3 and LS7 engines.
• Factory GM Gen 4 Drive-by-Wire throttle bodies.
• Link Terminated LS Engine Harness (PN 101-0300).
• Link ECUs with Drive-by-Wire support.

Warnings

• Designed exclusively for use with the Link Terminated LS Engine Harness.
• Intended for Gen 4 GM Drive-by-Wire throttle bodies only.
• Requires a Link ECU with Drive-by-Wire control capability.
• Not required for cable throttle (DBC) applications.
• Use the Link LS Stepper Adapter Harness (PN 101-0301) when using a factory GM idle air control (IAC) stepper motor.

Highlights

• The Link LS Drive-by-Wire Adapter has the following specifications:
• Plug-and-play adapter loom.

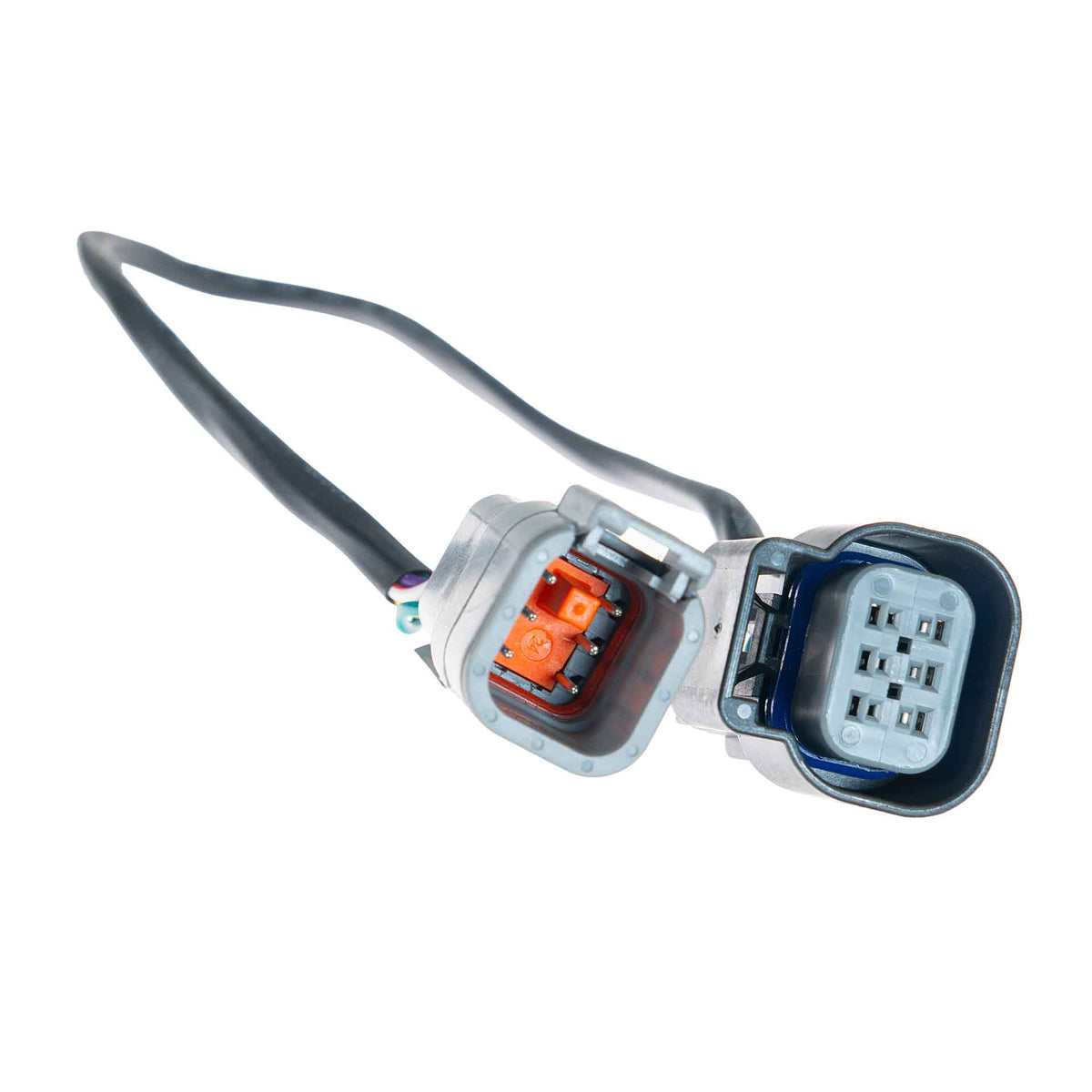

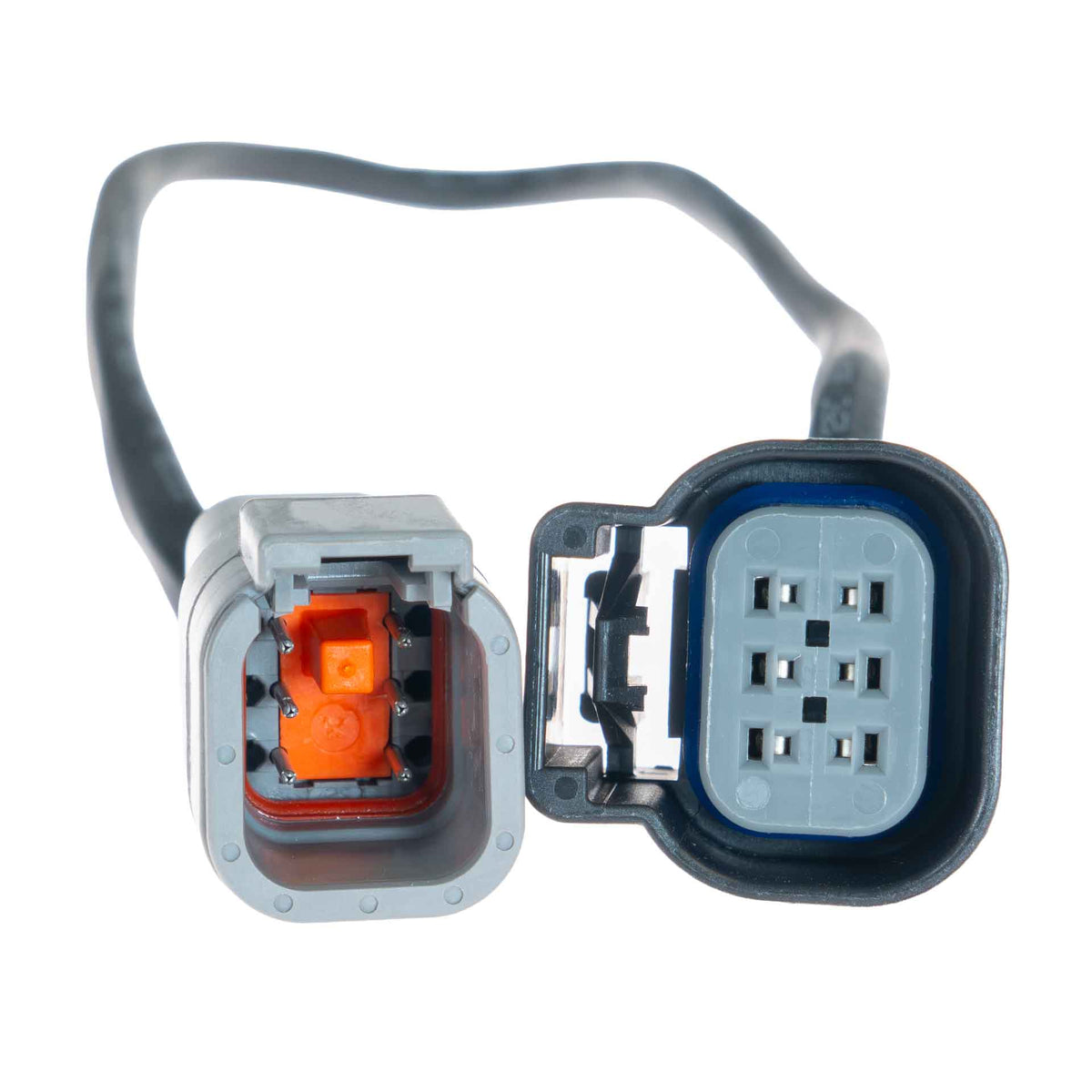

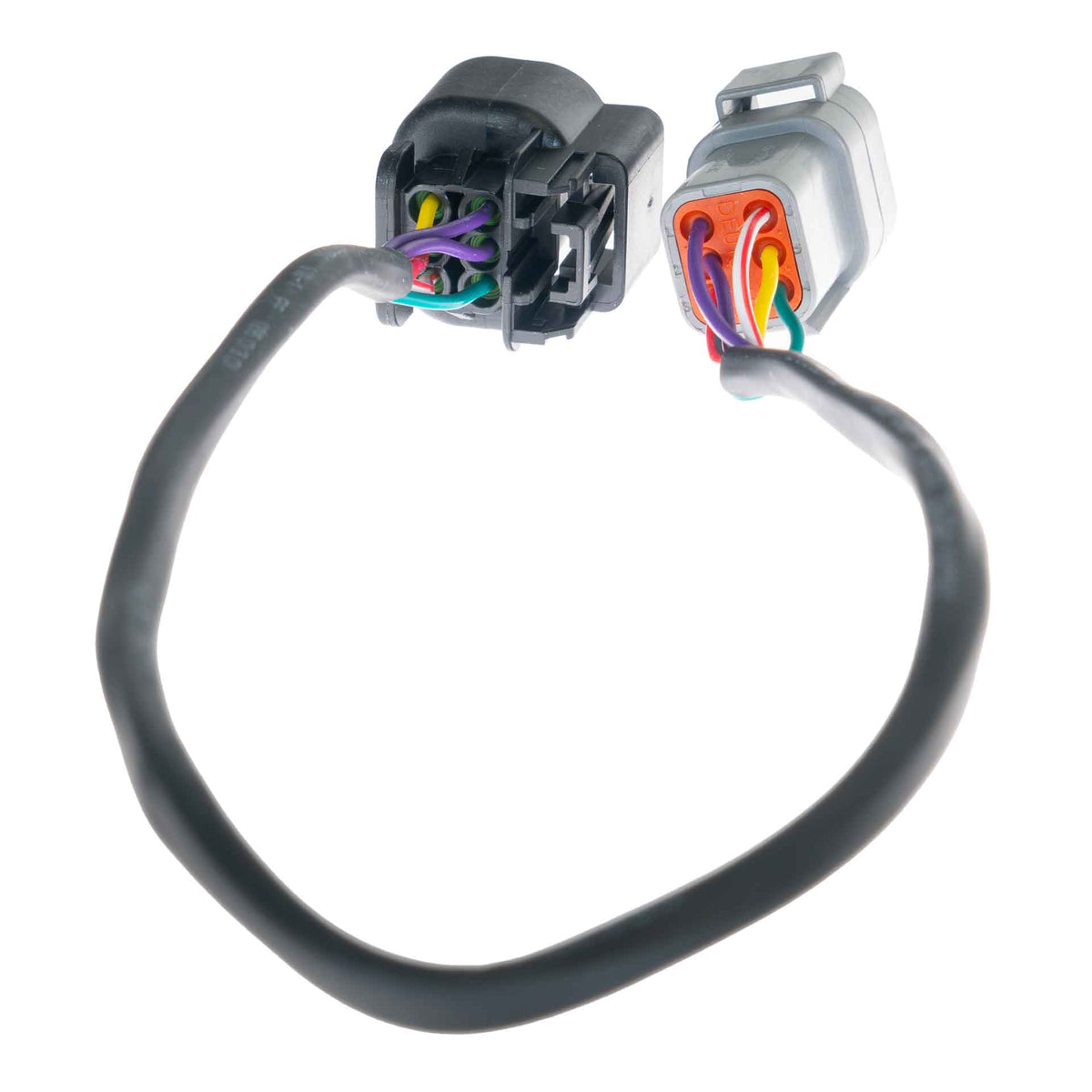

• Connects the Link LS Engine Harness to a factory Gen 4 GM Drive-by-Wire throttle body.
• No wiring modifications required.
• Utilises the pre-wired Drive-by-Wire connector on the Link LS Engine Harness.
• Interfaces with Aux 9, Aux 10, AN Volt 5, AN Volt 6, 5V reference and sensor ground.
• Manufactured in the USA.

Installation and ordering

Confirm connector type, wiring, supply voltage and compatibility with the ECU or connected device before purchase. Follow the relevant Link wiring diagram, calibration and mounting instructions. CAN devices require a compatible CAN configuration and correct bus termination. Accessories are included only where they are explicitly listed below.

Installation and Compatibility Checks

Confirm the specified ECU or device connector, wire routing and pin assignments. Electrical installation should follow the correct wiring diagram, with protection and CAN termination where required.
