Link KnockLink G4 Knock Sensor Interface (G4KNL)

Link KnockLink G4 Knock Sensor Interface (G4KNL)

Available from JDM Mods NQ, the Link KnockLink G4 Knock Sensor Interface (G4KNL) is a measurement component for a compatible engine-management installation. Use the fitment, technical and package details below to select the correct part for your build.

Manufacturer part number: 114-1000

Models Supported

• Link Knock Sensors.
• OEM knock sensors.

Warnings

• Requires a compatible knock sensor.
• Do not connect the KnockLink and ECU to the same knock sensor.
• Not suitable for mechanically noisy engines, including engines with high-clearance pistons and two-stroke engines.

Highlights

• Standalone knock detection device.
• Intelligent self-learning knock detection.
• Self-calibrating operation.
• No gain or frequency setup required.
• High detection accuracy.

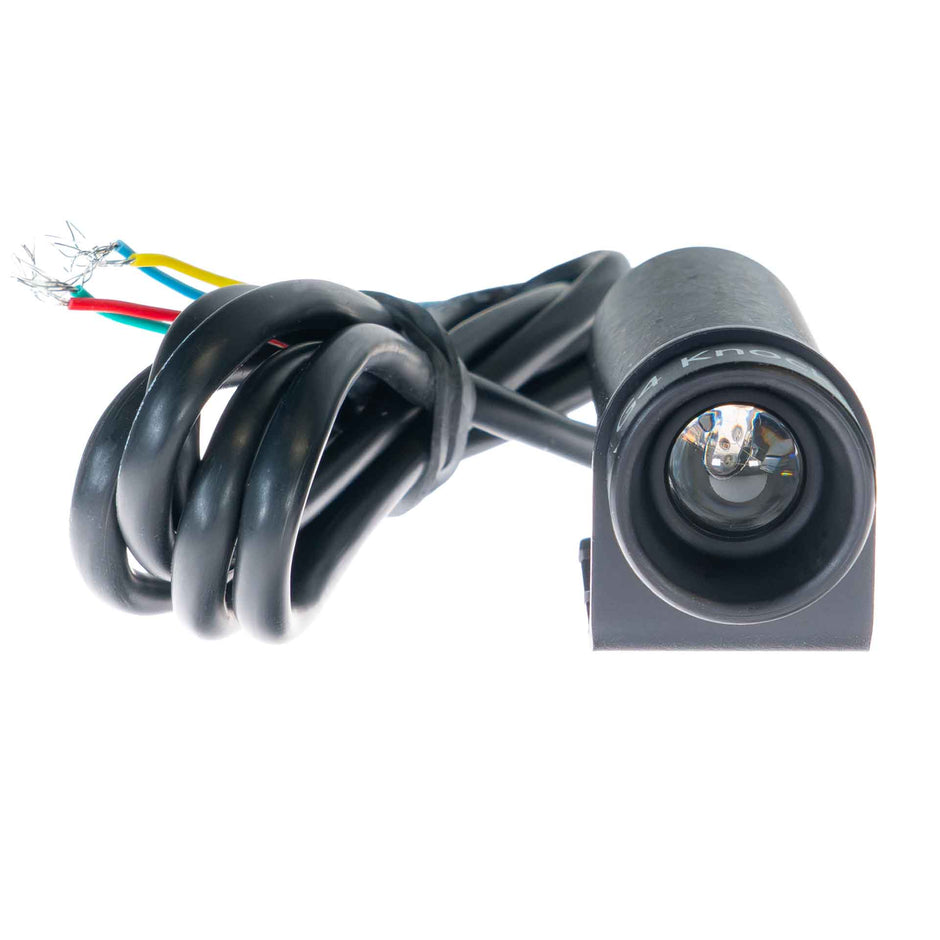

• Visual LED knock warning.
• Monitors one knock sensor.
• Operates independently of the ECU.
• Compact CNC aluminium enclosure.
• Includes Knock Sensor with 2.6 m Loom.

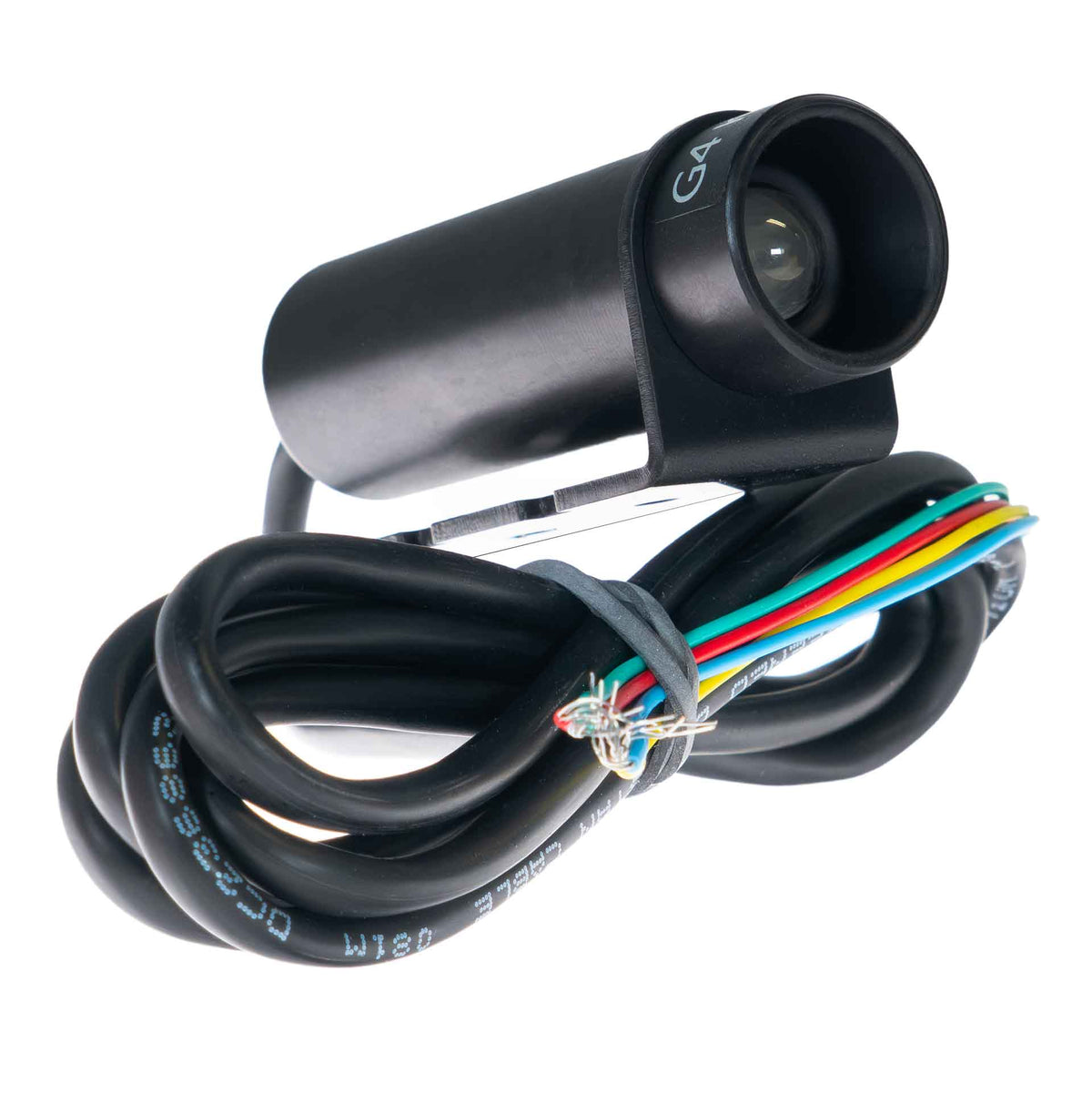

• Includes wiring loom and mounting bracket.
• Knock sensor sold separately (PN 101-0053).

Electrical

• Operating Voltage Range: 6-26V
• Maximum Input Voltage: 26V
• Maximum Continuous Current Draw: 100mA

Installation and ordering

Confirm connector type, wiring, supply voltage and compatibility with the ECU or connected device before purchase. Follow the relevant Link wiring diagram, calibration and mounting instructions. CAN devices require a compatible CAN configuration and correct bus termination. Accessories are included only where they are explicitly listed below.

Installation and Compatibility Checks

Confirm the specified device compatibility, connectors and installation requirements before ordering. Use a qualified installer for vehicle electrical work.
