Link IGN1A - High Powered Inductive Smart Coil (Integrated Ignitor)
5Low stock
5In stock, ready to ship
Couldn't load pickup availability
Get notified by email when this product becomes available
Have a question?
Product Description
Link IGN1A - High Powered Inductive Smart Coil (Integrated Ignitor)
Available from JDM Mods NQ, the Link IGN1A - High Powered Inductive Smart Coil (Integrated Ignitor) is an ignition-system component that must be matched to the ECU output and engine configuration. Use the fitment, technical and package details below to select the correct part for your build.
Manufacturer part number: 101-0291
Models Supported
- Link G4+/G4X/G5 ECU's.
- Other aftermarket ECUs with logic-level ignition outputs.
- HT lead ignition systems using HEI-style plug wire ends/boots.
Warnings
- Designed for HT lead ignition systems. It is not a coil-on-plug ignition coil.
- Connect the logic ground to the ECU ground, the spark ground to the cylinder head, and the power ground directly to the battery negative.
- Excessive dwell or duty cycle can damage the coil.
- Refer to the IGN-1A Smart Coil User Guide for wiring and installation instructions.
Highlights
- The Link IGN-1A Smart Coil has the following specifications:
- High-output inductive smart coil with built-in ignitor.
- Delivers 103 mJ spark energy.
- 2.9 ms spark duration.
- Nominal dwell: 3.0 ms.
- Maximum output voltage up to 81 kV
- Universal mounting design.
- Includes mating connector kit.
Product Dimensions
- 110mm(L)x90mm(W)x50mm(H)
- 4.33in(L)x3.54in(W)x1.97in(H)
Product Weight
- 420 grams (14.82 ounces)
Electrical
- Operating Voltage Range: 6-17V
- Maximum Input Voltage: 17V
- Maximum Continuous Current Draw: 19A
What's in the Box

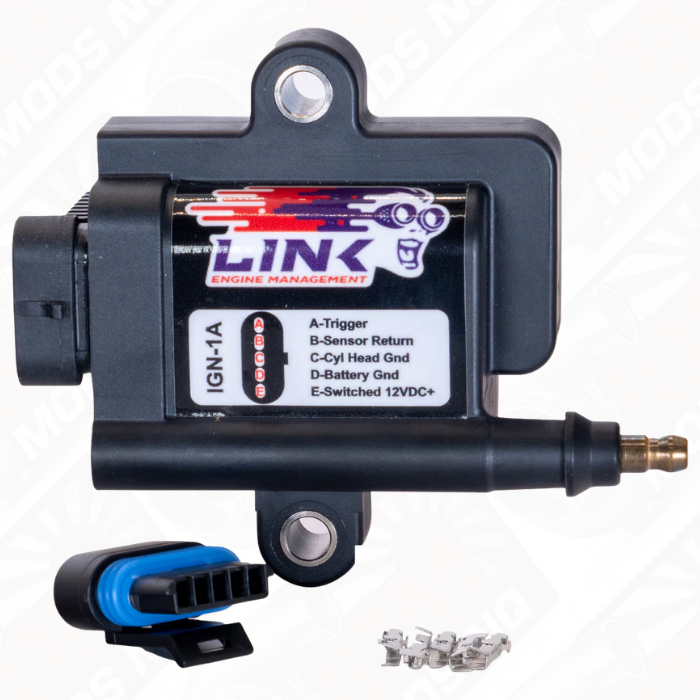

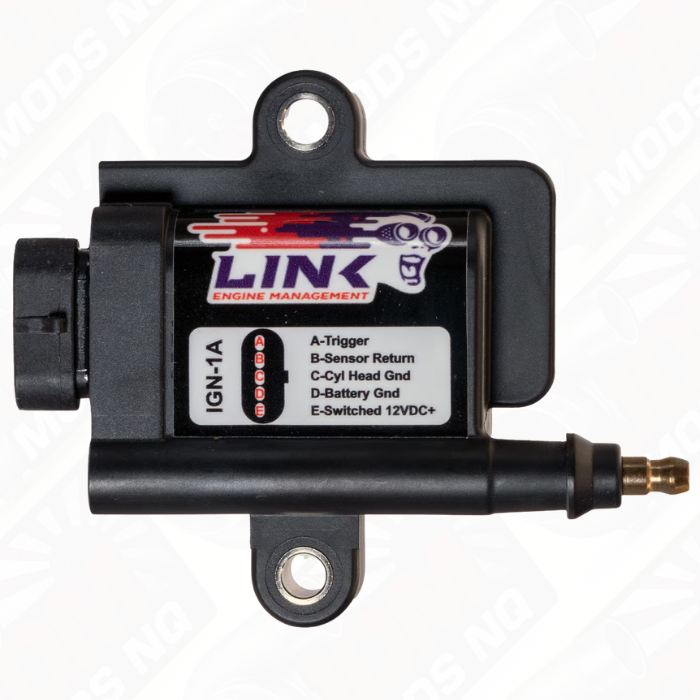

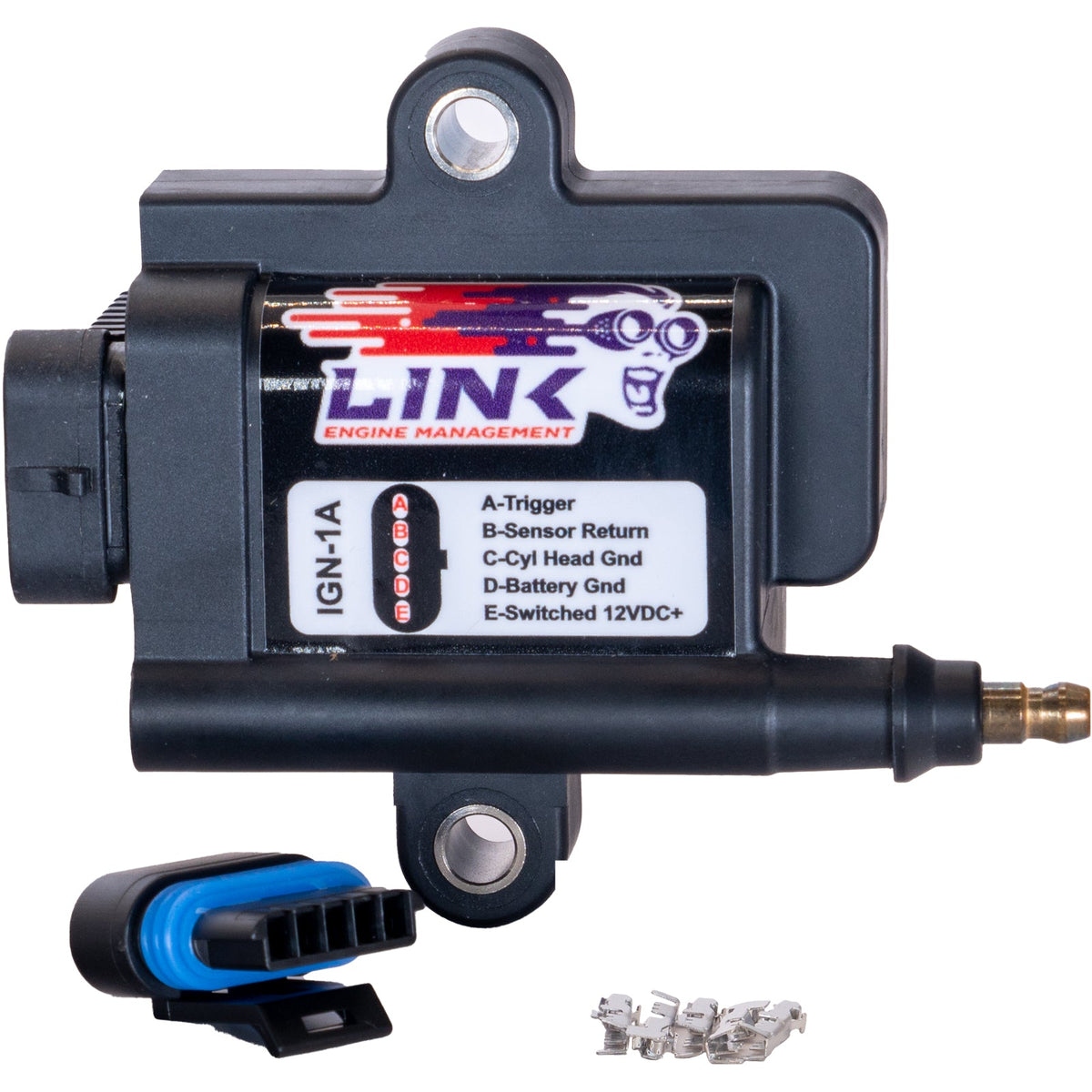

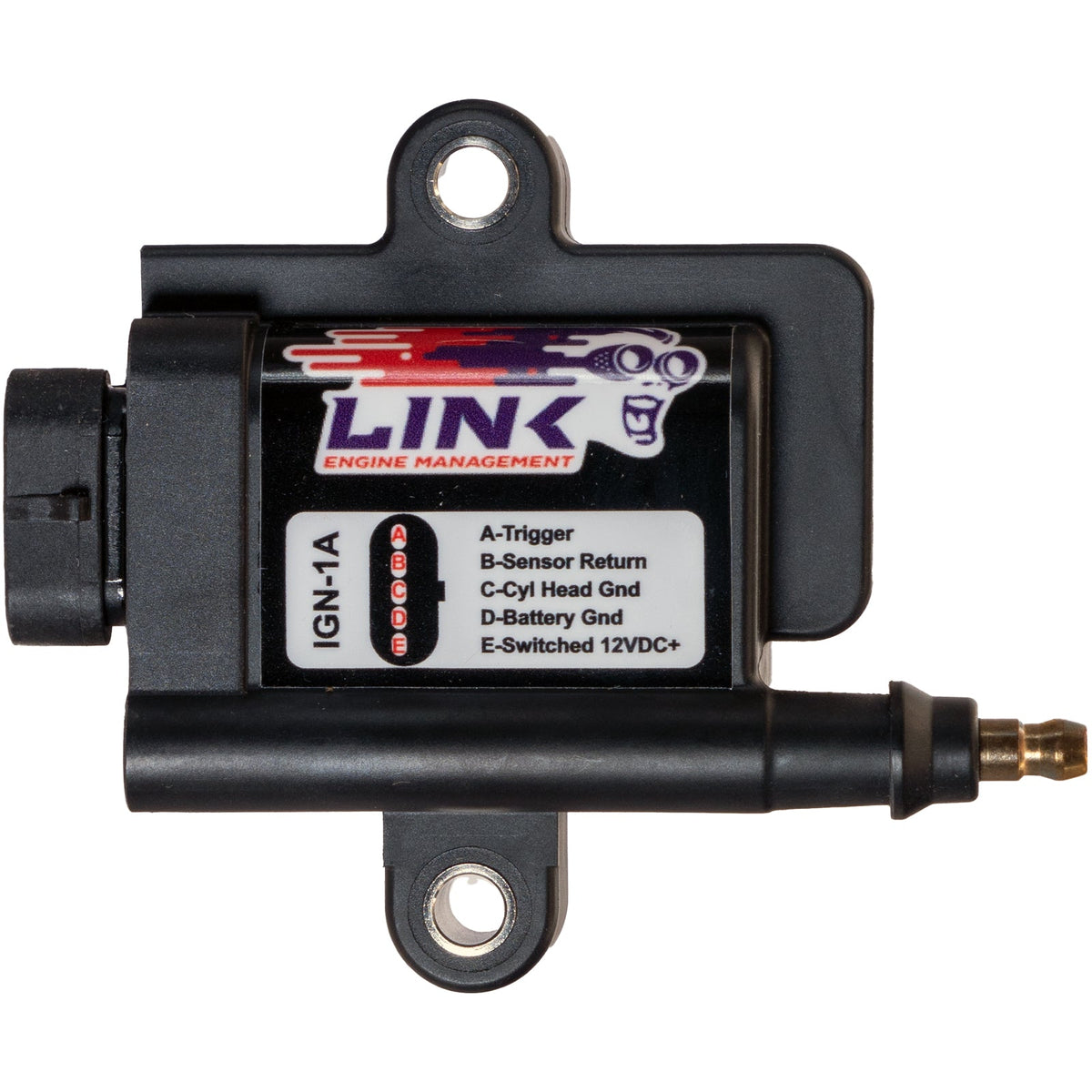

- IGN1A Smart Coil

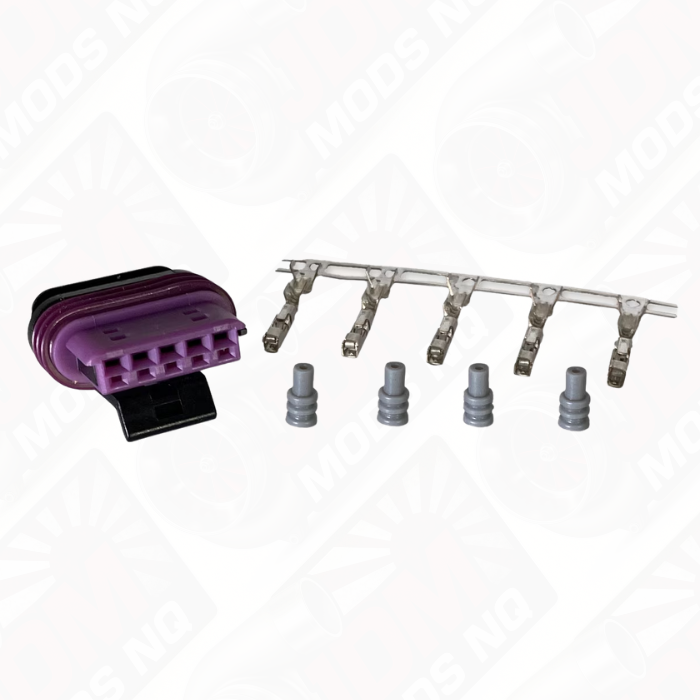

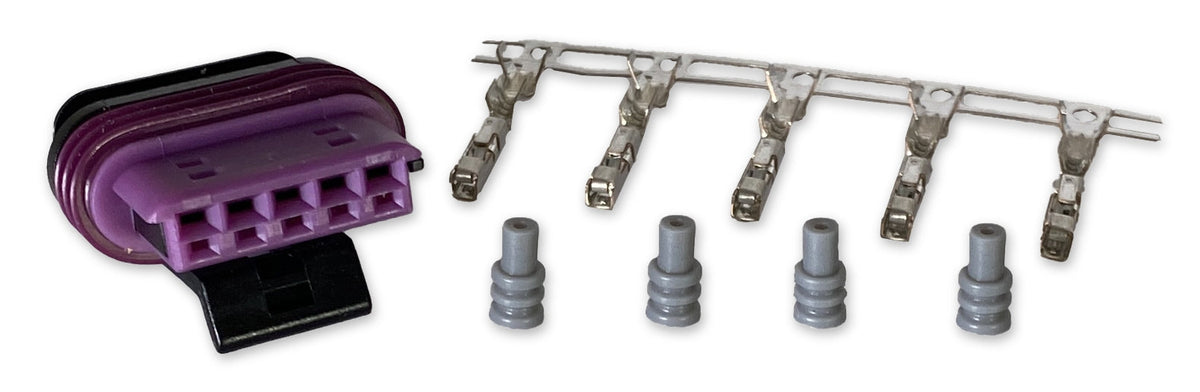

- Mating Connector Kit
Raw Calibration Specs
- See picture or table of the Dwell settings from the manual (page 3)
Installation and ordering
Confirm connector type, wiring, supply voltage and compatibility with the ECU or connected device before purchase. Follow the relevant Link wiring diagram, calibration and mounting instructions. CAN devices require a compatible CAN configuration and correct bus termination. Accessories are included only where they are explicitly listed below.
Installation and Compatibility Checks
Confirm the specified device compatibility, connectors and installation requirements before ordering. Use a qualified installer for vehicle electrical work.
