Link Hall Effect Sensor Kit

    SKU: 101-0280

    2Low stock

    Sale price $121.00 -100% Regular price
    Regular price $121.00
    Link Hall Effect Sensor Kit
    Sale price $121.00 Regular price
    Regular price $121.00

    Fast Shipping

    Free Returns

    Best Deals

    Product Description

    Link Hall Effect Sensor Kit

    Available from JDM Mods NQ, the Link Hall Effect Sensor Kit is a measurement component for a compatible engine-management installation. Use the fitment, technical and package details below to select the correct part for your build.

    Manufacturer part number: 101-0280

    Models Supported

    • All Link ECUs
    • Other aftermarket ECUs

    Important

    • Designed for sensing ferrous trigger wheels and gear teeth.
    • An external pull-up resistor is required unless the ECU provides an internal pull-up.
    • Observe the recommended target dimensions and air gap for reliable operation.

    Highlights

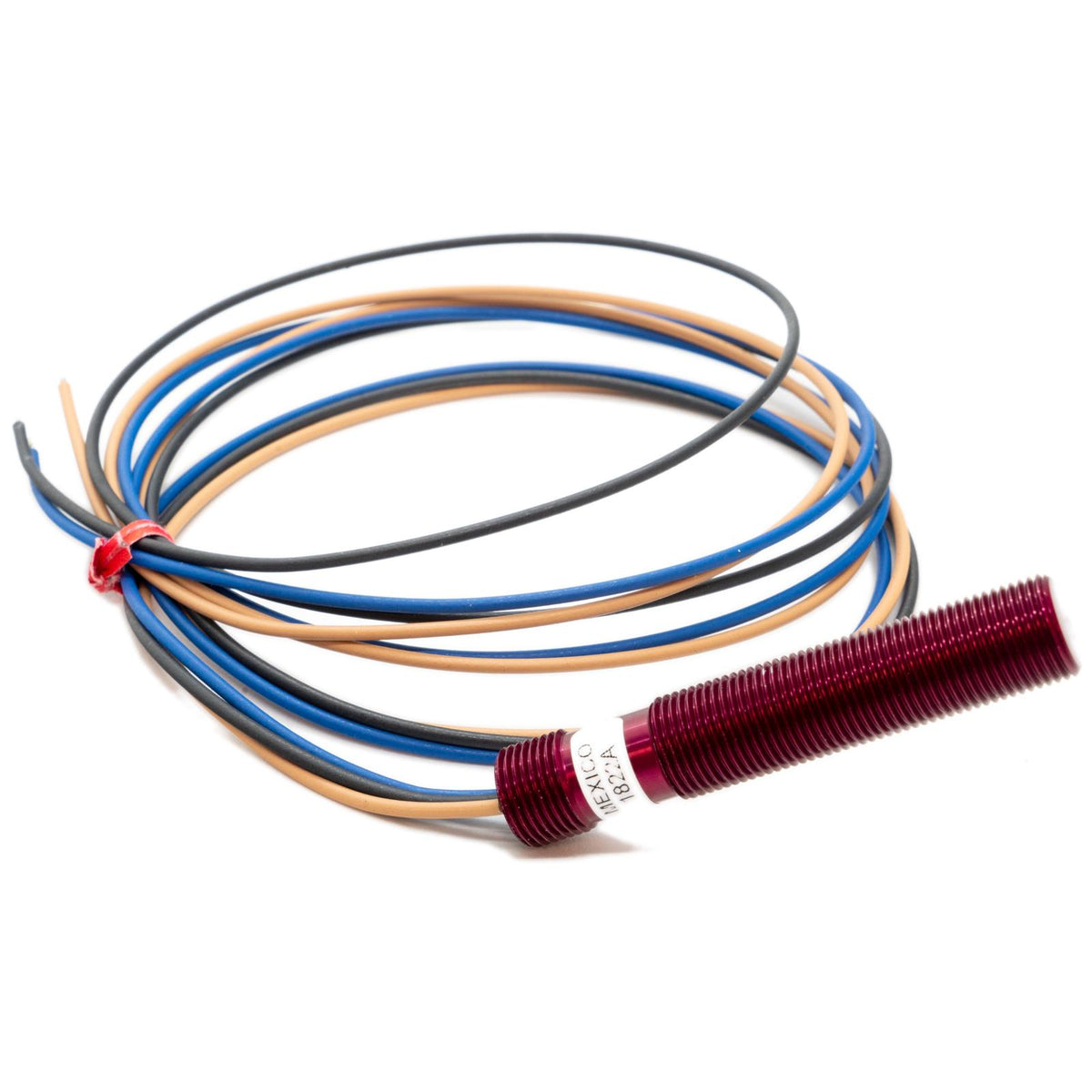

    • Non-contact Hall effect gear tooth sensor.
    • Adaptive dynamic threshold technology.
    • Open collector (sinking current) output.
    • Near-zero speed sensing.
    • Maximum tooth frequency: 15 kHz.
    • Typical air gap: 1.5 mm.
    • Operating temperature: -40degC to +125degC.
    • IP67 rated.
    • Anodised aluminium housing.
    • 1 m flying lead.
    • Includes DTM3 connector kit

    Product Dimensions

    • 120mm(L)x15mm(W)x15mm(H)
    • 4.72in(L)x0.59in(W)x0.59in(H)

    Product Weight

    • 50 grams (1.76 ounces)

    Electrical

    • Operating Voltage Range: 5-24V
    • Maximum Input Voltage: 30V
    • Maximum Continuous Current Draw: 6mA
    • Gauges of wire: 20AWG/0.5mm2

    Misc.

    • Brown: Supply Voltage
    • Blue: Sensor Ground
    • Black: Output to ECU
    • A shielded cable should be used to avoid interferences.

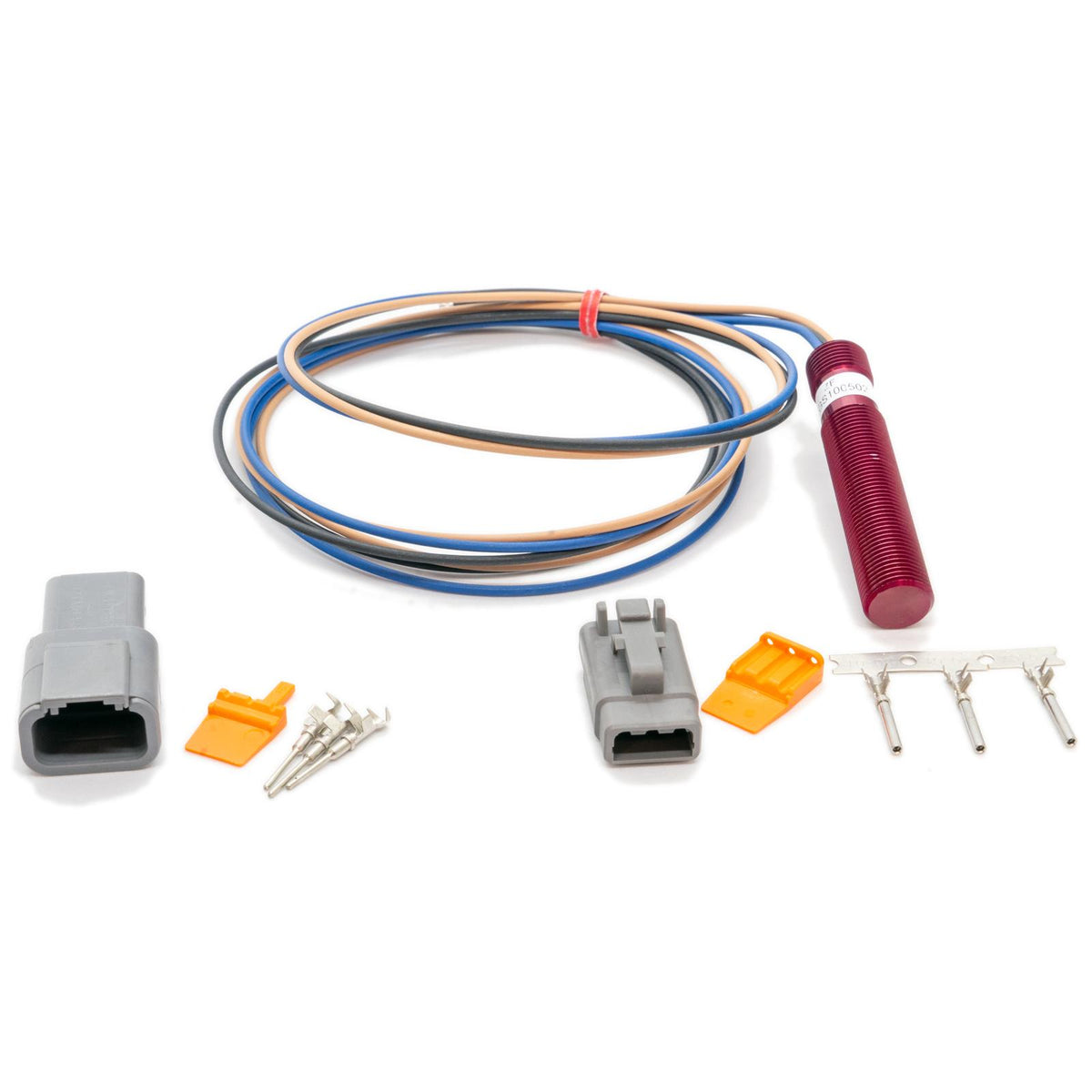

    What's in the Box

    • Hall Effect Sensor

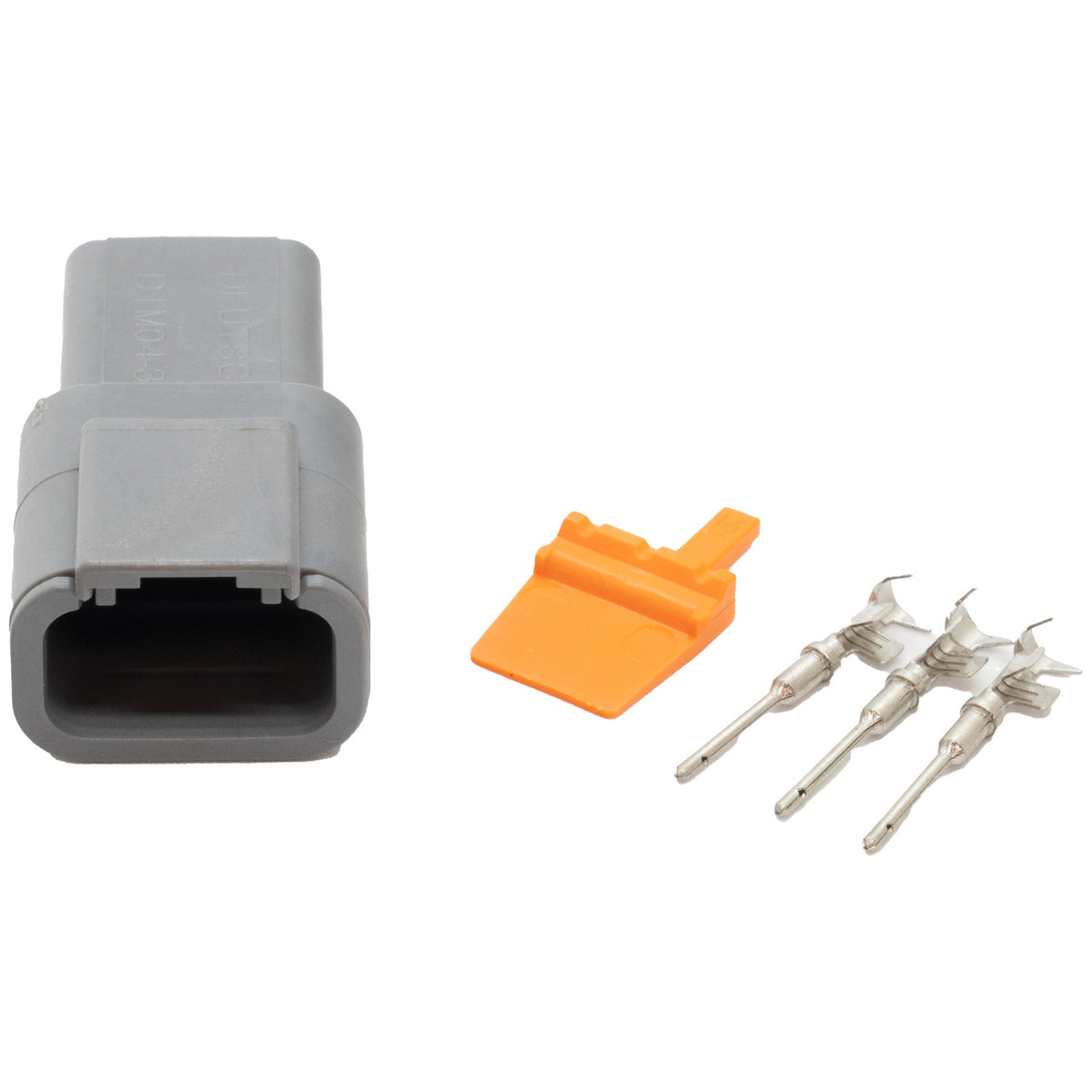

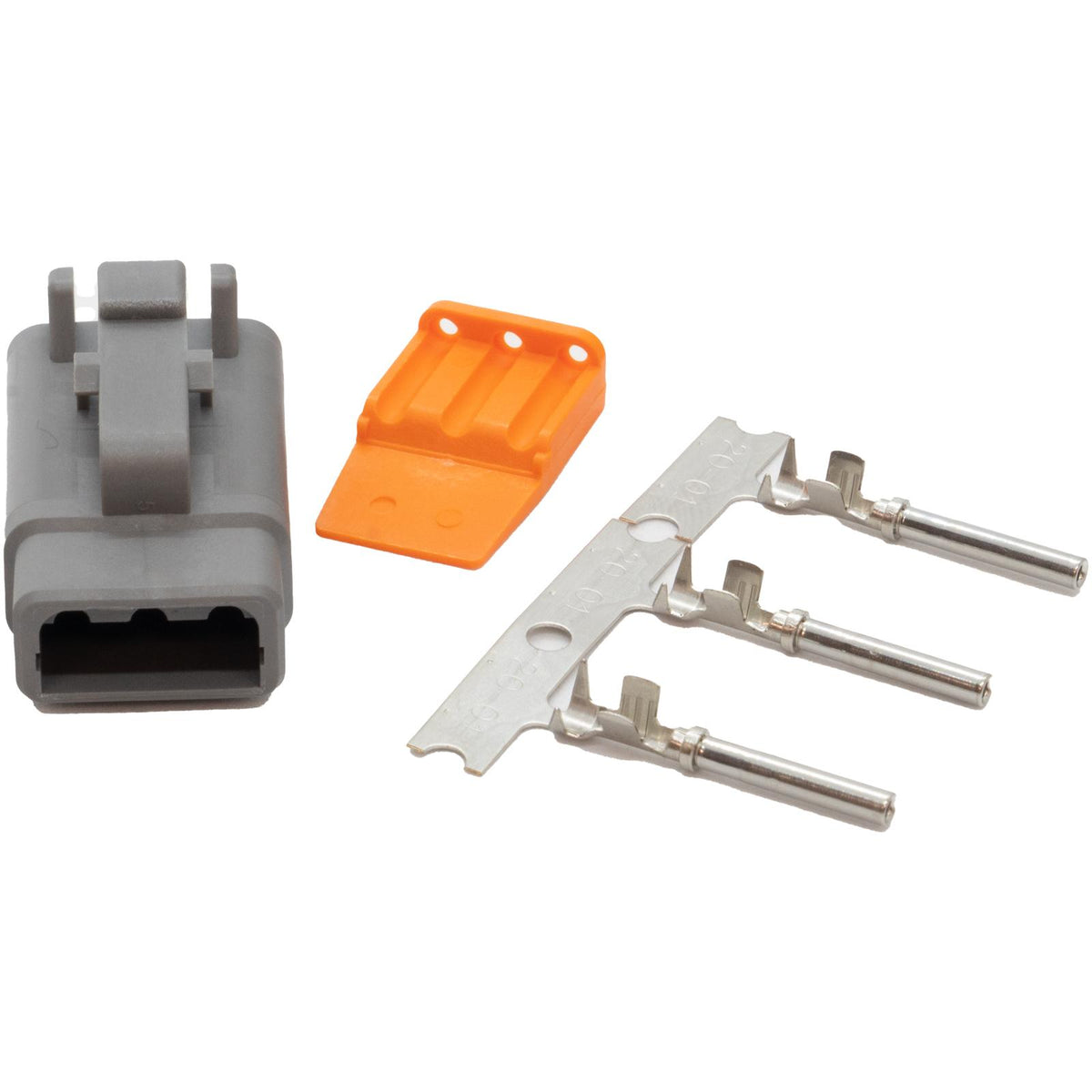

    • DTM3 connector kit (MF & F)
    • Printed Accessory instructions

    Installation and ordering

    Confirm connector type, wiring, supply voltage and compatibility with the ECU or connected device before purchase. Follow the relevant Link wiring diagram, calibration and mounting instructions. CAN devices require a compatible CAN configuration and correct bus termination. Accessories are included only where they are explicitly listed below.

    Installation and Compatibility Checks

    Confirm the specified device compatibility, connectors and installation requirements before ordering. Use a qualified installer for vehicle electrical work.
