Available from JDM Mods NQ, the Link G5 Voodoo Pro is a configurable engine-management platform for a custom wiring installation. Use the fitment, technical and package details below to select the correct part for your build.

Manufacturer part number: 153-5000

Models Supported

• The G5 Voodoo Pro can run:
• 12 cylinders sequential port or direct injection and direct spark, or
• 8 cylinders with direct/port staged injection, and direct spark

ECU Features

• Global Positioning System (GPS)
• Dual E-throttle Control
• 8 Custom Math Blocks with 30 characters
• Flex Fuel
• Trigger Oscilloscope
• 3 Axis Accelerometer
• 1k or 10k Selectable Temp Input Pullups
• Flexible engine protection limiters
• CAN Keypad Control
• VVT Control
• Open Loop Boost Control
• Closed Loop Boost Control
• Dual Onboard Digital Wideband Lambda Control
• Dual Closed Loop Lambda
• Direct Automatic Transmission Control
• 1 Gigabyte of Internal Data Logging

Motorsport Features

• Nitrous Control
• Launch Control
• Anti-lag
• Cruise Control
• Traction Control
• Race Timer and Power Management
• Gear Shift Control
• Paddle Shift Control

Outputs

• 16‡ Injection Drives
• Injection Drives can run Direct Injection via a driver box
• 12‡ Ignition Drives
• 6 Auxiliary Outputs
• +5V Sensor power supply
• Unused Injection and Ignition drives can be used as an Auxiliary Outputs
• ‡ G5 Voodoo Pro has 12 injection, 8 ignition, plus 4 multipurpose (inj, ign, aux) drives (24 total)

Inputs

• 10 Digital Inputs
• 4 Temperature Inputs
• 14 Analogue Inputs
• 2 Trigger Inputs
• 2 Knock Inputs
• Unused Temperature and Analogue Inputs can be used as Digital Inputs

Inputs / Outputs

• 8 ADIO Dual Purpose

Communications

• 2 CAN Bus Channels
• Wi-Fi
• USB-C Tuning Connection
• Ethernet
• Power Over USB

Data Logging

• 1GB Onboard Logging Memory
• 100kHz Maximum Total Logging Rate
• 250 Logging Channels

Product Dimensions

• 109mm(L) x 193.5mm(W) x 45mm(H)
• 4.29in(L) x 7.62in(W) x 1.77in(H)

Product Weight

• 768 grams (27.09 ounces)

Material

• 6061-T6 billet CNC sealed enclosure

Electrical

• Operating Voltage Range: 6-30V
• Maximum Input Voltage: 30V
• Maximum Continuous Current Draw: 17A

What's in the Box

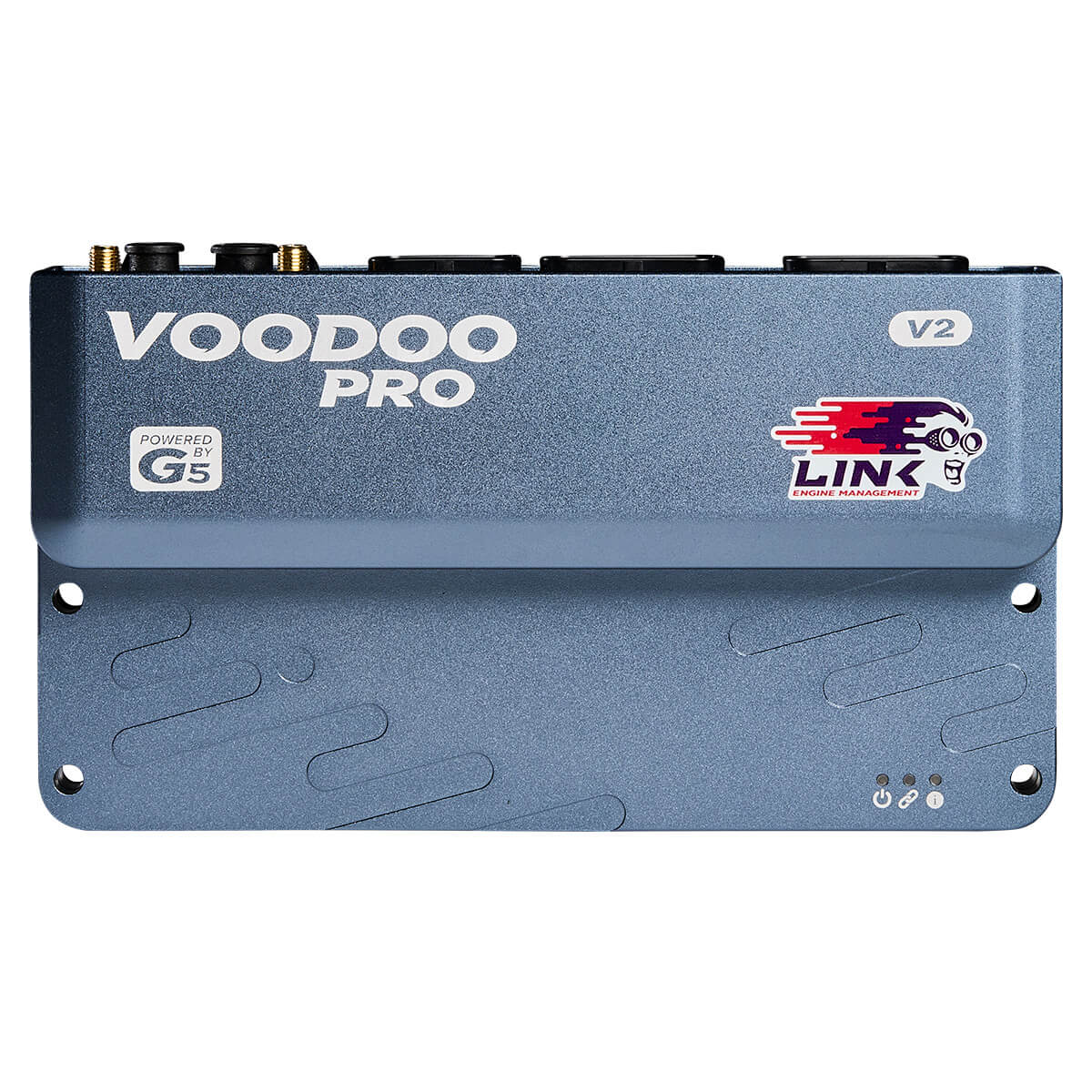

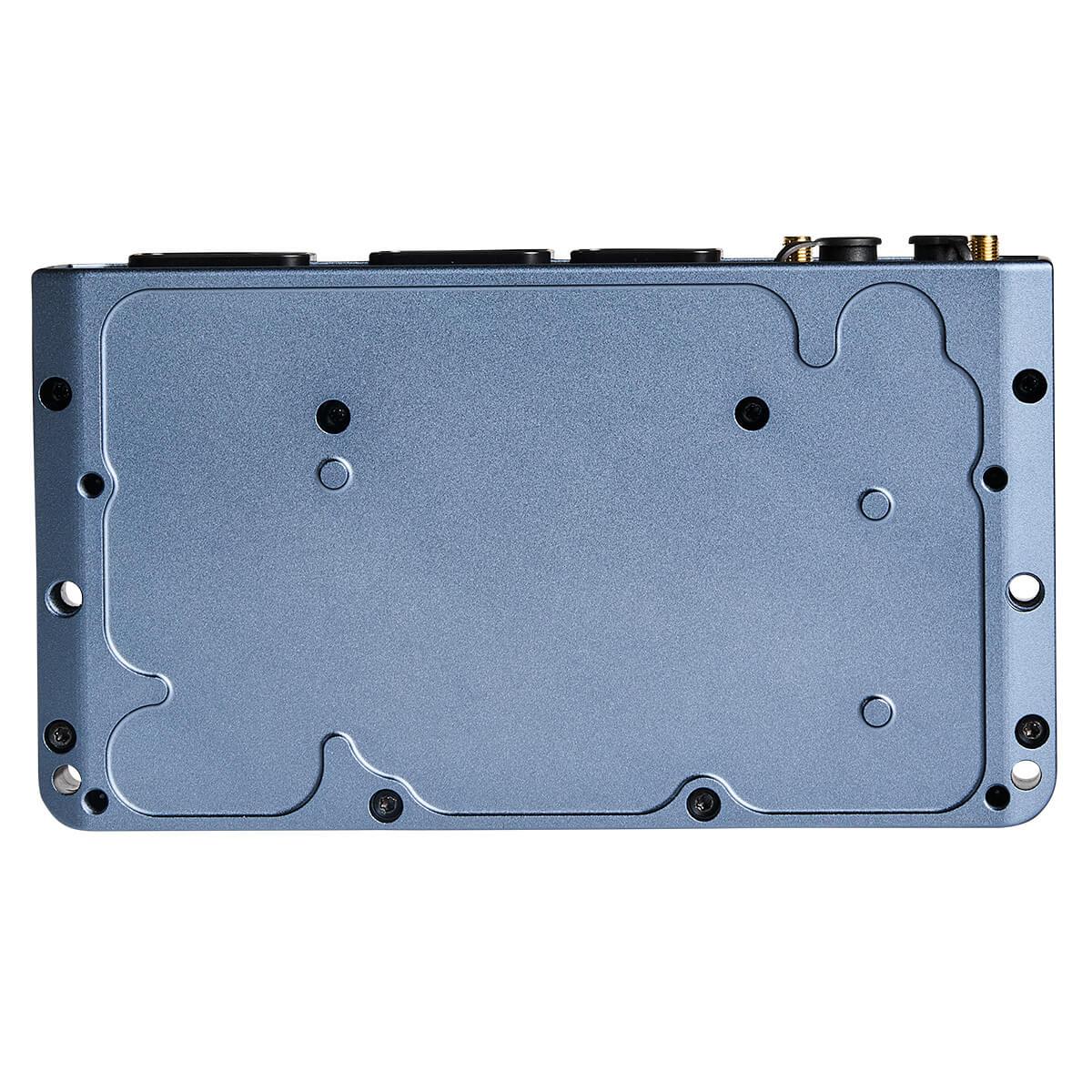

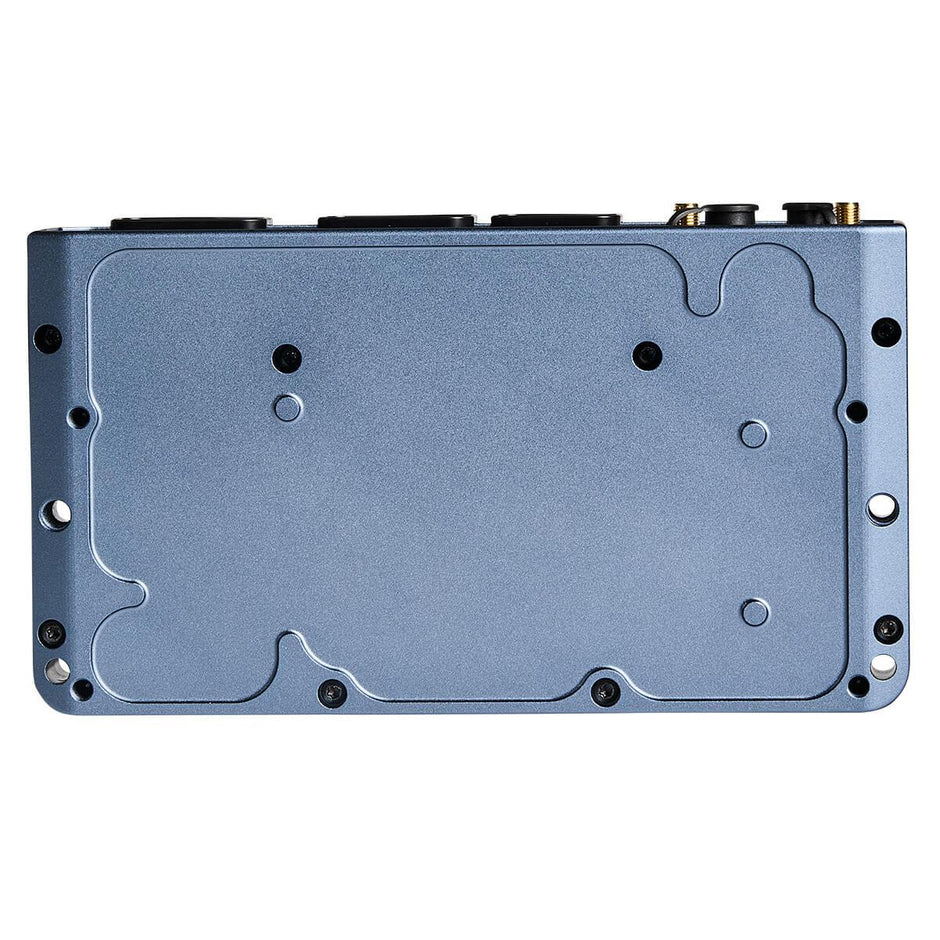

• G5 Voodoo Pro ECU

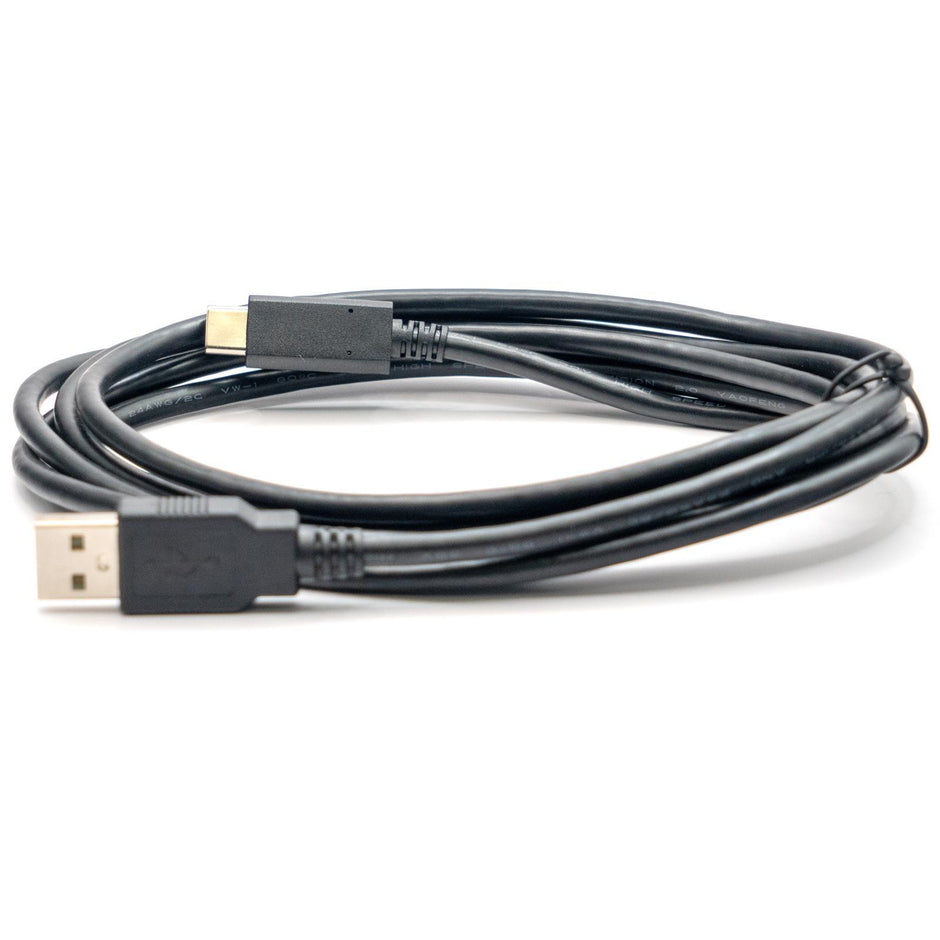

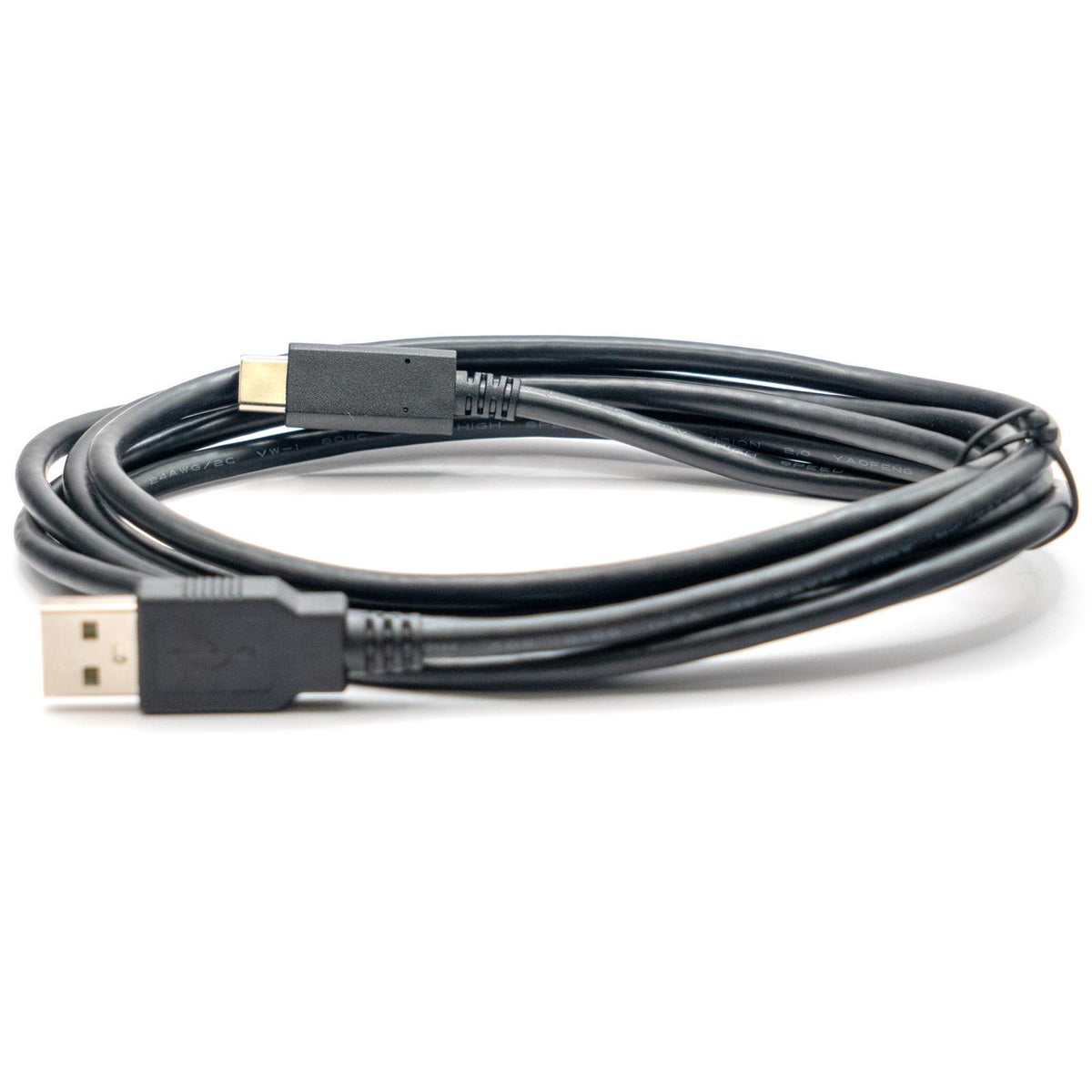

• USB-C Connection Cable

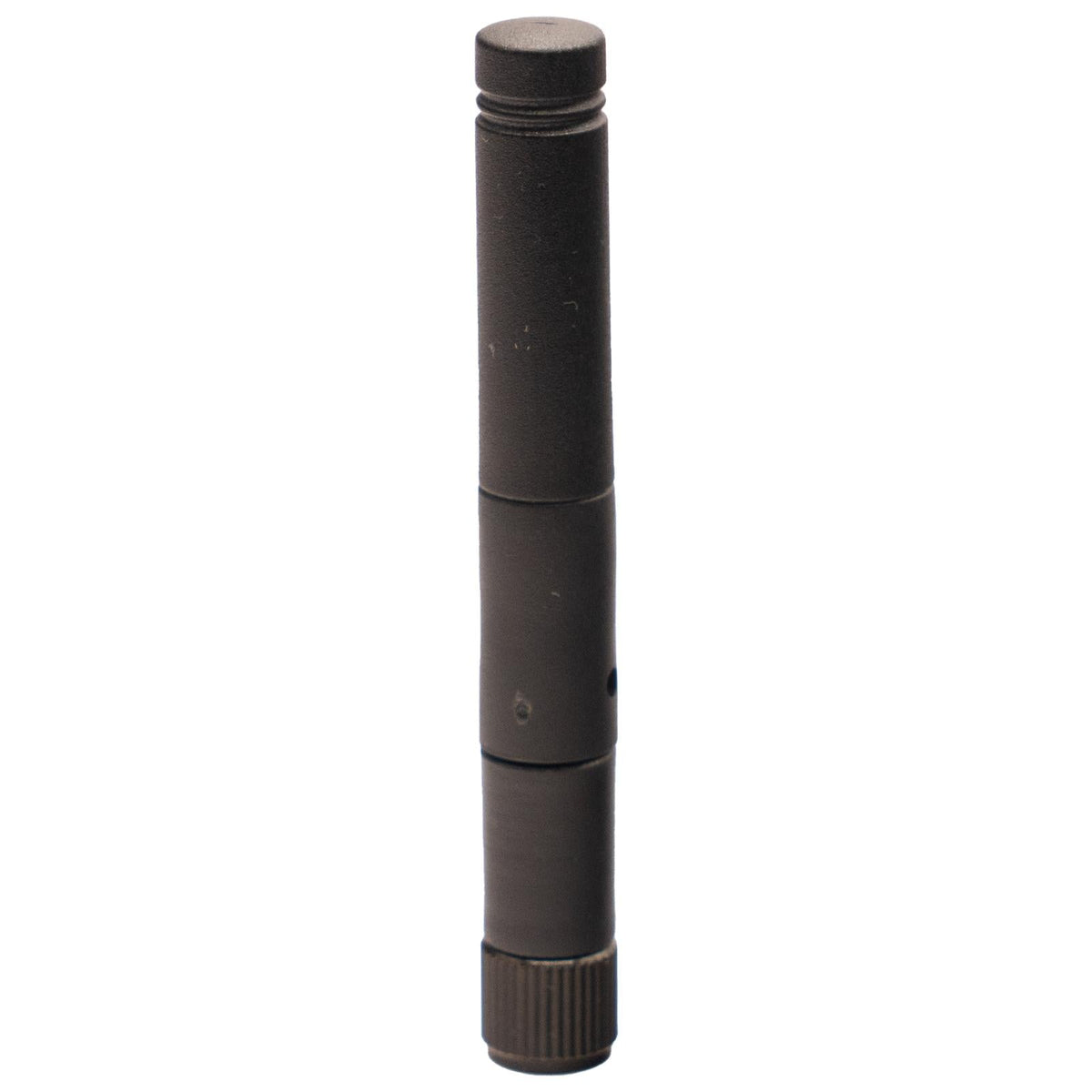

• Wi-Fi Antenna

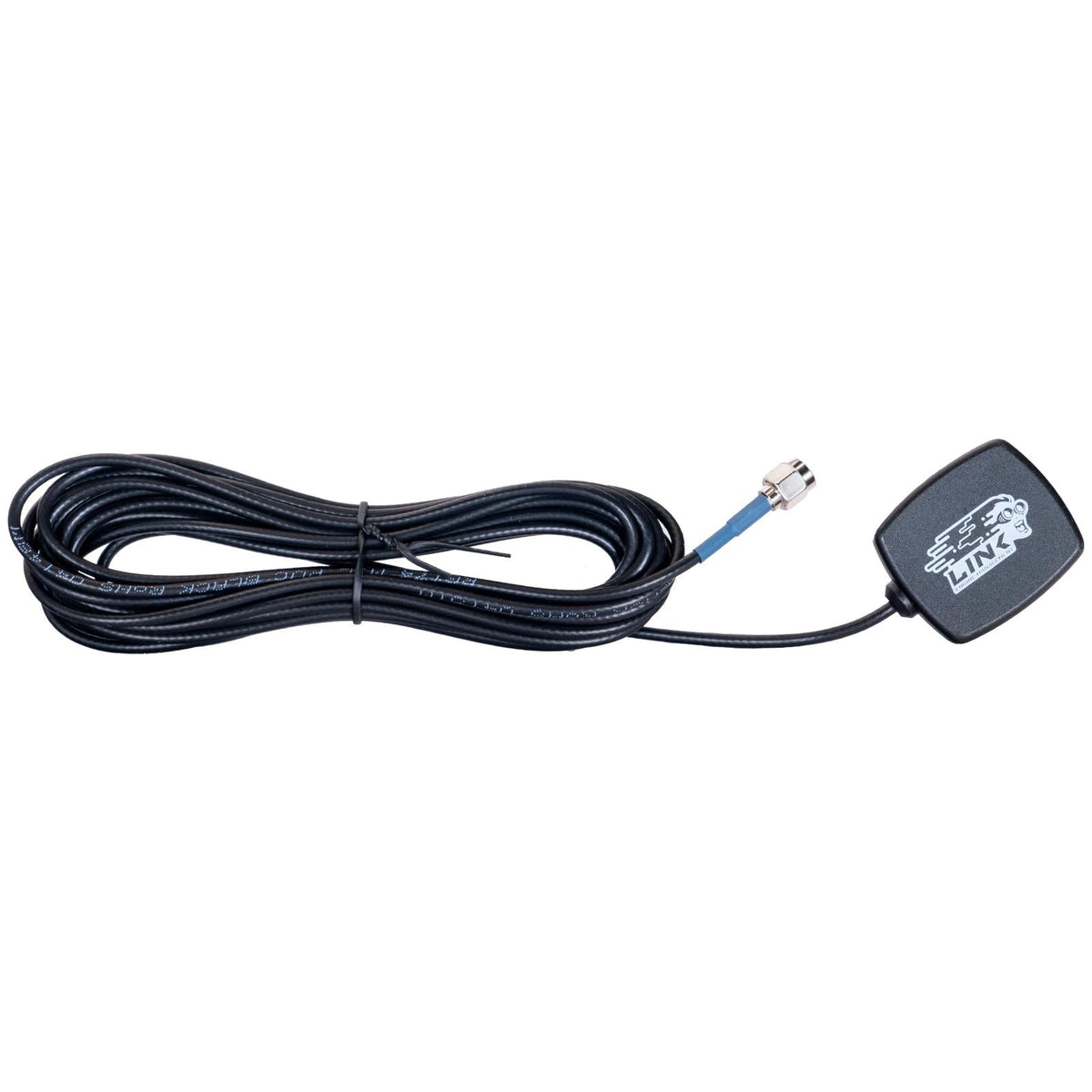

• 4m GPS Antenna (Magnetic or Adhesive Mount)
• USB-C and SMA Dust Covers
• Quick Start Guide (A5)
• Installer I/O table (A3)
• Mounting Screws
• Link stickers

Connector

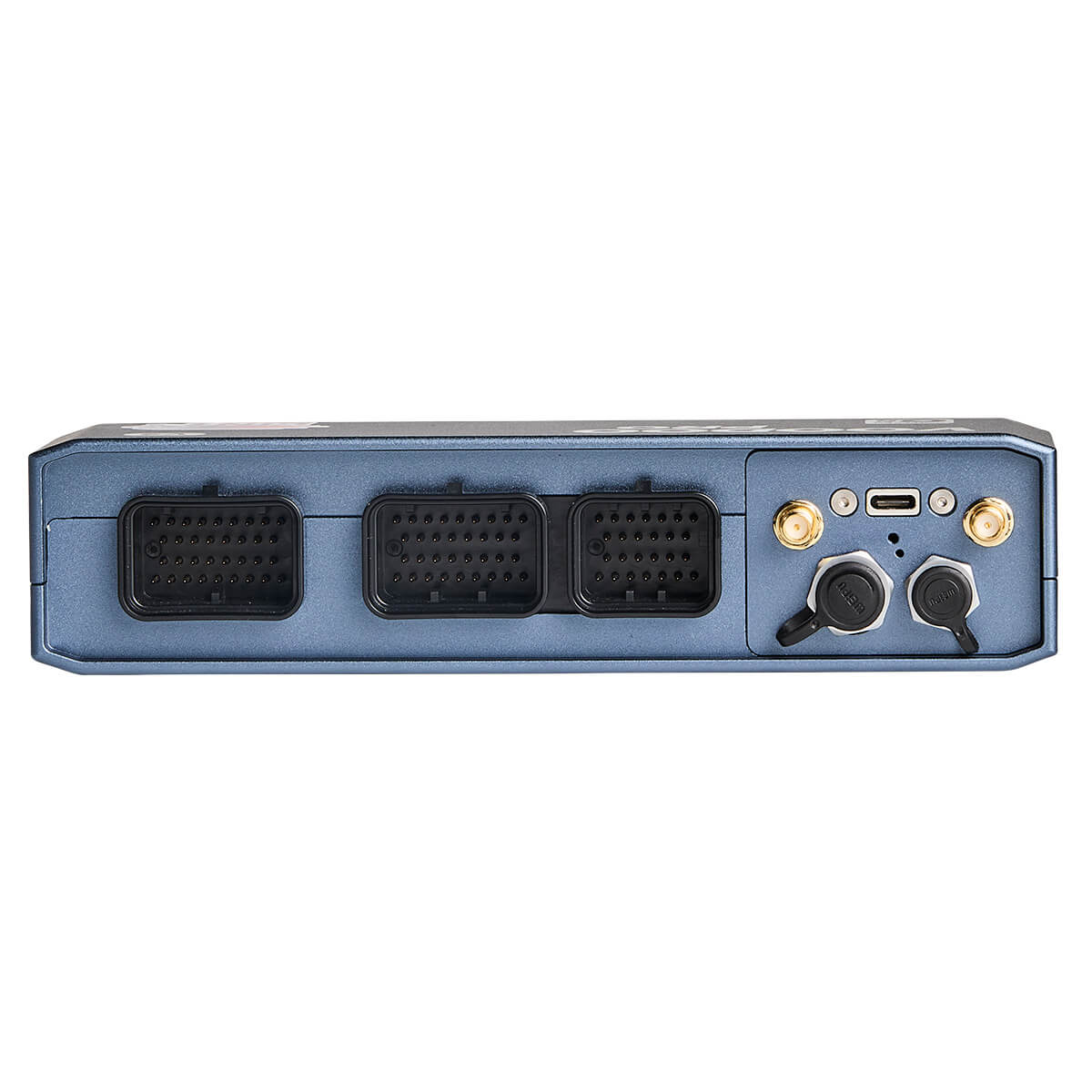

• Superseal 4 Row 34 Position x2
• Part number 4-1437290-0
• Part number 4-1437290-1
• Superseal 4 Row 26 Position
• Part number 1473416-1

Installation and ordering

Have an experienced installer confirm the engine, transmission, connector layout and available inputs and outputs before ordering. Follow the model-specific Link installation manual and configure the ECU in PCLink. Check sensor calibration, trigger settings, fuel and ignition setup, and engine-protection limits before running the engine. A supplied startup map requires calibration for the actual engine.

Listed tuning features depend on the vehicle hardware, firmware, available I/O and configuration. Shared or repurposed channels cannot perform every listed function simultaneously.
