Link G5 Voodoo Neo 4 Wire-In ECU (up to 6 Cylinders)

Link G5 Voodoo Neo 4 Wire-In ECU (up to 6 Cylinders)

Available from JDM Mods NQ, the Link G5 Voodoo Neo 4 Wire-In ECU (up to 6 Cylinders) is a configurable engine-management platform for a custom wiring installation. Use the fitment, technical and package details below to select the correct part for your build.

Manufacturer part number: 154-5000

Models Supported

• The G5 Voodoo Neo 4 can run: 6 cylinders sequential port or direct injection and direct spark, or, 4 cylinders with direct/port staged injection, and direct spark.

ECU Features

• Global Positioning System (GPS)
• Dual E-throttle Control
• 8 Custom Math Blocks with 30 characters
• Flex Fuel
• Trigger Oscilloscope
• 3 Axis Accelerometer
• 1k or 10k ohm Selectable Temp Input Pullups
• Flexible engine protection limiters
• CAN Keypad Control
• VVT Control
• Open Loop Boost Control
• Closed Loop Boost Control
• Onboard Digital Wideband Lambda Control
• Dual Closed Loop Lambda
• Direct Automatic Transmission Control
• 1 Gigabyte of Internal Data Logging

Motorsport Features

• Nitrous Control
• Launch Control
• Anti-lag
• Cruise Control
• Traction Control
• Race Timer and Power Management
• Gear Shift Control
• Paddle Shift Control

Outputs

• 8 Injection Drives
• Injection Drives can run Direct Injection via a driver box
• 6 Ignition Drives
• 12# Auxiliary Outputs
• +5V Sensor power supply
• Unused Injection and Ignition drives can be used as an Auxiliary Outputs
• # 4 pins are multi-purpose Aux or Digital Input pins. Each pin can be either Aux or Digital Input, not both at the same time.

Inputs

• 10+ Digital Inputs
• 4 Temperature Inputs
• 3 Analogue Inputs
• 2 Trigger Inputs
• 2 Knock Inputs
• Unused Temperature and Analogue Inputs can be used as Digital Inputs
• + 4 pins are multi-purpose Injection, Aux or Digital Input pins. Each pin can be either Injection, Aux. or Digital Input, not all at the same time.

Inputs / Outputs

• 6 ADIO Dual Purpose

Communications

• 2 CAN Bus Channels
• 1 Wi-Fi USB-C Tuning Connection
• 1 Ethernet
• 1 Power Over USB

Data Logging

• 1GB Onboard Logging Memory
• 100kHz Maximum Total Logging Rate
• 250 Logging Channels

Product Dimensions

• 107mm(L) x 158mm(W) x 45mm(H)
• 4.21in(L) x 6.22in(W) x 1.77in(H)

Product Weight

• 730 grams (25.75 ounces)

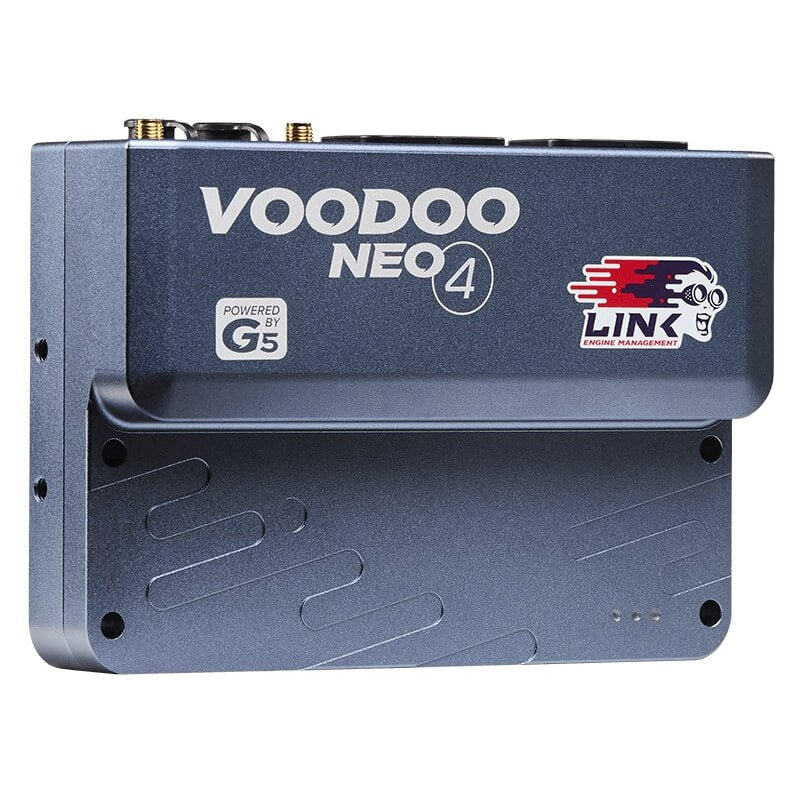

Material

• 6061-T6 billet CNC sealed enclosure

Electrical

• Operating Voltage Range: 6-30V
• Maximum Input Voltage: 30V
• Maximum Continuous Current Draw: 17A

What's in the Box

• G5 Voodoo Neo 4 ECU
• USB-C Connection Cable
• Wi-Fi Antenna
• 4m GPS Antenna (Magnetic or Adhesive Mount)
• USB-C and SMA Dust Covers
• Quick Start Guide (A5)
• Installer I/O table (A3)
• Link stickers

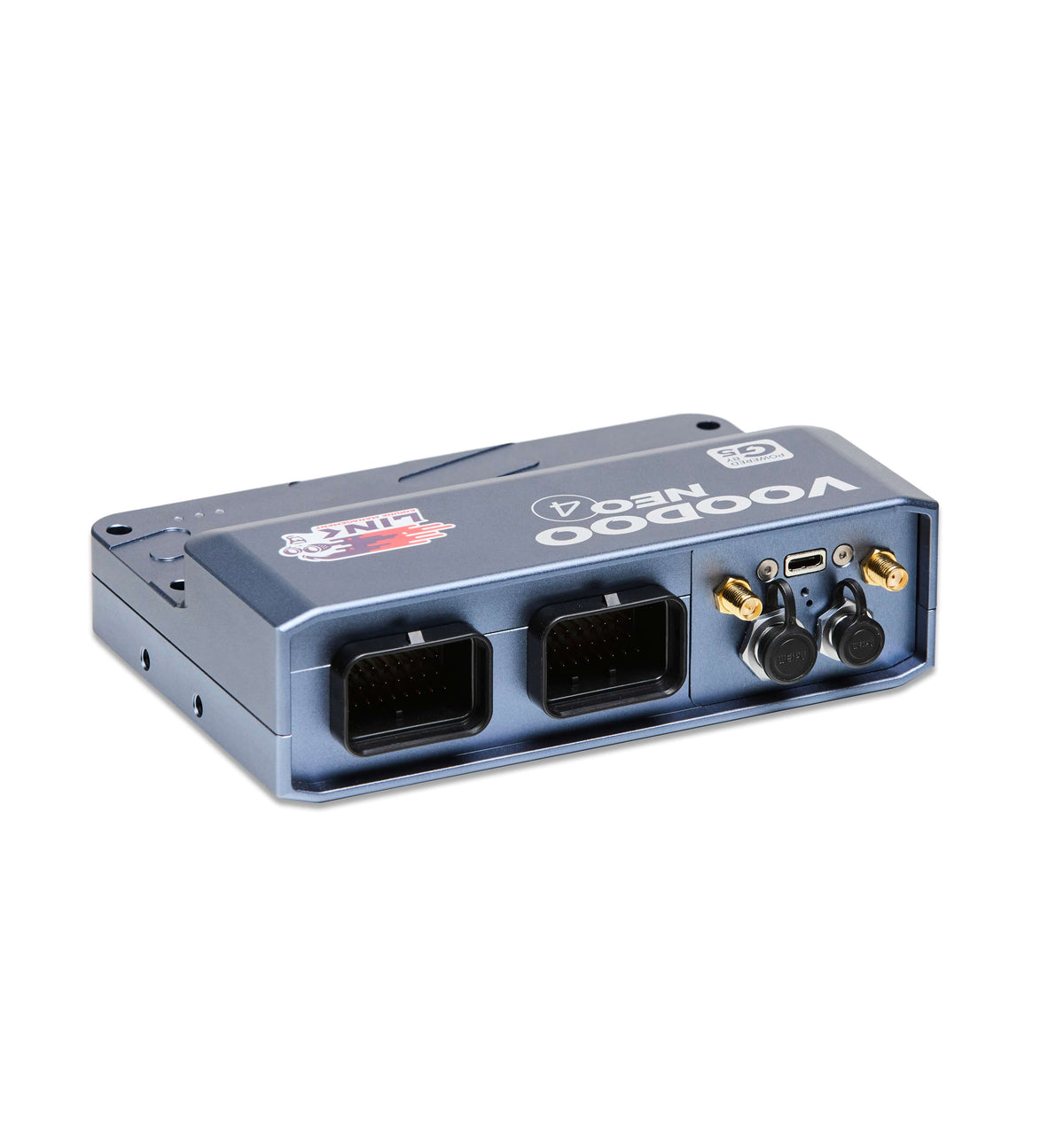

Connector

• Superseal 4 Row 34 Position x2
• Part number 4-1437290-0
• Part number 4-1437290-1

Installation and ordering

Have an experienced installer confirm the engine, transmission, connector layout and available inputs and outputs before ordering. Follow the model-specific Link installation manual and configure the ECU in PCLink. Check sensor calibration, trigger settings, fuel and ignition setup, and engine-protection limits before running the engine. A supplied startup map requires calibration for the actual engine.

This is a wire-in ECU. The vehicle wiring, compatible looms or connector/pin kits, and application-specific sensors must be selected separately unless explicitly listed in the package contents.

Listed tuning features depend on the vehicle hardware, firmware, available I/O and configuration. Shared or repurposed channels cannot perform every listed function simultaneously.
