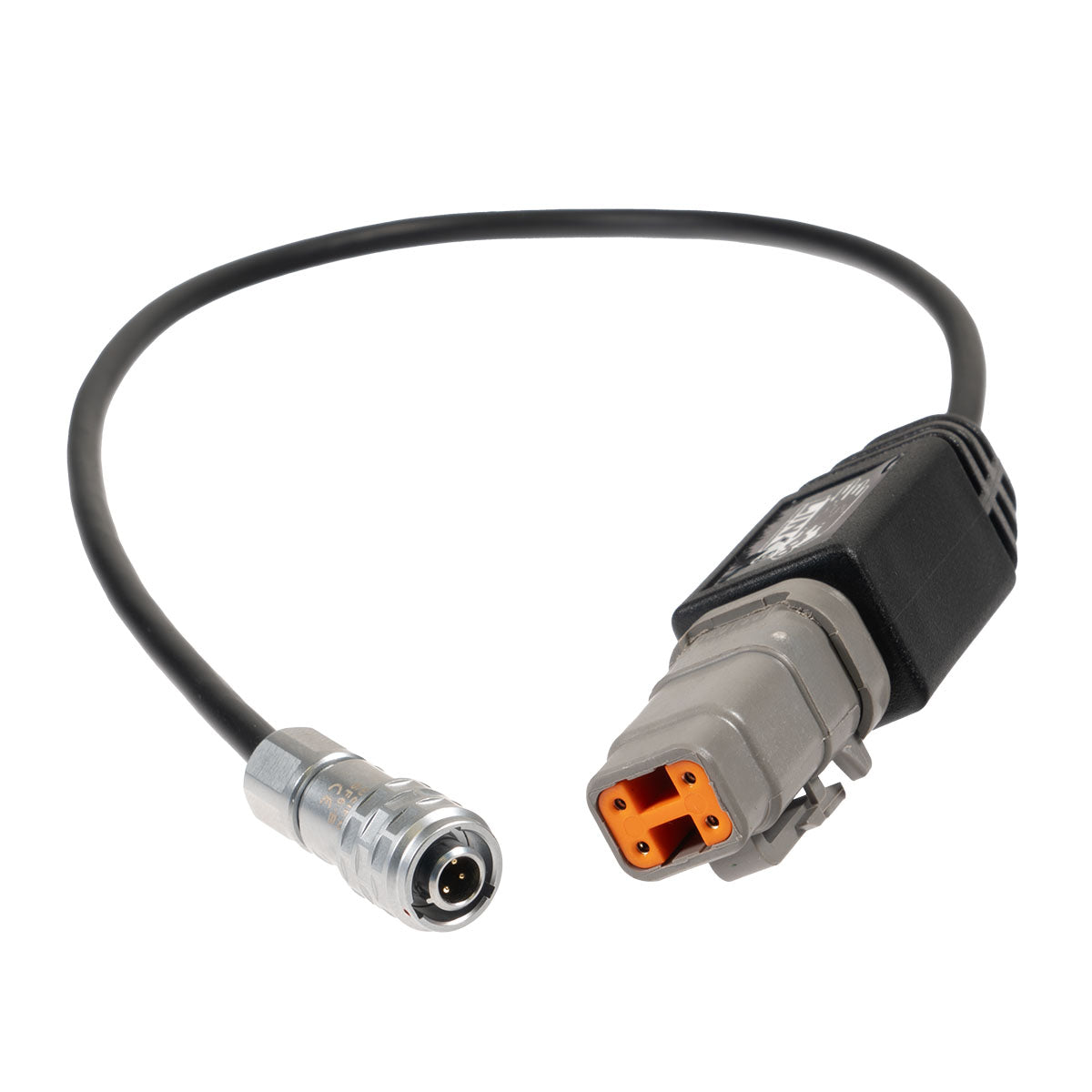

Link G5 CAN Connection Cable

Link G5 CAN Connection Cable

Available from JDM Mods NQ, the Link G5 CAN Connection Cable is a wiring component for the compatible Link installation listed below. Use the fitment, technical and package details below to select the correct part for your build.

Manufacturer part number: 101-5104

Models Supported

• G5 Voodoo ECUs

Highlights

• DTM4 Pin Out
• Pin 4: CAN High
• Pin 3: CAN Low
• Pin 2: Ground
• Pin 1: 12V

Cable Length

• 300mm

Electrical

• Maximum Continuous Current Draw: 3A

Misc.

• Power for CAN is supplied via this cable from the ECU

Connector

• DTM4 Male to WEiPU SF610B/P4

Installation and ordering

Confirm connector type, wiring, supply voltage and compatibility with the ECU or connected device before purchase. Follow the relevant Link wiring diagram, calibration and mounting instructions. CAN devices require a compatible CAN configuration and correct bus termination. Accessories are included only where they are explicitly listed below.

Installation and Compatibility Checks

Confirm the specified ECU or device connector, wire routing and pin assignments. Electrical installation should follow the correct wiring diagram, with protection and CAN termination where required.
