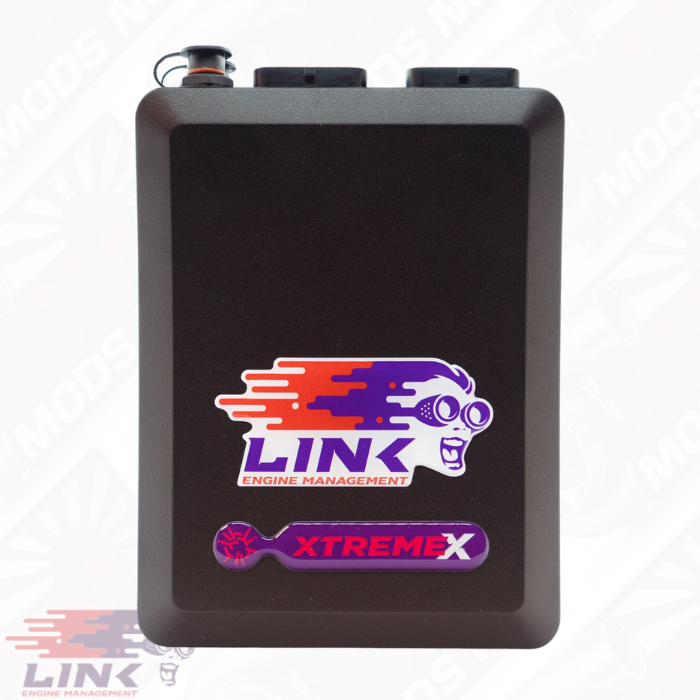

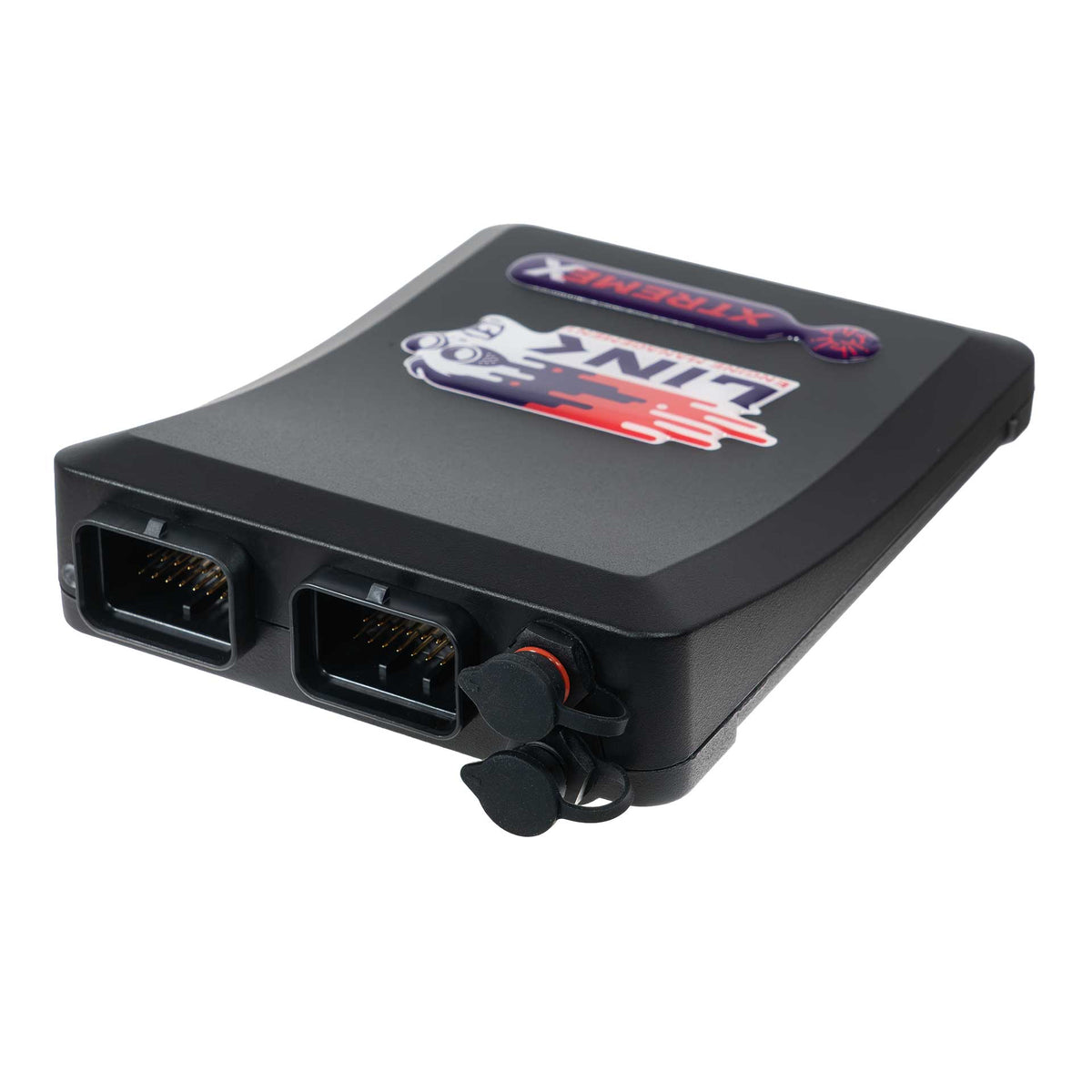

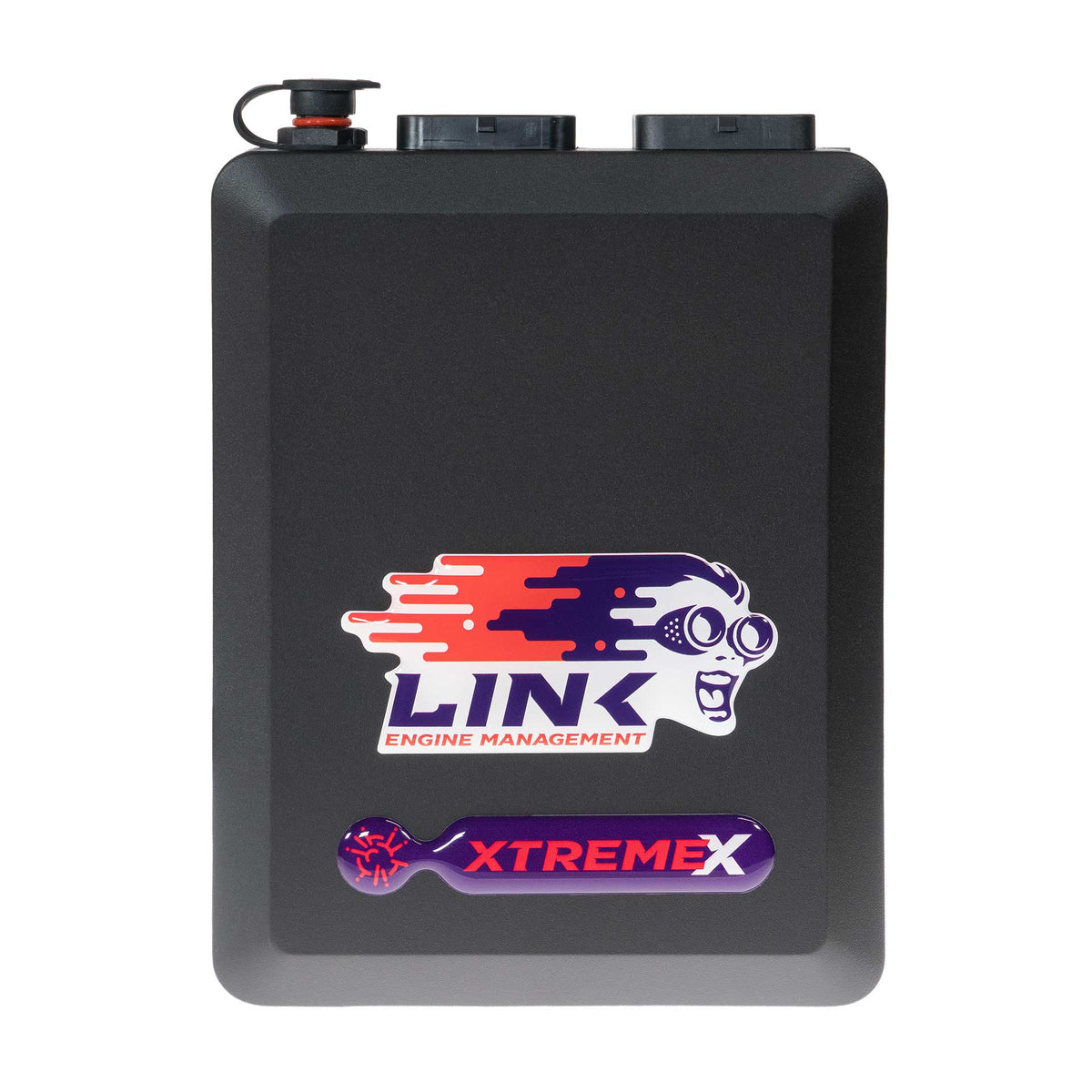

Link G4X XtremeX Wire-In ECU (up to 8 Cylinders)

Link G4X XtremeX Wire-In ECU (up to 8 Cylinders)

Available from JDM Mods NQ, the Link G4X XtremeX Wire-In ECU (up to 8 Cylinders) is a configurable engine-management platform for a custom wiring installation. Use the fitment, technical and package details below to select the correct part for your build.

Manufacturer part number: 109-4000

Models Supported

• The XtremeX can control up to 4 rotors or 8 cylinders with sequential injection and direct spark.

ECU Features

• E-throttle Control
• 8 Custom Math Blocks with 30 characters
• Flex Fuel
• Trigger Oscilloscope
• 3 Axis Accelerometer
• Selectable Temp Input Pullups
• Flexible engine protection limiters
• CAN Keypad Control
• VVT Control
• Open Loop Boost Control
• Closed Loop Boost Control
• Dual Closed Loop Lambda
• Direct Automatic Transmission Control
• Compatible with all leading after-market dashes via CAN or serial stream
• 512 Megabytes of Internal Data Logging

Motorsport Features

• Nitrous Control
• Launch Control
• Anti-lag
• Cruise Control
• Traction Control
• Race Timer and Power Management
• Gear Shift Control
• Paddle Shift Control

Outputs

• 8 Injection Drives
• 8 Ignition Drives
• 10 Auxiliary Outputs
• +5V Sensor power supply
• +8V Sensor power supply
• Unused Inj/Ign can be used as a Auxiliary Outputs

Inputs

• 10* Digital Inputs
• 4 Temperature Inputs
• 11 Analogue Inputs
• 2 Trigger Inputs
• 2 Knock Inputs
• Unused Temperature and Analogue Inputs can be used as Digital Inputs
• *2 Digital Inputs required when using 2nd CAN Bus

Communications

• 2 CAN Bus Channel
• LTW 6Pin USB Tuning Connection

Data Logging

• 512MB Onboard Logging Memory
• 100kHz Maximum Total Logging Rate
• 250 Logging Channels

Product Dimensions

• 185mm(L) x 130mm(W) x 40mm(H)
• 7.28in(L) x 5.12in(W) x 1.57in(H)

Product Weight

• 680 grams (23.99 ounces)

Material

• Die-cast aluminum enclosure

Electrical

• Operating Voltage Range: 6.5-24V
• Maximum Input Voltage: 36V
• Maximum Continuous Current Draw: 5.5A
• Operating Current: 200mA

Misc.

• Manufacturing Standard ISO 13485

What's in the Box

• XtremeX G4X ECU
• Quick Start Guide
• Mounting Bracket
• USB Tuning Cable
• LinkECU Stickers

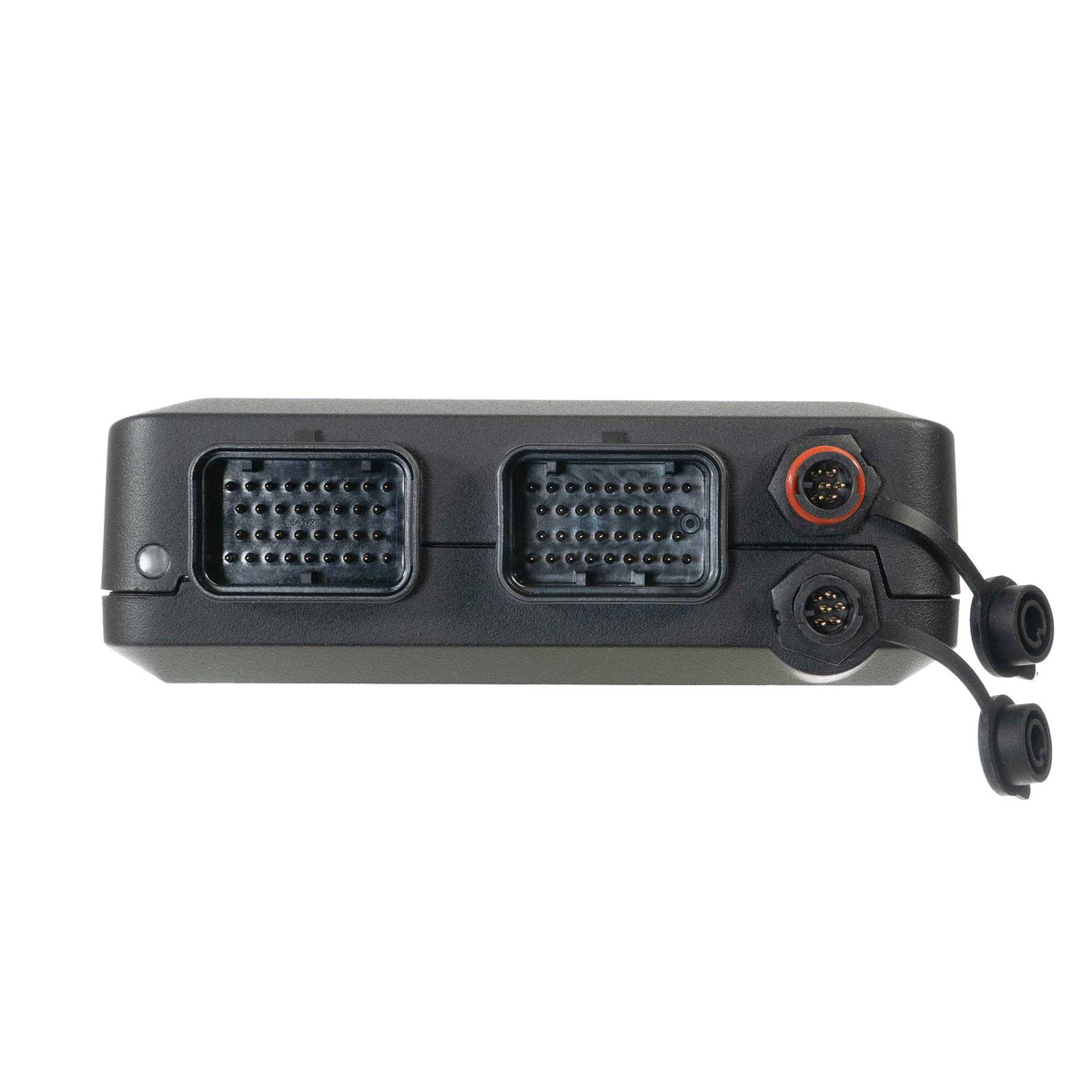

Connector

• Superseal 4 Row 34 Position x2
• Part number 4-1437290-0
• Part number 4-1437290-1

Installation and ordering

Have an experienced installer confirm the engine, transmission, connector layout and available inputs and outputs before ordering. Follow the model-specific Link installation manual and configure the ECU in PCLink. Check sensor calibration, trigger settings, fuel and ignition setup, and engine-protection limits before running the engine. A supplied startup map requires calibration for the actual engine.

This is a wire-in ECU. The vehicle wiring, compatible looms or connector/pin kits, and application-specific sensors must be selected separately unless explicitly listed in the package contents.

Listed tuning features depend on the vehicle hardware, firmware, available I/O and configuration. Shared or repurposed channels cannot perform every listed function simultaneously.
