Link G4X Monsoon Wire-In Bundle - ECU + Loom + Sensors

Link G4X Monsoon Wire-In Bundle - ECU + Loom + Sensors

Available from JDM Mods NQ, the Link G4X Monsoon Wire-In Bundle - ECU + Loom + Sensors is a coordinated parts package for the application described below.

Manufacturer part number: 127-9800B

MonsoonX needs external wideband-controller hardware for wideband lambda measurement. Knock control requires MonsoonX hardware version 3.0 or later. Wiring and installation must be tailored to the engine; this bundle is not a vehicle-specific plug-and-play loom.

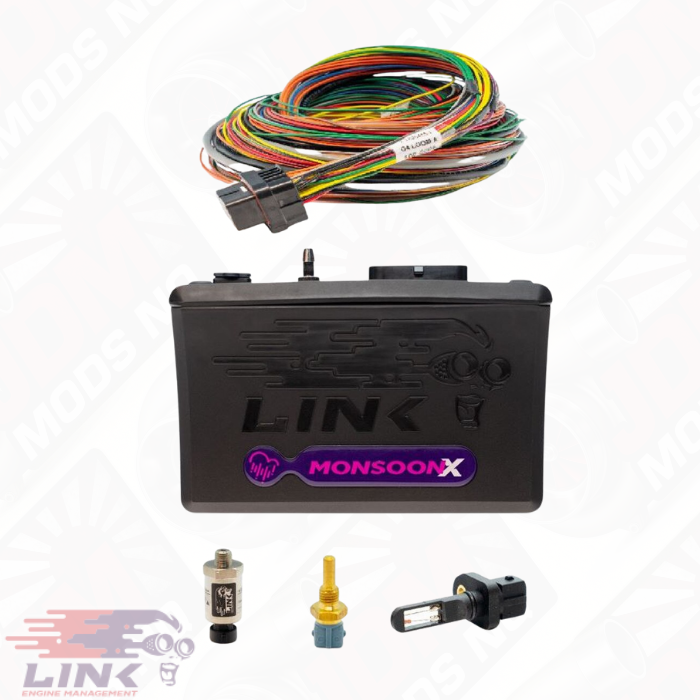

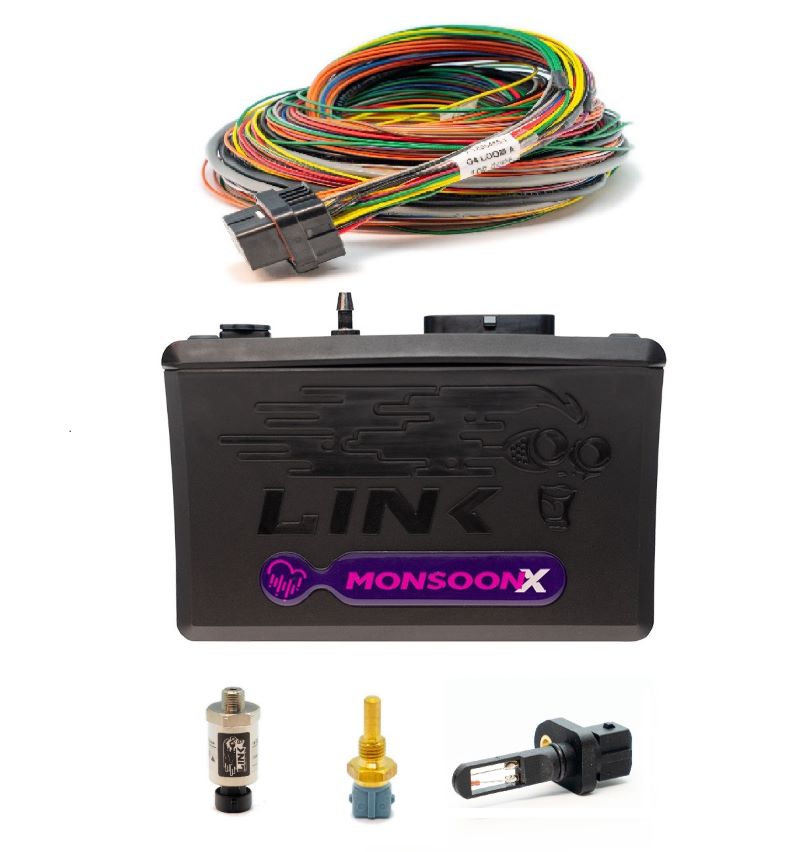

Bundle contents

• MonsoonX ECU (127-4000)
• 2.5 m A loom (101-0005)
• Air-temperature sensor IATB (101-0048)
• Coolant-temperature sensor NTC12 (101-0077)
• PS150 pressure sensor

ECU — Models Supported

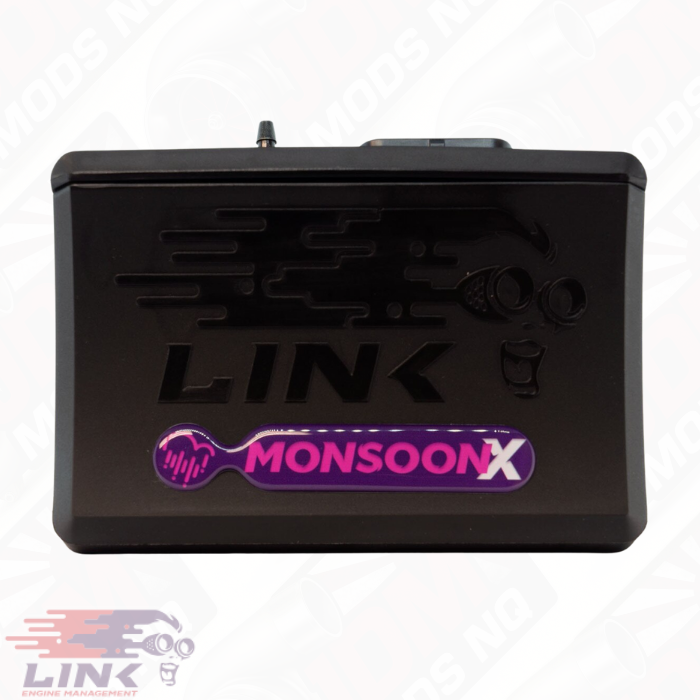

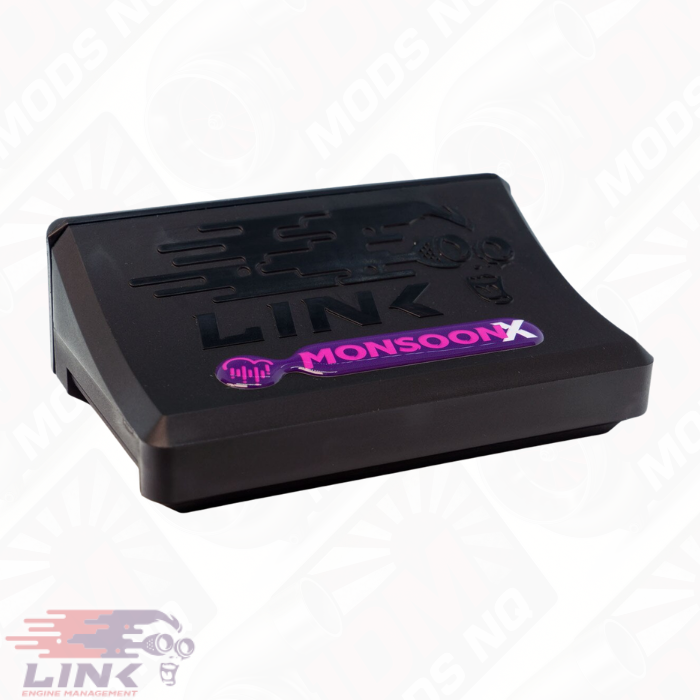

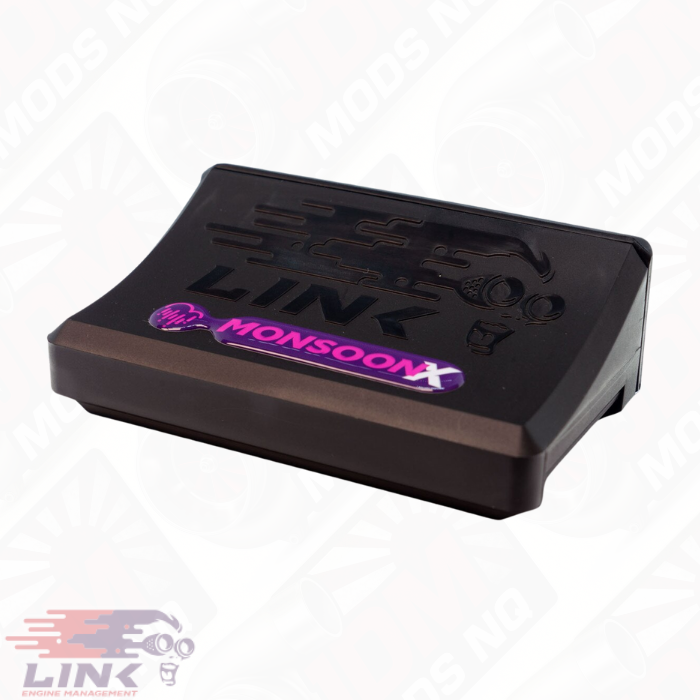

• The MonsoonX can control up to 2 rotors or 4 cylinders with sequential injection and direct spark.

ECU — ECU Features

• Built-in MAP Sensor
• 8 Custom Math Blocks with 30 characters
• Flex Fuel
• Trigger Oscilloscope
• Flexible engine protection limiters
• CAN Keypad Control
• VVT Control
• Open Loop Boost Control
• Closed Loop Boost Control
• Dual Closed Loop Lambda
• Compatible with all leading after-market dashes via CAN or serial stream.
• 512 Megabytes of Internal Data Logging

ECU — Motorsport Features

• Launch Control
• Anti-Lag
• Gear Shift Control
• Paddle Shift Control
• Note: The MonsoonX will run any of the above features, but it cannot run them all at once. The number of features you can run is dependent on how many of the limited Inputs and Outputs each feature needs.

ECU — Outputs

• 4 Injection Drives
• 4 Ignition Drives
• 6 Auxiliary Outputs
• +5V Sensor power supply
• Unused Inj/Ign can be used as a Auxiliary Outputs

ECU — Inputs

• 4 Digital Inputs
• 2 Temperature Inputs
• 4 Analogue Inputs
• 2 Trigger Inputs
• 1 Knock Input
• Unused Temperature and Analogue Inputs can be used as Digital Inputs

ECU — Communications

• 1 CAN Bus Channel
• Mini-B USB Tuning Connection

ECU — Data Logging

• 512MB Onboard Logging Memory
• 100kHz Maximum Total Logging Rate
• 250 Logging Channels

ECU — Product Dimensions

• 95mm(L) x 130mm(W) x 45mm(H)
• 3.74in(L) x 5.12in(W) x 1.77in(H)

ECU — Product Weight

• 220 grams (7.76 ounces)

ECU — Material

• Glass-filled nylon enclosure

ECU — Electrical

• Operating Voltage Range: 6.5-24V
• Maximum Input Voltage: 36V
• Maximum Continuous Current Draw: 3A
• Operating Current: 200mA

ECU — Misc.

• Manufacturing Standard ISO 13485

ECU — Connector

• Superseal 4 Row 34 Position
• Part number 4-1437290-0

Installation and ordering

Have an experienced installer confirm the engine, transmission, connector layout and available inputs and outputs before ordering. Follow the model-specific Link installation manual and configure the ECU in PCLink. Check sensor calibration, trigger settings, fuel and ignition setup, and engine-protection limits before running the engine. A supplied startup map requires calibration for the actual engine.

Listed tuning features depend on the vehicle hardware, firmware, available I/O and configuration. Shared or repurposed channels cannot perform every listed function simultaneously.

Official Link bundle information
