Available from JDM Mods NQ, the Link G4X TTX Plug-In ECU (Audi TT / VW 1.8L Turbo, PQ34 Platform) is a vehicle-specific engine-management upgrade that uses the compatible factory ECU connections. Use the fitment, technical and package details below to select the correct part for your build.

Manufacturer part number: 208-4000

Models Supported

• The TTX is designed to suit the VWAG PQ34 with 1.8T engine such as:
• Audi TT with AJQ engine from 1999-2002
• VW Beetle with AWU engine, 2005
• VW Passat, 2000
• VW Golf with AUM engine, 2001
• Other vehicles are likely to be compatible with the TTX ECU, but are unconfirmed. For more information contact Link's Tech Support or your official reseller.
• Audi A3/A4/A6/S3 1998-2006
• Seat Alhambra/Ibiza/Leon 1999-2008
• Skoda Octavia 1999-2005
• VW Bora/Golf/Jetta/New Beetle/Passat/Polo/Sharan 1999-2008

Important

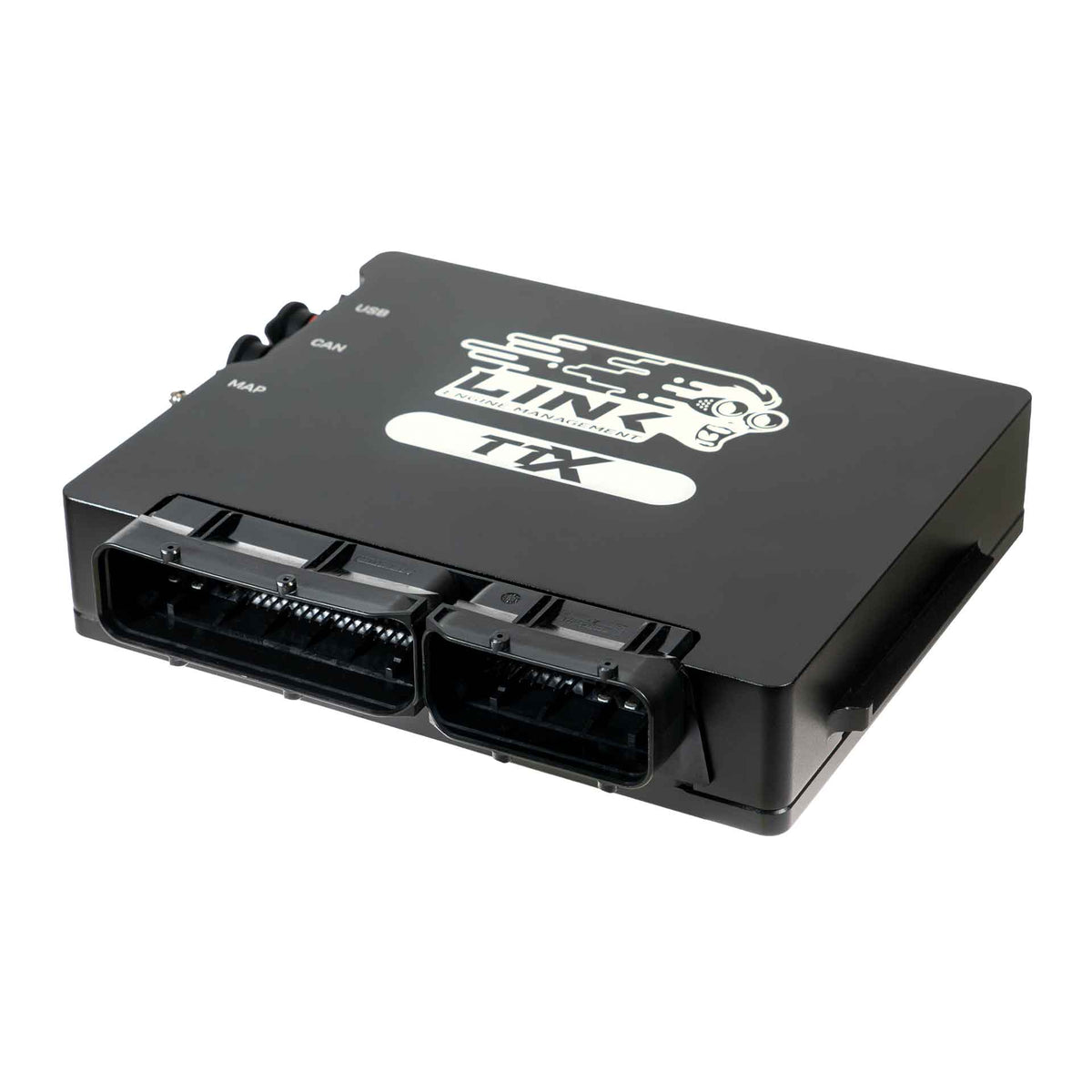

• Compare the vehicle ECU connector with the product photographs before ordering.
• Manual-transmission applications only.

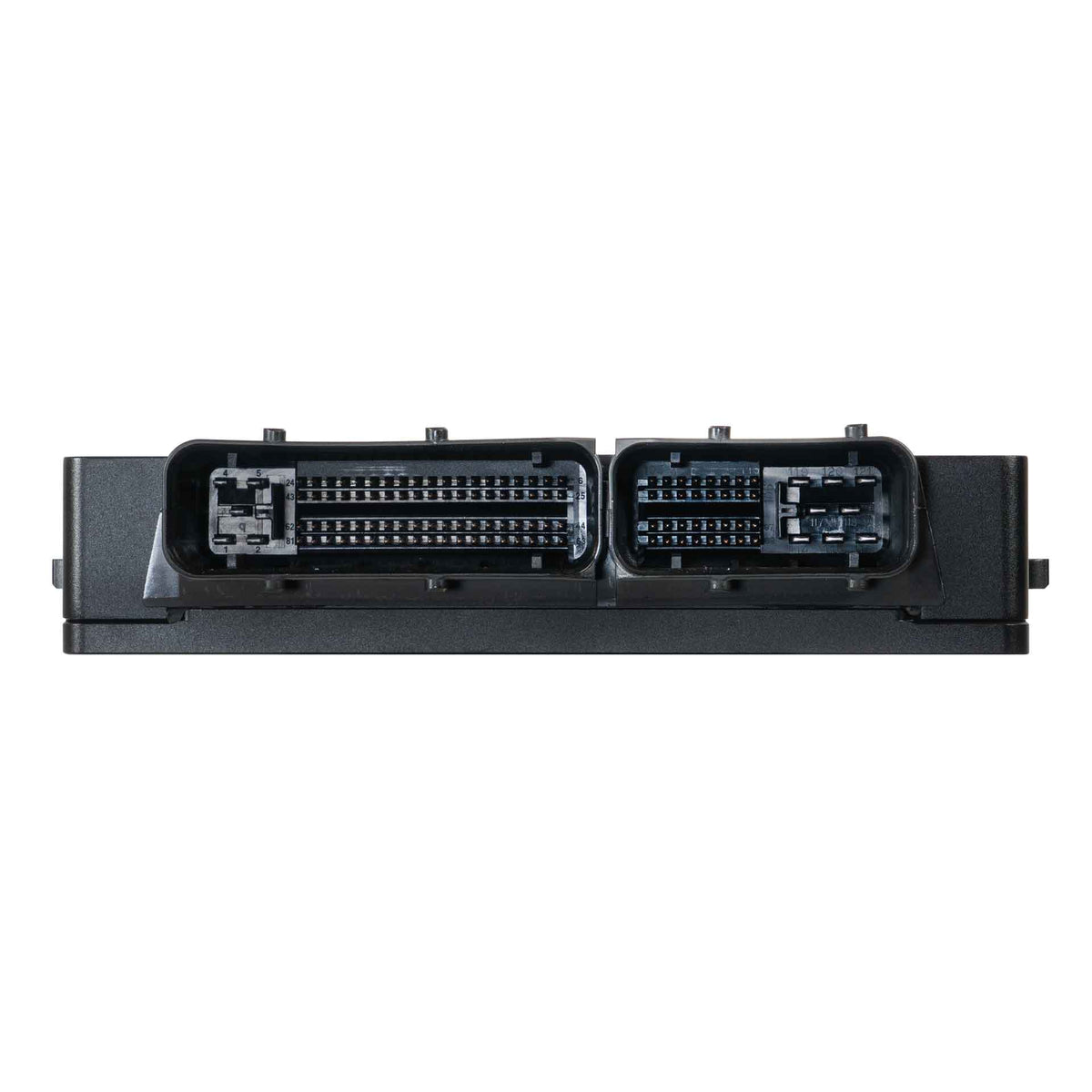

• ECU header must have two connectors, 121 pin total.
• Engine must be 1.8T, drivetrain must be FWD or 4WD (Haldex).
• This ECU has built-in E-Throttle (Drive-by-Wire).
• This model includes an onboard MAP sensor.
• Factory-feature support depends on the listed vehicle application.

ECU Features

• Dual CAN Bus
• E-throttle Control
• Flex Fuel
• Trigger Oscilloscope
• 3 Axis Accelerometer
• Selectable Temp Input Pullups
• Flexible engine protection limiters
• CAN Keypad Control
• VVT Control
• Open Loop Boost Control
• Closed Loop Boost Control
• Dual Closed Loop Lambda
• Direct Automatic Transmission Control
• Compatible with all leading aftermarket dashes via CAN or serial stream
• 512 Megabytes of internal data logging

Motorsport Features

• Nitrous Control
• Launch Control
• Anti-lag
• Cruise Control
• Traction Control
• Race Timer and Power Management
• Gear Shift Control
• Paddle Shift Control

Inputs and Outputs

• For the full list of Inputs and Outputs, please see the TTX Installation Manual

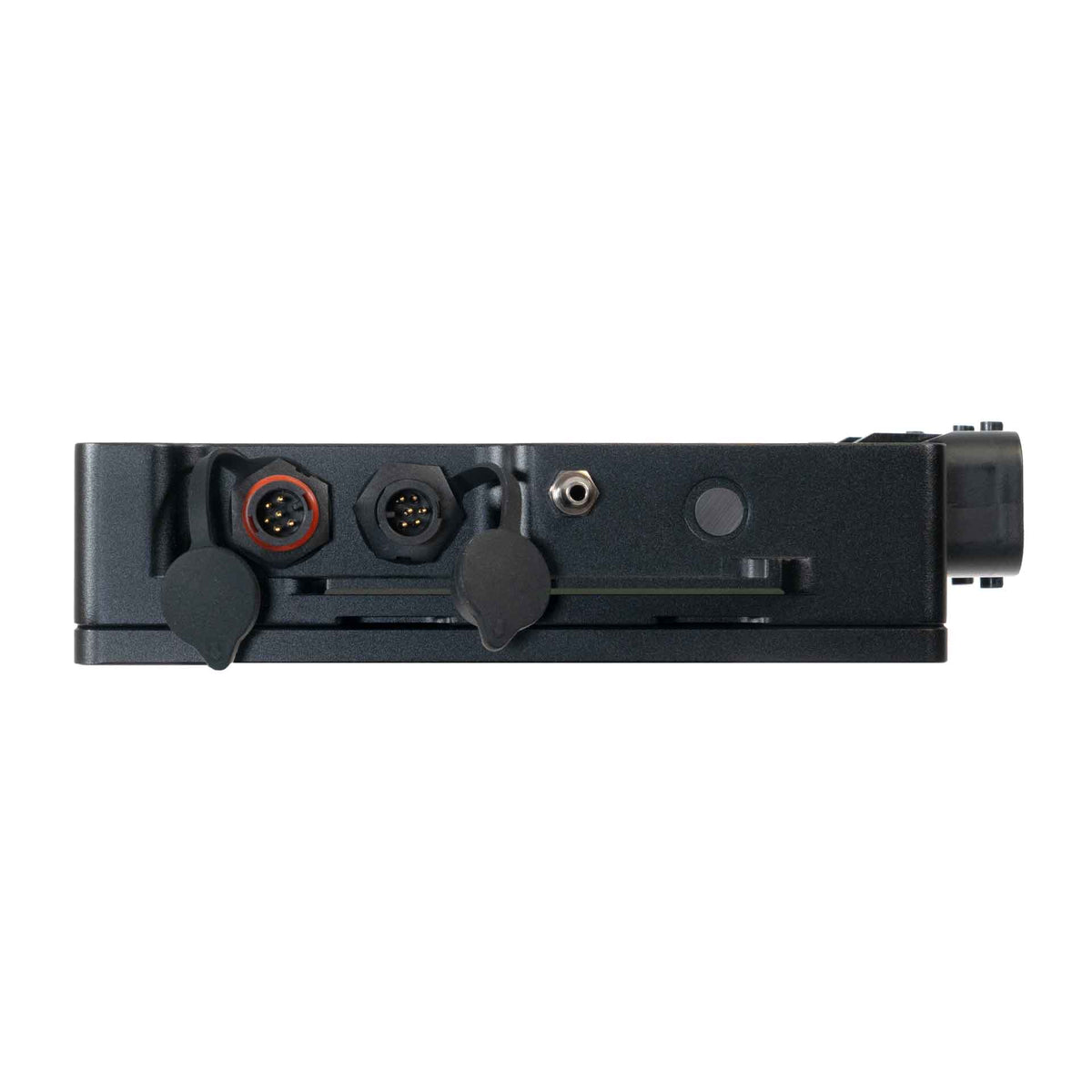

Communications

• 2 CAN Bus Channels
• LTW 6-Pin USB Tuning Connection

Product Dimensions

• 190mm(L)x155mm(W)x40mm(H)
• 7.48in(L)x6.10in(W)x1.57in(H)

Product Weight

• 960 grams (33.86 ounces)

Electrical

• Operating Voltage Range: 6.5-24V
• Maximum Input Voltage: 36V
• Maximum Continuous Current Draw: 5.5A

What's in the Box

• G4X TTX Plug-in ECU
• Anti-static Strap
• USB Tuning Cable - ECU to USB
• Link stickers
• Plug-in Manual Card
• Product Registration Card

Installation and ordering

Have an experienced installer confirm the engine, transmission, connector layout and available inputs and outputs before ordering. Follow the model-specific Link installation manual and configure the ECU in PCLink. Check sensor calibration, trigger settings, fuel and ignition setup, and engine-protection limits before running the engine. A supplied startup map requires calibration for the actual engine.

Listed tuning features depend on the vehicle hardware, firmware, available I/O and configuration. Shared or repurposed channels cannot perform every listed function simultaneously.
