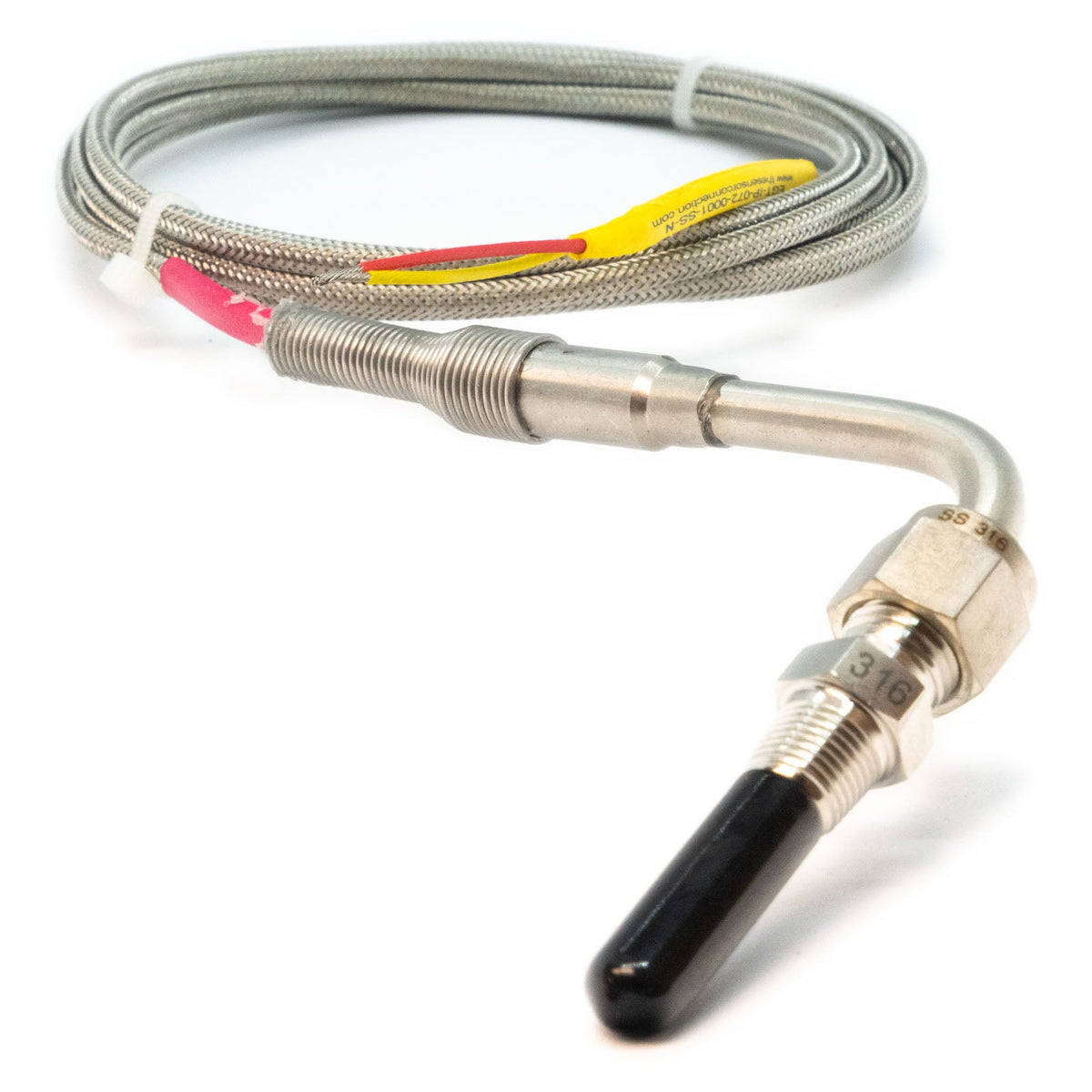

Link Exhaust Gas Temperature Probe (EGT)

Link Exhaust Gas Temperature Probe (EGT)

Available from JDM Mods NQ, the Link Exhaust Gas Temperature Probe (EGT) is a measurement component for a compatible engine-management installation. Use the fitment, technical and package details below to select the correct part for your build.

Manufacturer part number: 101-0146

Models Supported

• Link G4+ Thunder ECU with two dedicated EGT inputs.
• Other Link ECUs when used with a suitable thermocouple amplifier such as the LinkECU range of CANEGT controllers.
• Other aftermarket ECUs supporting Type K thermocouples.

Warnings

• A thermocouple amplifier is required when using the EGT Probe with a Link ECU that does not have a suitable onboard thermocouple input. Correct polarity must be observed when wiring the Type K thermocouple: yellow is positive (+) and red is negative (-).

Highlights

• The Link Exhaust Gas Temperature Probe has the following specifications:
• Type K thermocouple.
• Temperature range: -100degC to 1300degC.
• Accuracy: +/-0.4% of reading or approximately +/-1.1degC.
• Fast-response exposed sensing junction.
• Ungrounded sensing junction.
• Supports individual cylinder fuel trim based on EGT.
• Supports EGT-based engine protection strategies.
• Response time: 150 ms.
• Probe diameter: 6.35 mm (1/4").
• Inconel outer sheath.
• 1.8 m stainless steel overbraided cable.
• Adjustable 316 stainless steel compression fitting.
• 1/8"-27 NPT male mounting thread.
• Yellow positive (+) and red negative (-) wiring.

Product Dimensions

• 1950mm(L)x15mm(W)x85mm(H)
• 76.77in(L)x0.59in(W)x3.35in(H)

Product Weight

• 105 grams (3.70 ounces)

Material

• Inconel outer sheath with stainless steel overbraided cable.

What's in the Box

• Exhaust Gas Temperature Probe.
• K-type thermocouple connector, compatible with the LinkECU range of CANEGT controllers.
• Printed Instructions.

Installation and ordering

Confirm connector type, wiring, supply voltage and compatibility with the ECU or connected device before purchase. Follow the relevant Link wiring diagram, calibration and mounting instructions. CAN devices require a compatible CAN configuration and correct bus termination. Accessories are included only where they are explicitly listed below.

Installation and Compatibility Checks

Use the specified fitting and maintain correct thermocouple polarity. Connect to a compatible Type-K thermocouple amplifier or measurement device; route the lead away from heat and interference.
