    Link Ethanol Content Sensor (ECS)

    SKU: 101-0034

    4Low stock

    Sale price $379.50 -100% Regular price
    Regular price $379.50
    Tax included. Shipping calculated at checkout.
    Link Ethanol Content Sensor (ECS)
    Sale price $379.50 Regular price
    Regular price $379.50

    Fast Shipping

    Returns & Support

    View returns policy

    Best Deals

    Product Description

    Link Ethanol Content Sensor (ECS)

    Available from JDM Mods NQ, the Link Ethanol Content Sensor (ECS) is a measurement component for a compatible engine-management installation. Use the fitment, technical and package details below to select the correct part for your build.

    Manufacturer part number: 101-0034

    Models Supported

    • Link G4+/G4X/G5 ECU's.
    • Petrol and ethanol fuel blends, including E85.

    Warnings

    • Install the sensor in the fuel return line between the fuel pressure regulator and the fuel tank. Requires a 12 V power supply, battery ground and a single Digital Input on the ECU. The ethanol content and fuel temperature outputs must be configured in the ECU software.

    Highlights

    • The Link Ethanol Content Sensor has the following specifications:
    • Genuine Continental Flex Fuel Sensor.
    • Measures ethanol content and fuel temperature.
    • Includes female EFI Quick couple to AN6 Male adaptors.
    • Digital output signal.
    • Includes connector and pin kit.
    • Ethanol content output: 50-150 Hz = 0-100% ethanol.
    • Fuel temperature output: 1-5 ms pulse width = -40degC to 125degC.

    Product Dimensions

    • 130mm(L)x130mm(W)x40mm(H)
    • 5.12in(L)x5.12in(W)x1.57in(H)

    Product Weight

    • 130 grams (4.59 ounces)

    Electrical

    • Operating Voltage Range: 9-18V
    • Maximum Input Voltage: 18V
    • Maximum Continuous Current Draw: 20mA

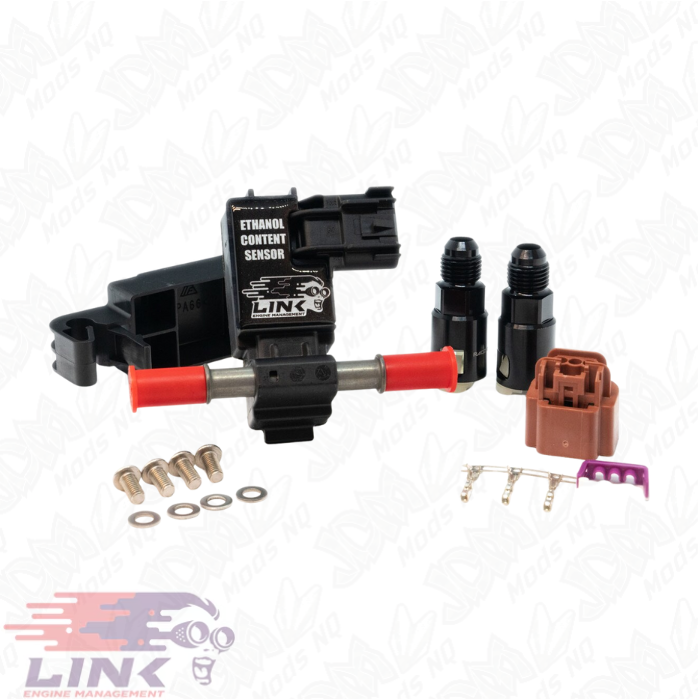

    What's in the Box

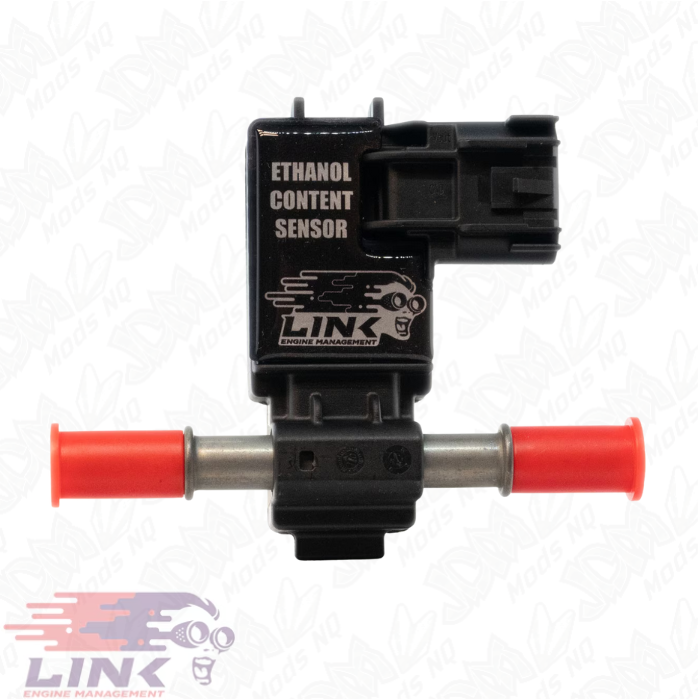

    • Ethanol Content Sensor

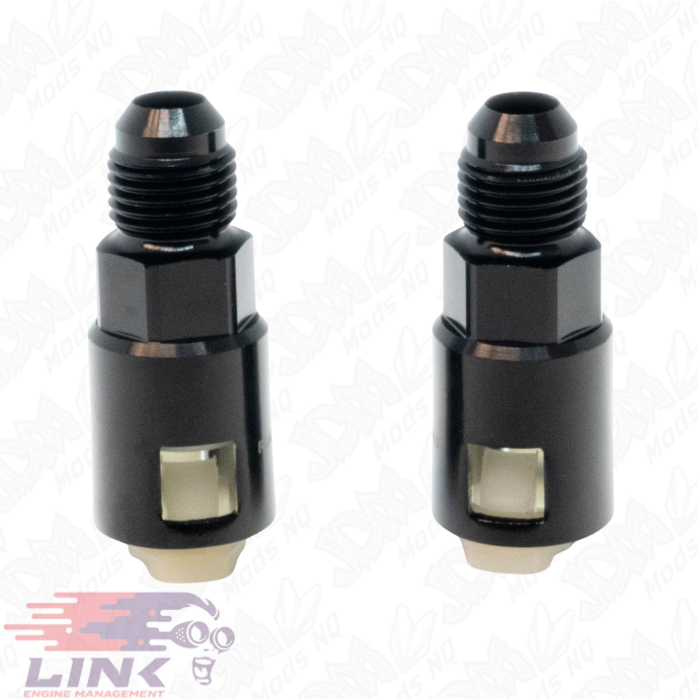

    • AN-6 adapter fittings

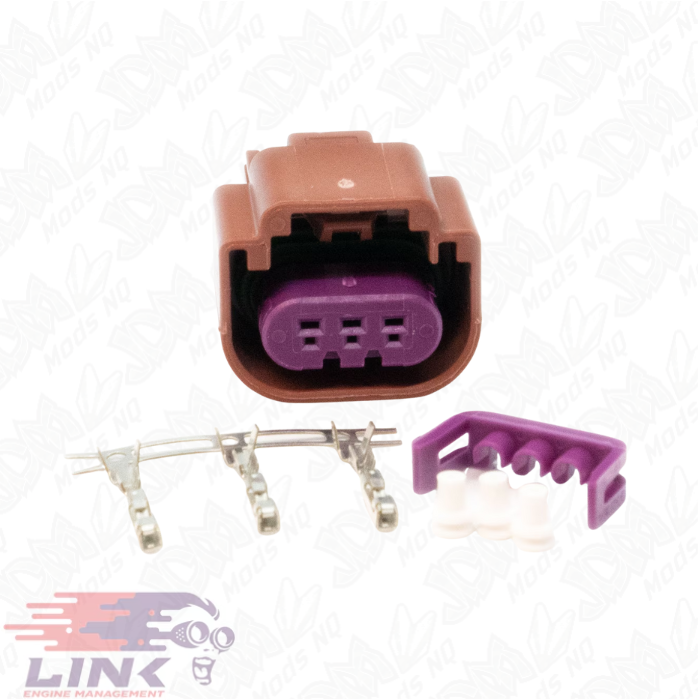

    • 3-pin connector kit

    Installation and ordering

    Confirm connector type, wiring, supply voltage and compatibility with the ECU or connected device before purchase. Follow the relevant Link wiring diagram, calibration and mounting instructions. CAN devices require a compatible CAN configuration and correct bus termination. Accessories are included only where they are explicitly listed below.

    Installation and Compatibility Checks

    Install in the fuel return line between the regulator and tank. Provide the specified supply and ground, connect a compatible ECU digital input and configure ethanol content and temperature signals.
