Link Electronic Throttle Body Kit - 82mm (ETB82)

Link Electronic Throttle Body Kit - 82mm (ETB82)

Available from JDM Mods NQ, the Link Electronic Throttle Body Kit - 82mm (ETB82) is a throttle-control component for an appropriately configured engine-management system. Use the fitment, technical and package details below to select the correct part for your build.

Manufacturer part number: 101-0190

Models Supported

• Requires a compatible Link ECU with built-in E-throttle or an external E-throttle Module (115-1000).
• Suitable for use with an electronic accelerator pedal such as the Link PN 101-0188 or pedal position sensors.

Warnings

• Further details on E-Throttle setup can be found in the PC Link helpfile.

ECU Tuning Features

• 82mm Bore size
• Dual potentiometer redundancy
• Bosch quality and performance
• Includes groove on inlet port flange

Product Dimensions

• 140mm(L)x140mm(W)x75mm(H)
• 5.51in(L)x5.51in(W)x2.95in(H)

Product Weight

• 900 grams (31.75 ounces)

Electrical

• Operating Voltage Range: 6-16V
• Maximum Input Voltage: 16V
• Maximum Continuous Current Draw: 10A
• TPS Output: 0-5V

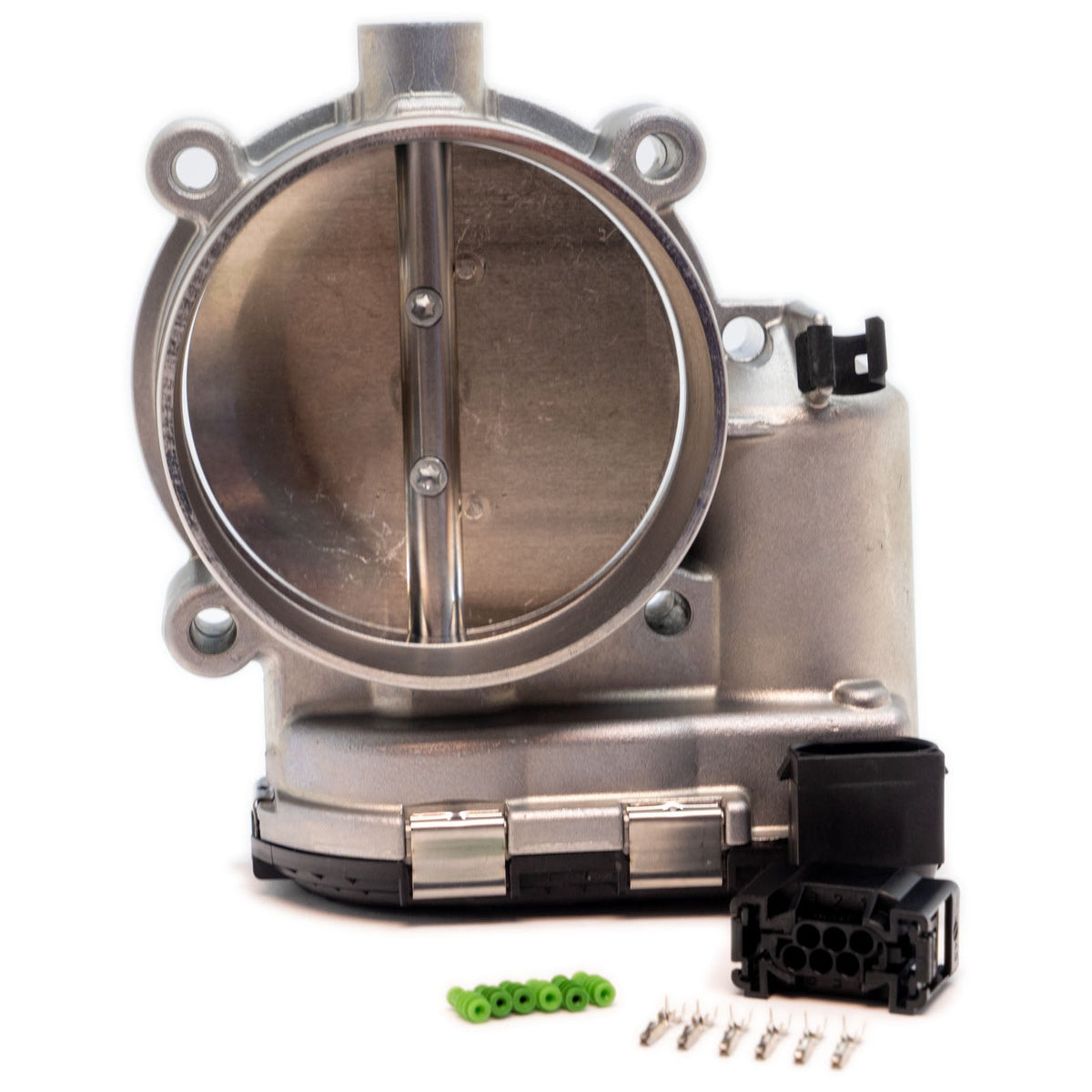

What's in the Box

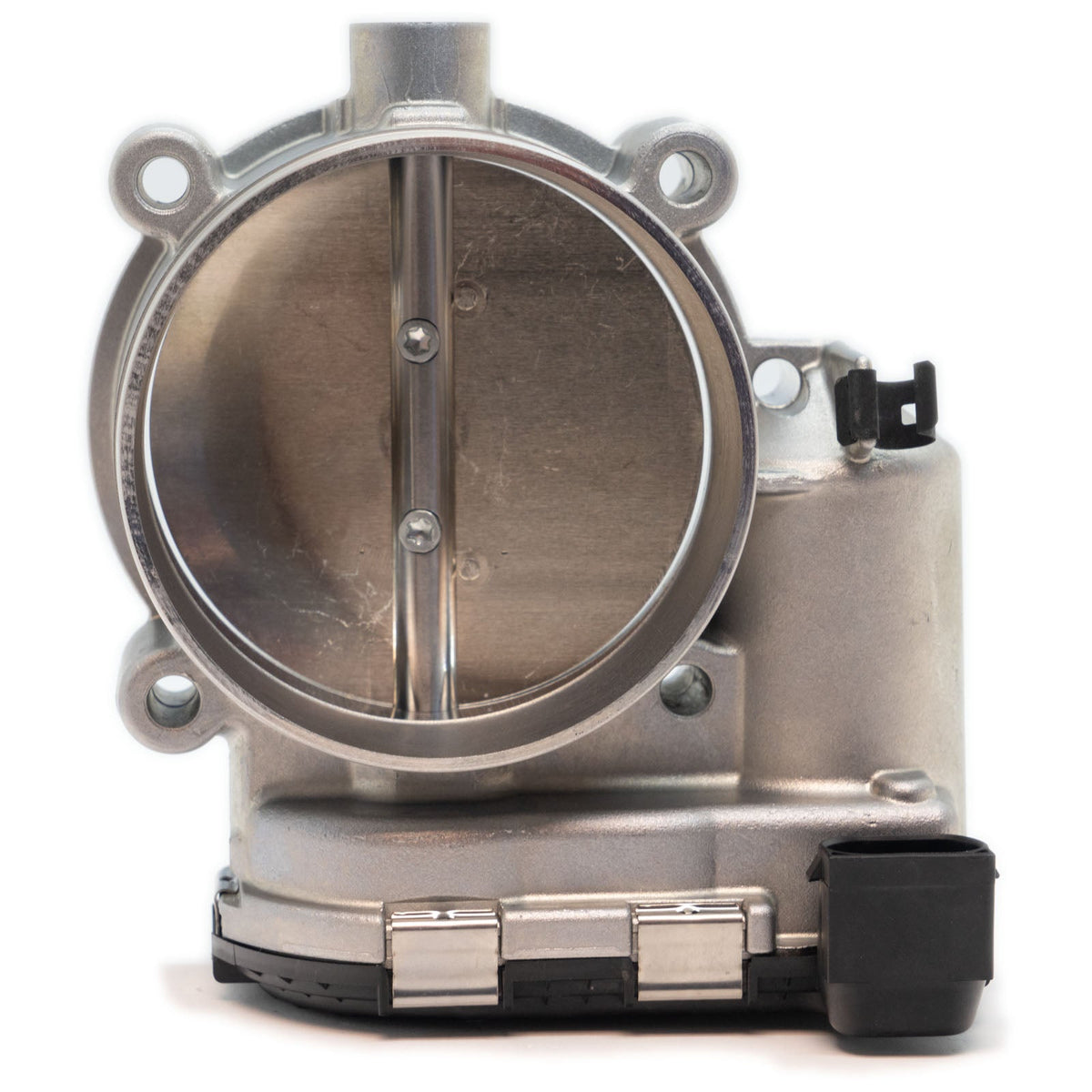

• Bosch Electronic Throttle Body (82mm bore)

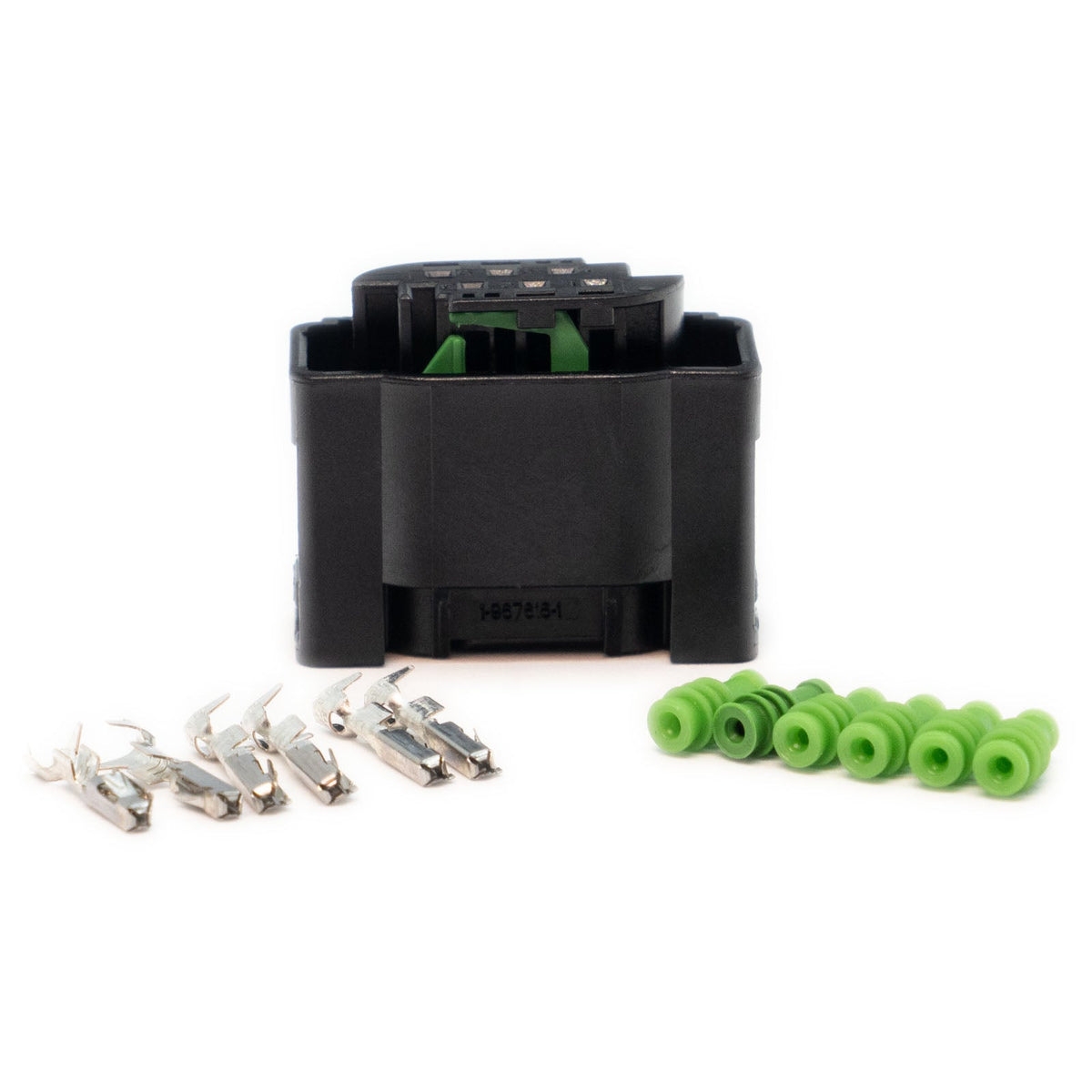

• Bosch E-Throttle Mating Connector, 6-pin AMP
• Printed Accessory instructions

Connector

• AMP 6-pin

Installation and ordering

Confirm connector type, wiring, supply voltage and compatibility with the ECU or connected device before purchase. Follow the relevant Link wiring diagram, calibration and mounting instructions. CAN devices require a compatible CAN configuration and correct bus termination. Accessories are included only where they are explicitly listed below.

Installation and Compatibility Checks

Confirm the specified device compatibility, connectors and installation requirements before ordering. Use a qualified installer for vehicle electrical work.
