Available from JDM Mods NQ, the Link GTRLink - NGTRX Bundle is a coordinated parts package for the application described below.

Manufacturer part number: 214-9800B

Confirm the blue-header Nissan RB application and manual transmission compatibility before purchase. The ECU fits the factory enclosure. E-throttle capability requires the appropriate throttle hardware, wiring and calibration.

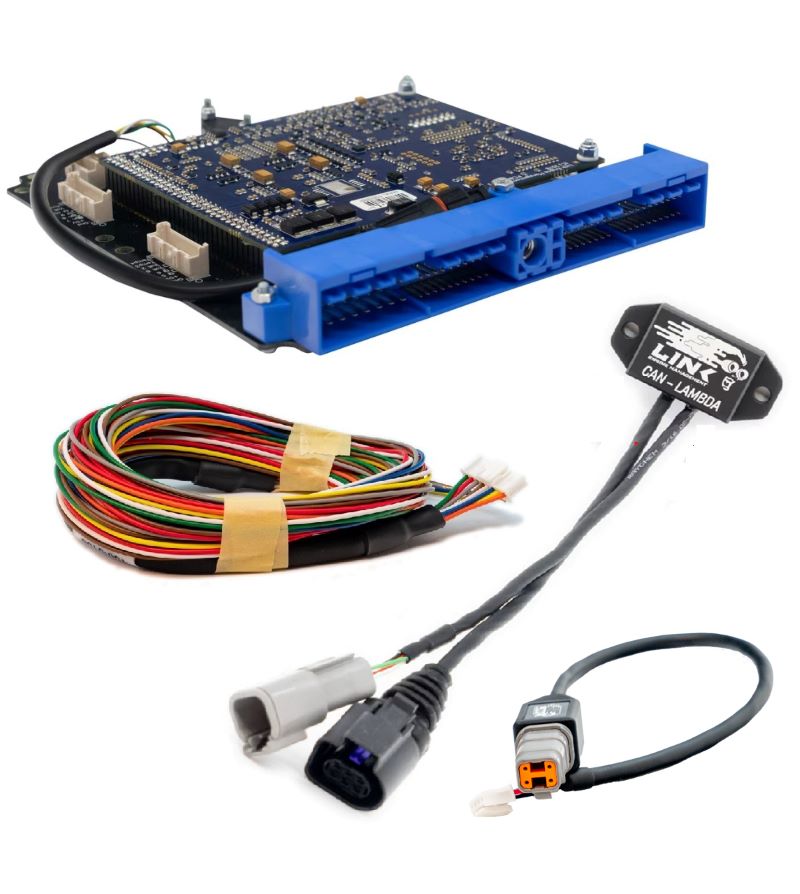

Bundle contents

• NGTRX E-throttle Plug-In ECU (214-4100)
• XS expansion loom (101-0106)
• CAN Lambda kit (125-1000)
• CANJST4 cable (101-0198)

ECU — Models Supported

• The NGTRX is designed for the following Nissan RB applications using the blue ECU header:
• RB26DETT engines found in R32, R33, R34 Skyline GTRs and Autech 260RS Stageas.
• RB20DE engines found in R32 & R33 Skylines, A31 Cefiros.
• RB20DET engines found in R32 Skylines (incl 4wd), A31 Cefiros and C33 Laurels. – Injector 4&6 need swapping.
• RB25DE engines found in R32 & R33 Skylines, C33 & C34 Laurels and A31 Cefiros.
• RB25DET engines found in R33 Skylines (incl 4wd) and C34 Laurels.
• RB30DE/DET/DETT engines using Non Neo heads and blue plug looms.
• Suits the blue ECU header. For the grey NEO header ECU, use the NGTTX Plug-in (PN 215-4000).

ECU — Important

• Compare the vehicle ECU connector with the product photographs before ordering.
• This model includes an onboard MAP sensor.
• Designed for manual transmission vehicles. If you have an automatic model, please contact your local LinkECU reseller to discuss Direct Automatic Transmission Control compatibility.
• Factory-feature support depends on the listed vehicle application.
• This ECU will need an expansion connector before E-Throttle is usable.
• This Plug-in features a new 4 pin powered CAN connector and cannot use the old CANPCB cable for CAN connection. Use the CANJST4 (Code 101-0198) cable for connecting CAN devices. This new 4-pin port and cable provide not only the CAN connection, but also a protected 12V power supply and ground for powering the CAN devices. The power supply is protected by a self-resetting fuse rated at 3A continuous.

ECU — ECU Features

• Dual CAN Bus
• E-throttle Control
• Flex Fuel
• Trigger Oscilloscope
• 3 Axis Accelerometer
• Selectable Temp Input Pullups
• Flexible engine protection limiters
• CAN Keypad Control
• VVT Control
• Open Loop Boost Control
• Closed Loop Boost Control
• Dual Closed Loop Lambda
• Direct Automatic Transmission Control
• Compatible with all leading aftermarket dashes via CAN or serial stream
• 512 Megabytes of internal data logging
• Note: This ECU will need an expansion connector before E-Throttle is usable.

ECU — Motorsport Features

• Nitrous Control
• Launch Control
• Anti-lag
• Cruise Control
• Traction Control
• Race Timer and Power Management
• Gear Shift Control
• Paddle Shift Control

ECU — Inputs and Outputs

• For the full list of Inputs and Outputs, please see the NGTRX Installation Manual

ECU — Communications

• 2 CAN Bus Channels
• LTW 6-Pin USB Tuning Connection

ECU — Product Dimensions

• 190mm(L)x160mm(W)x30mm(H)
• 7.48in(L)x6.30in(W)x1.18in(H)

ECU — Product Weight

• 260 grams (9.17 ounces)

ECU — Electrical

• Operating Voltage Range: 6.5-24V
• Maximum Input Voltage: 36V
• Maximum Continuous Current Draw: 11.5A

Installation and ordering

Check the specified application, dimensions and package contents before ordering. Install and configure this part according to the relevant manufacturer instructions.
