Link ECU Gen3 LS Drive-By-Wire Bundle: G4X XtremeX ECU + LS Engine Harness bundle

A ready-to-go solution to connect a Link ECU to your Gen 3 (LS1 & LS6), Drive-By-Wire LS V8 engine.

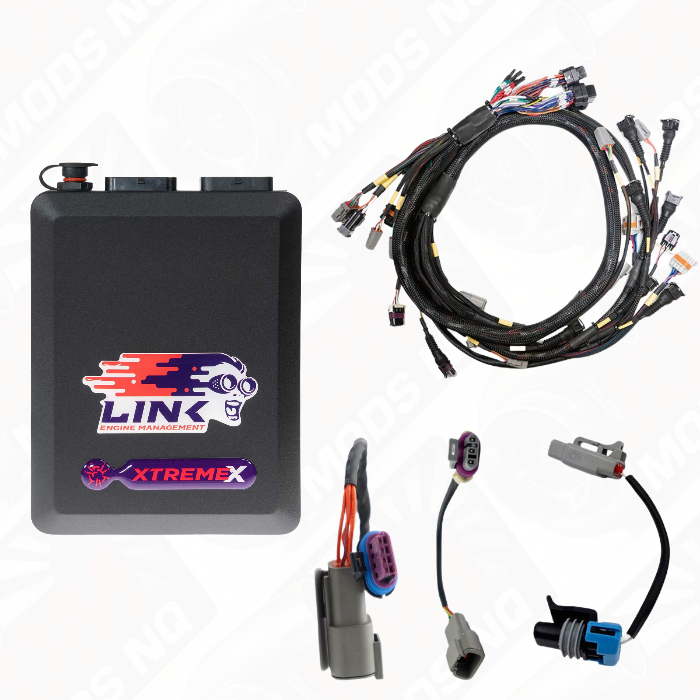

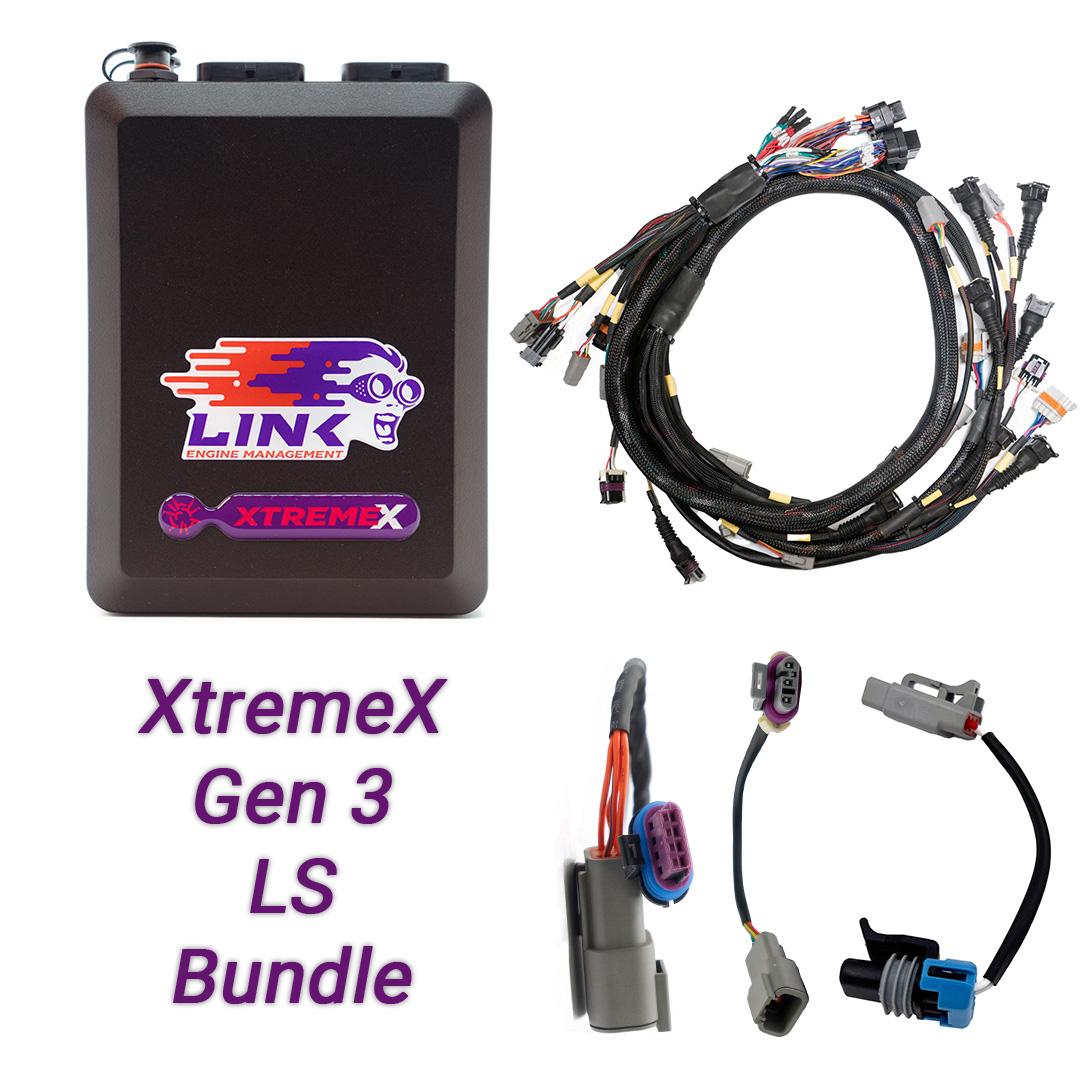

Bundle Includes:

• G4X XtremeX ECU (8 x Injector and 8 x Ignition Drives) - 109-4000
• Terminated Engine Harness GM LS GEN3/4* - 101-0300
• LS DBW Adapter Loom - 101-0304
• LS MAP Adapter Harness - 101-0302
• LS knock adapter loom - 101-0305

If you are after a fuse box and relay also, purchase this bundle here: 109-9010B

PCLink MAP Files
Gen3 Cable Throttle Base Map for G4X XtremeX/StormX

Harness Manual

Online Instruction Manual available on request

Advanced features of the XtremeX ECU:

• Fully programmable E-throttle control complete with capability of gear shift throttle blip and antilag.
• Cruise control.
• Two independent CAN modules.
• 30 general purpose tables (up from 20)
• All Motorsport features including full gear shift control, cruise control, traction control, antilag and launch control.
• Advanced closed loop lambda strategy and dual bank lambda control.

The terminated harness has the following features:

• Designed to match the PC Link base maps IO setup so that most engines can be made to run with minimal interferance.
• Provides spare IO via a “Spares” connector — extra capacity for sensors, switches, or custom additions.
• Equipped with sealed JPT terminals in the chassis connector (TE Connectivity JPT family), with mating connector specs provided.
• The harness includes multiple dedicated connectors for key components, such as:
• Pedal connector (for DBW pedal): 5V, sensor ground, two analog voltage inputs
• CAN2 connector: for CAN devices like lambda modules, displays, keypads, etc.
• MAP connector: compatible with Link MAP sensors; adapter available for factory LS MAP sensors
• Knock sensor connector: supports up to two knock sensors, with adapters available for Gen 3 or Gen 4 factory sensors
• Alternator connector: for “F Body” alternators; provides exciter/lamp wire to terminal B
• Transmission (“Trans”) connector: for reverse switch, DI, or other functions needing cabin signal
• IAC connector: for 4-wire stepper IAC; if no IAC is used, those channels may be used for other functions (boost valve, NOS, etc.)
• TPS connector: for cable-throttle sensors; if using DBW, may be repurposed
• DBW (electronic throttle) connector: for DBW throttle bodies, providing analog inputs, 5V, sensor ground; may be repurposed in cable-throttle engines
