Available from JDM Mods NQ, the Link Gen3 LS Cable Throttle Bundle: G4X StormX ECU + LS Engine Harness bundle is a coordinated parts package for the application described below. Use the fitment, technical and package details below to select the correct part for your build.

Manufacturer part number: 108-9005B

Package contents and application details

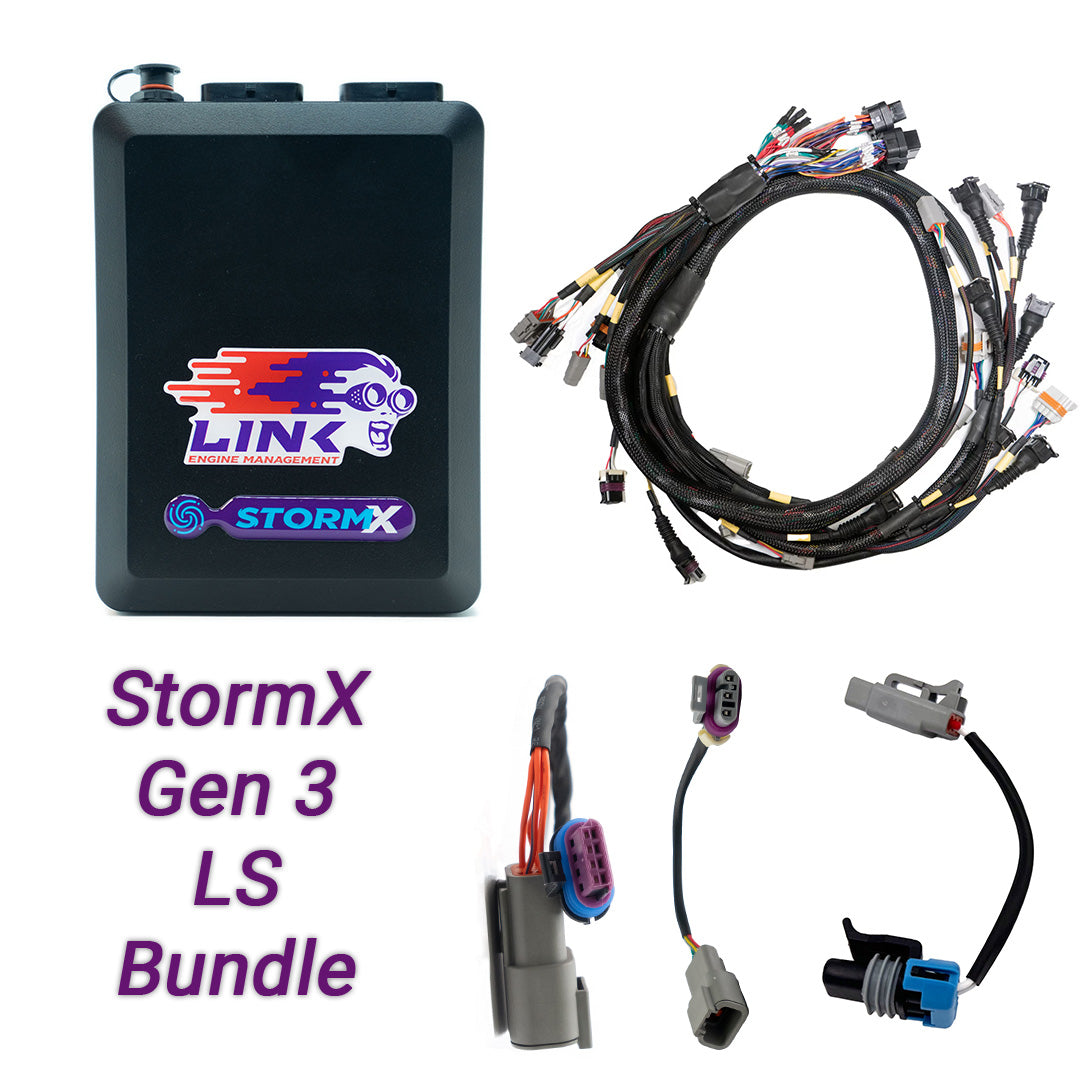

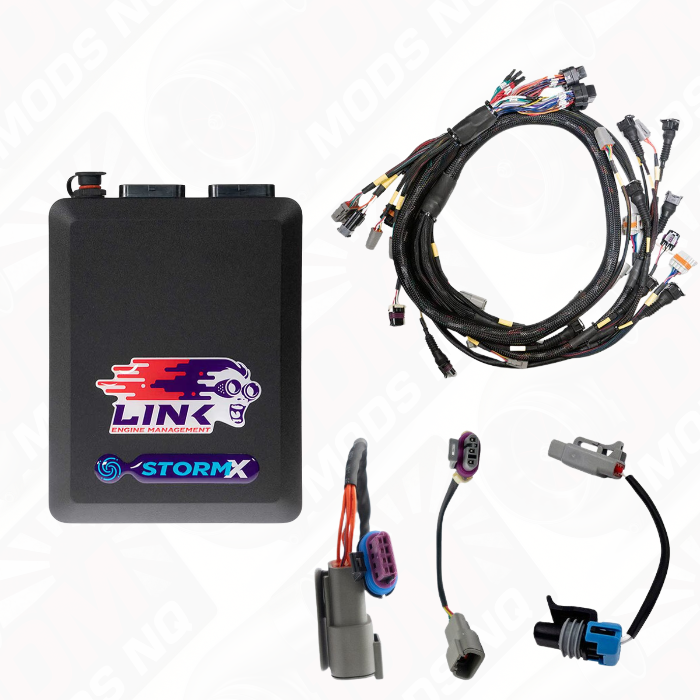

• G4X StormX ECU (8 x Injector and 8 x Ignition Drives) - 108-4000
• Terminated Engine Harness GM LS GEN3/4* - 101-0300
• LS Stepper Adapter Harness - 101-0301
• LS MAP Adapter Harness - 101-0302
• LS knock adapter loom - 101-0305

Compatibility notes

• A ready-to-go solution to connect a Link ECU to your Gen 3 (LS1 & LS6), Cable Throttle LS V8 engine.
• If you are after a fuse box and relay also, purchase this bundle here: 108-9010B
• Gen 4 LS engines are better to consider this bundle: 109-9020B

ECU component specifications

Models Supported

• The StormX can control up to 4 rotors or 8 cylinders with sequential injection and direct spark.

ECU Features

• 8 Custom Math Blocks with 30 characters
• Flex Fuel
• Trigger Oscilloscope
• Selectable Temp Input Pullups
• Flexible engine protection limiters
• CAN Keypad Control
• VVT Control
• Open Loop Boost Control
• Closed Loop Boost Control
• Dual Closed Loop Lambda
• 512 Megabytes of Internal Data Logging

Motorsport Features

• Nitrous Control
• Launch Control
• Anti-Lag
• Race Timer and Power Management
• Gear Shift Control
• Paddle Shift Control

Outputs

• 8 Injection Drives
• 8 Ignition Drives
• 8 Auxiliary Outputs
• +5V Sensor power supply
• +8V Sensor power supply
• Unused Inj/Ign can be used as a Auxiliary Outputs

Inputs

• 8 Digital Inputs
• 3 Temperature Inputs
• 8 Analogue Inputs
• 2 Trigger Inputs
• 2 Knock Inputs
• Unused Temperature and Analogue Inputs can be used as Digital Inputs

Communications

• 1 CAN Bus Channel
• LTW 6Pin USB Tuning Connection

Data Logging

• 512MB Onboard Logging Memory
• 100kHz Maximum Total Logging Rate
• 250 Logging Channels

Product Dimensions

• 185mm(L) x 130mm(W) x 40mm(H)
• 7.28in(L) x 5.12in(W) x 1.57in(H)

Product Weight

• 660 grams (23.28 ounces)

Material

• Die-cast aluminum enclosure

Electrical

• Operating Voltage Range: 6.5-24V
• Maximum Input Voltage: 36V
• Maximum Continuous Current Draw: 5.5A
• Operating Current: 200mA

Misc.

• Manufacturing Standard ISO 13485

Connector

• Superseal 4 Row 34 Position x2
• Part number 4-1437290-0
• Part number 4-1437290-1

Installation and ordering

Have an experienced installer confirm the engine, transmission, connector layout and available inputs and outputs before ordering. Follow the model-specific Link installation manual and configure the ECU in PCLink. Check sensor calibration, trigger settings, fuel and ignition setup, and engine-protection limits before running the engine. A supplied startup map requires calibration for the actual engine.

Listed tuning features depend on the vehicle hardware, firmware, available I/O and configuration. Shared or repurposed channels cannot perform every listed function simultaneously.
