Link G4X K20X Plug-In ECU (Honda DC5/RSX K20)

Link G4X K20X Plug-In ECU (Honda DC5/RSX K20)

Available from JDM Mods NQ, the Link G4X K20X Plug-In ECU (Honda DC5/RSX K20) is a vehicle-specific engine-management upgrade that uses the compatible factory ECU connections. Use the fitment, technical and package details below to select the correct part for your build.

Manufacturer part number: 237-4000

Models Supported

• The K20X is designed to suit the following applications:
• Honda Integra Type R DC5 with K20A/K20A2/K20A3 Engine from 2002-2004.
• Acura RSX with K20A/K20A2/K20A3 Engine from 2002-2004.
• Honda Civic Type R EP3 with K20A Engine from 2001-2005.
• Honda Civic Si/SiR with K20A3 from 2001-2005.
• Honda Civic DX/LX/HX with D17A1/A2/A3 Engine from 2001-2005.
• Honda CR-V with K24A1 Engine from 2002-2004.

Important

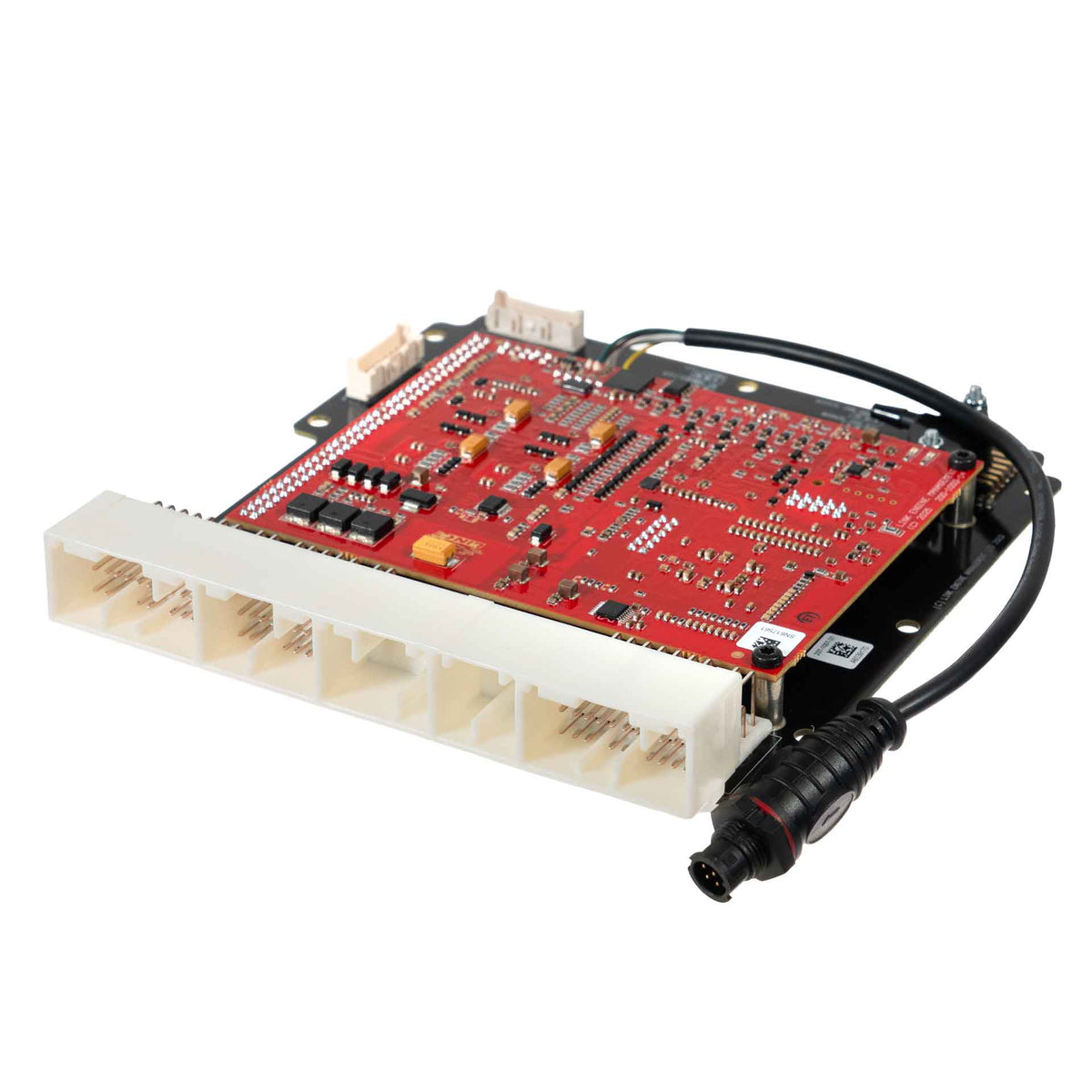

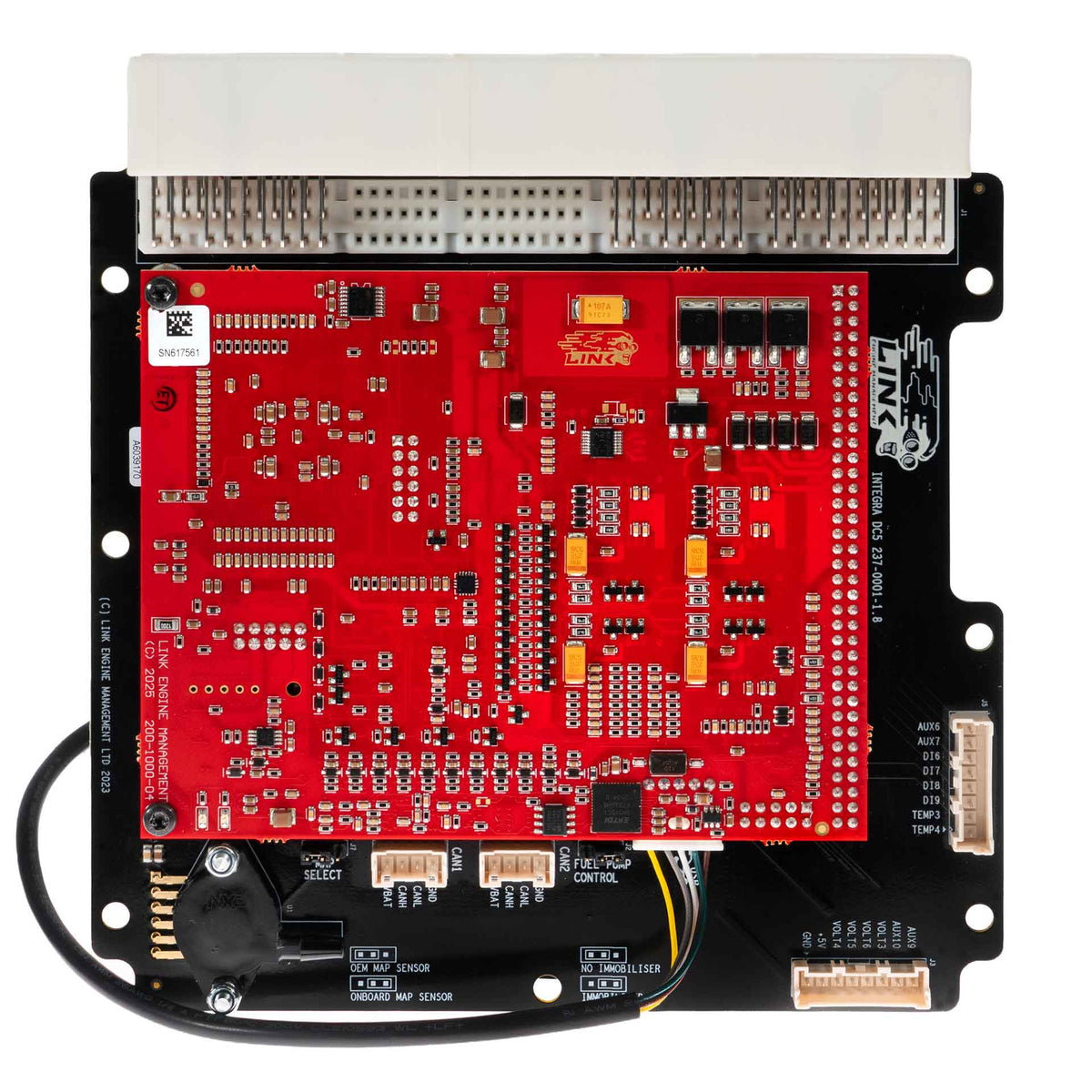

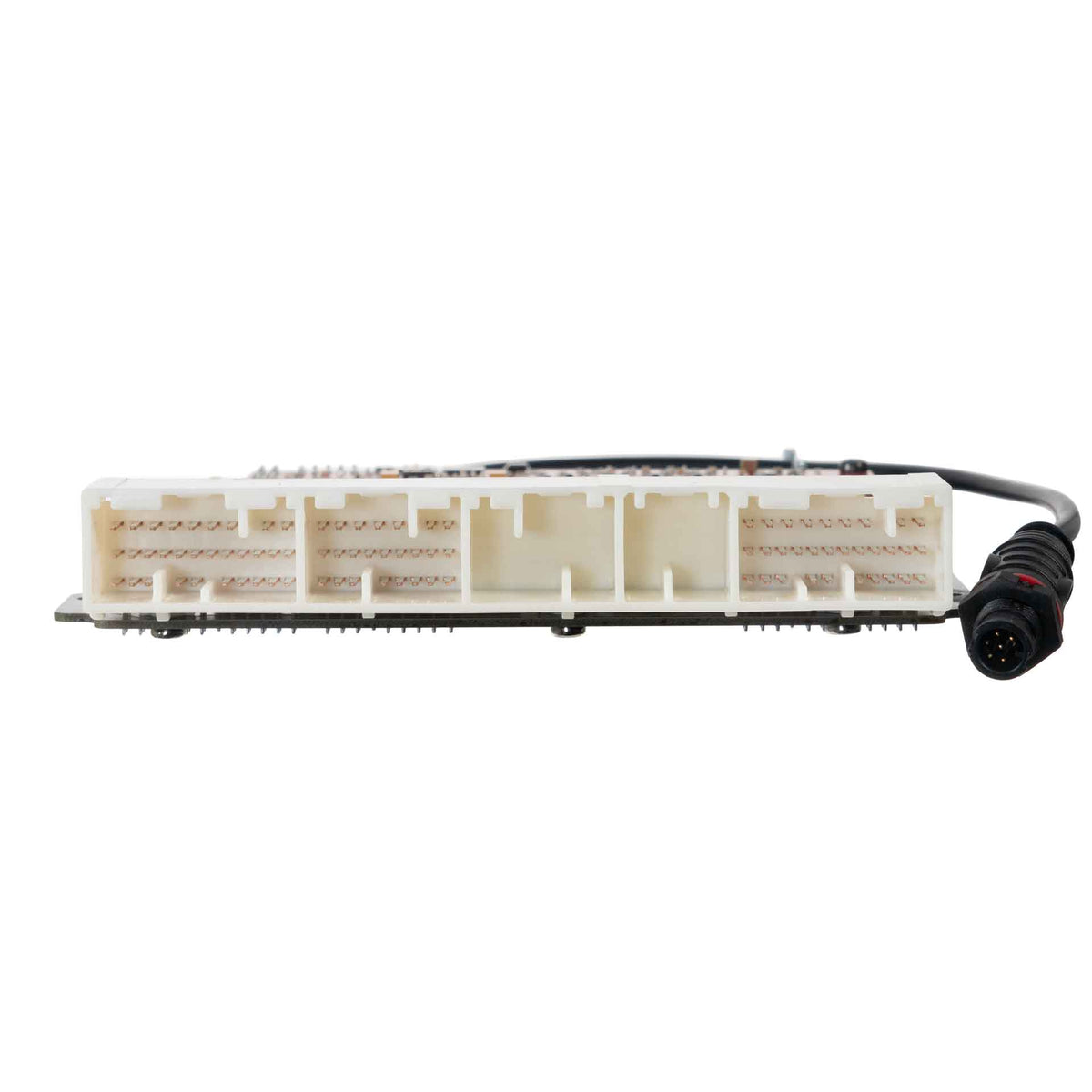

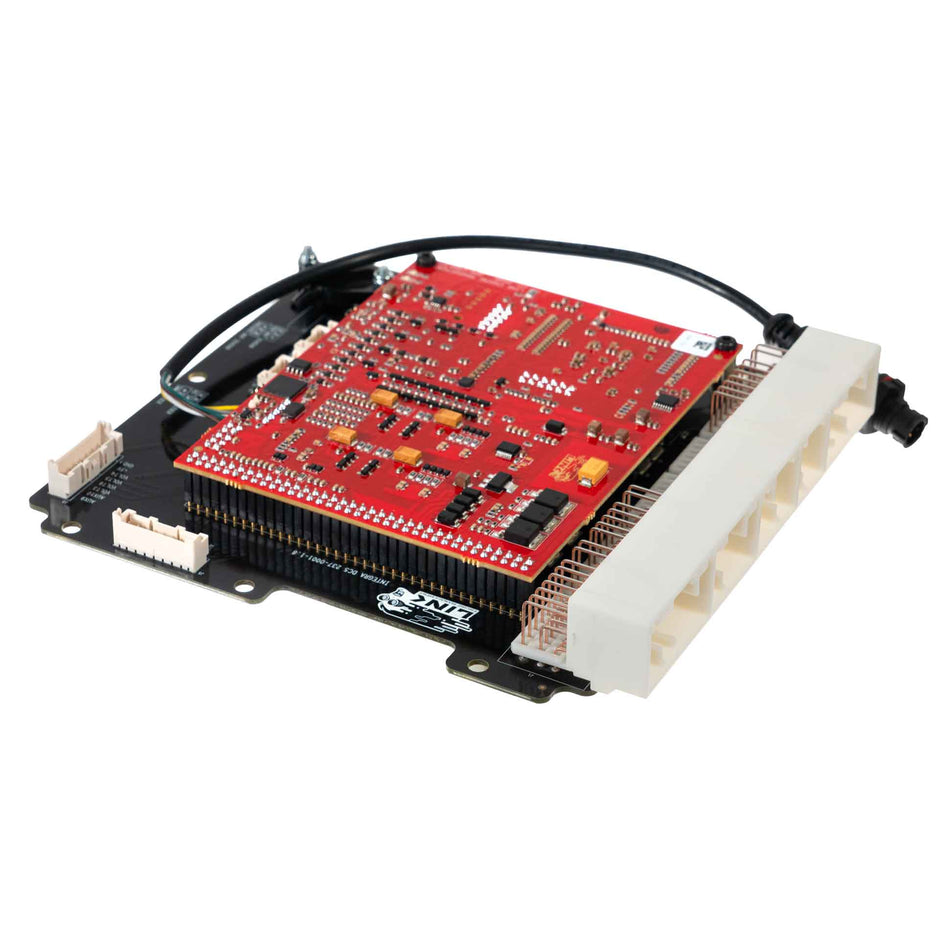

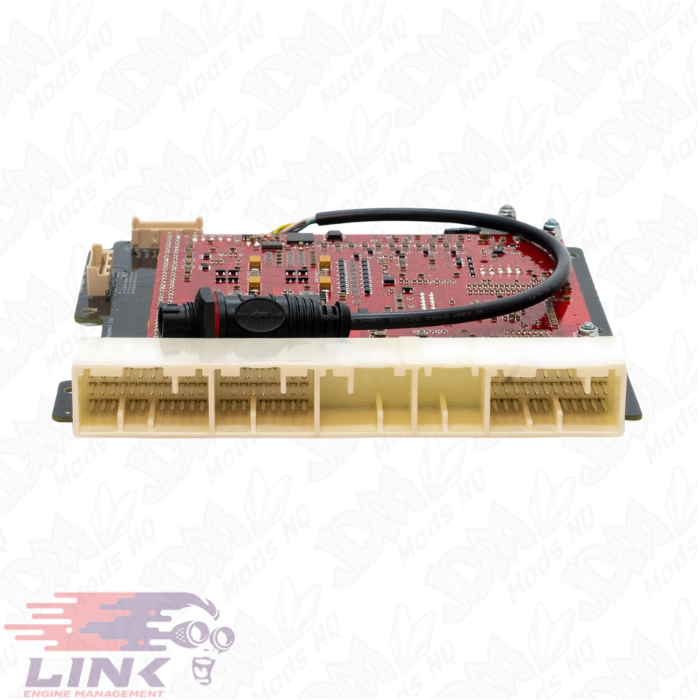

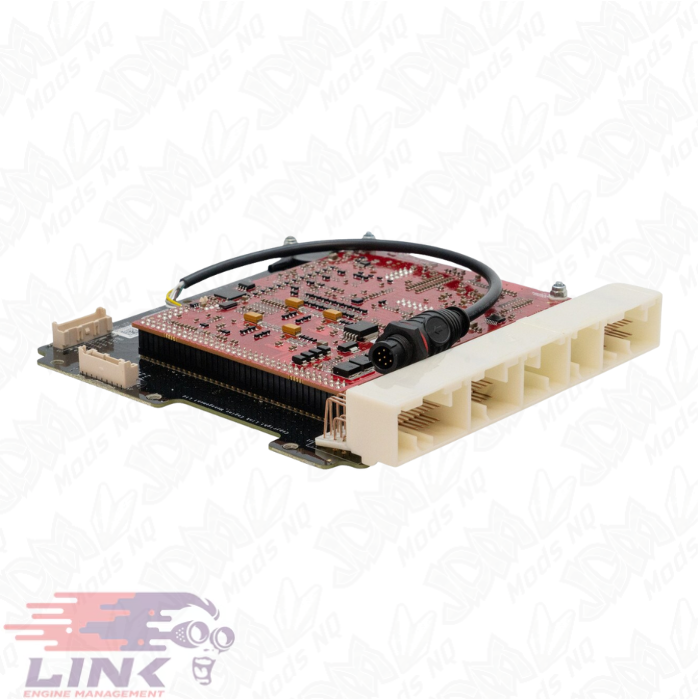

• Compare the vehicle ECU connector with the product photographs before ordering.
• Manual-transmission applications only.
• This model includes an onboard MAP sensor.
• Factory-feature support depends on the listed vehicle application.
• This ECU will need an expansion connector before E-Throttle is usable.
• This Plug-in features a new 4 pin powered CAN connector and cannot use the old CANPCB cable for CAN connection. Use the CANJST4 (Code 101-0198) cable for connecting CAN devices. This new 4 pin port and cable provide not only the CAN connection, but also a protected 12V power supply and ground for powering the CAN devices. The power supply is protected by a self-resetting fuse rated at 3A continuous.

ECU Features

• Dual CAN Bus
• E-throttle Control
• Flex Fuel
• Trigger Oscilloscope
• 3 Axis Accelerometer
• Selectable Temp Input Pullups
• Flexible engine protection limiters
• CAN Keypad Control
• VVT Control
• Open Loop Boost Control
• Closed Loop Boost Control
• Dual Closed Loop Lambda
• Direct Automatic Transmission Control
• Compatible with all leading aftermarket dashes via CAN or serial stream
• 512 Megabytes of internal data logging
• Note: This ECU will need an expansion connector before E-Throttle is usable.

Motorsport Features

• Nitrous Control
• Launch Control
• Anti-lag
• Cruise Control
• Traction Control
• Race Timer and Power Management
• Gear Shift Control
• Paddle Shift Control

Inputs and Outputs

• For the full list of Inputs and Outputs, please see the K20X Installation Manual

Communications

• 2 CAN Bus Channels
• LTW 6-Pin USB Tuning Connection

Product Dimensions

• 170mm(L)x160mm(W)x30mm(H)
• 6.69in(L)x6.30in(W)x1.18in(H)

Product Weight

• 260 grams (9.17 ounces)

Electrical

• Operating Voltage Range: 6.5-24V
• Maximum Input Voltage: 36V
• Maximum Continuous Current Draw: 11.5A

What's in the Box

• G4X Honda K20X Plug-in ECU
• Anti-static Strap
• USB Tuning Cable - ECU to USB
• Link stickers
• Plug-in Manual Card
• Product Registration Card

Installation and ordering

Have an experienced installer confirm the engine, transmission, connector layout and available inputs and outputs before ordering. Follow the model-specific Link installation manual and configure the ECU in PCLink. Check sensor calibration, trigger settings, fuel and ignition setup, and engine-protection limits before running the engine. A supplied startup map requires calibration for the actual engine.

Listed tuning features depend on the vehicle hardware, firmware, available I/O and configuration. Shared or repurposed channels cannot perform every listed function simultaneously.
