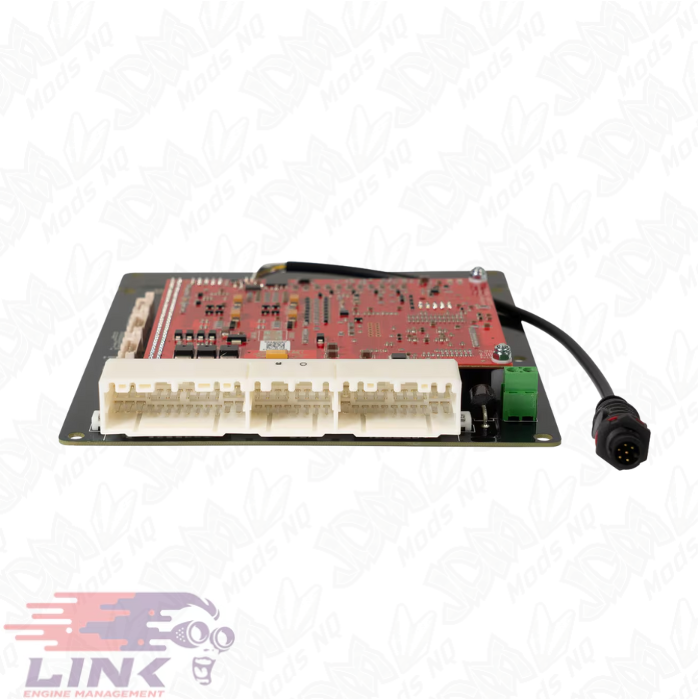

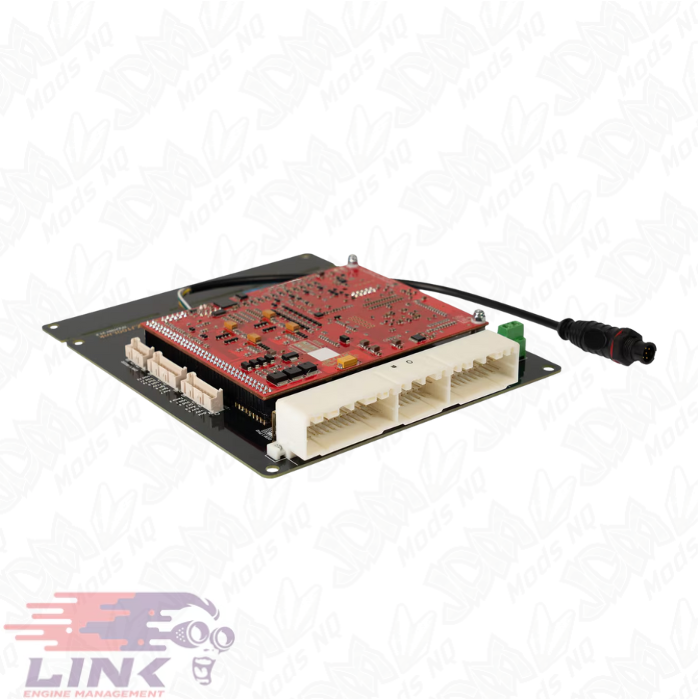

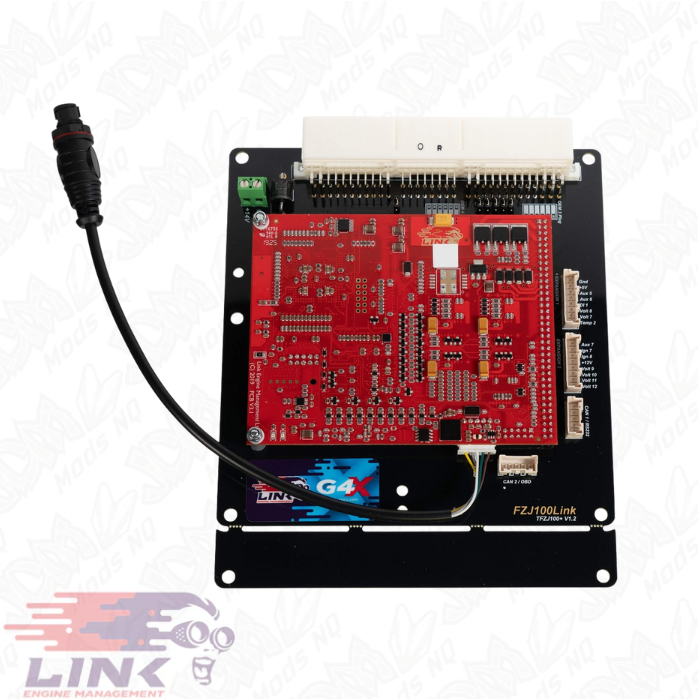

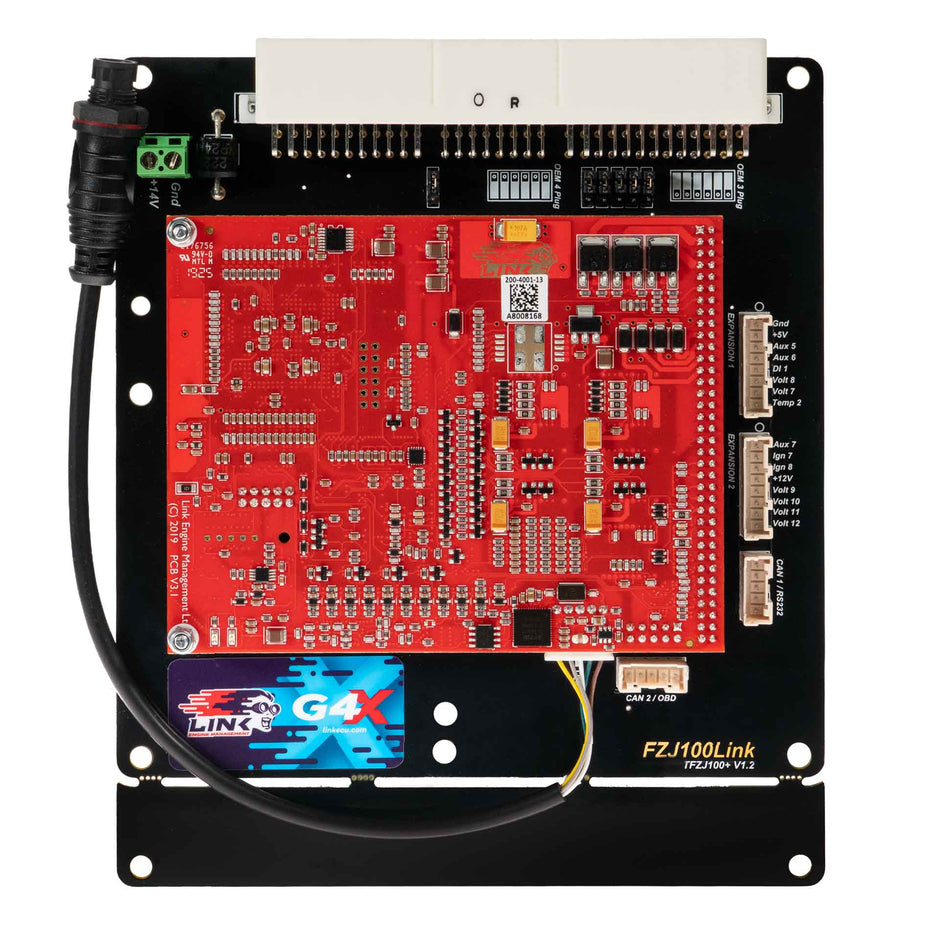

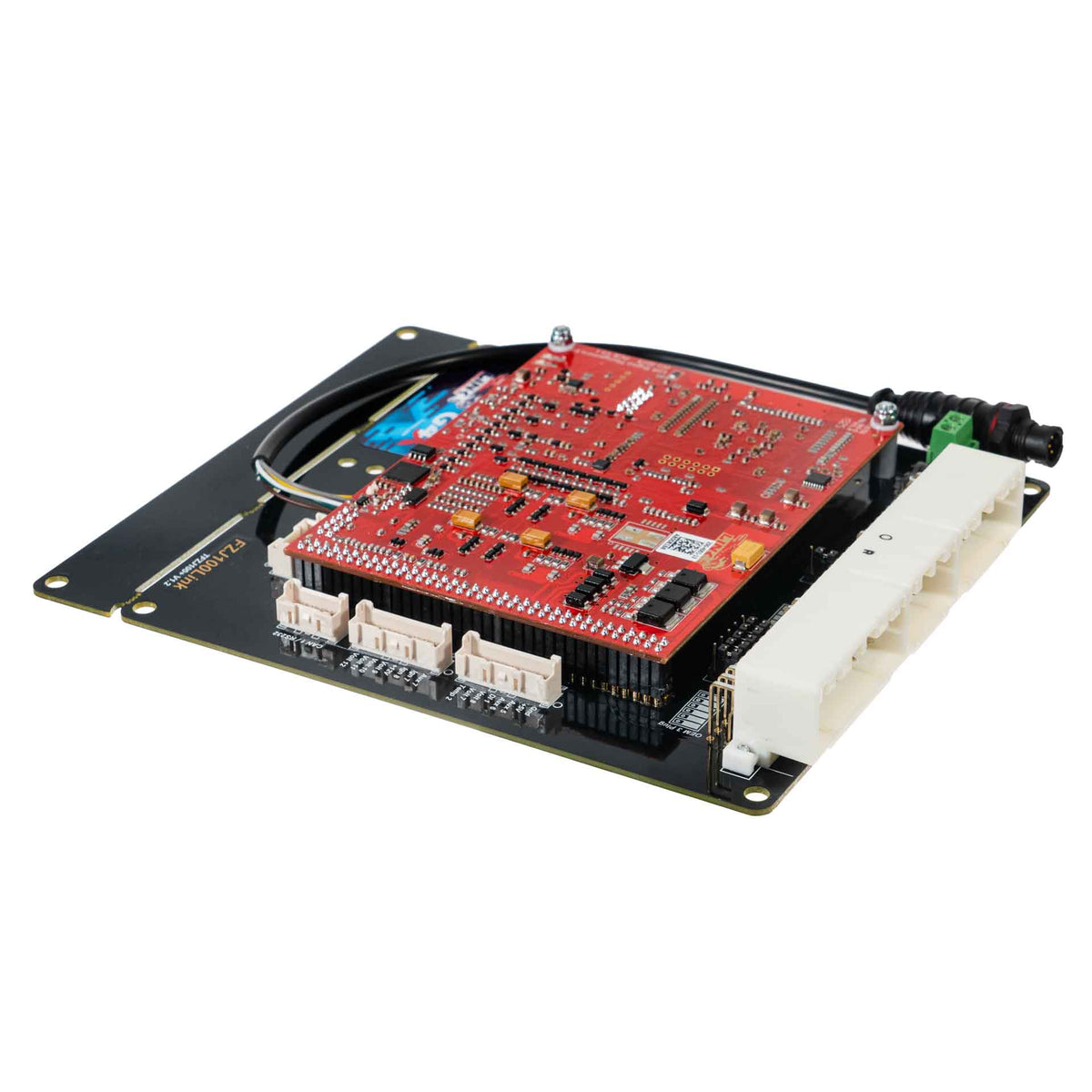

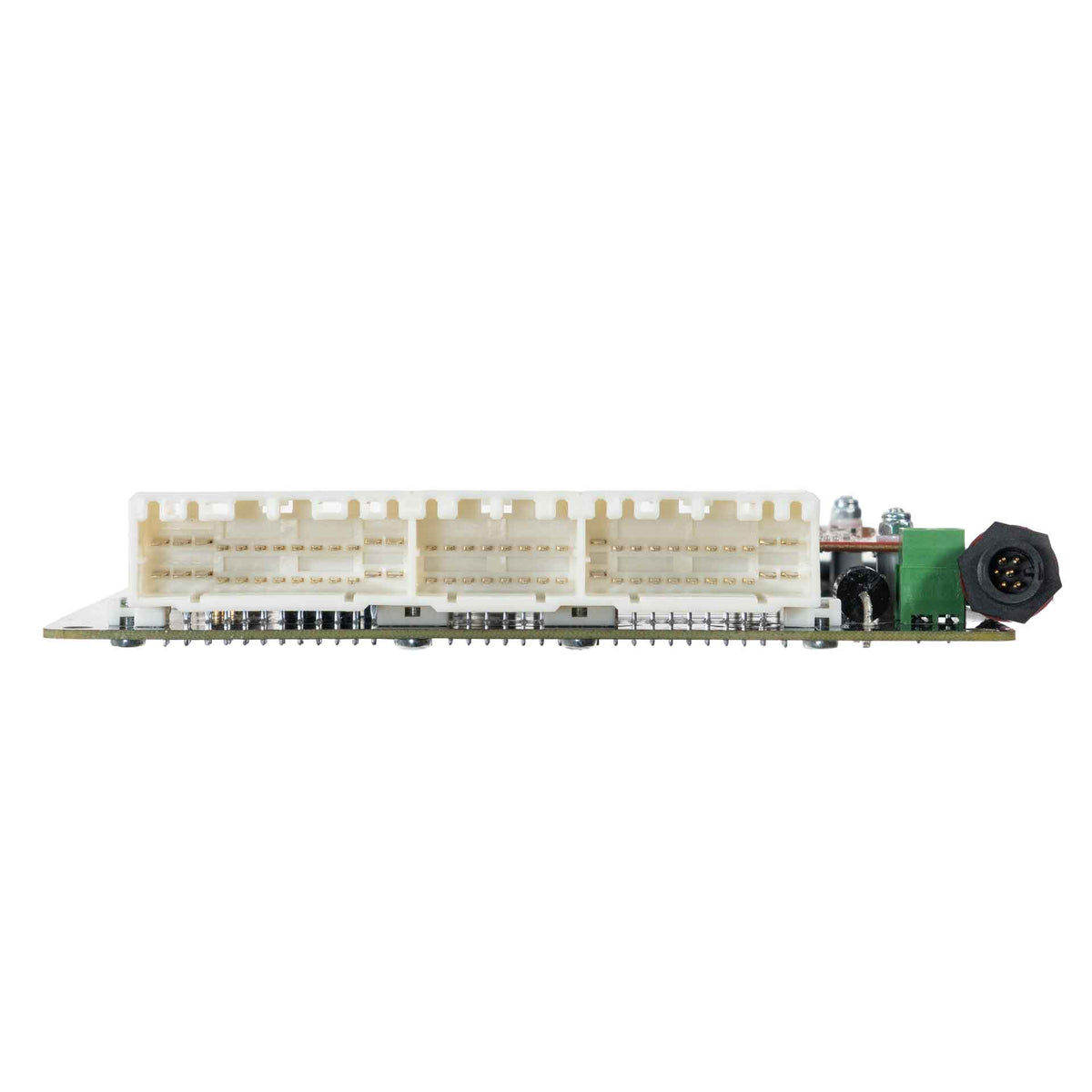

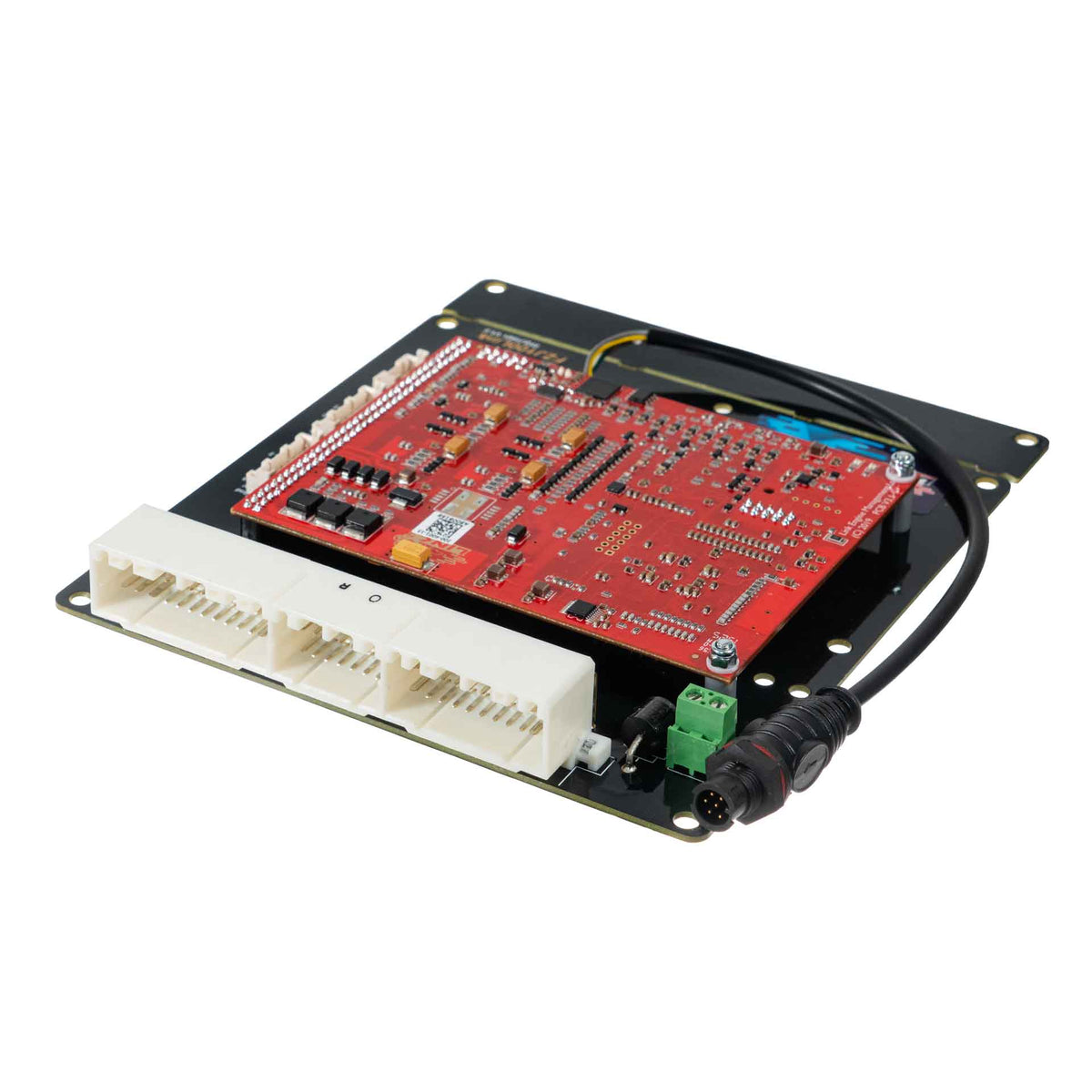

Link FZJ100 Link - TFZJ100X

Link FZJ100 Link - TFZJ100X

Available from JDM Mods NQ, the Link FZJ100 Link - TFZJ100X is a Link performance-electronics component for the compatible installation described below. Use the fitment, technical and package details below to select the correct part for your build.

Manufacturer part number: 230-4000

Models Supported

• The TFZJ100X is designed to suit the following application:
• Toyota Land Cruiser FZJ100 with 1FZ-FE non-VVTi engine.

Important

• Compare the vehicle ECU connector with the product photographs before ordering.
• Two OEM ECU variants exist: one with four wiring harness plugs, one with three. The TFZJ100X supports both. On four-plug models, leave the unmatched plug disconnected.
• Manual-transmission applications only.
• Factory-feature support depends on the listed vehicle application.
• This ECU will need a modification before E-Throttle is usable.

ECU Features

• 8 Custom Math Blocks with 30 characters
• Dual CAN Bus
• Flex Fuel
• Trigger Oscilloscope
• 3 Axis Accelerometer
• Selectable Temp Input Pullups
• Flexible engine protection limiters
• CAN Keypad Control
• VVT Control
• Open Loop Boost Control
• Closed Loop Boost Control
• Dual Closed Loop Lambda
• Direct Automatic Transmission Control
• Compatible with all leading aftermarket dashes via CAN or serial stream
• 512 Megabytes of internal data logging
• This ECU will need a modification before E-Throttle is usable.

Motorsport Features

• Nitrous Control
• Launch Control
• Anti-lag
• Cruise Control
• Traction Control
• Race Timer and Power Management
• Gear Shift Control
• Paddle Shift Control

Inputs and Outputs

• For the full list of Inputs and Outputs, please see the TFZJ100X Installation Manual

Communications

• 2 CAN Bus Channels
• LTW 6-Pin USB Tuning Connection

Product Dimensions

• 190mm(L)x160mm(W)x30mm(H)
• 7.48in(L)x6.30in(W)x1.18in(H)

Product Weight

• 260 grams (9.17 ounces)

Electrical

• Operating Voltage Range: 6.5-24V
• Maximum Input Voltage: 36V
• Maximum Continuous Current Draw: 3.5A

What's in the Box

• G4X Toyota TFZJ100X Plug-in ECU
• Anti-static Strap
• USB Tuning Cable - ECU to USB
• Link stickers
• Plugin Manual Card
• Product Registration Card

Installation and ordering

Check the specified application, dimensions and package contents before ordering. Install and configure this part according to the relevant manufacturer instructions.
