Link E-Throttle Accelerator Pedal Module (PED)

Link E-Throttle Accelerator Pedal Module (PED)

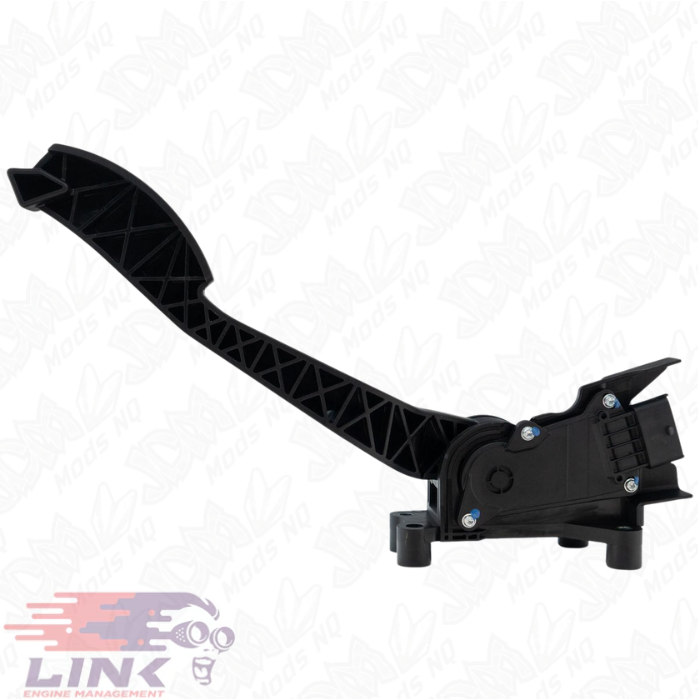

Available from JDM Mods NQ, the Link E-Throttle Accelerator Pedal Module (PED) is a throttle-control component for an appropriately configured engine-management system. Use the fitment, technical and package details below to select the correct part for your build.

Manufacturer part number: 101-0188

Models Supported

• Requires a compatible Link ECU with built-in E-throttle or an external E-throttle Module (115-1000).
• For some Plug-in ECUs without built-in e-throttle there is an upgrade option available (PN 400-0100).

Warnings

• Installation and calibration must be completed within PCLink before use.
• Further details on E-Throttle setup can be found in the PC Link helpfile.

ECU Tuning Features

• Universal firewall-mounted design

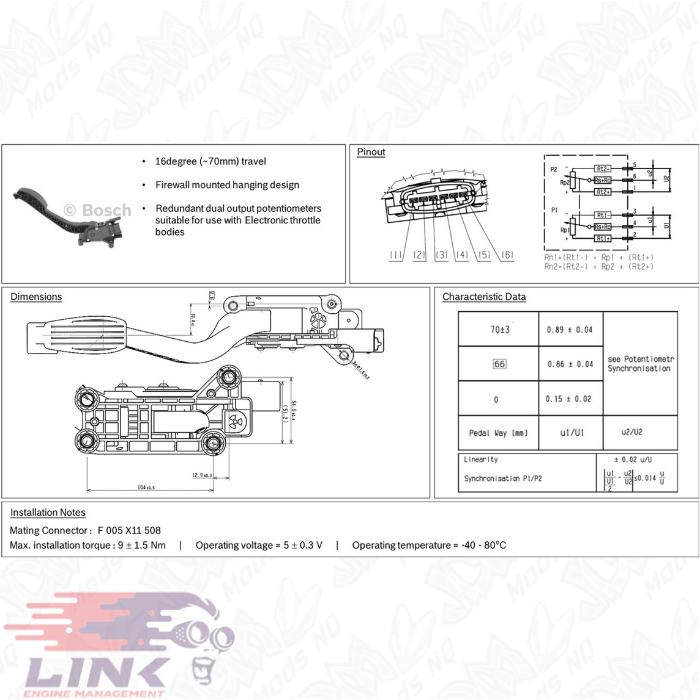

• 16degree (~70mm) travel
• Dual potentiometer outputs
• Redundant pedal position measurement
• Smooth, progressive pedal travel
• Compact and lightweight construction

Product Dimensions

• 370mm(L)x250mm(W)x90mm(H)
• 14.57in(L)x9.84in(W)x3.54in(H)

Product Weight

• 400 grams (14.11 ounces)

Electrical

• Operating Voltage Range: 4.7-5.3V
• Maximum Input Voltage: 5.3V

What's in the Box

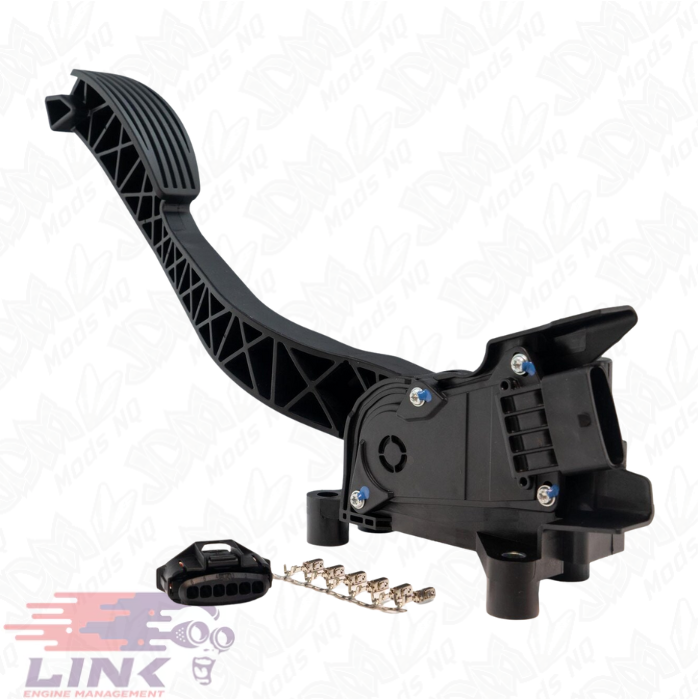

• Bosch Accelerator Pedal Module
• Bosch Accelerator Pedal Module - 6 Pin Mating Connector
• Printed Accessory instructions

Connector

• Bosch 6-pin

Installation and ordering

Confirm connector type, wiring, supply voltage and compatibility with the ECU or connected device before purchase. Follow the relevant Link wiring diagram, calibration and mounting instructions. CAN devices require a compatible CAN configuration and correct bus termination. Accessories are included only where they are explicitly listed below.

Installation and Compatibility Checks

Confirm the specified device compatibility, connectors and installation requirements before ordering. Use a qualified installer for vehicle electrical work.
