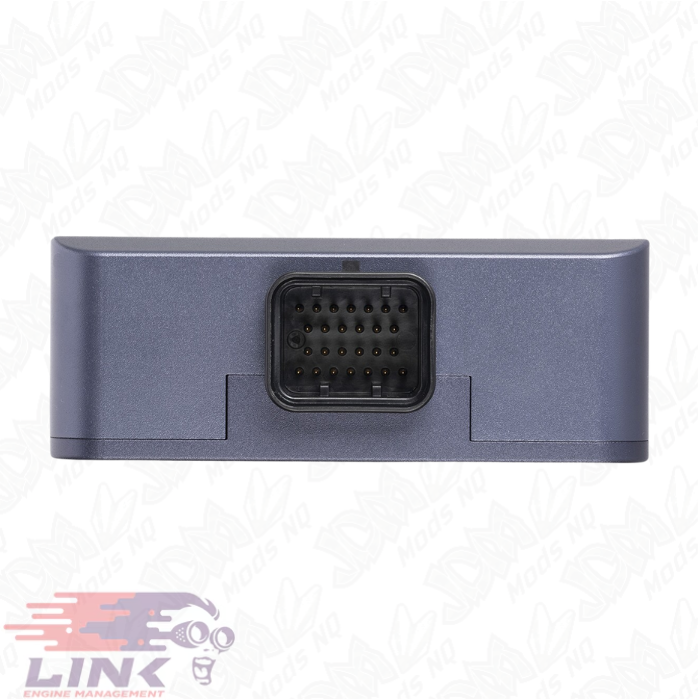

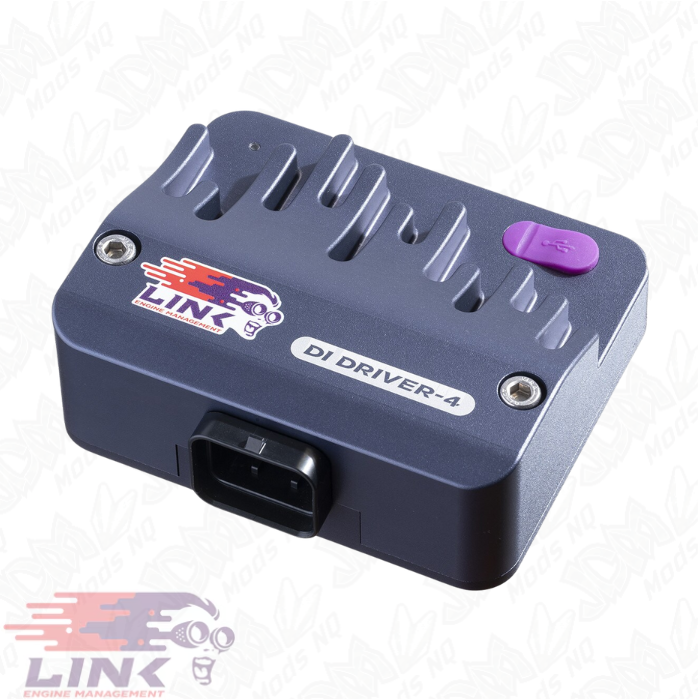

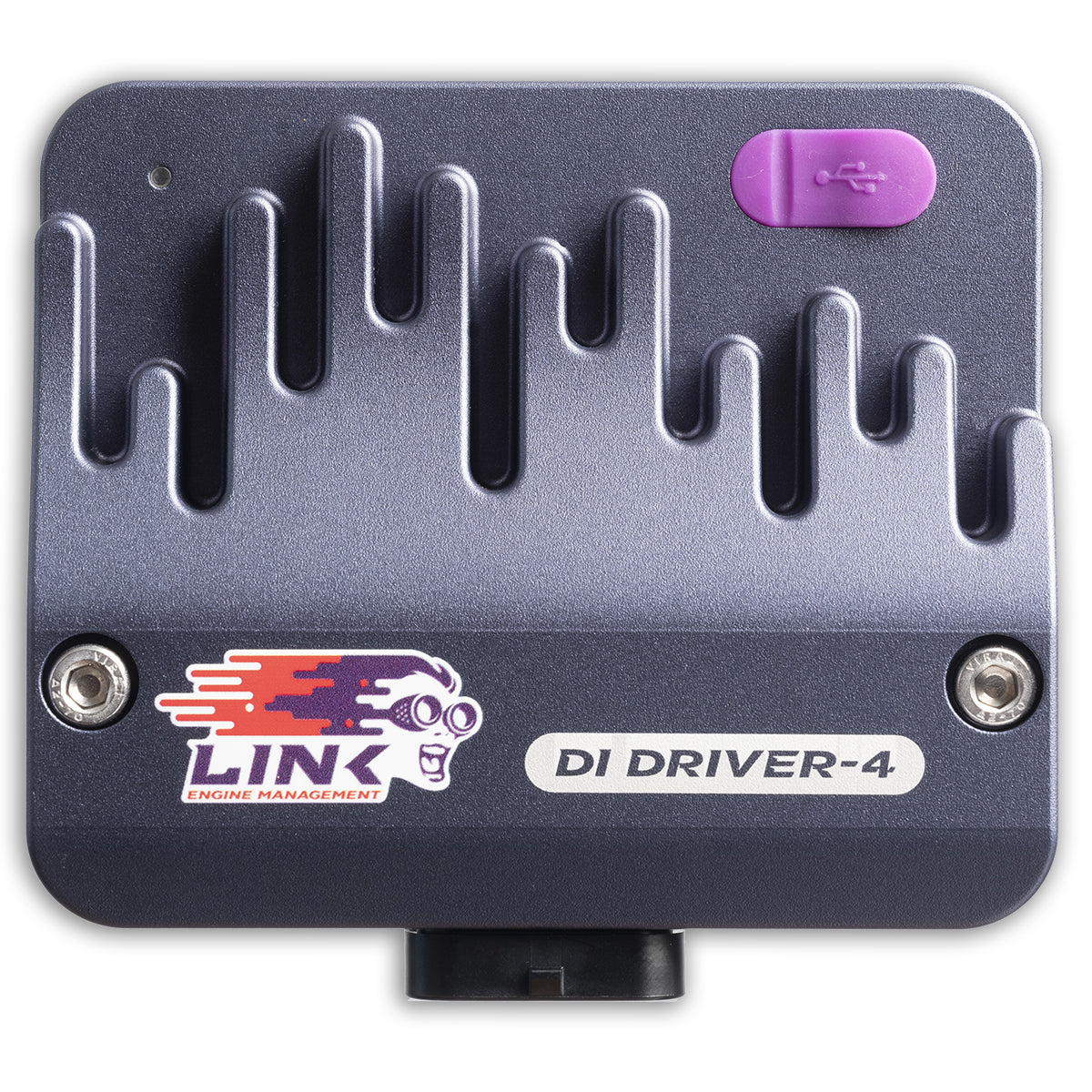

Link DI Driver-4 Direct Injection Controller

Link DI Driver-4 Direct Injection Controller

Available from JDM Mods NQ, the Link DI Driver-4 Direct Injection Controller is a Link performance-electronics component for the compatible installation described below. Use the fitment, technical and package details below to select the correct part for your build.

Manufacturer part number: 144-5000

Models Supported

• Each DI Driver-4 module can allow up to four high voltage peak and hold solenoid Direct Injectors and one high-pressure peak and hold Fuel Pump to flow up to their maximum amount of fuel at a very high engine RPM.

Inputs and Outputs

• Four Direct Injection Injector Drives
• One High Pressure Fuel Pump Drive

Communications

• 1 CAN bus with software configurable termination.
• 1 USB Type-C for configuration via DI Link software.

Product Dimensions

• 103.6mm(L) x 86.3mm(W) x 39.0mm(H)
• 4.08in(L) x 3.40in(W) x 1.54in(H)

Product Weight

• 438 grams (15.45 ounces)

Material

• Sealed CNC billet aluminium enclosure

Electrical

• Operating Voltage Range: 7-30V
• Maximum Input Voltage: 36V
• Maximum Continuous Current Draw: 10A
• Max Boost Current: 17.9A, Max Boost Voltage: 65V
• Max Peak Current: 17.9A, Max Peak Duration: 2ms
• Max Hold Current: 5.0A, Max Hold Duration: 164ms
• Max engine RPM running a Bosch HDEV: 14,200RPM

Misc.

• Water Resistant

What's in the Box

• Link DI-Driver 4
• Quick Start guide
• Superseal D Plug and Pin Kit
• USB-C connection cable

Installation and ordering

Check the specified application, dimensions and package contents before ordering. Install and configure this part according to the relevant manufacturer instructions.

Installation and Compatibility Checks

Confirm the specified device compatibility, connectors and installation requirements before ordering. Use a qualified installer for vehicle electrical work.
