Link Crank Angle Sensor (CAS)

Link Crank Angle Sensor (CAS)

Available from JDM Mods NQ, the Link Crank Angle Sensor (CAS) is a measurement component for a compatible engine-management installation. Use the fitment, technical and package details below to select the correct part for your build.

Manufacturer part number: 101-0025

Models Supported

• It can be used with almost any steel trigger wheel attached to the crank shaft, see related products for our trigger wheel options.

Warnings

• Not recommended for CAM signal.
• Signal wires should be shielded.
• Sensor gap around 0.5mm.
• Depending on the desired ignition strategy, you may need an additional CAM/Trigger 2 sensor PN 101-0280. See PC Link Help File for more information.

Wiring

• Reference + connect to Trigger 1 (Signal) on the Link ECU.
• Reference - connect to Sensor Ground on the Link ECU.

Product Dimensions

• 55mm(L)x40mm(W)x45mm(H)
• 2.17in(L)x1.57in(W)x1.77in(H)

Product Weight

• 30 grams (1.06 ounces)

Electrical

• Operating Voltage Range: +/-60V

What's in the Box

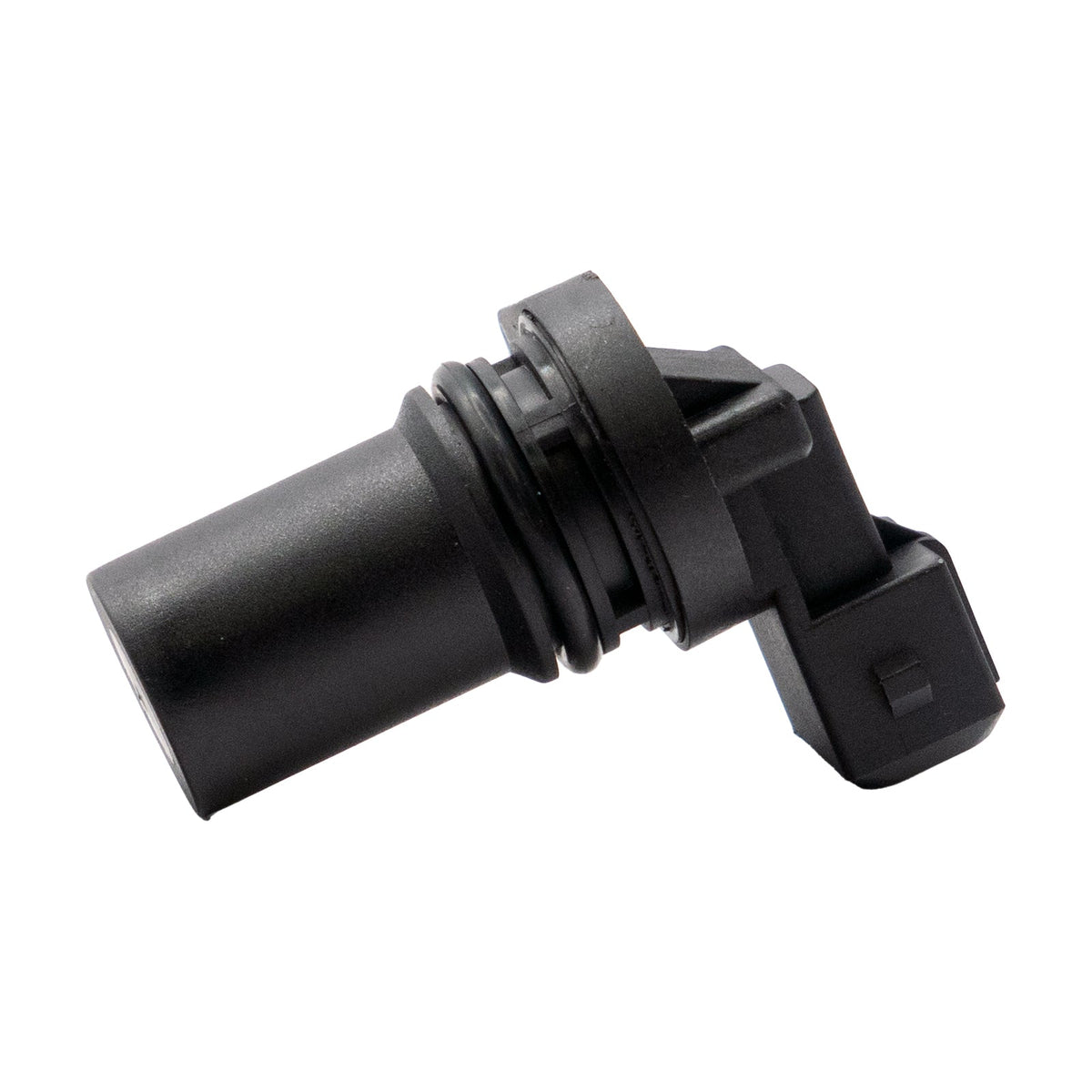

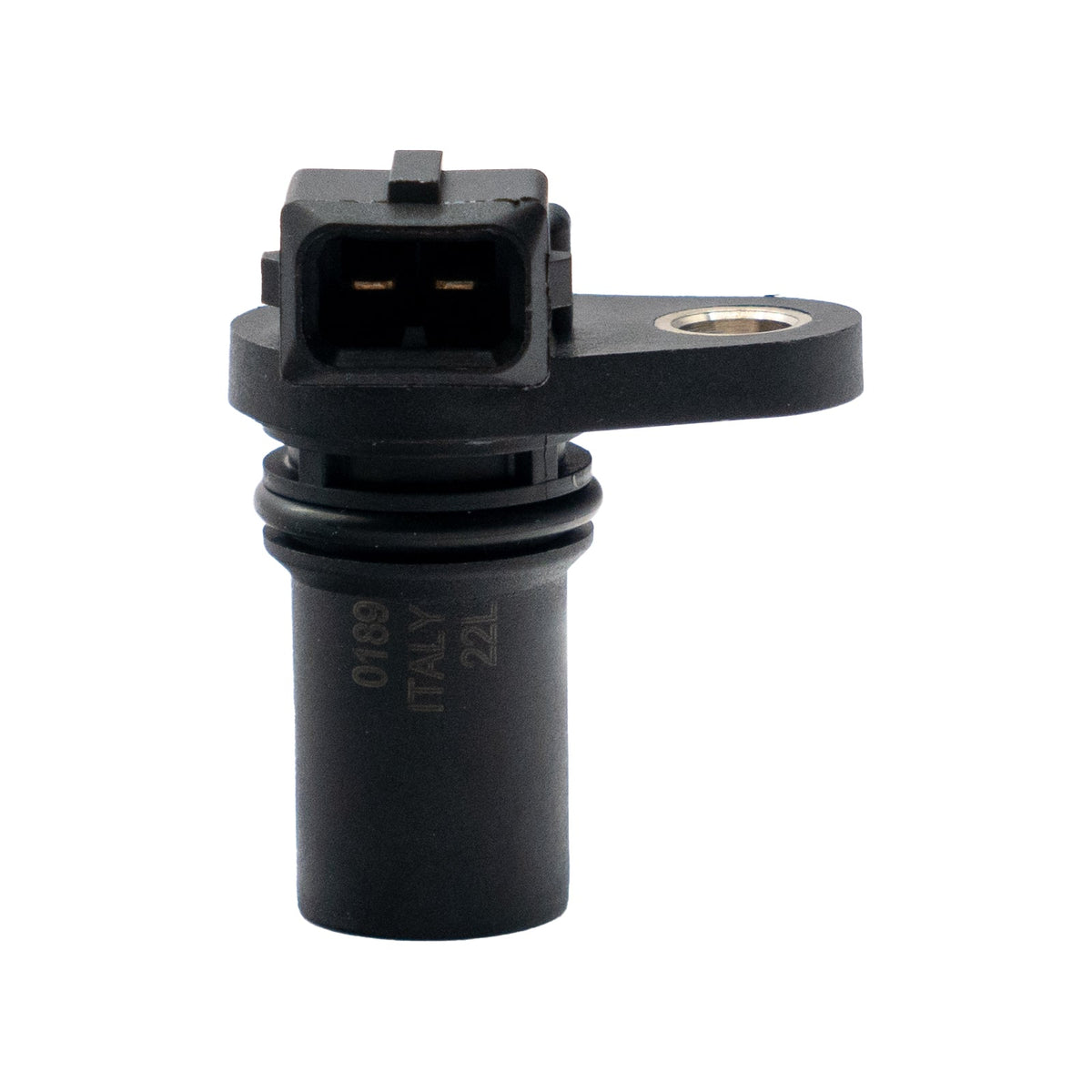

• Crank VR Sensor with plug/pins

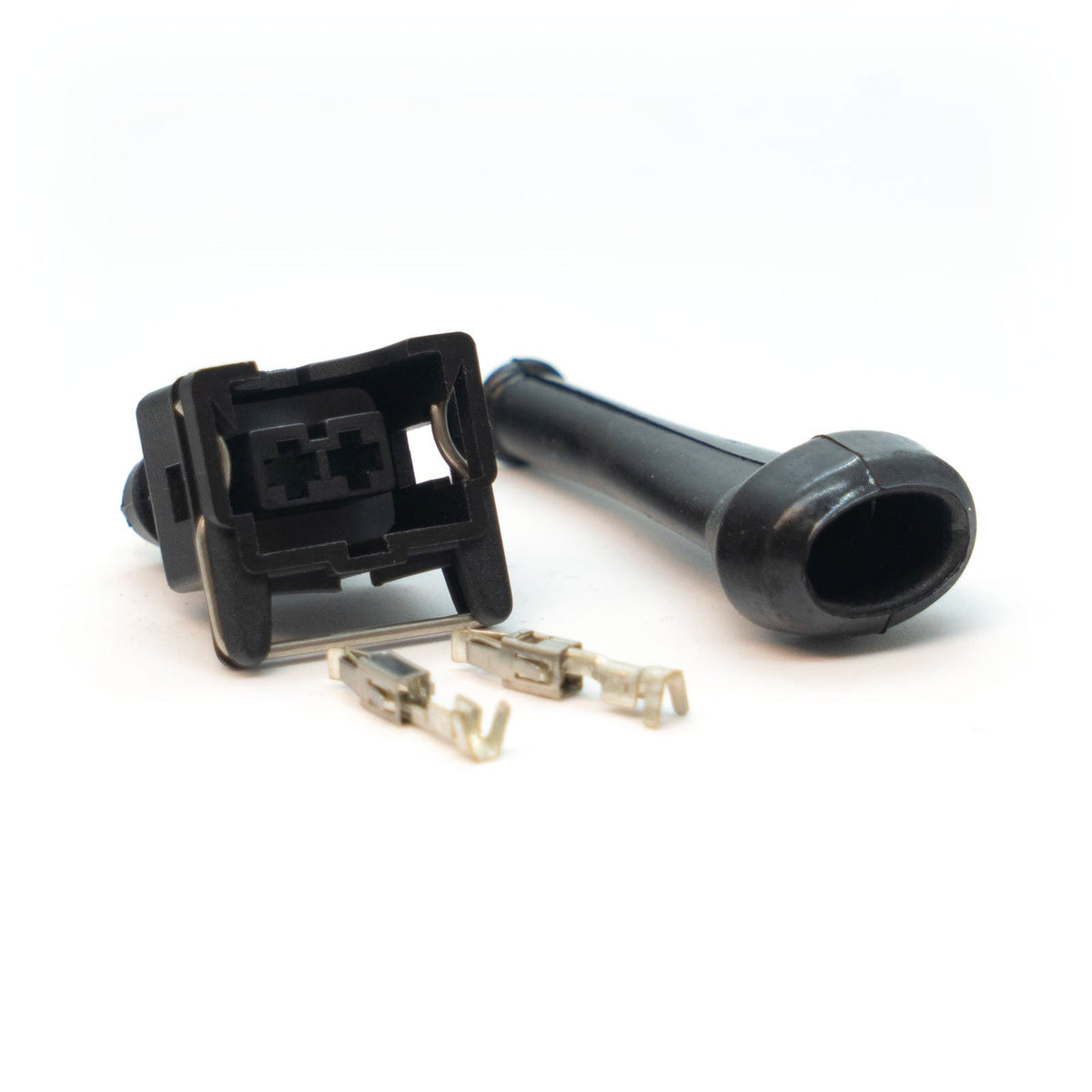

• Bosch Style Plug, Pin and Boot (PN 101-0051)

PCLink Calibration Name

• Reluctor

Installation and ordering

Confirm connector type, wiring, supply voltage and compatibility with the ECU or connected device before purchase. Follow the relevant Link wiring diagram, calibration and mounting instructions. CAN devices require a compatible CAN configuration and correct bus termination. Accessories are included only where they are explicitly listed below.

Installation and Compatibility Checks

Confirm the specified device compatibility, connectors and installation requirements before ordering. Use a qualified installer for vehicle electrical work.
