Link Coolant Temperature Sensor (NTC12)

Link Coolant Temperature Sensor (NTC12)

Available from JDM Mods NQ, the Link Coolant Temperature Sensor (NTC12) is a measurement component for a compatible engine-management installation. Use the fitment, technical and package details below to select the correct part for your build.

Manufacturer part number: 101-0077

Warnings

• Sealing washer not included. Can be connected to most ECUs directly to a Temp Input or to an Analog Input using an external pull-up resistor to 5V. Any mounting orientation is suitable.

Highlights

• The Link NTC12 Temperature Sensor has the following specifications:
• One pin for signal, one for sensor ground, polarity does not matter
• NTC thermistor.
• M12 x 1.5 male thread.
• Temperature Range: -40degC to 130degC.
• Nominal Resistance: 2.5k ohm +/-5% @ 20degC.
• Accuracy @ 25degC: +/-1.4degC.
• Accuracy @ 100degC: +/-3.4degC.
• Response Time (tau63): <15s (still water).
• Bosch Jetronic connector.
• E85 compatible.
• Comes with Bosch Style 2 way Plug, Pin and Boot.

Product Dimensions

• 50.5mm(L)x25mm(W)x20mm(H)
• 1.97in(L)x0.98in(W)x0.79in(H)

Product Weight

• 29 grams (1.02 ounces)

Electrical

• Operating Voltage Range: 5V

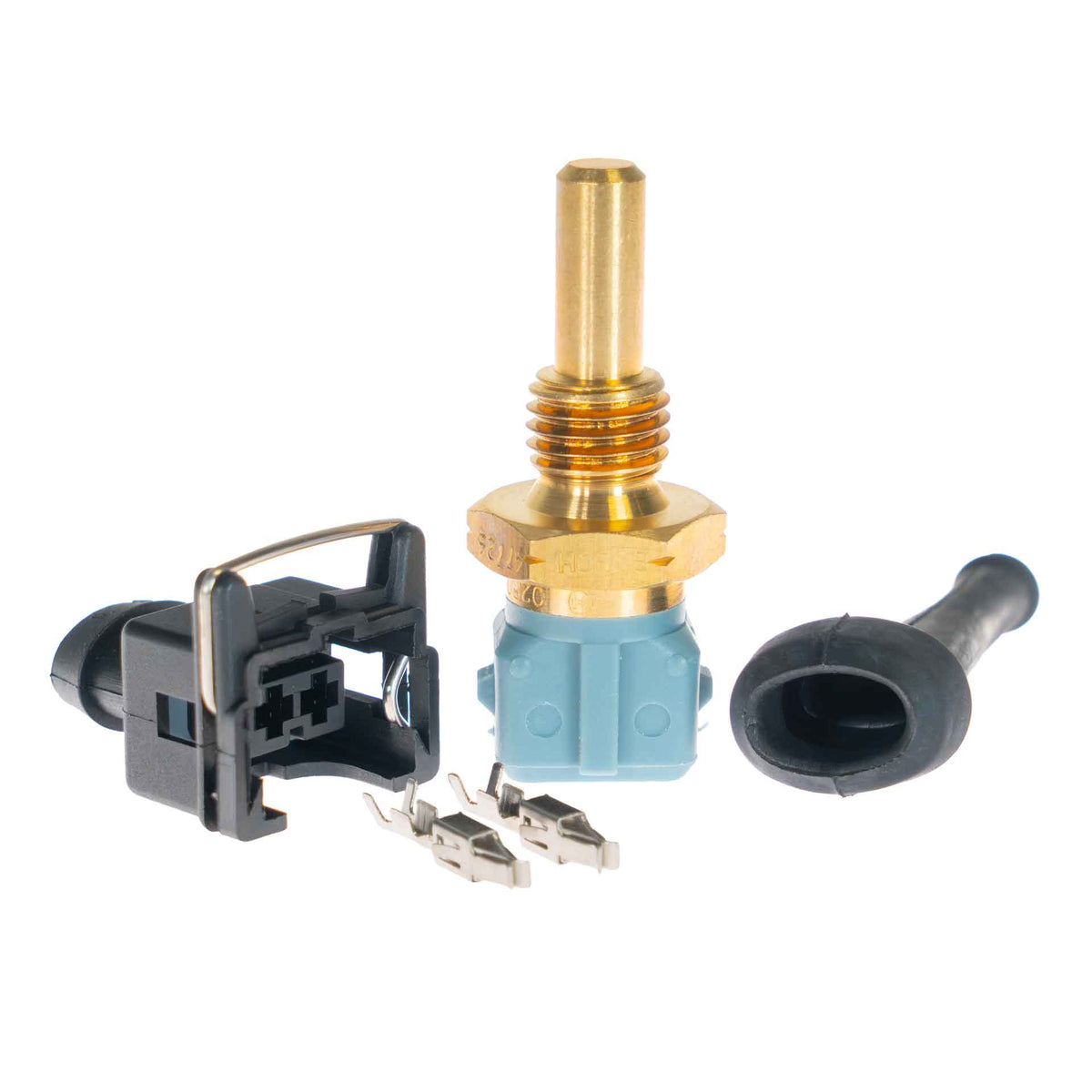

What's in the Box

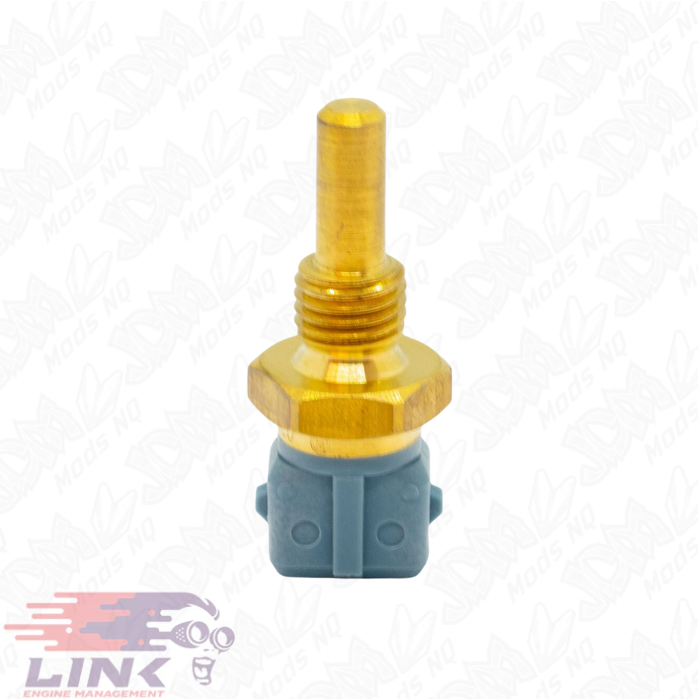

• Fluid Temp Sensor M12

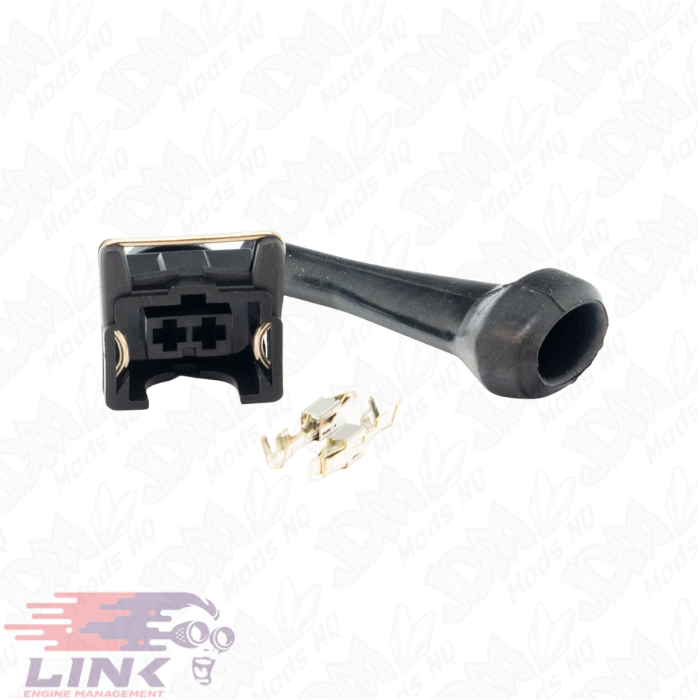

• Bosch Style 2 way Plug, Pin and Boot

PCLink Calibration Name

• "Link NTC12 & IATB" OR "Std Bosch NTC"

Raw Calibration Specs

• -40degC: 45,313 ohm
• -30degC: 26,114 ohm
• -20degC: 15,462 ohm
• -10degC: 9,397 ohm
• 0degC: 5,896 ohm
• 10degC: 3,792 ohm
• 20degC: 2,500 ohm
• 30degC: 1,707 ohm
• 40degC: 1,175 ohm
• 50degC: 834 ohm
• 60degC: 596 ohm
• 70degC: 436 ohm
• 80degC: 323 ohm
• 90degC: 243 ohm
• 100degC: 187 ohm
• 110degC: 144 ohm
• 120degC: 113 ohm
• 130degC: 89 ohm
• 140degC: 72 ohm
• 150degC: 55 ohm

Connector

• Bosch 2 Way Plug Kit (PKB2), 101-0051.

Installation and ordering

Confirm connector type, wiring, supply voltage and compatibility with the ECU or connected device before purchase. Follow the relevant Link wiring diagram, calibration and mounting instructions. CAN devices require a compatible CAN configuration and correct bus termination. Accessories are included only where they are explicitly listed below.

Installation and Compatibility Checks

Confirm the thread, connector and ECU calibration. Mount the sensor where it measures the intended air, coolant or fluid temperature.
