Link Combined Pressure and Temperature Sensor (CPTS)

Link Combined Pressure and Temperature Sensor (CPTS)

Available from JDM Mods NQ, the Link Combined Pressure and Temperature Sensor (CPTS) is a measurement component for a compatible engine-management installation. Use the fitment, technical and package details below to select the correct part for your build.

Manufacturer part number: 101-0320

Models Supported

• All Link ECUs.
• Other aftermarket ECUs with analogue pressure and temperature inputs.

Warnings

• Not suitable for water/coolant.
• Maximum permissible overpressure: 20 bar.
• Recommended installation torque: 37.5 +/-2.5 Nm.
• Install with the sensing tip pointing downwards, within +/-45deg of vertical for optimum performance.

Highlights

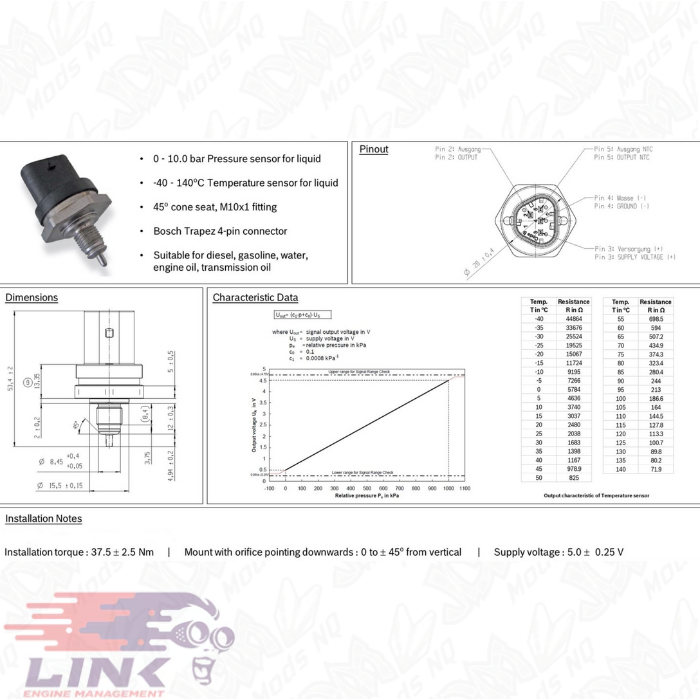

• The Link Combined Pressure and Temperature Sensor has the following specifications:
• Genuine Bosch combined pressure and temperature sensor.
• Measures pressure and temperature simultaneously.
• Pressure range: 0 to 10 bar.
• Temperature range: -40degC to +140degC.
• M10 x 1 thread with 45deg cone seat.
• Supplied with 5-pin Bosch Trapezoid connector kit.

Product Dimensions

• 55mm(L)x30mm(W)x30mm(H)
• 2.17in(L)x1.18in(W)x1.18in(H)

Product Weight

• 30 grams (1.06 ounces)

Electrical

• Operating Voltage Range: 4.75-5.25V
• Maximum Input Voltage: 5.25V

What's in the Box

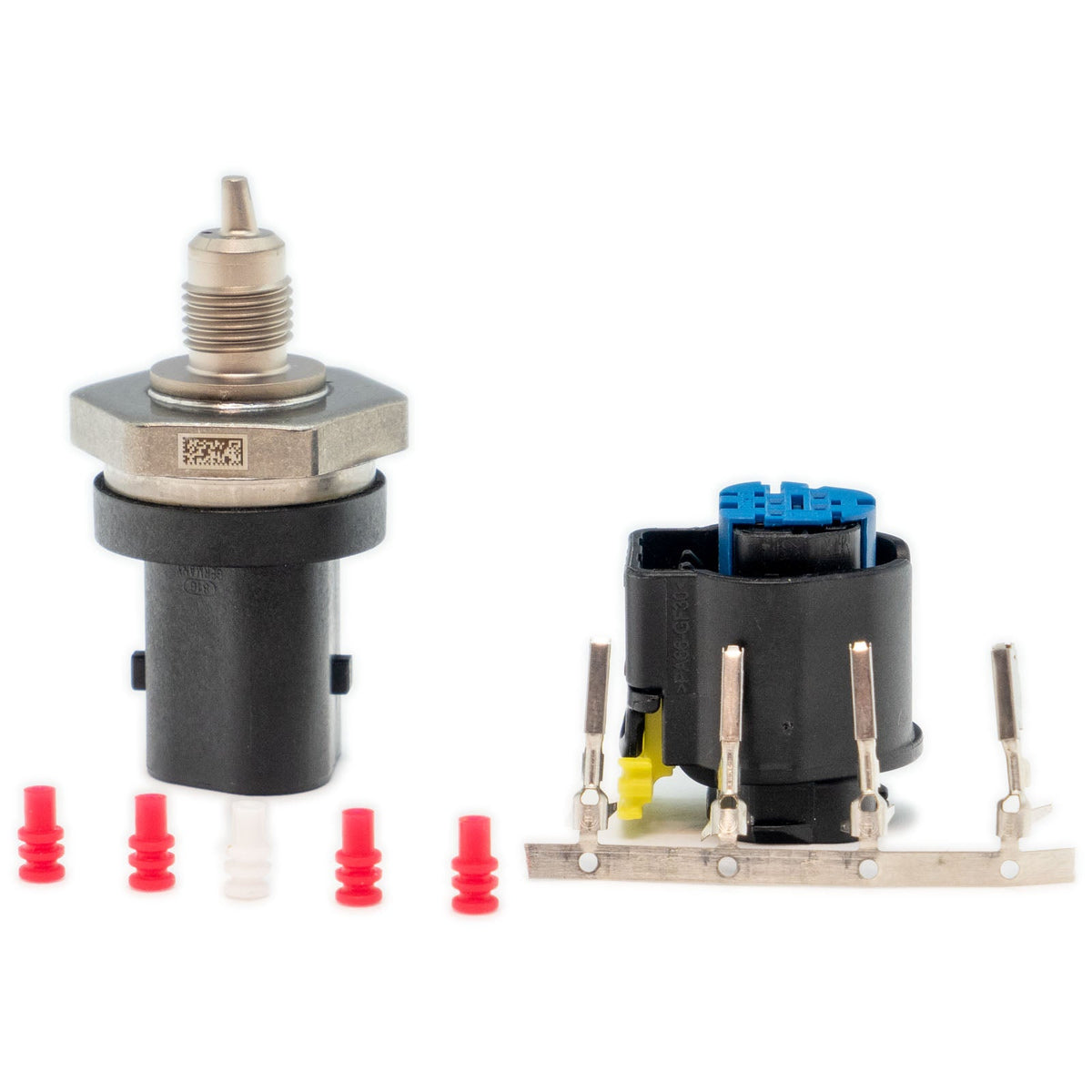

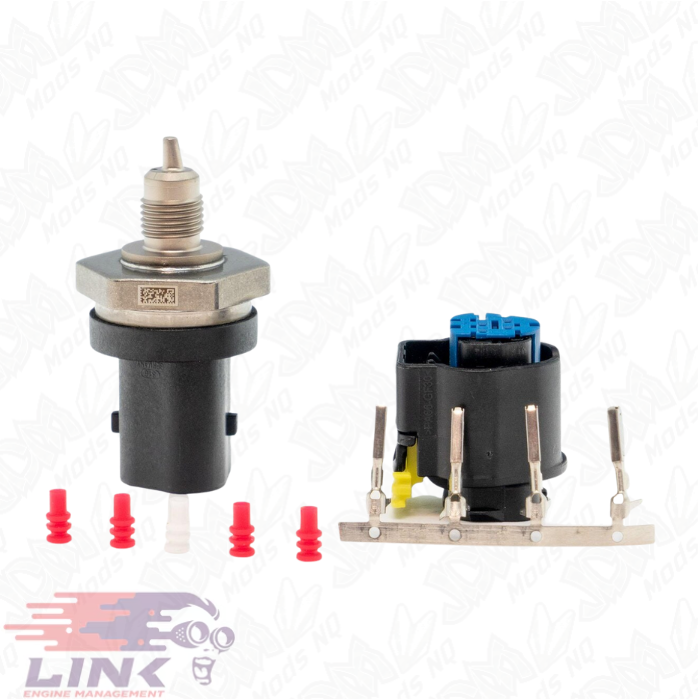

• Bosch Liquid Pressure/Temp Combined Sensor.
• 5-pin Bosch Trapezoid connector kit.
• Printed Accessory instructions.

PCLink Calibration Name

• Pressure: "Bosch 10Bar 0 261 230 340"
• Temperature: "Bosch NTC 0 261 230 340"

Raw Calibration Specs

• Pressure: 0.5V = 0kPa, 4.5V = 1000kPa
• -40degC: 44,864 ohm
• -35degC: 33,676 ohm
• -30degC: 25,524 ohm
• -25degC: 19,525 ohm
• -20degC: 15,067 ohm
• -15degC: 11,724 ohm
• -10degC: 9,195 ohm
• -5degC: 7,266 ohm
• 0degC: 5,784 ohm
• 5degC: 4,636 ohm
• 10degC: 3,740 ohm
• 15degC: 3,037 ohm
• 20degC: 2,480 ohm
• 25degC: 2,038 ohm
• 30degC: 1,707 ohm
• 35degC: 1,398 ohm
• 40degC: 1,175 ohm
• 45degC: 978.9 ohm
• 50degC: 825 ohm
• 55degC: 698.5 ohm
• 60degC: 594 ohm
• 65degC: 507.2 ohm
• 70degC: 434.9 ohm
• 80degC: 323.4 ohm
• 85degC: 280.4 ohm
• 90degC: 244 ohm
• 95degC: 213 ohm
• 100degC: 186.6 ohm
• 105degC: 164 ohm
• 110degC: 144.5 ohm
• 115degC: 127.8 ohm
• 120degC: 113.3 ohm
• 125degC: 100.7 ohm
• 130degC: 89.8 ohm
• 135degC: 80.2 ohm
• 140degC: 71.9 ohm
• 150degC: 55 ohm

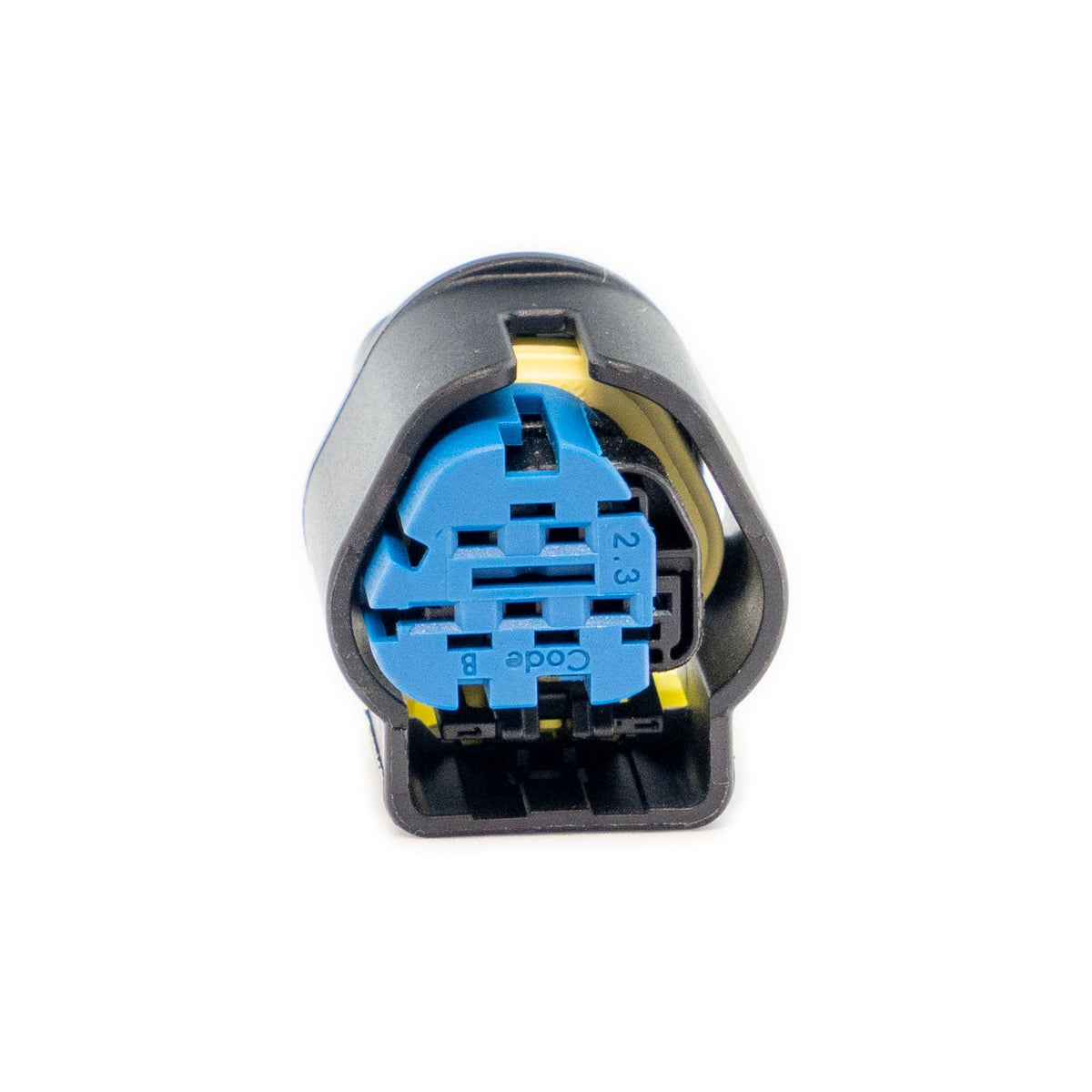

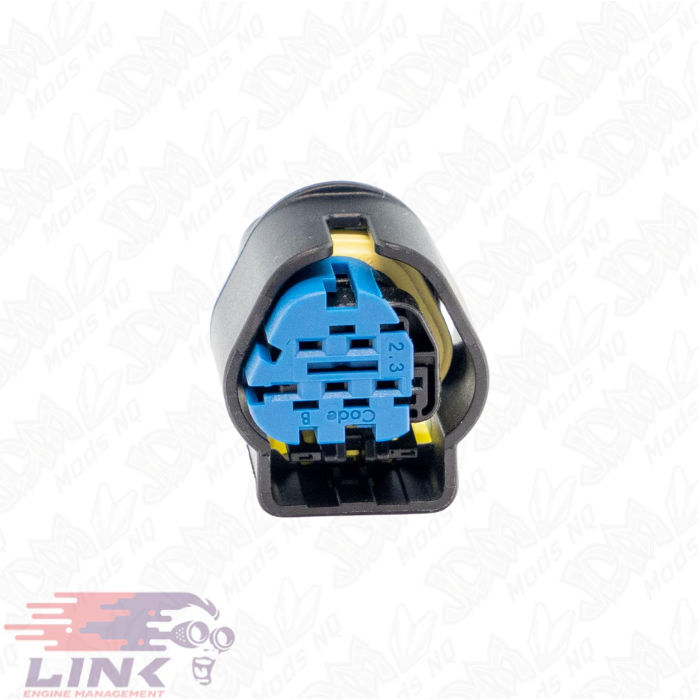

Connector

• 5-pin Bosch Trapezoid

Installation and ordering

Confirm connector type, wiring, supply voltage and compatibility with the ECU or connected device before purchase. Follow the relevant Link wiring diagram, calibration and mounting instructions. CAN devices require a compatible CAN configuration and correct bus termination. Accessories are included only where they are explicitly listed below.

Installation and Compatibility Checks

Confirm the specified device compatibility, connectors and installation requirements before ordering. Use a qualified installer for vehicle electrical work.
