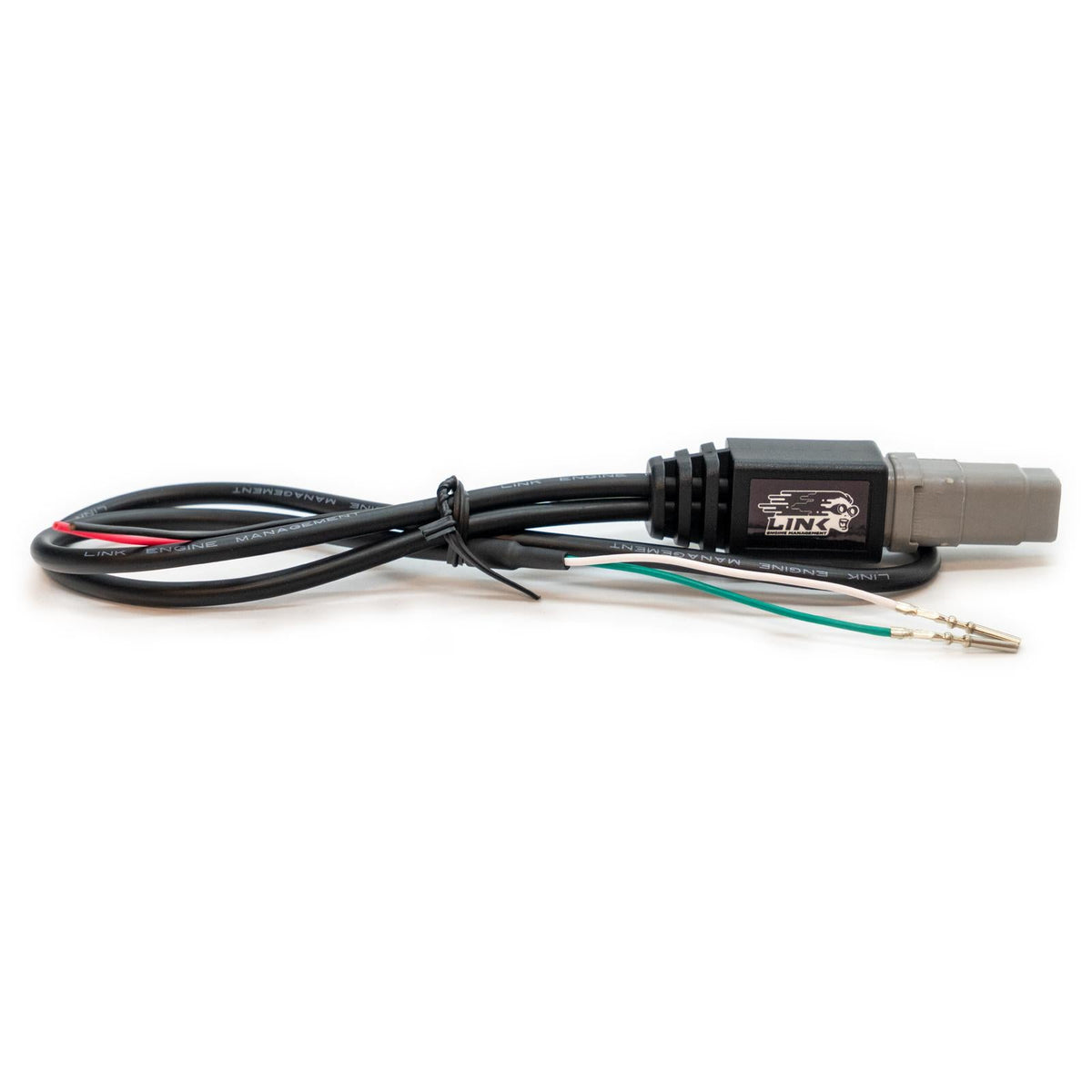

Link CANSS - CAN Connection Cable for WireIn ECU's (ECU Header CAN)

Link CANSS - CAN Connection Cable for WireIn ECU's (ECU Header CAN)

Available from JDM Mods NQ, the Link CANSS - CAN Connection Cable for WireIn ECU's (ECU Header CAN) is a wiring component for the compatible Link installation listed below. Use the fitment, technical and package details below to select the correct part for your build.

Manufacturer part number: 101-0210

Models Supported

• Compatible ECUs:
• G4X/G4+ Atom (CAN1)
• G4X/G4+ Monsoon (CAN1)
• G4X/G4+ Storm (CAN2)
• G4X/G4+ Xtreme (CAN2)
• G4X/G4+ Fury (CAN2)
• G5 Voodoo Pro (CAN1)
• G4+ Force (CAN2)
• G4+ Thunder (CAN2)

Product Dimensions

• 580mm(L)x20mm(W)x15mm(H)
• 22.83in(L)x0.79in(W)x0.59in(H)

Product Weight

• 45 grams (1.59 ounces)

Material

• 300mm. Flying leads 500mm long.

Electrical

• Maximum Input Voltage: 300V
• Maximum Continuous Current Draw: 3A
• Gauges of wire: 20AWG/0.5mm2

Misc.

• Pin 4: CAN H
• Pin 3: CAN L
• Pin 2: Ground
• Pin 1: 12V

What's in the Box

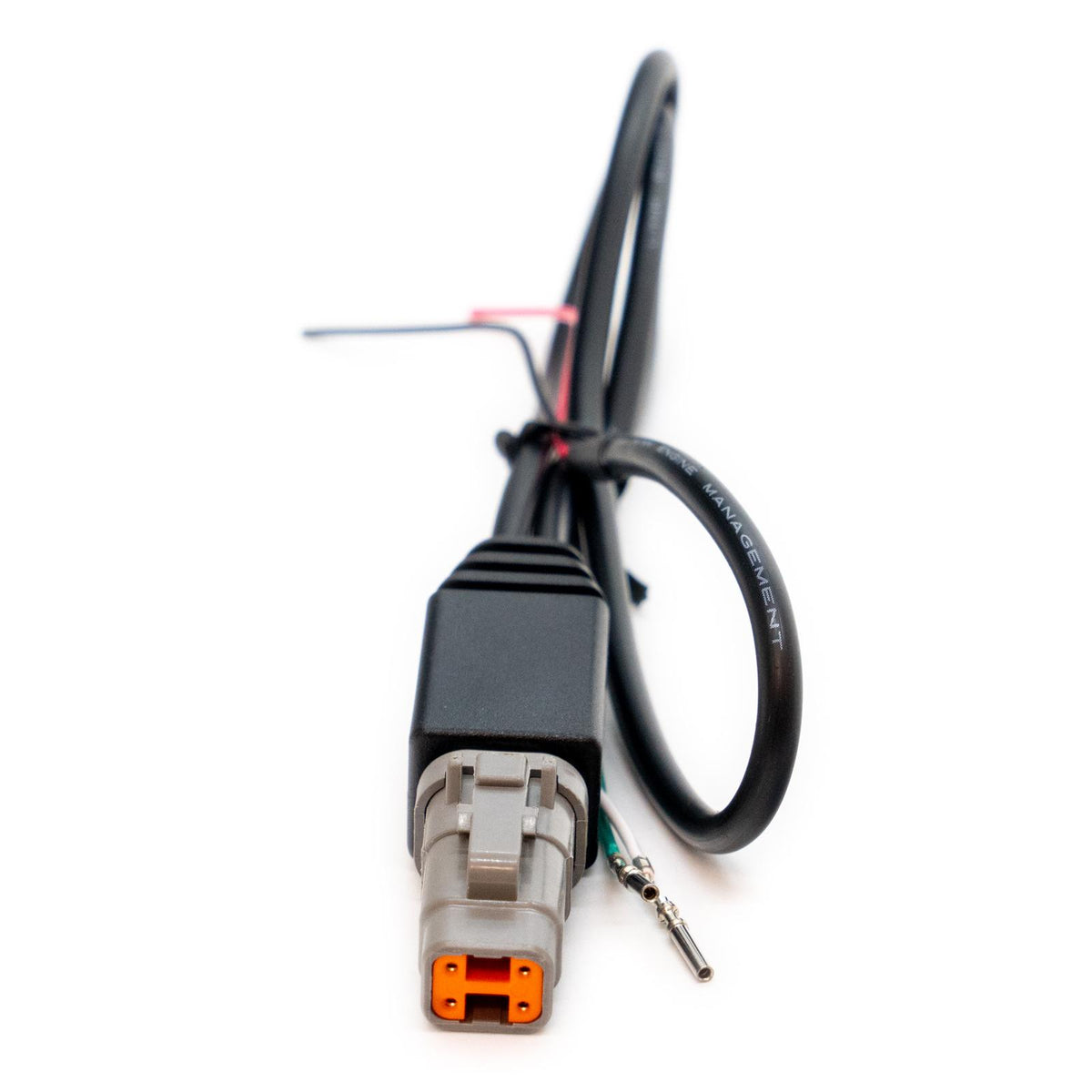

• CANSS - Super Seal to DTM4 Cable

Connector

• DTM4 Male to Flying leads.
• CAN H & L crimped with Superseal terminals.
• 12V & GND Flying Leads.

Installation and Compatibility Checks

Confirm the specified ECU or device connector, wire routing and pin assignments. Electrical installation should follow the correct wiring diagram, with protection and CAN termination where required.
