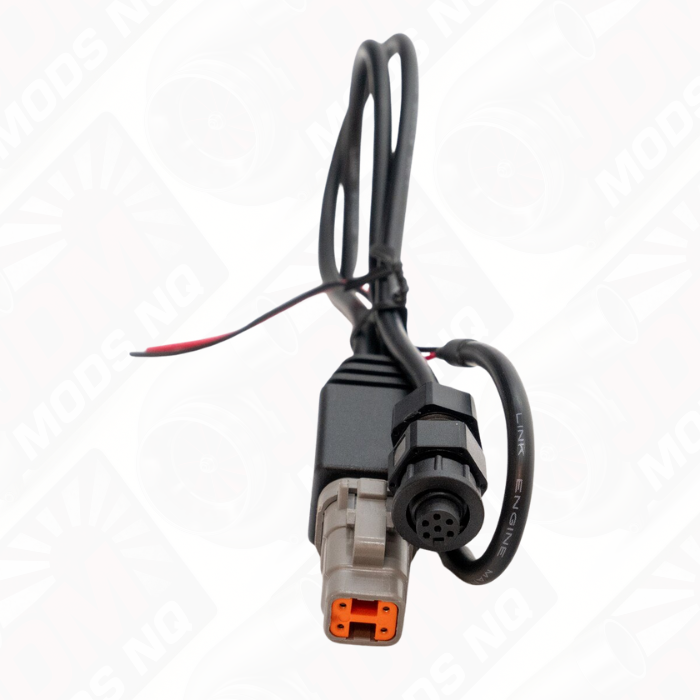

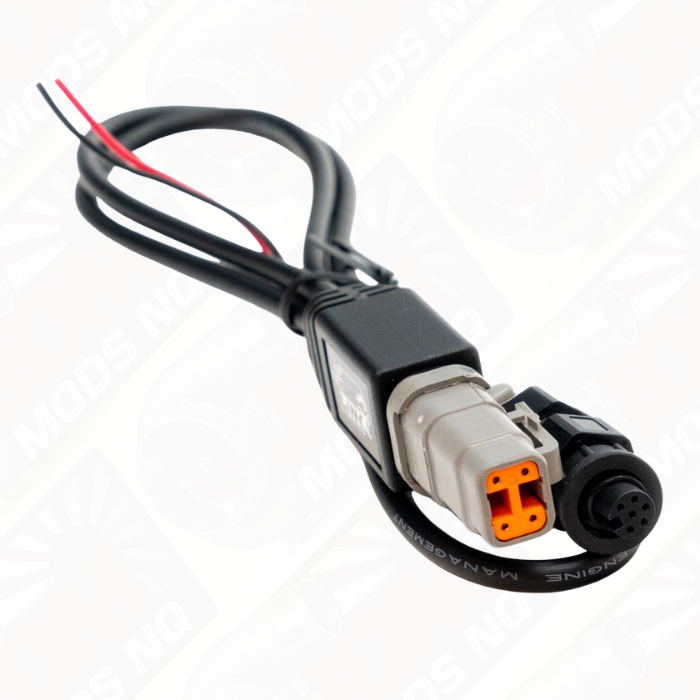

Link CANLTW - CAN Connection Cable for WireIn ECU's (6Pin CAN)

Link CANLTW - CAN Connection Cable for WireIn ECU's (6Pin CAN)

Available from JDM Mods NQ, the Link CANLTW - CAN Connection Cable for WireIn ECU's (6Pin CAN) is a wiring component for the compatible Link installation listed below. Use the fitment, technical and package details below to select the correct part for your build.

Manufacturer part number: 101-0211

Models Supported

• Compatible ECU's:
• G5 Voodoo Pro (CAN1)
• G4X/G4+ Xtreme (CAN1)
• G4X/G4+ Fury (CAN1)
• G4+ Force (CAN1)
• G4+ Thunder (CAN1)

Communications

• Pin 4: CAN H
• Pin 3: CAN L
• Pin 2: Ground
• Pin 1: 12V

Product Dimensions

• 570mm(L)x20mm(W)x20mm(H)
• 22.44in(L)x0.79in(W)x0.79in(H)

Product Weight

• 50 grams (1.76 ounces)

Electrical

• Maximum Input Voltage: 300V
• Maximum Continuous Current Draw: 3A
• Gauges of wire: 20AWG/0.5mm2

Misc.

• 300mm. Flying lead length 500mm.

What's in the Box

• CANLTW - Link CAN Connection Cable for Wire-in ECU's - Fury/Xtreme/Thunder

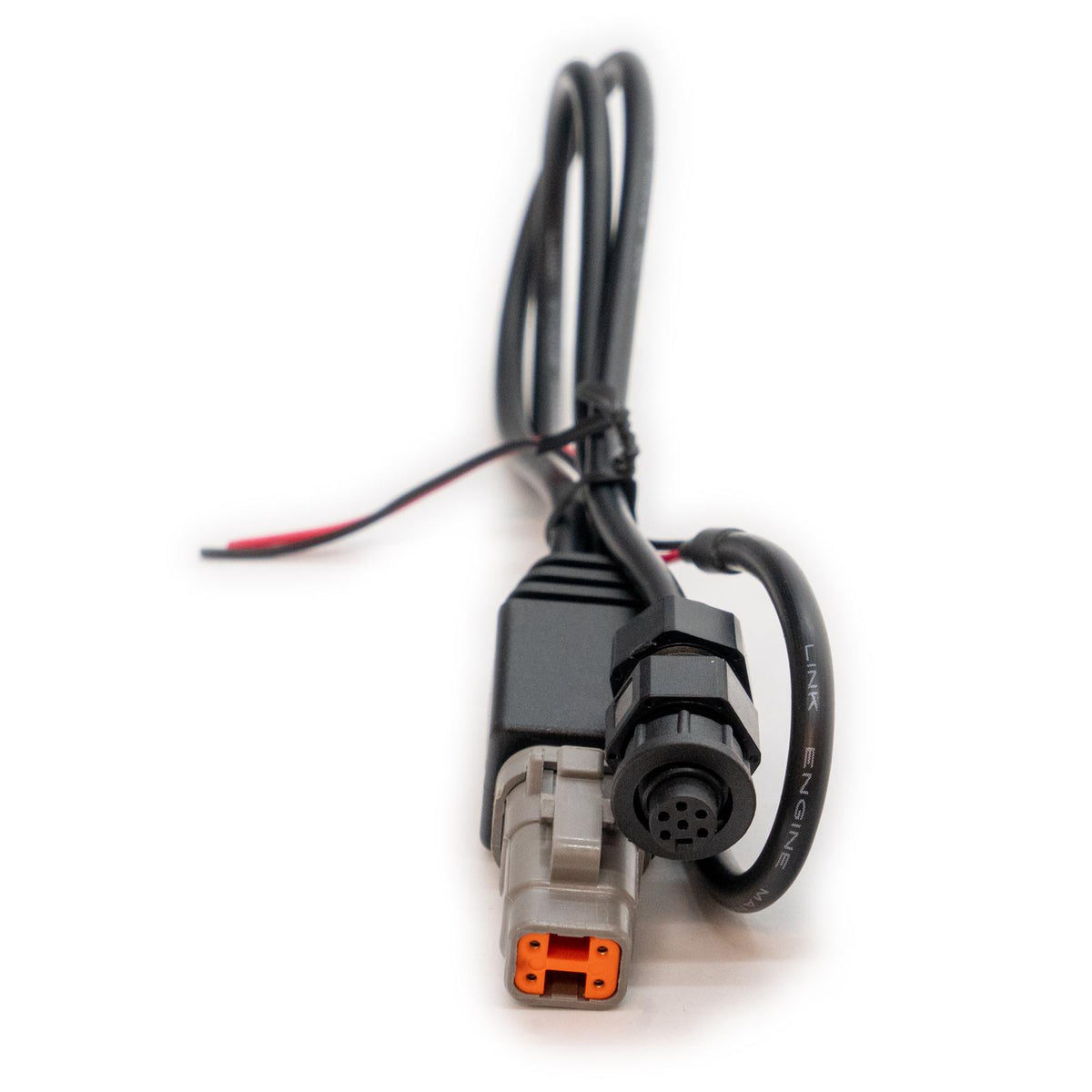

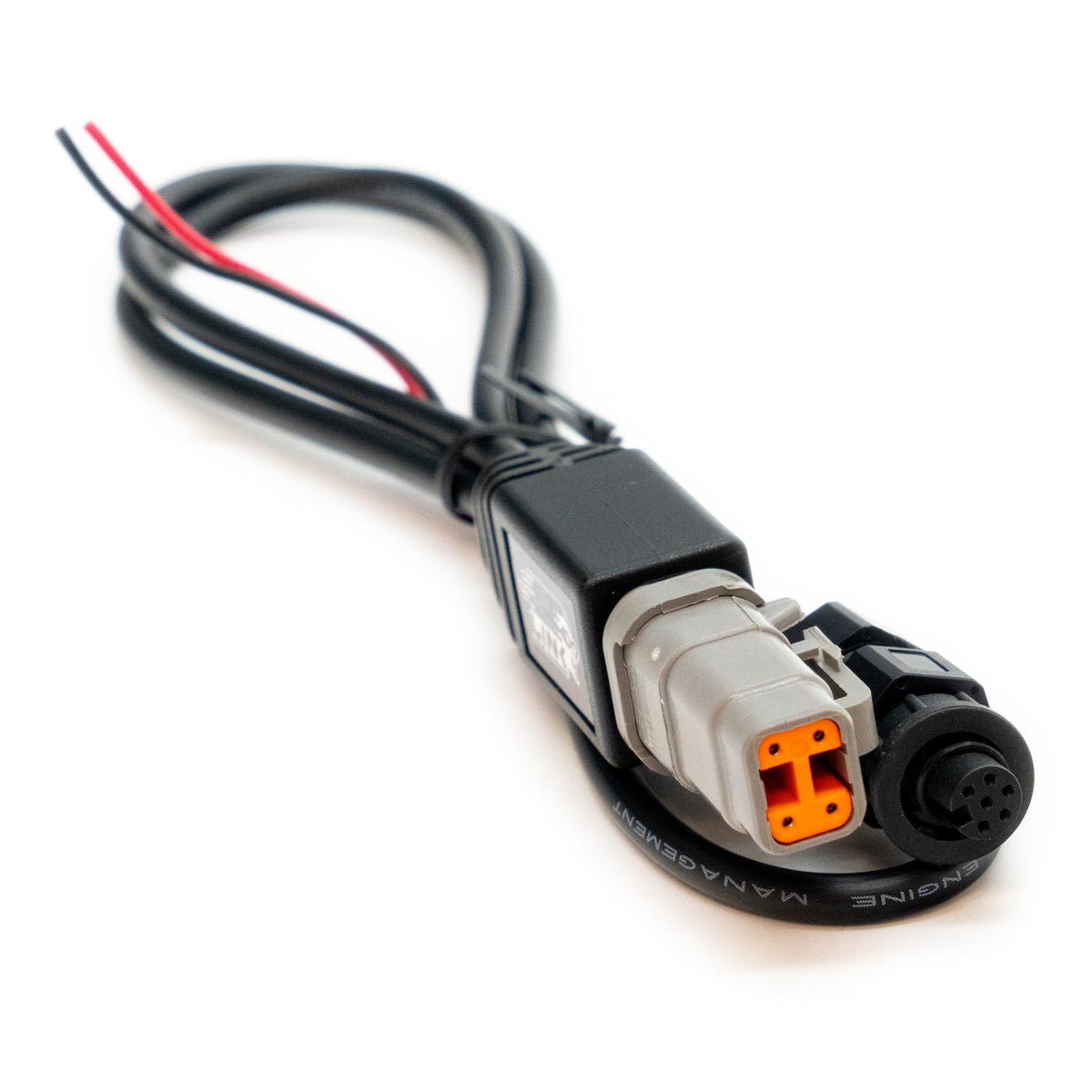

Connector

• DTM4 Male to LTW 6Pin.
• 12V & GND Flying Leads.

Installation and Compatibility Checks

Confirm the specified ECU or device connector, wire routing and pin assignments. Electrical installation should follow the correct wiring diagram, with protection and CAN termination where required.
