Link CANJST4 - CAN Connection Cable for Plugin ECU's (4pin)

Link CANJST4 - CAN Connection Cable for Plugin ECU's (4pin)

Available from JDM Mods NQ, the Link CANJST4 - CAN Connection Cable for Plugin ECU's (4pin) is a wiring component for the compatible Link installation listed below. Use the fitment, technical and package details below to select the correct part for your build.

Manufacturer part number: 101-0198

Models Supported

• Suitable Plug-ins are listed below:
• 214-4100 - Plug-in ECU G4X Nissan GTR with E-Throttle
• 217-4100 - Plug-in ECU G4X Nissan S15 with E-Throttle
• 233-4000 - Plug-in ECU G4X Honda S2000 AP1
• 228-4000 - Plug-in ECU G4X Subaru WRX V5-6
• 237-4000 - Plug-in ECU G4X Honda HC20X Type-R DC5/RSX
• 238-4000 - Plug-in ECU G4X Subaru WRX11
• 239-4000 - Plug-in ECU G4X MX5NB2X
• 240-4000 - Plug-in ECU G4X MX5NB1X
• 243-4000 - Plug-in ECU G4X WRX11 USDM
• 241-4200 - G5 ECU Plug-in - Toyota GT86/Subaru BRZ LHD
• 241-4000 - G5 ECU Plug-in - Toyota GT86/Subaru BRZ RHD

Product Dimensions

• 400mm(L)x20mm(W)x20mm(H)
• 15.75in(L)x0.79in(W)x0.79in(H)

Product Weight

• 35 grams (1.23 ounces)

Material

• 300mm

Electrical

• Maximum Input Voltage: 300V
• Maximum Continuous Current Draw: 3A
• Gauges of wire: 20AWG/0.5mm2

What's in the Box

• CANJST4 - Link CAN Connection Cable for Plug-in ECUs

Raw Calibration Specs

• Pin 1: 12V
• Pin 2: Ground
• Pin 3: CAN Low
• Pin 4: CAN High

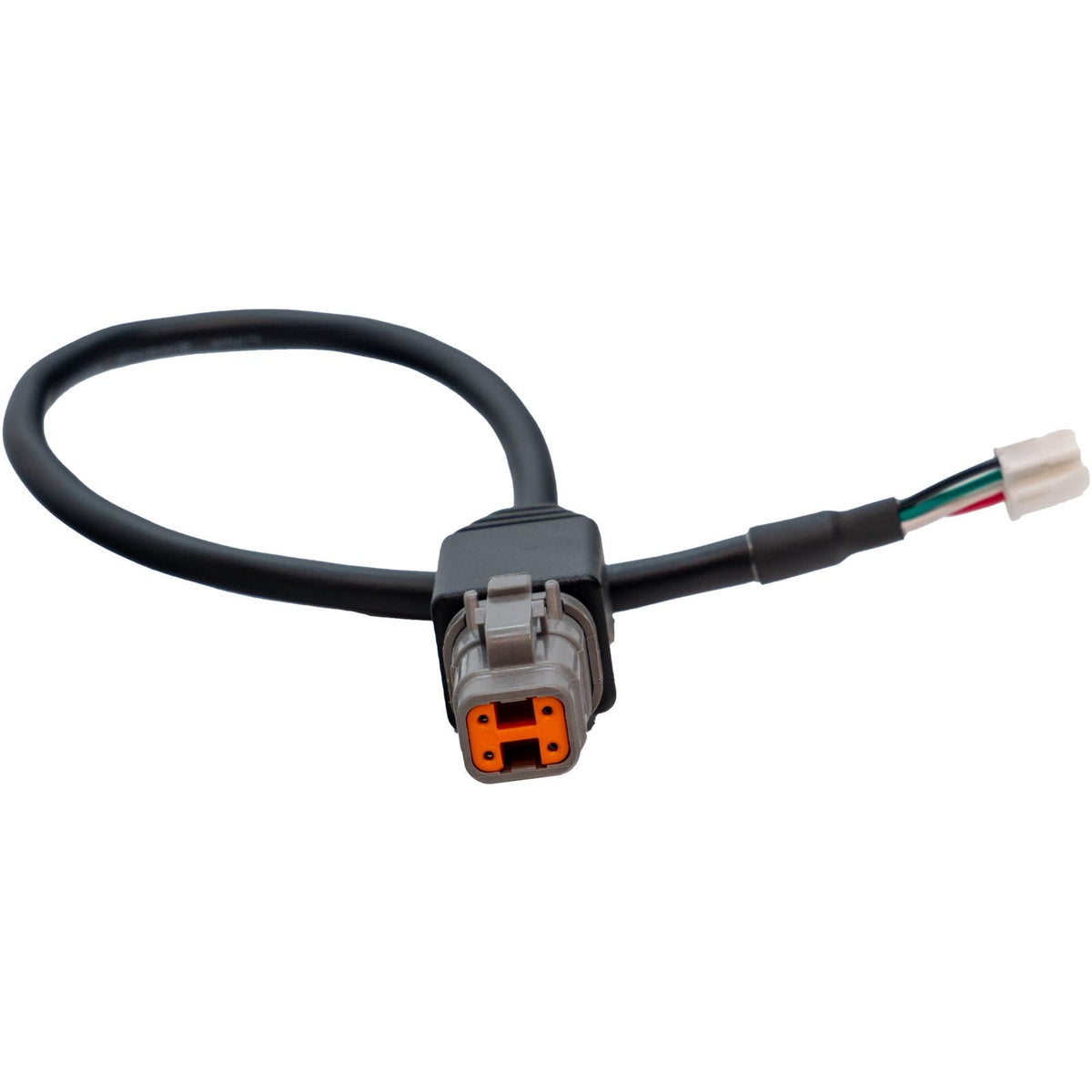

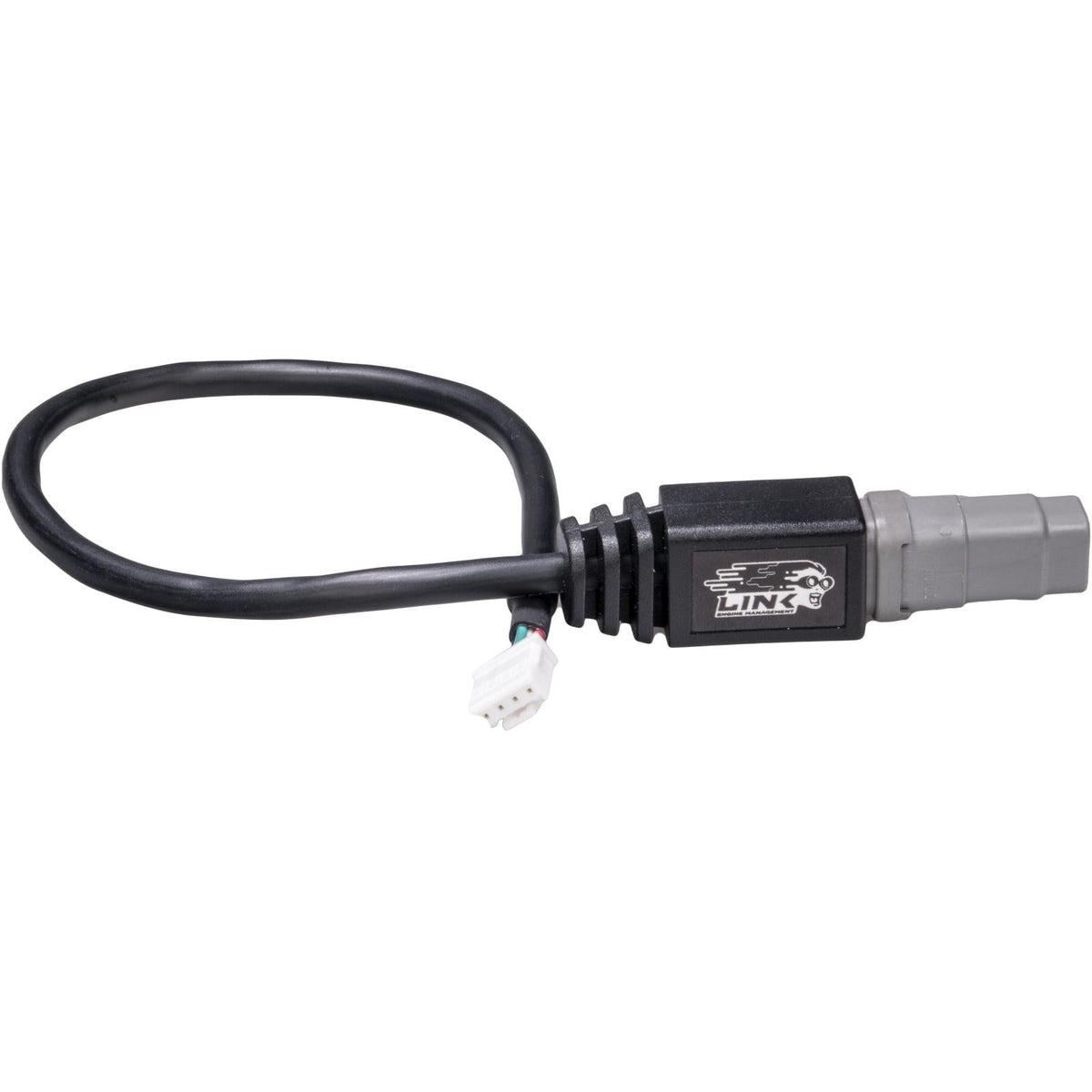

Connector

• DTM4 Male to JST4.
• 12V and GND Terminated to JST4.

Installation and Compatibility Checks

Confirm the specified ECU or device connector, wire routing and pin assignments. Electrical installation should follow the correct wiring diagram, with protection and CAN termination where required.
