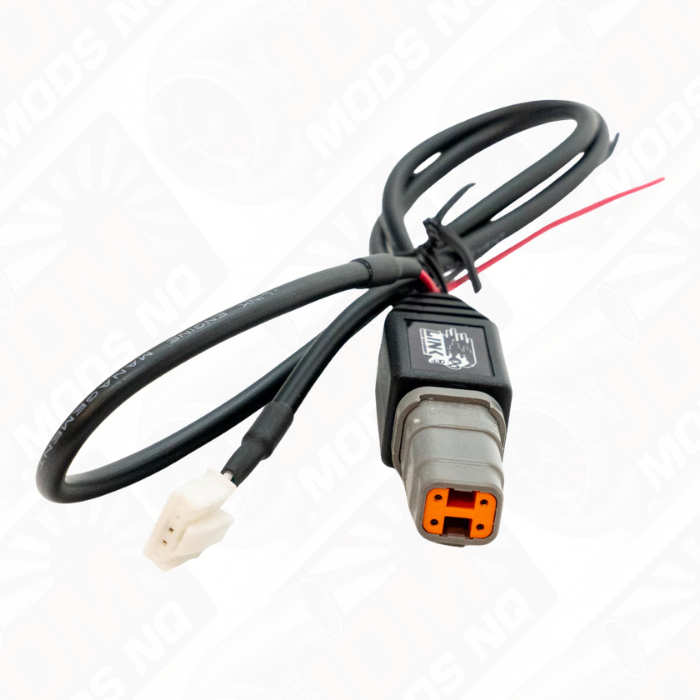

Link CANJST - CAN Connection Cable for Plugin ECU's (5pin)

Link CANJST - CAN Connection Cable for Plugin ECU's (5pin)

Available from JDM Mods NQ, the Link CANJST - CAN Connection Cable for Plugin ECU's (5pin) is a wiring component for the compatible Link installation listed below. Use the fitment, technical and package details below to select the correct part for your build.

Manufacturer part number: 101-0197

Models Supported

• Check your ECU to see if it has a 5 Pin CAN connector.

Warnings

• Not compatible with the below Plug-in ECUs (these require a CANJST4 Cable PN 101-0198):
• 214-4100 - Plug-in ECU G4X Nissan GTR with E-Throttle
• 217-4100 - Plug-in ECU G4X Nissan S15 with E-Throttle
• 233-4000 - Plug-in ECU G4X Honda S2000 AP1
• 228-4000 - Plug-in ECU G4X Subaru WRX V5-6
• 237-4000 - Plug-in ECU G4X Honda HC20X Type-R DC5/RSX
• 238-4000 - Plug-in ECU G4X Subaru WRX11
• 239-4000 - Plug-in ECU G4X MX5NB2X
• 240-4000 - Plug-in ECU G4X MX5NB1X
• 243-4000 - Plug-in ECU G4X WRX11 USDM

Product Dimensions

• 570mm(L)x20mm(W)x15mm(H)
• 22.44in(L)x0.79in(W)x0.59in(H)

Product Weight

• 45 grams (1.59 ounces)

Electrical

• Maximum Input Voltage: 300V
• Maximum Continuous Current Draw: 3A
• Gauges of wire: 20AWG/0.5mm2

Misc.

• Pin 4: CAN H
• Pin 3: CAN L
• Pin 2: Ground
• Pin 1: 12V

What's in the Box

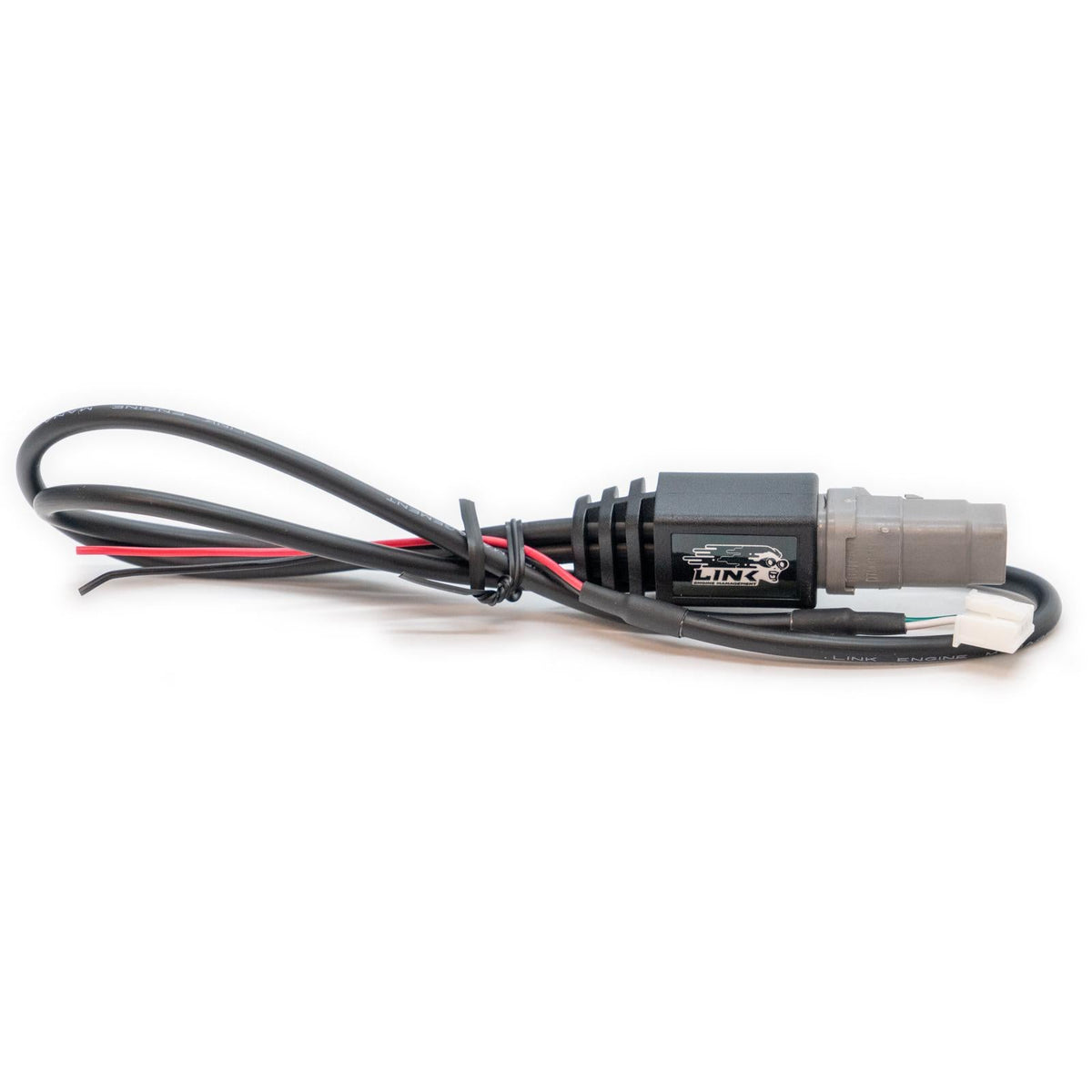

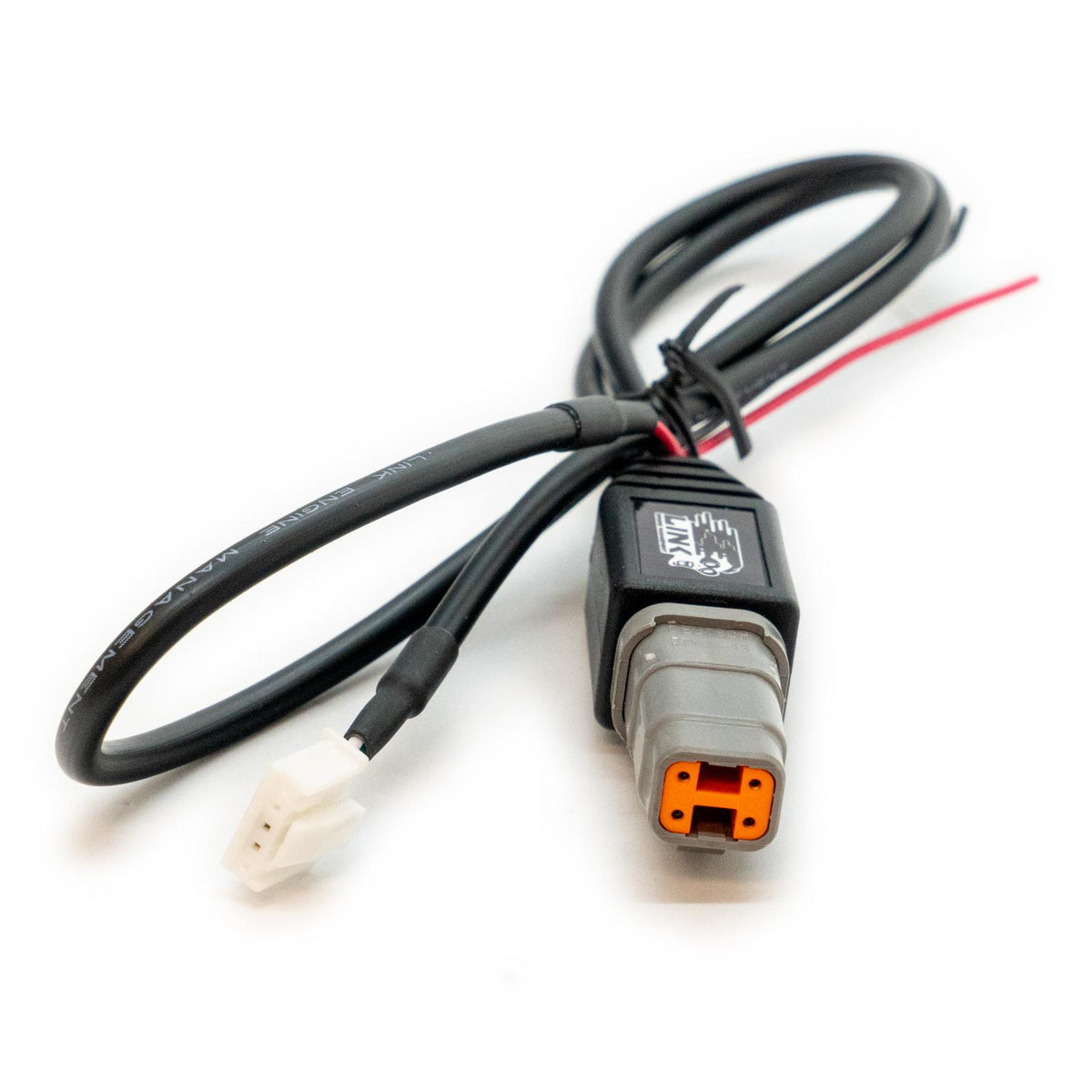

• CANJST - 5 Pin JST to DTM4 Cable

Raw Calibration Specs

• Pin 1: 12V
• Pin 2: Ground
• Pin 3: CAN Low
• Pin 4: CAN High

Installation and ordering

Have an experienced installer confirm the engine, transmission, connector layout and available inputs and outputs before ordering. Follow the model-specific Link installation manual and configure the ECU in PCLink. Check sensor calibration, trigger settings, fuel and ignition setup, and engine-protection limits before running the engine. A supplied startup map requires calibration for the actual engine.

Listed tuning features depend on the vehicle hardware, firmware, available I/O and configuration. Shared or repurposed channels cannot perform every listed function simultaneously.
