Link CANEXT - CAN Extension Cable 2m

Link CANEXT - CAN Extension Cable 2m

Available from JDM Mods NQ, the Link CANEXT - CAN Extension Cable 2m is a wiring component for the compatible Link installation listed below. Use the fitment, technical and package details below to select the correct part for your build.

Manufacturer part number: 101-0214

Product Dimensions

• 2170mm(L)x20mm(W)x15mm(H)
• 85.43in(L)x0.79in(W)x0.59in(H)

Product Weight

• 165 grams (5.82 ounces)

Material

• 2 meters

Electrical

• Maximum Input Voltage: 300V
• Maximum Continuous Current Draw: 3A
• Gauges of wire: 20AWG/0.5mm2

What's in the Box

• DTM4 to DTM4 Extension

Raw Calibration Specs

• Pin 1: 12V
• Pin 2: Ground
• Pin 3: CAN Low
• Pin 4: CAN High

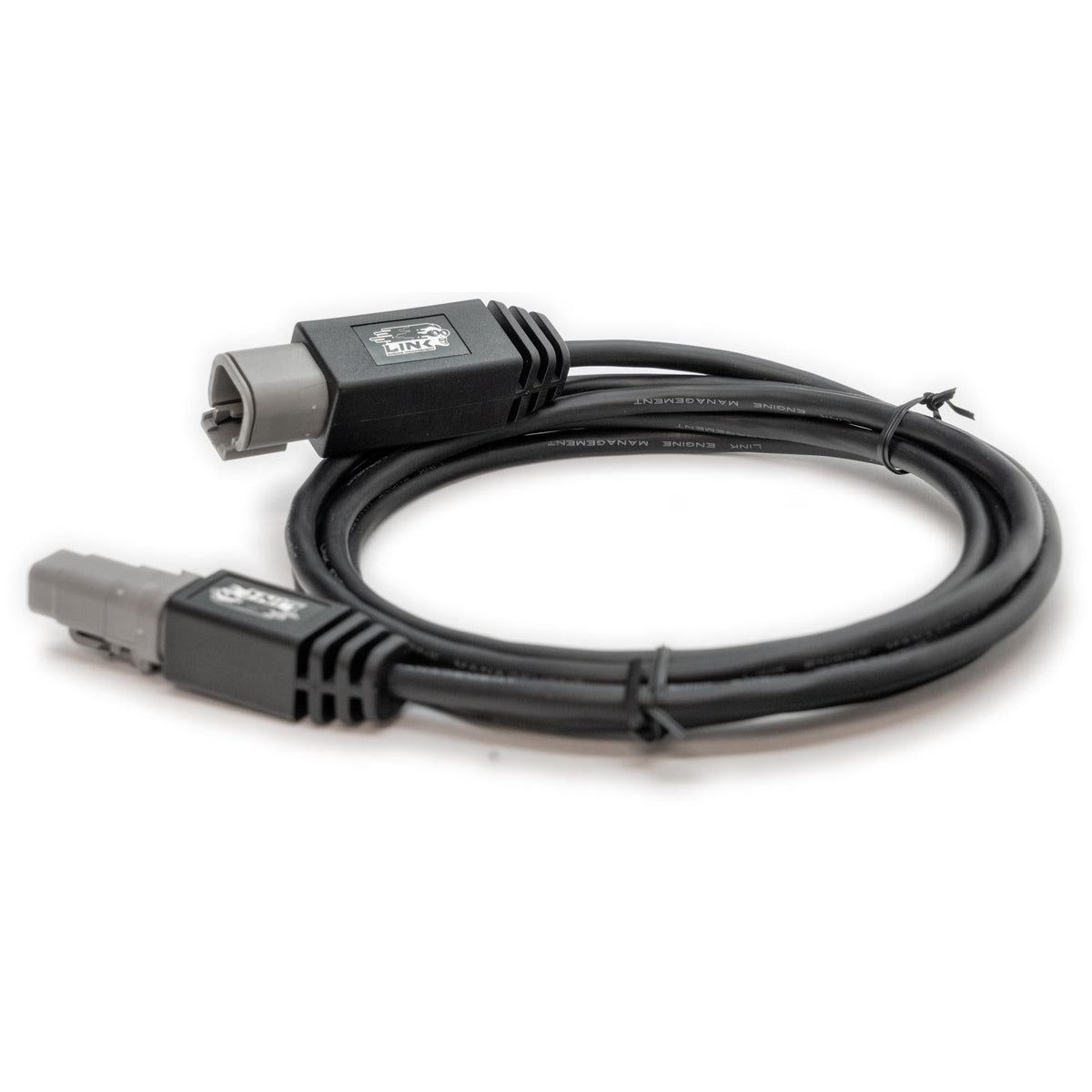

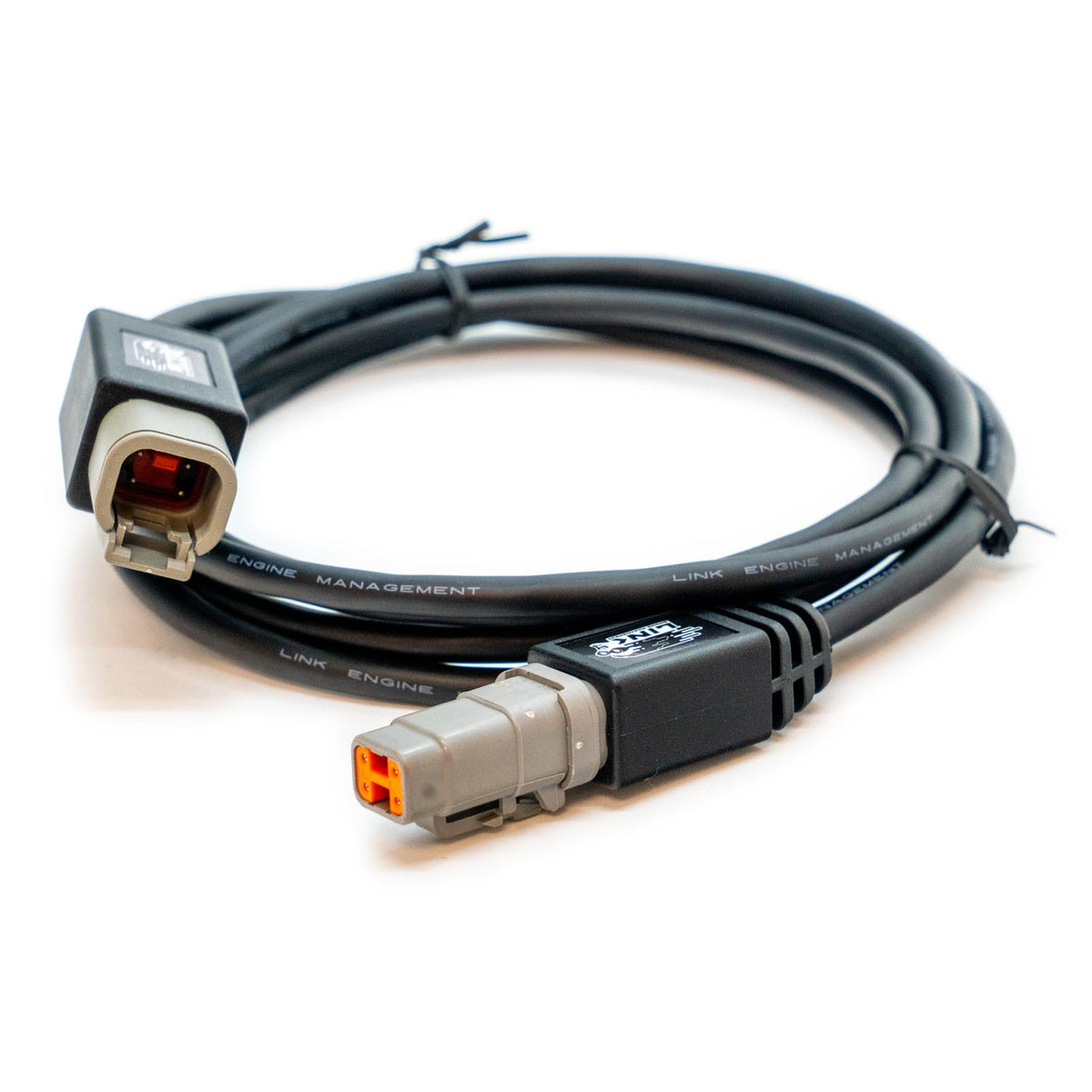

Connector

• DTM4 Female to DTM4 Male. Includes CAN and Power Wiring.

Installation and ordering

Confirm connector type, wiring, supply voltage and compatibility with the ECU or connected device before purchase. Follow the relevant Link wiring diagram, calibration and mounting instructions. CAN devices require a compatible CAN configuration and correct bus termination. Accessories are included only where they are explicitly listed below.

Installation and Compatibility Checks

Confirm the specified ECU or device connector, wire routing and pin assignments. Electrical installation should follow the correct wiring diagram, with protection and CAN termination where required.
