Link CAN Keypad 8 button

Link CAN Keypad 8 button

Available from JDM Mods NQ, the Link CAN Keypad 8 button is a programmable CAN interface for controlling functions through a compatible ECU or power-distribution module. Use the fitment, technical and package details below to select the correct part for your build.

Manufacturer part number: 101-0237

Models Supported

• Compatible with all G4X & G5 ECU's. Built-in support from G4X PC Link vers 6.22 onwards.

Important

• Keypad ships with empty button inserts, inserts need to be selected and purchased individually.
• 1 x Link ECU Logo Button Insert included in the box which can be fitted.

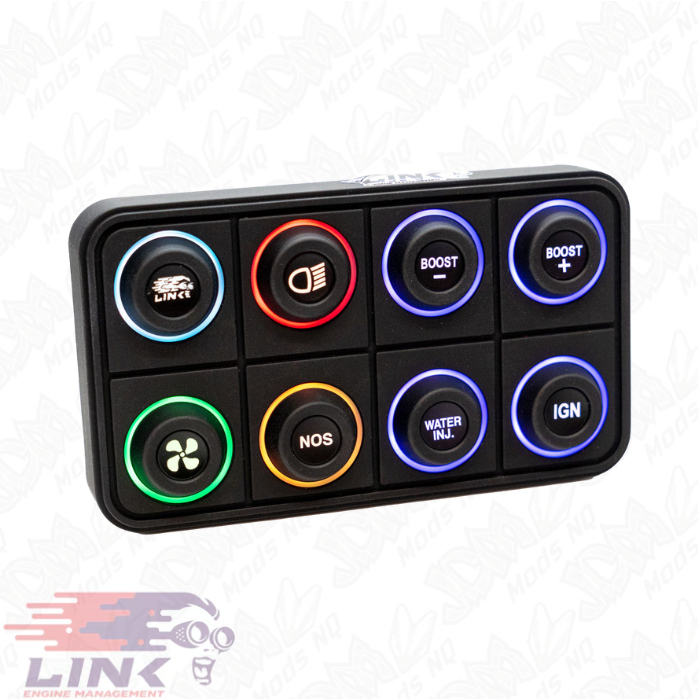

CAN Configurable with G4X / G5 PC-Link

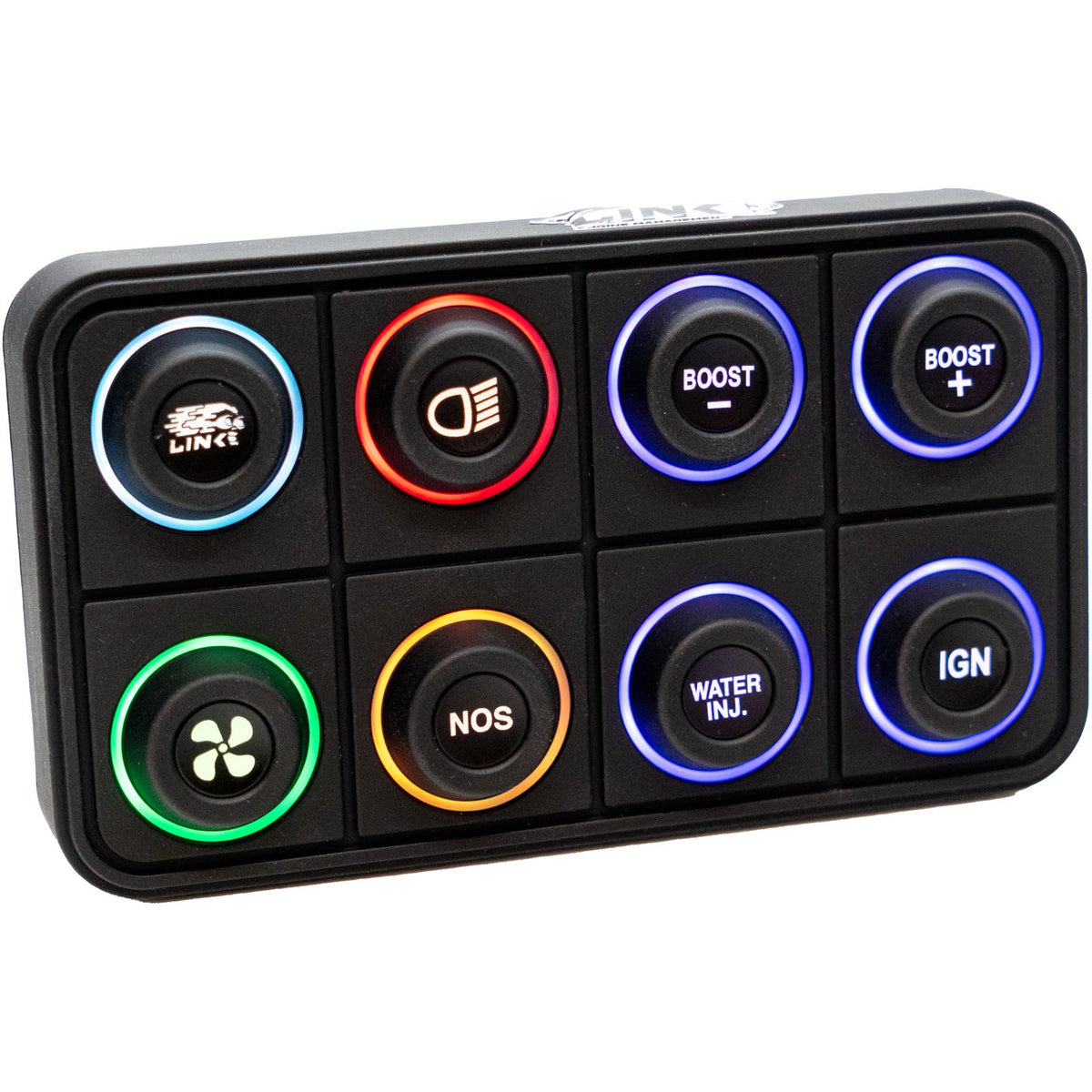

• Change LED backlight, individual button indicator ring colour, programmable to show change in status, flashing option, multiple modes including momentary, latched and toggle.

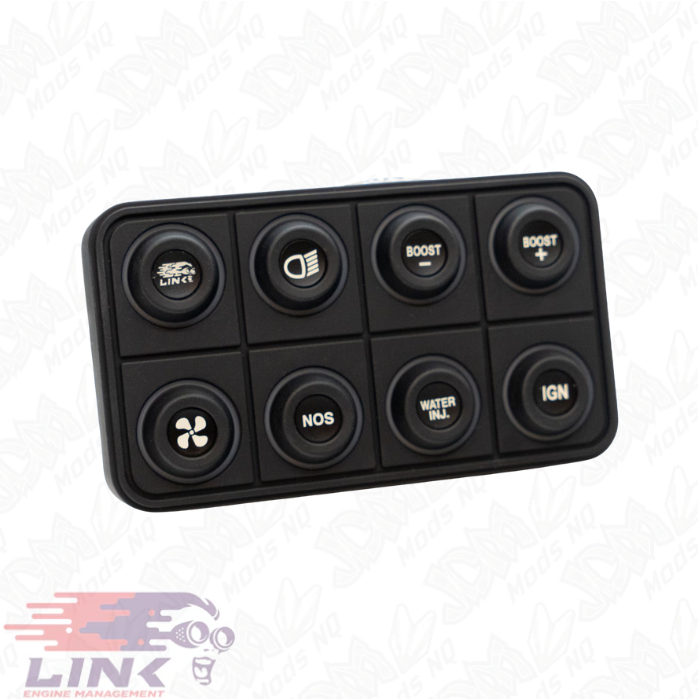

Customizable Button Inserts

• The replacement system for individual inserts makes modifying the keypad layout simple and economical.

IP67/IP69K Waterproof rating

• Guaranteed to be dust tight and sealed against water immersion to a depth of 1 meter for up to 1 hour. The IP69K rating provides protection against high pressure water at high temperature spray downs.

Highlights

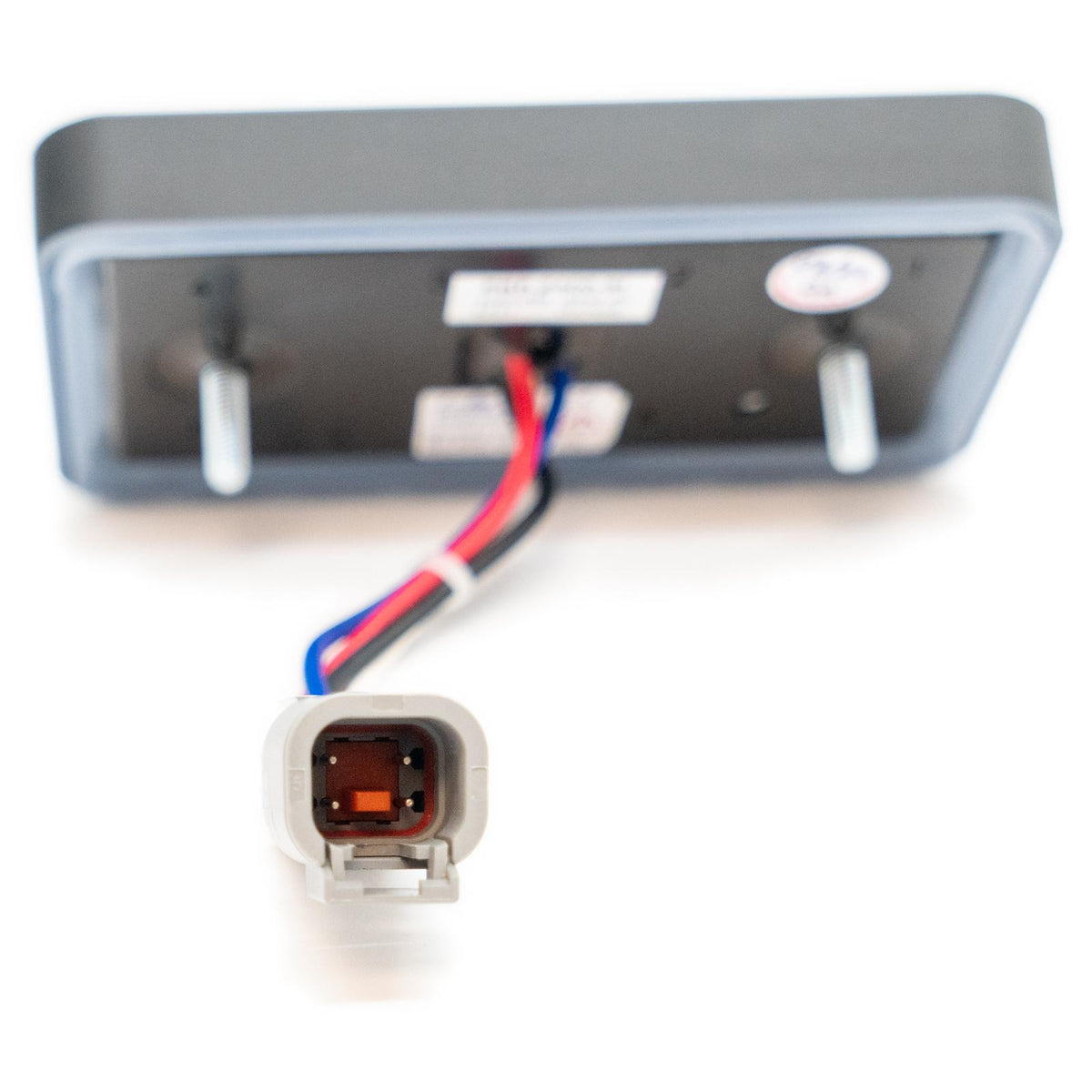

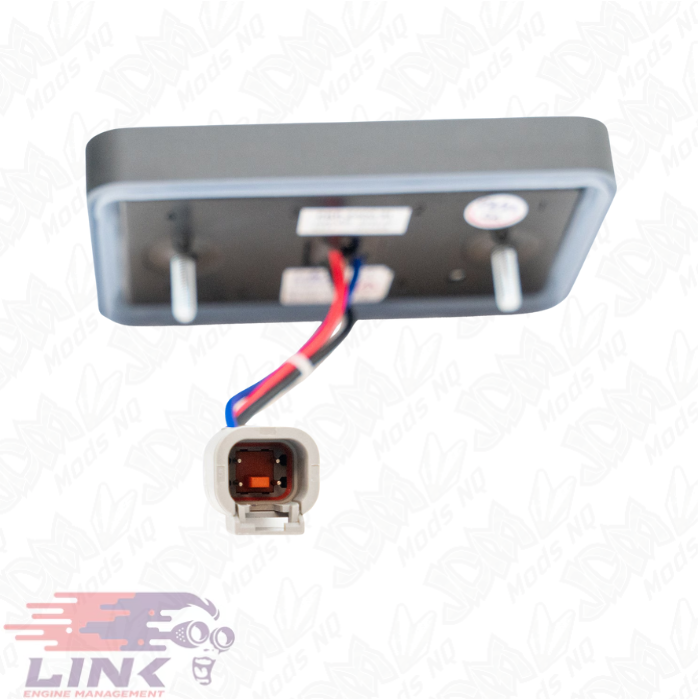

• Connector: DTM4 Connector for CAN and Power (Black = Ground, Red = Power, White = CAN High, Blue = CAN Low)
• Switch Life: 3 million operations
• CANopen Node ID: 0x15 (21)
• Default Baud Rate: 1000kbit/s
• Ingress protection Rating: IP67/IP69K
• Chemical Resistance: Deet, Engine Cleaner, Isopropyl Alcohol, Suntan Lotion, Multi-Purpose Cleaner, Orange Citrus Cleaner, Muriatic Acid
• UV Protection: UVB 400 hours
• Mounting Specs: Mounting Stud Gap (Centre to Centre) 78mm, Nuts thread: #10-32, Maximum torque: 0.8Nm

Product Dimensions

• 123.5mm (W) x 70mm (H)

Product Weight

• 155g

Electrical

• Operating Voltage Range: 8-32V
• Maximum Input Voltage: 32V
• Maximum Continuous Current Draw: <50mA

What's in the Box

• 1 x 8 Button CAN Keypad
• 1 x DTM4 Mating Connector Kit
• 1 x Link Sticker
• 1 x Keypad Button Insert - Link Logo

Connector

• TE Connectivity Deutsch DTM 4-pin 101-0156

Installation and ordering

Confirm connector type, wiring, supply voltage and compatibility with the ECU or connected device before purchase. Follow the relevant Link wiring diagram, calibration and mounting instructions. CAN devices require a compatible CAN configuration and correct bus termination. Accessories are included only where they are explicitly listed below.
