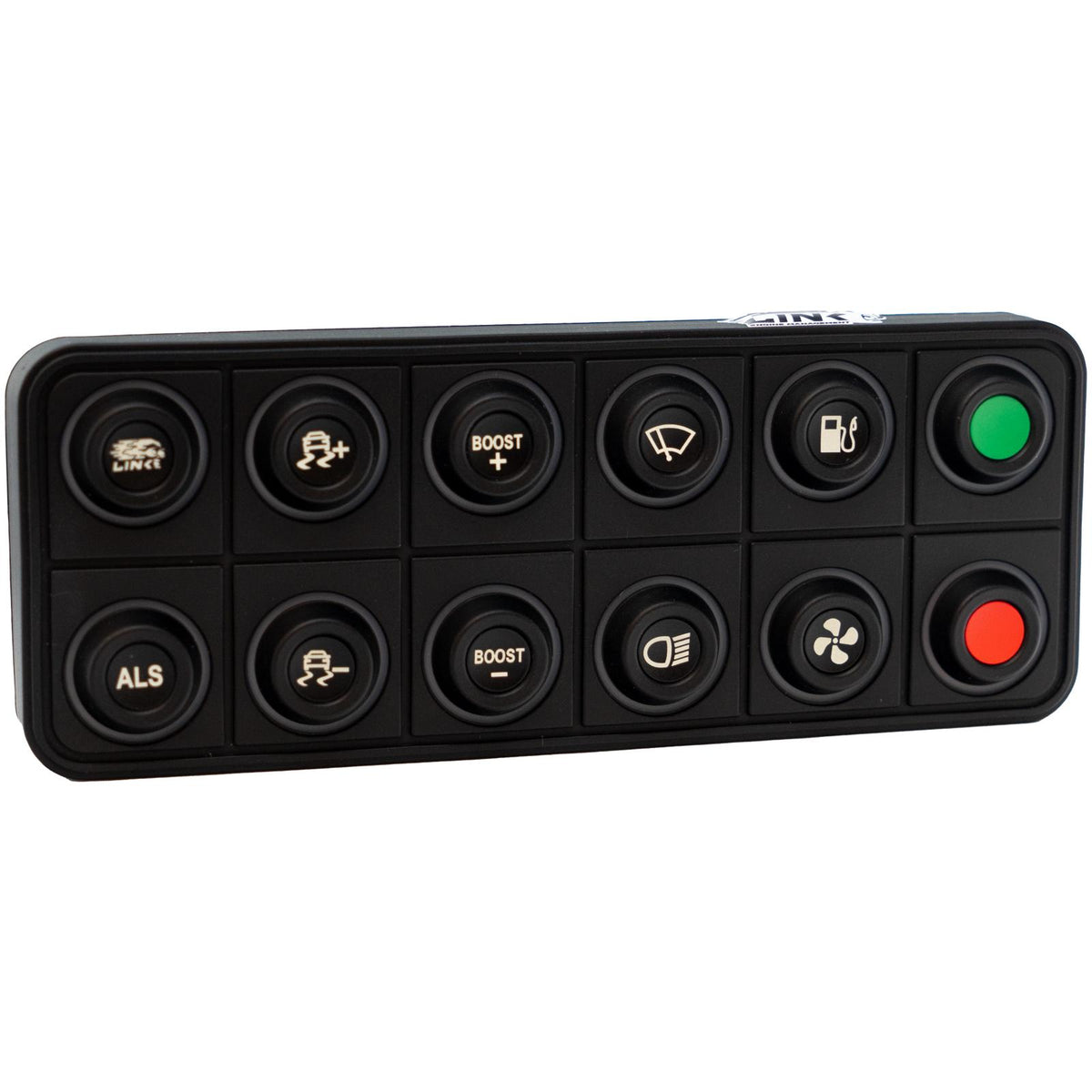

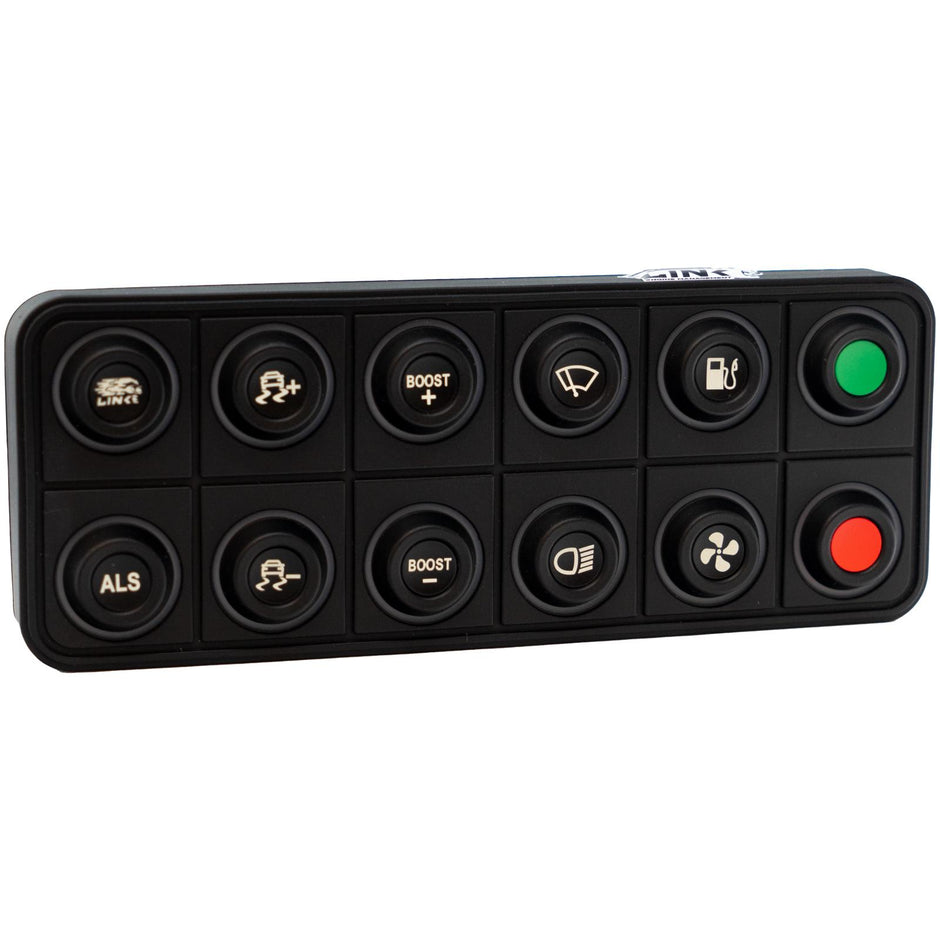

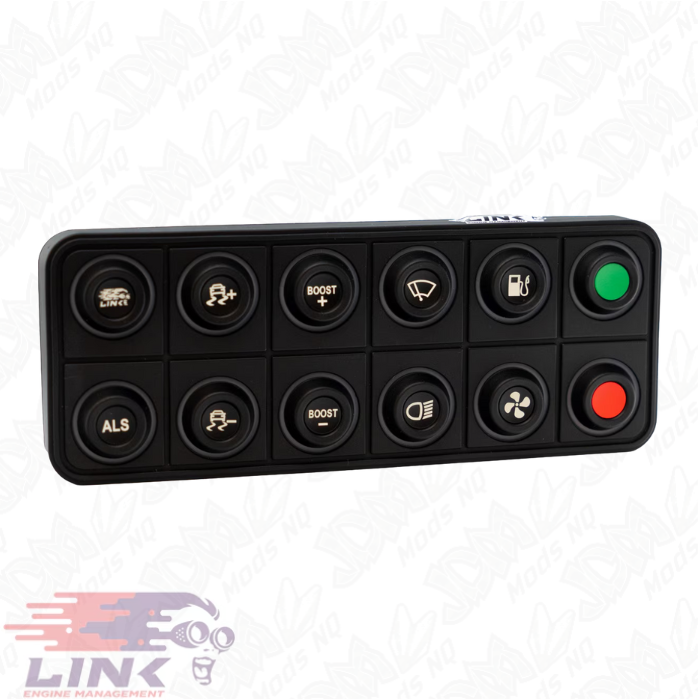

Link CAN Keypad 12 button

Link CAN Keypad 12 button

Available from JDM Mods NQ, the Link CAN Keypad 12 button is a programmable CAN interface for controlling functions through a compatible ECU or power-distribution module. Use the fitment, technical and package details below to select the correct part for your build.

Manufacturer part number: 101-0239

Models Supported

• Compatible with all G4X and G5 ECUs. Built-in support from G4X PC Link vers 6.22 onwards

Important

• Keypad ships with empty button inserts, inserts need to be selected and purchased individually.
• 1 x Link ECU Logo Button Insert included in box loose.

CAN Configurable with G4X PC Link

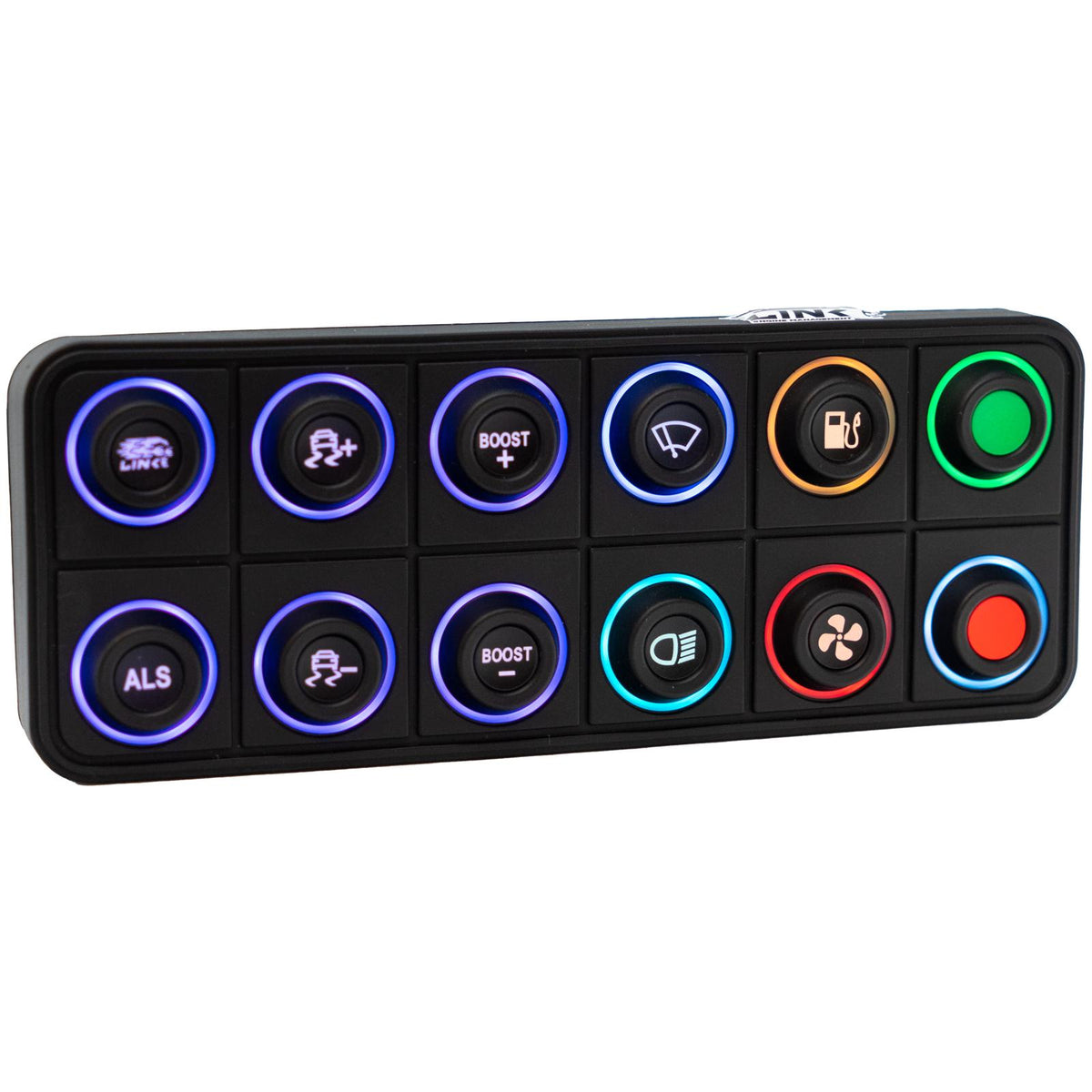

• Change LED backlight, individual button indicator ring colour, programmable to show change in status, flashing option, multiple modes including momentary, latched and toggle.

Customizable Button Inserts

• The replacement system for individual inserts makes modifying the keypad layout simple and economical.

IP67/IP69K Waterproof rating

• Guaranteed to be dust tight and sealed against water immersion to a depth of 1 meter for up to 1 hour. The IP69K rating provides protection against high pressure water at high temperature spray downs.

Highlights

• Switch Life: 3 million operations
• CANopen Node ID: 0x15 (21)
• Default Baud Rate: 1000kbit/s
• Ingress protection Rating: IP67/IP69K
• Chemical Resistance: Deet, Engine Cleaner, Isopropyl Alcohol, Suntan Lotion, Multi-Purpose Cleaner, Orange Citrus Cleaner, Muriatic Acid
• UV Protection: UVB 400 hours

Product Dimensions

• 18x7x4.5cm

Product Weight

• 210g

Electrical

• Operating Voltage Range: 8-32V
• Maximum Input Voltage: 32V
• Maximum Continuous Current Draw: <50mA

Misc.

• Mounting Stud Gap (Centre to Centre) 136.14mm
• Nuts thread: #10-32
• Maximum torque: 0.8Nm

What's in the Box

• Keypad Help Manual Card
• CAN Keypad Insert - Link
• Blink CAN Keypad 12 position + DTM4
• Link sticker - Right facing - Clear Gloss - Rectangle 150x72
• Deutsch 4-way Connector Kit

Connector

• TE Connectivity Deutsch DTM 4-pin (101-0156)
• DTM4 Connector for CAN and Power
• Black = Ground
• Red = Power
• White = CAN High
• Blue = CAN Low

Installation and ordering

Confirm connector type, wiring, supply voltage and compatibility with the ECU or connected device before purchase. Follow the relevant Link wiring diagram, calibration and mounting instructions. CAN devices require a compatible CAN configuration and correct bus termination. Accessories are included only where they are explicitly listed below.

Installation and Compatibility Checks

Confirm the specified device compatibility, connectors and installation requirements before ordering. Use a qualified installer for vehicle electrical work.
