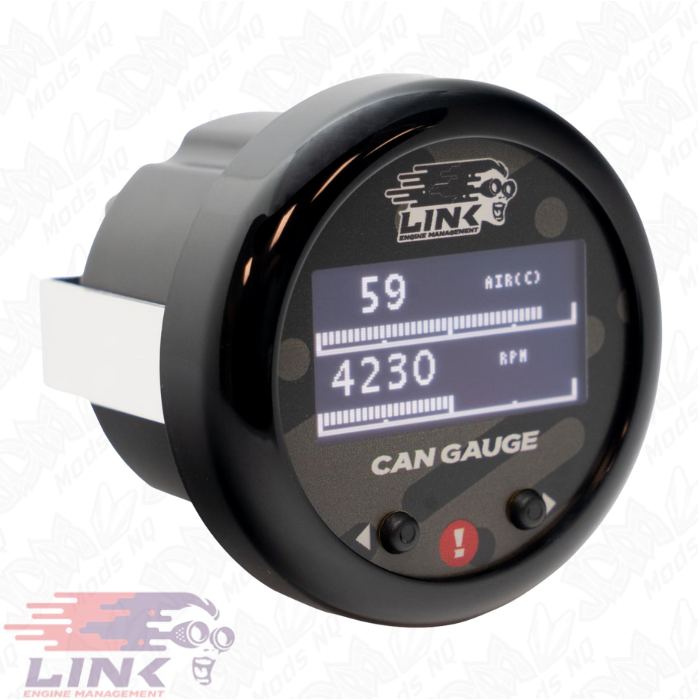

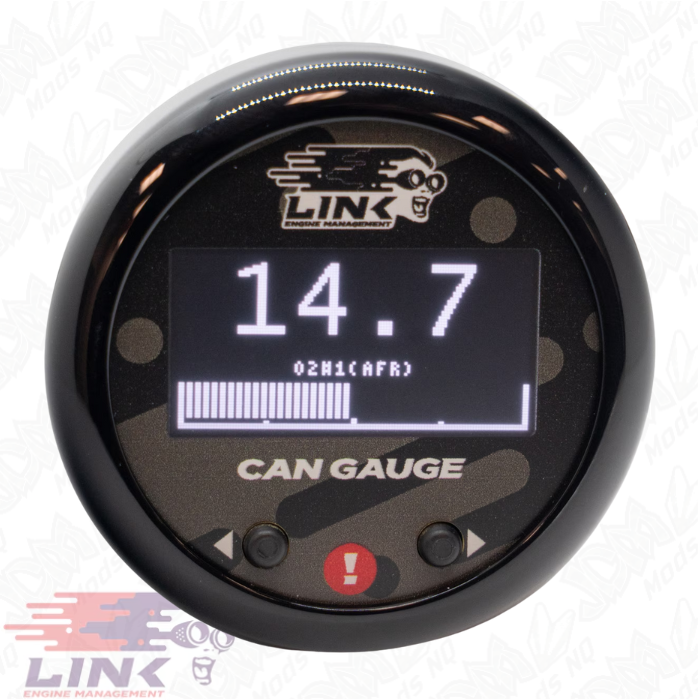

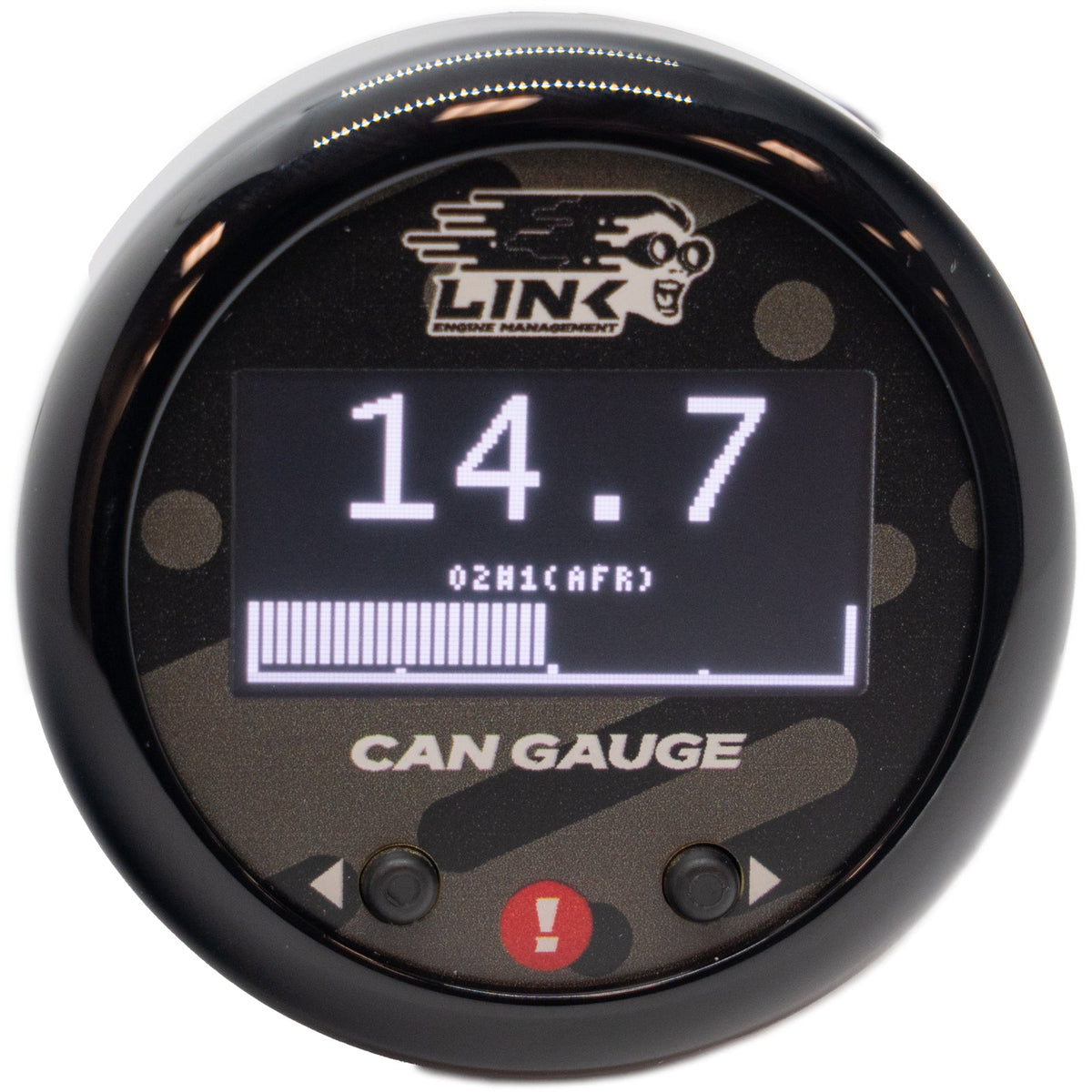

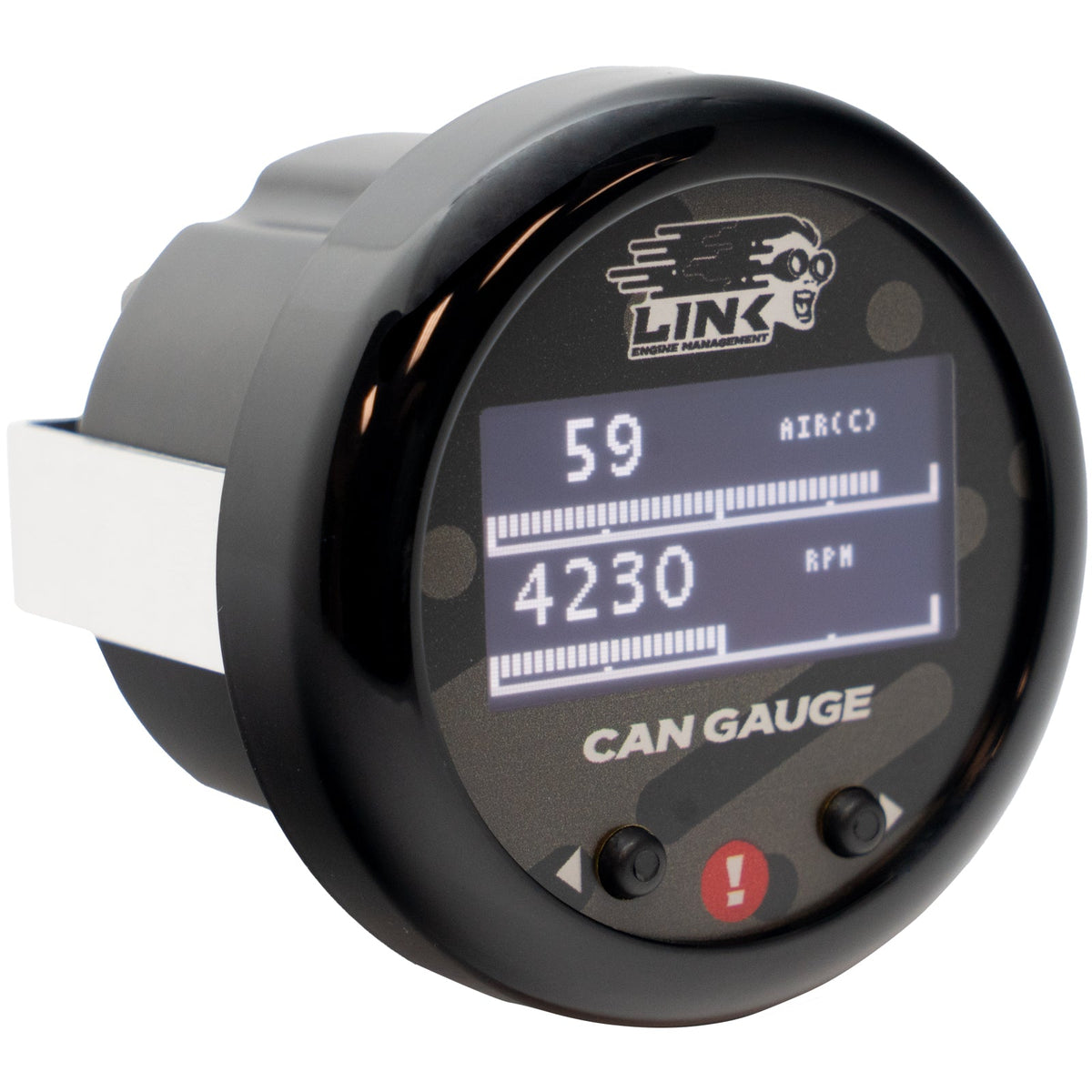

Link CAN Gauge OLED - 52mm

Link CAN Gauge OLED - 52mm

Available from JDM Mods NQ, the Link CAN Gauge OLED - 52mm is an engine-data display for a compatible vehicle electronics installation. Use the fitment, technical and package details below to select the correct part for your build.

Manufacturer part number: 101-0226

Models Supported

• The CAN Gauge is pre-configured to work with all Link G4+/G4X/G5 Wire-in and Plug-in ECU's.

ECU Tuning Features

• Displays real-time data direct from your Link ECU.
• High-contrast OLED display, which dims at night.
• Up to ten fully configurable display pages with one, two or four parameters per page (40 total).
• Customisable warning screens and LED light for critical engine conditions such as low oil pressure, high coolant temperature or excessive boost pressure.
• Wireless configuration via Smart Phone with free included app.
• Compact 52mm (2 inch) size in high quality injection-moulded housing.
• Supports multiple CAN Gauges connected together in a daisy-chain configuration.
• Compatible with Link CAN Connection Cables

Product Dimensions

• 18x12.5x6cm

Product Weight

• 81 grams

Material

• Injection moulded

Electrical

• Operating Voltage Range: 11-15V
• Maximum Input Voltage: 17.5V
• Maximum Continuous Current Draw: 250mA
• Gauges of wire: 22AWG/0.35mm2

What's in the Box

• 52mm OLED CAN Gauge

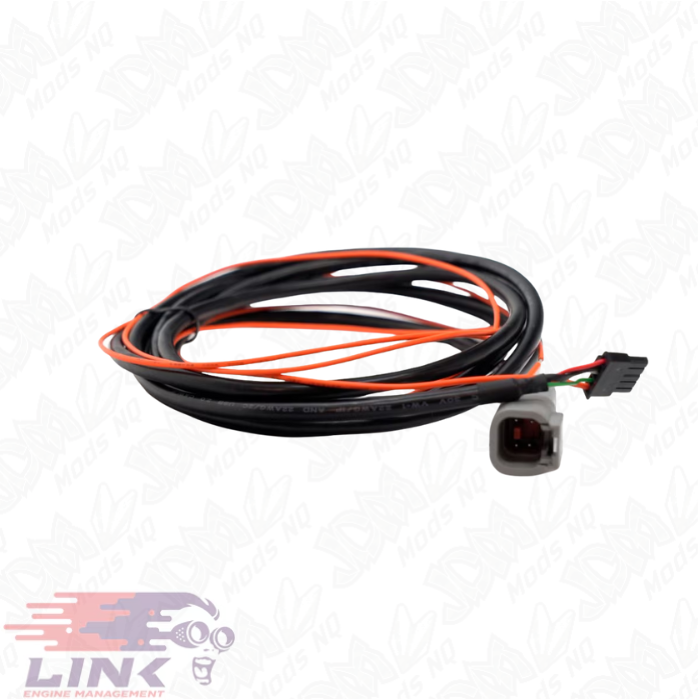

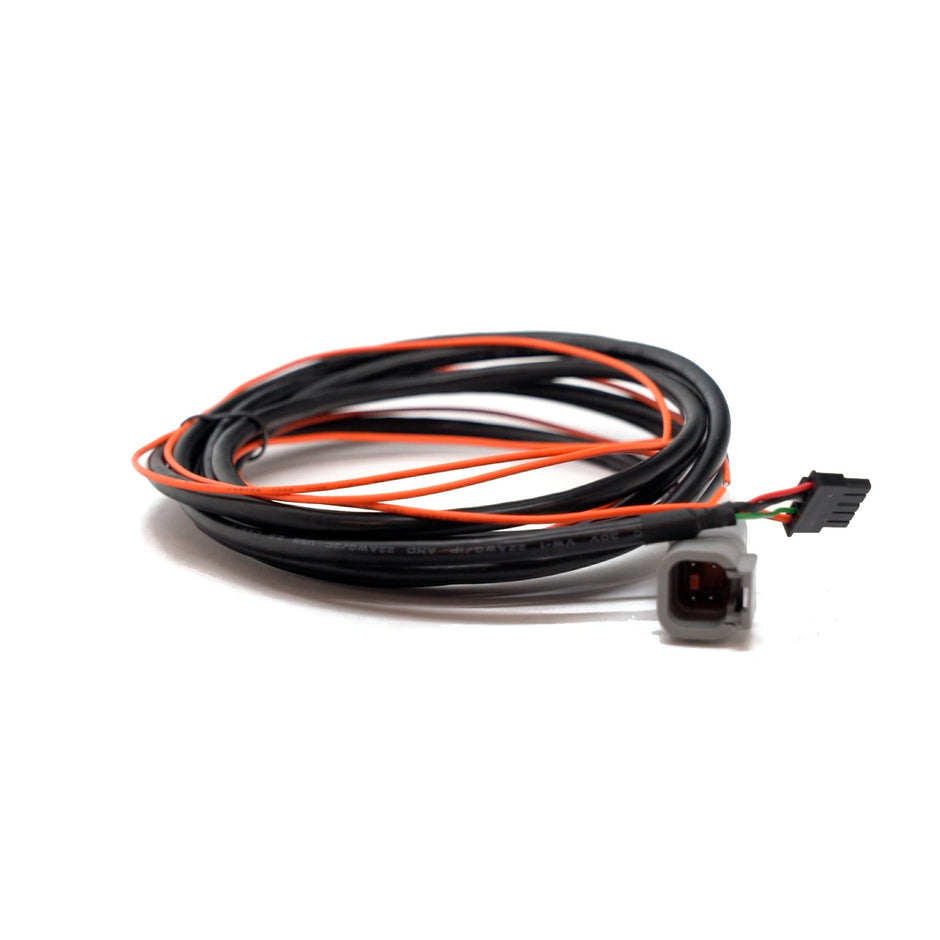

• DTM4 CAN Gauge Connection Cable

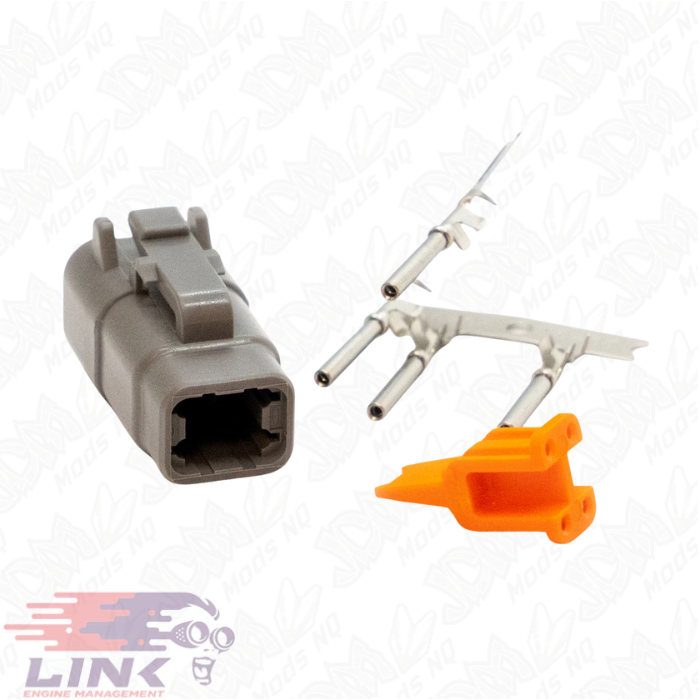

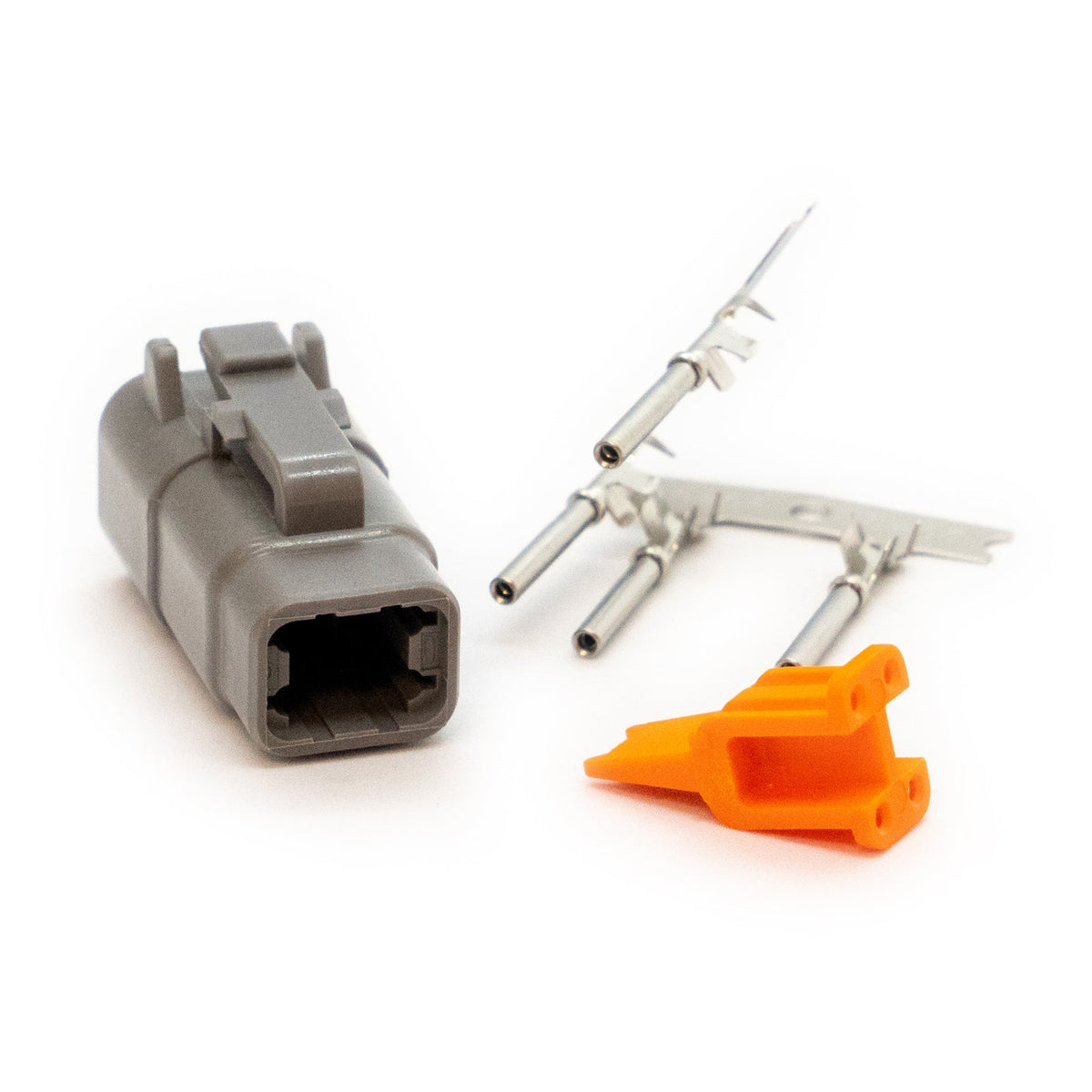

• DTM4 Mating Connector Kit
• Mounting Bracket
• CAN Gauge - User Manual
• Link Stickers

Installation and ordering

Check the specified application, dimensions and package contents before ordering. Install and configure this part according to the relevant manufacturer instructions.

Installation and Compatibility Checks

Confirm the specified device compatibility, connectors and installation requirements before ordering. Use a qualified installer for vehicle electrical work.
