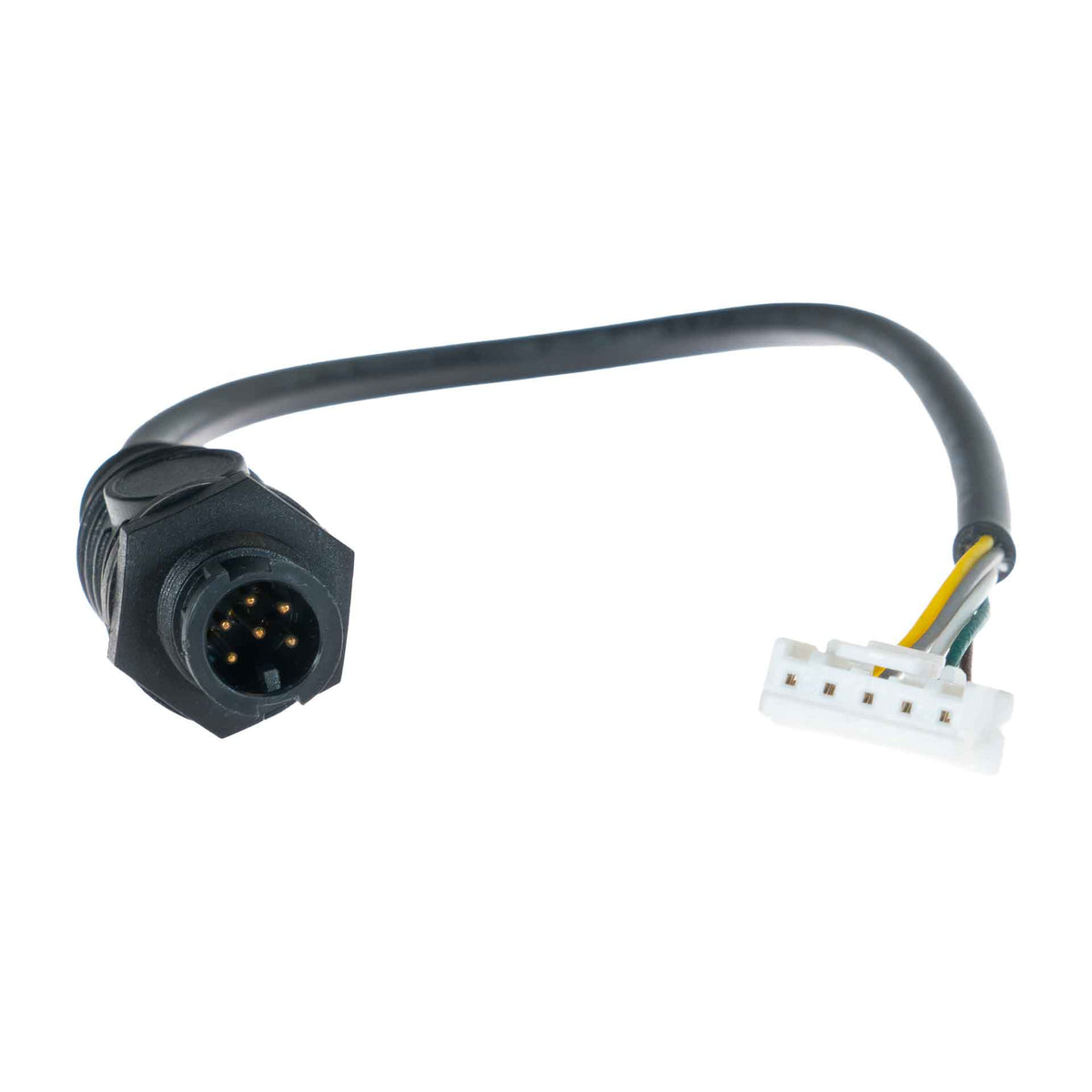

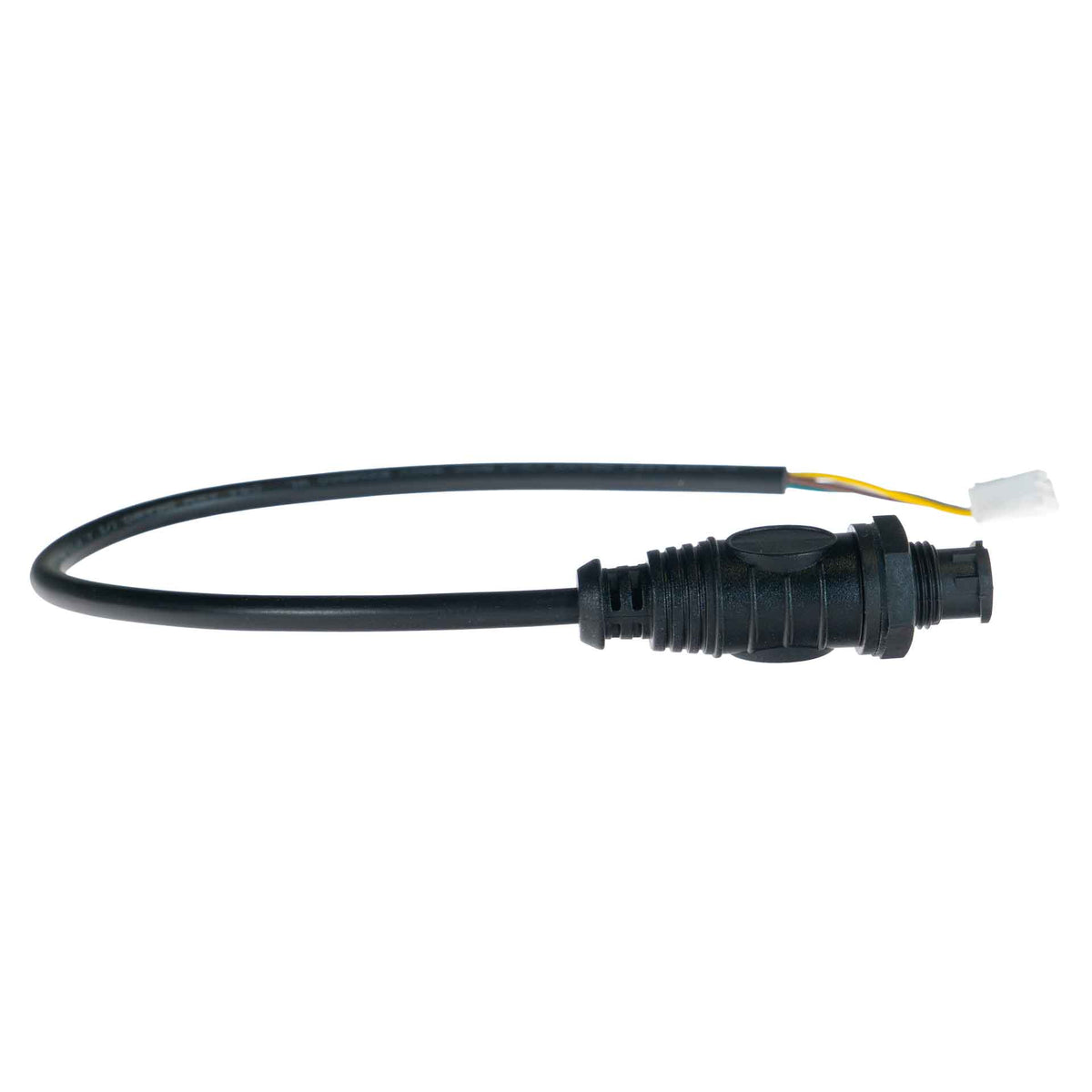

Link CANPCB Cable (CANPCB)

Link CANPCB Cable (CANPCB)

Available from JDM Mods NQ, the Link CANPCB Cable (CANPCB) is a wiring component for the compatible Link installation listed below. Use the fitment, technical and package details below to select the correct part for your build.

Manufacturer part number: 101-0022

Models Supported

• Use the Link CANF connector (purchased separately) to connect.

Product Dimensions

• 300mm(L)x20mm(W)x20mm(H)
• 11.81in(L)x0.79in(W)x0.79in(H)

Product Weight

• 10 grams (0.35 ounces)

Electrical

• Gauges of wire: 26 AWG/0.14mm2

Misc.

• (no O-ring)

What's in the Box

• Cable CANPCB Connector 200mm

Installation and ordering

Confirm connector type, wiring, supply voltage and compatibility with the ECU or connected device before purchase. Follow the relevant Link wiring diagram, calibration and mounting instructions. CAN devices require a compatible CAN configuration and correct bus termination. Accessories are included only where they are explicitly listed below.

Installation and Compatibility Checks

Confirm the specified ECU or device connector, wire routing and pin assignments. Electrical installation should follow the correct wiring diagram, with protection and CAN termination where required.
