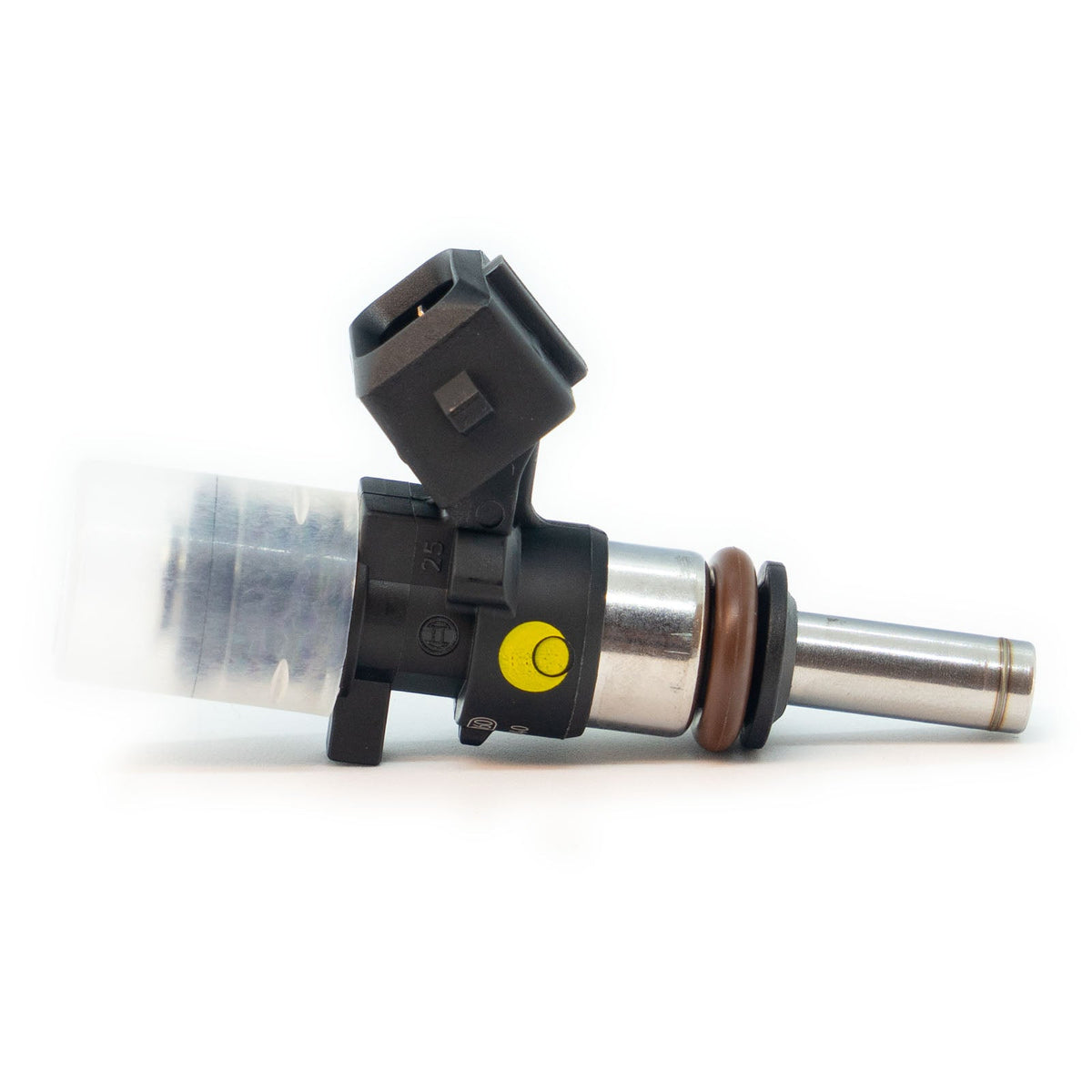

Link Bosch EV14 1000cc Injectors (Set of 4)

Link Bosch EV14 1000cc Injectors (Set of 4)

Available from JDM Mods NQ, the Link Bosch EV14 1000cc Injectors (Set of 4) is a fuel-system electrical component that must be matched to the injector and ECU configuration. Use the fitment, technical and package details below to select the correct part for your build.

Manufacturer part number: 101-0052

Warnings

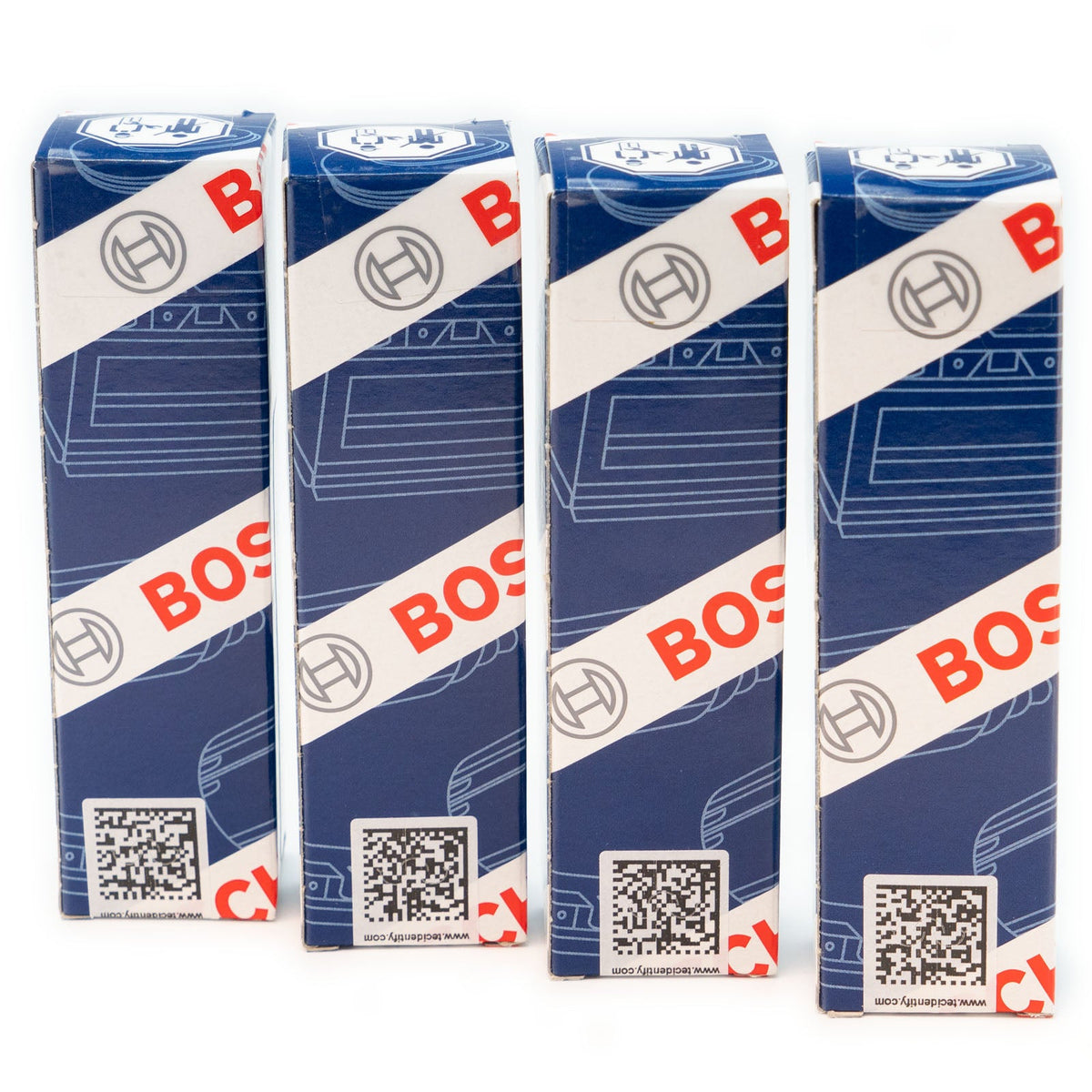

• Sold as a set of four injectors.
• These injectors are not flow matched or colour matched.

Highlight Features

• Set of 4 injectors.
• 980cc/min @ 3 Bar.
• High impedance: 12 ohm, no need for Ballast resistors.
• Compact body.
• Extended tip nozzle.
• Single cone spray pattern.
• Jetronic connector.
• Pump fuel, race fuel and ethanol blends including E85.
• Switched 12V power supply.
• Injector driver from ECU.
• No dedicated polarity.

Product Dimensions

• 63.3mm Overall length.
• 39mm Body length.
• 14.54mm Top Oring
• 14.4mm Bottom Oring

Electrical

• Operating Voltage Range: 6-16.5V
• Maximum Input Voltage: 16.5V
• Maximum Continuous Current Draw: 1.38A ea.

What's in the Box

• Bosch EV14 Injector x4
• Printed Accessory instructions

Connector

• Bosch 2 Way Plug Kit (PKB2), 101-0051.

Installation and ordering

Confirm connector type, wiring, supply voltage and compatibility with the ECU or connected device before purchase. Follow the relevant Link wiring diagram, calibration and mounting instructions. CAN devices require a compatible CAN configuration and correct bus termination. Accessories are included only where they are explicitly listed below.

Installation and Compatibility Checks

Confirm the specified device compatibility, connectors and installation requirements before ordering. Use a qualified installer for vehicle electrical work.
