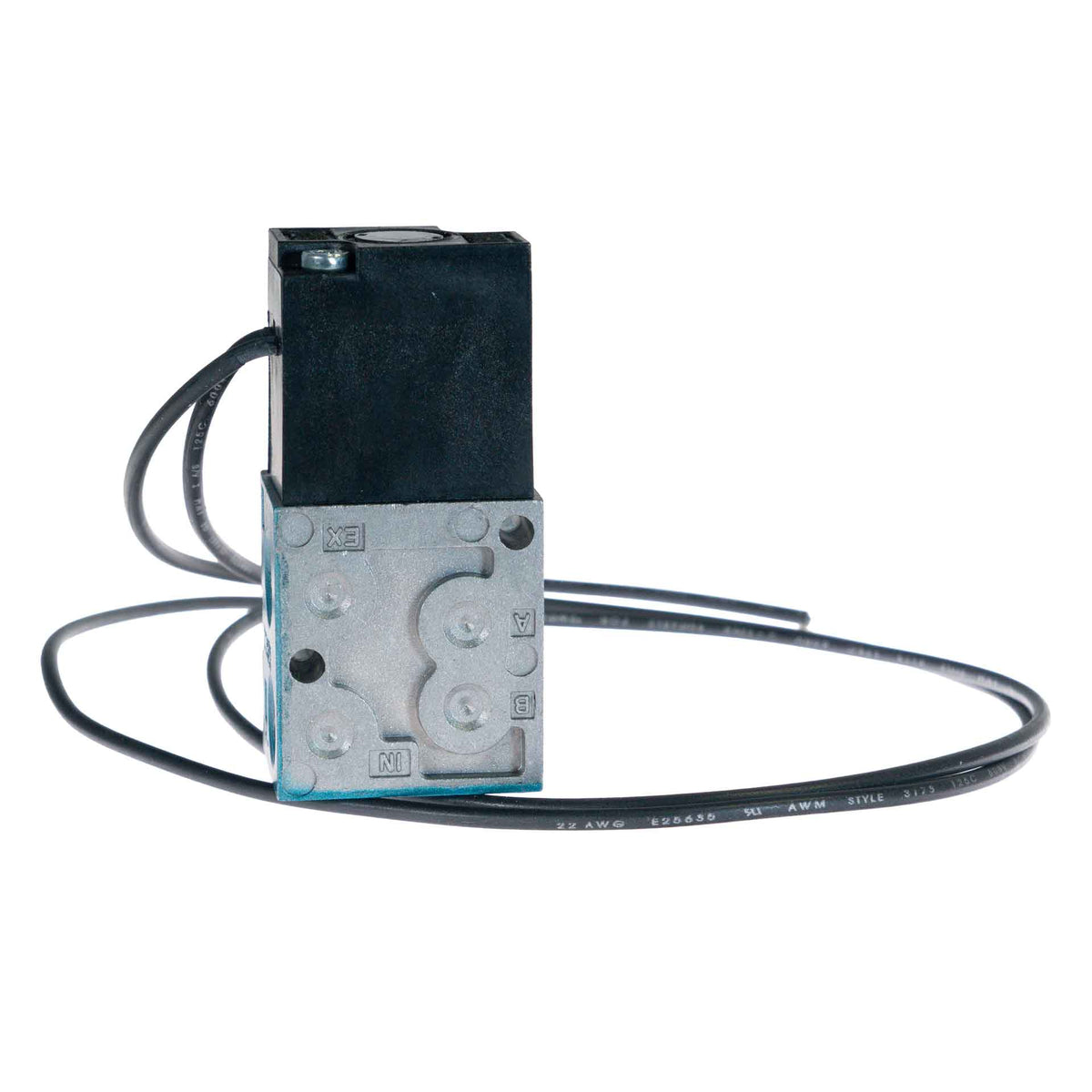

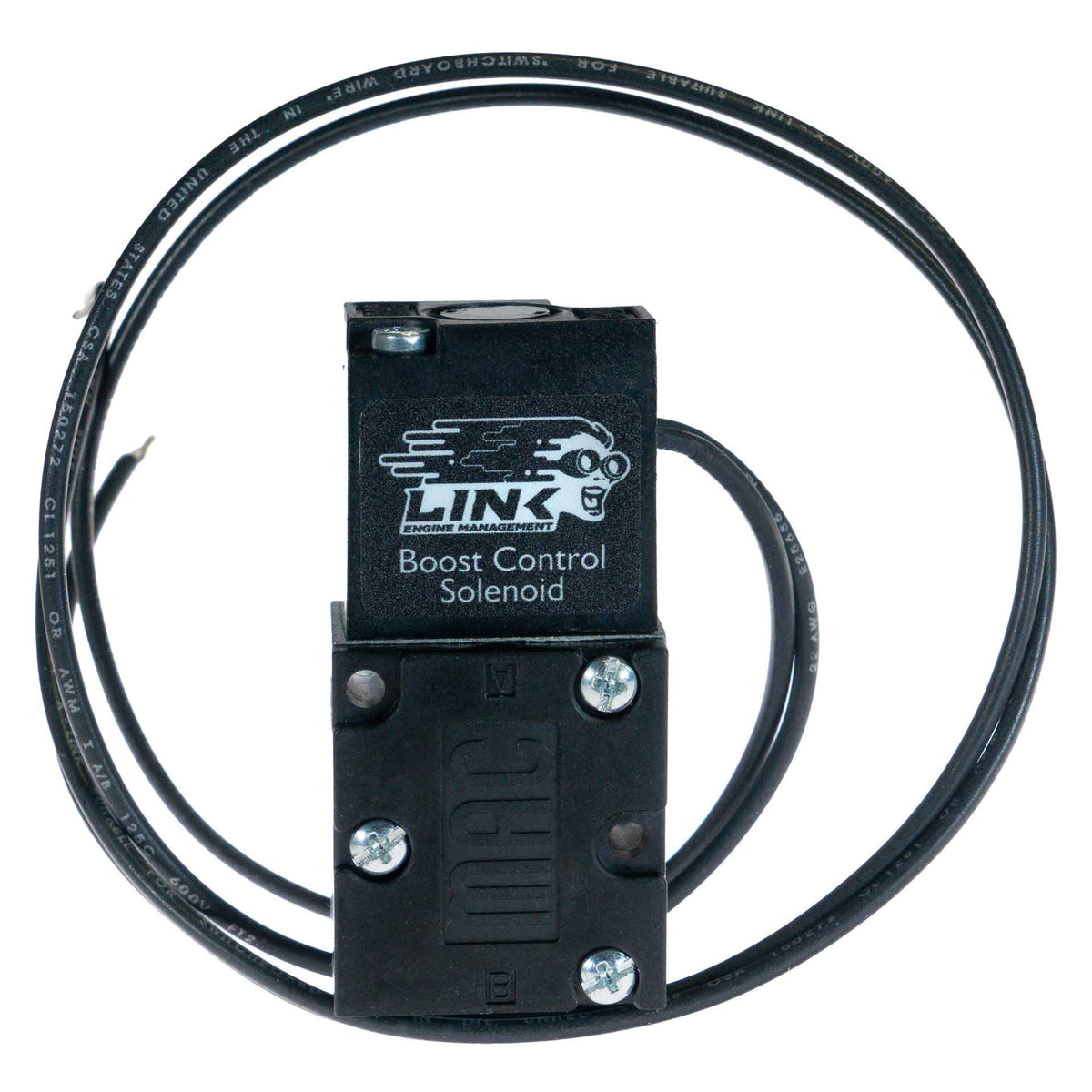

Link Boost Control Solenoid - 4 Port (4BCS)

Link Boost Control Solenoid - 4 Port (4BCS)

Available from JDM Mods NQ, the Link Boost Control Solenoid - 4 Port (4BCS) is a Link performance-electronics component for the compatible installation described below. Use the fitment, technical and package details below to select the correct part for your build.

Manufacturer part number: 101-0016

Models Supported

• Suitable with all Link ECUs.
• For applications that do not require the wider boost range of a 4-port solenoid, consider our 3-Port Boost Control Solenoid (PN 101-0015).

Warnings

• Spare Auxiliary Output, switched to ground.
• 12V ignition-switched power supply.
• MAP sensor.
• Open or Closed Loop Boost Control configured in the ECU.
• No additional boost controller required.

Highlights

• Series: MAC 45
• Max Pressure: 120 PSI
• Port Size: 1/8" BSPPL
• Power Requirements: 12 VDC (5.4W) with 18" (45cm) coil leads
• Included Accessories: 4 x 1/8" BSP hose tail fittings for easy connection

Product Dimensions

• 30mm(L)x45mm(W)x25mm(H)
• 1.18in(L)x1.77in(W)x0.98in(H)

Product Weight

• 135 grams (4.76 ounces)

Electrical

• Operating Voltage Range: 10.2-13.2V
• Maximum Continuous Current Draw: 495mA

Misc.

• We recommend starting with a PWM Frequency of 25Hz for this Boost Control Solenoid. A detailed description of setting up boost control can be found in the help file within the PCLink software which is available for free download.

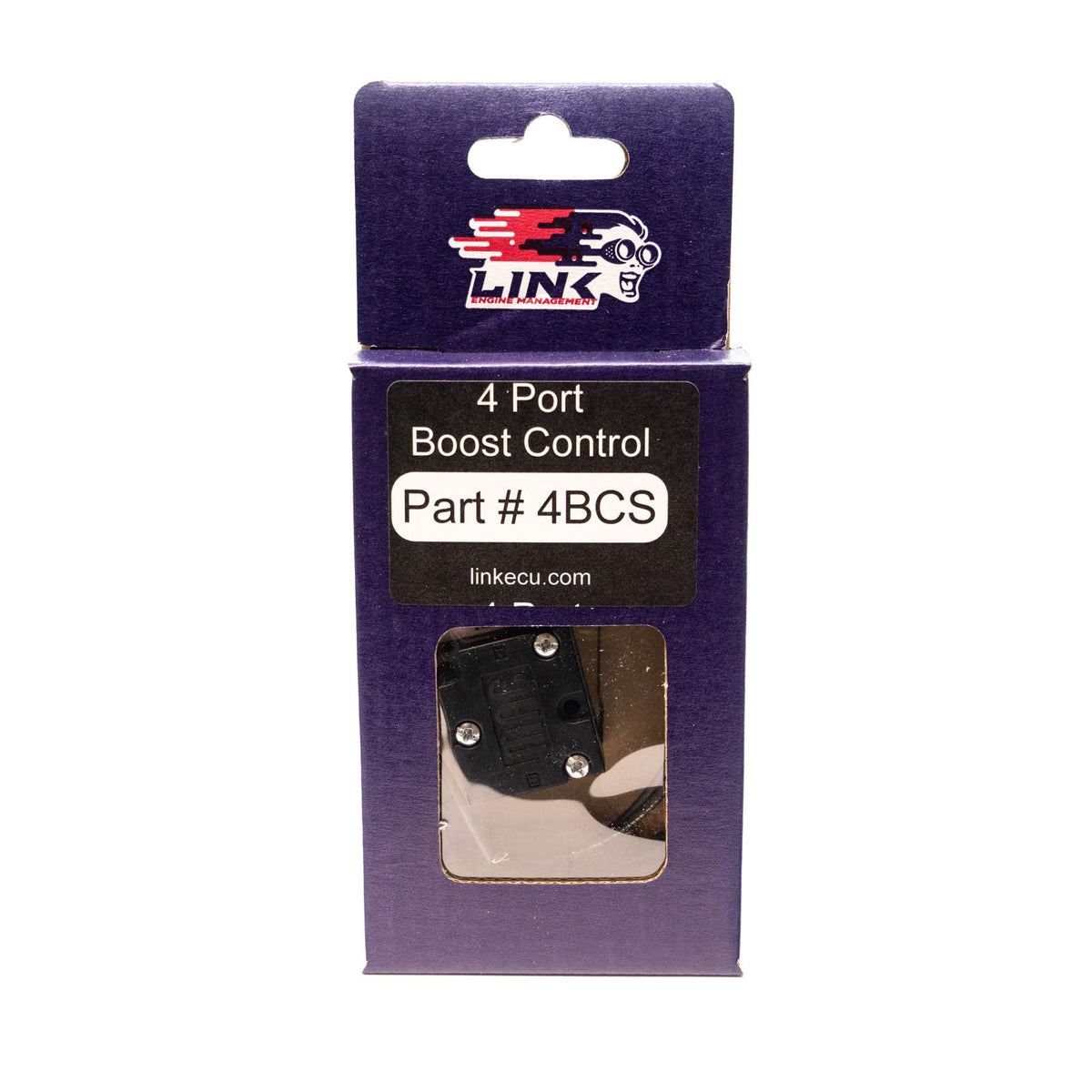

What's in the Box

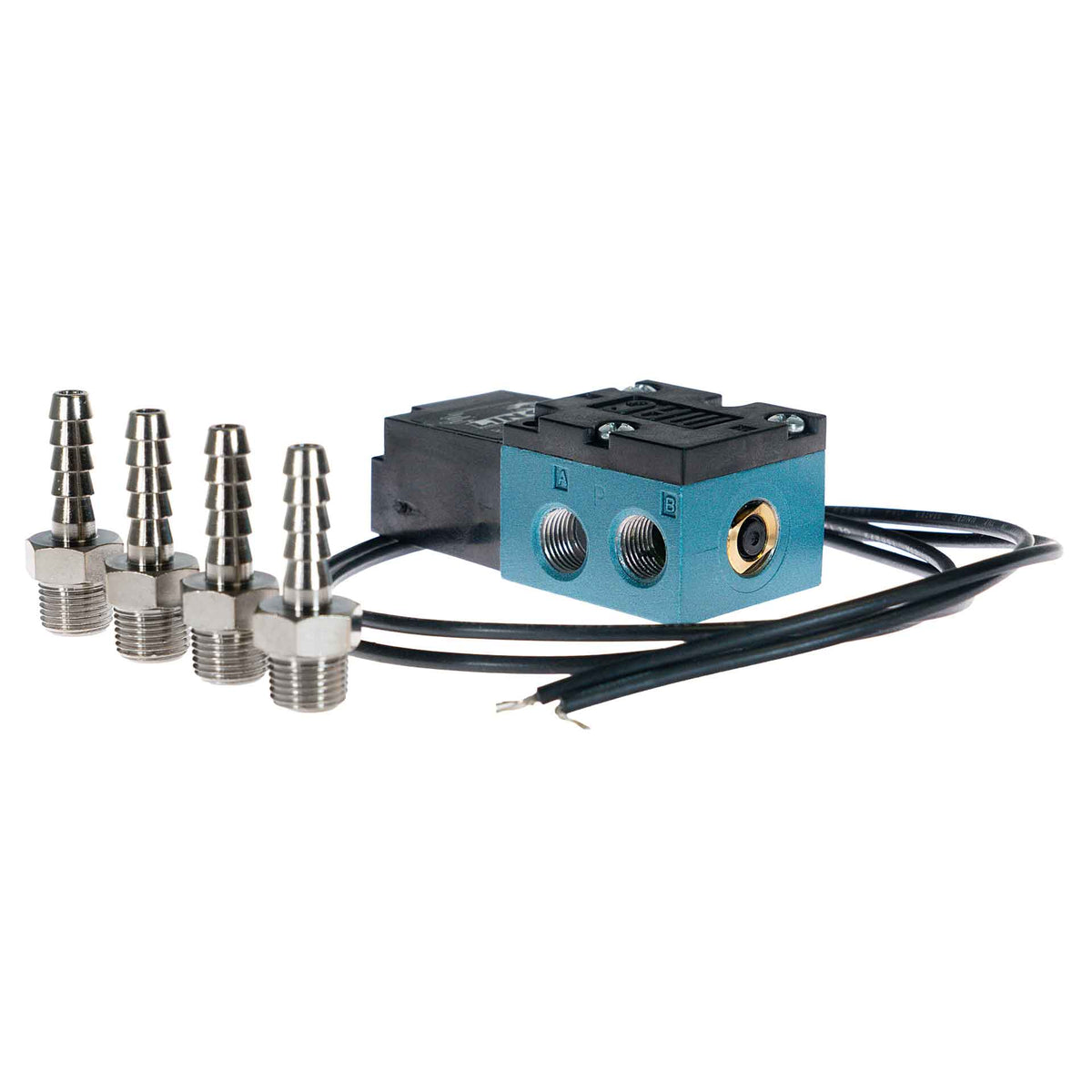

• Boost Control Solenoid (4 port)
• 4x Hose Fitting 1/8 BSPT Nickel P
• Accessory instructions

Installation and ordering

Check the specified application, dimensions and package contents before ordering. Install and configure this part according to the relevant manufacturer instructions.

Installation and Compatibility Checks

Confirm the specified device compatibility, connectors and installation requirements before ordering. Use a qualified installer for vehicle electrical work.
