Link BAL6 Injector Ballast Resistor Pack – 6 Injectors

Link BAL6 Injector Ballast Resistor Pack – 6 Injectors

Configure compatible low-impedance injectors with the Link BAL6 ballast resistor pack from JDM Mods NQ. The supplied six-resistor heatsink assembly supports injectors with 2–6 ohm impedance.

Technical specifications

• Manufacturer part number: 101-0014 (BAL6)

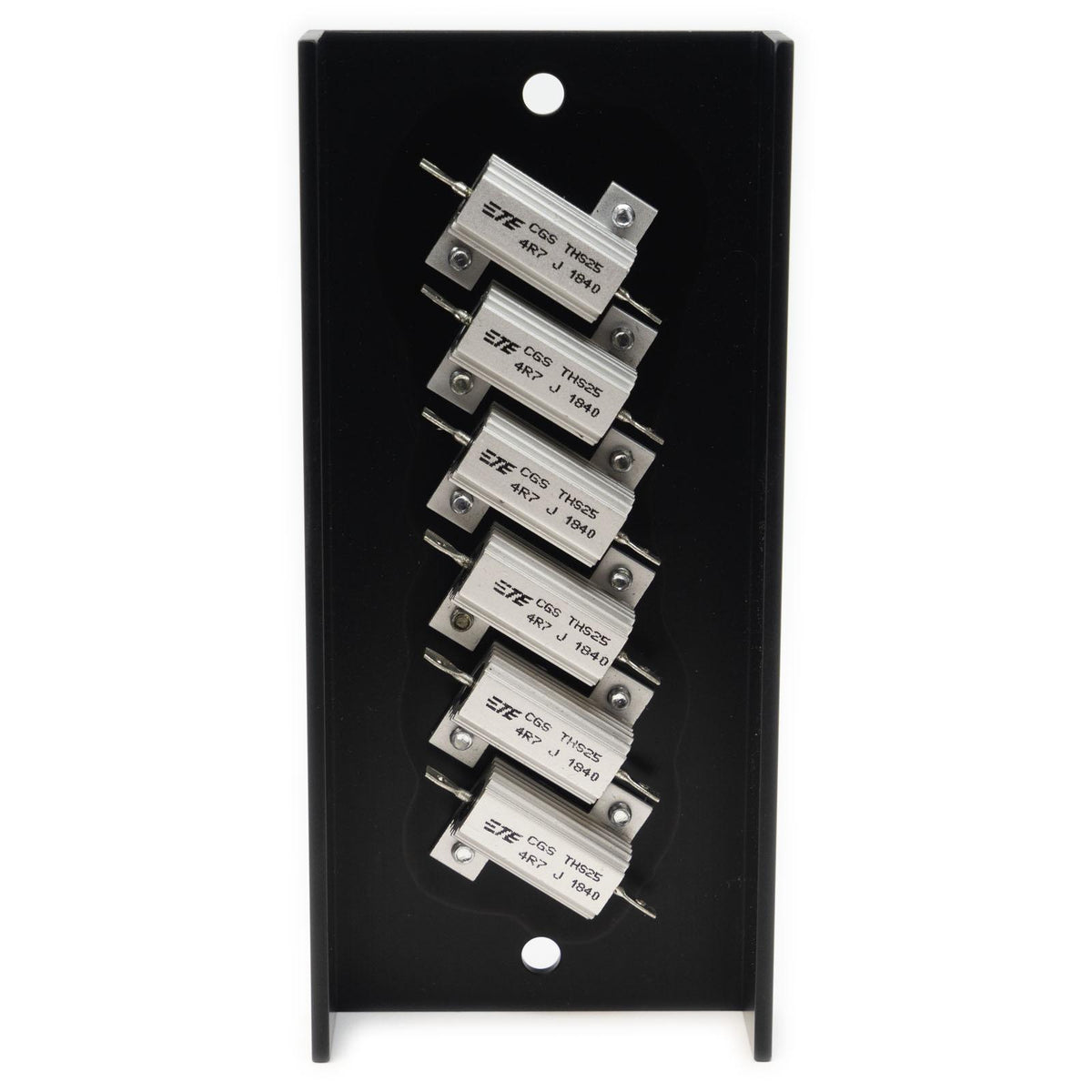

• Six 4.7 ohm, 25W resistors mounted to a heatsink
• For use with low-impedance injectors: 2–6 ohms

Package contents

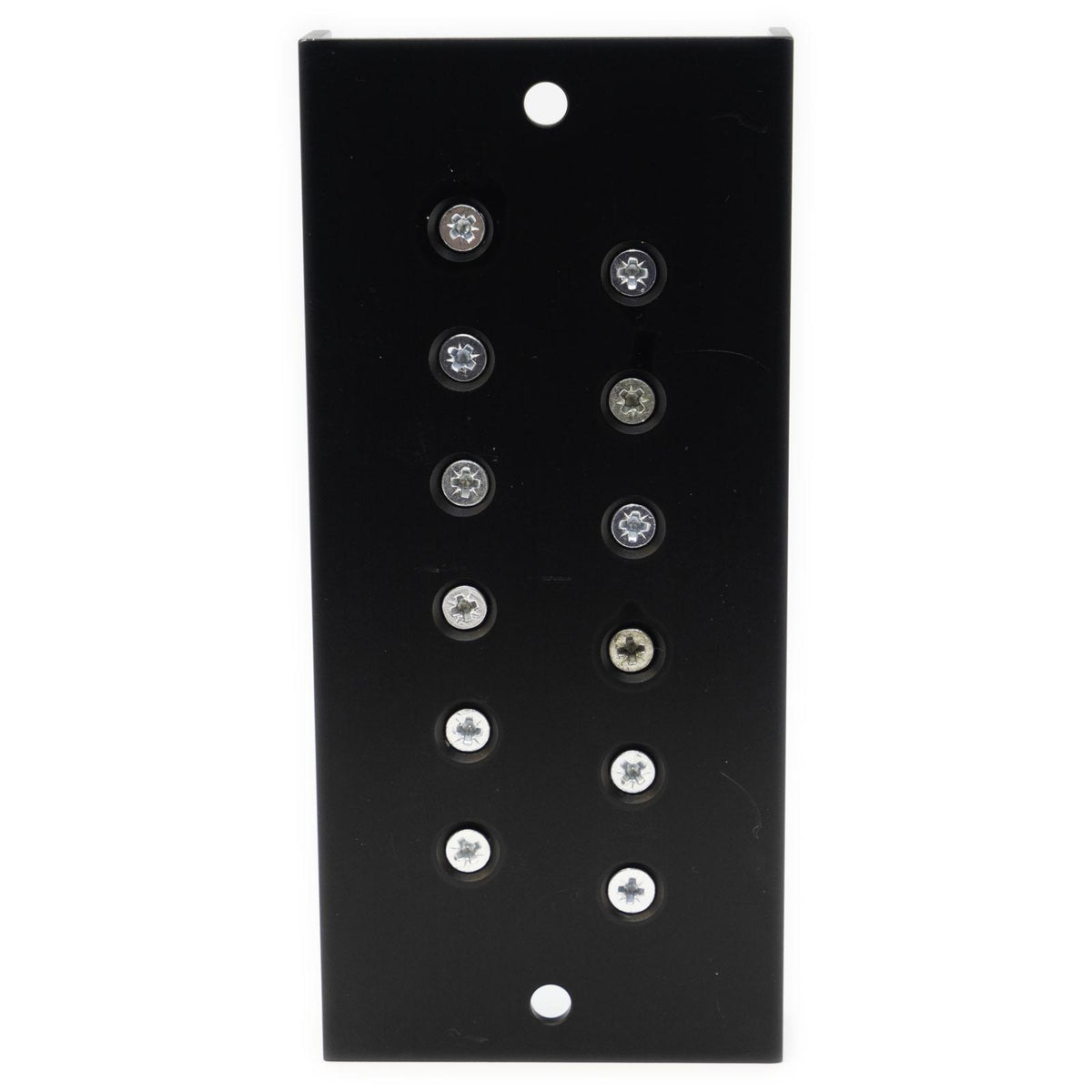

• One heatsink assembly containing six ballast resistors

Installation requirements

• Retain the supplied heatsink and bolt the assembly to the chassis. Resistors become hot at high injector duty cycles; allow heat dissipation and protect adjacent components.
• Contact JDM Mods NQ or Link before use with injectors below 2 ohms. Confirm injector-driver compatibility and follow the ECU wiring instructions.

Installation and Compatibility Checks

Check the injector impedance and ECU drive requirements with the installer. Keep the resistors on the supplied heat sink and mount where operating heat can dissipate.
