Link B Loom Short - 400mm (0LB)

Link B Loom Short - 400mm (0LB)

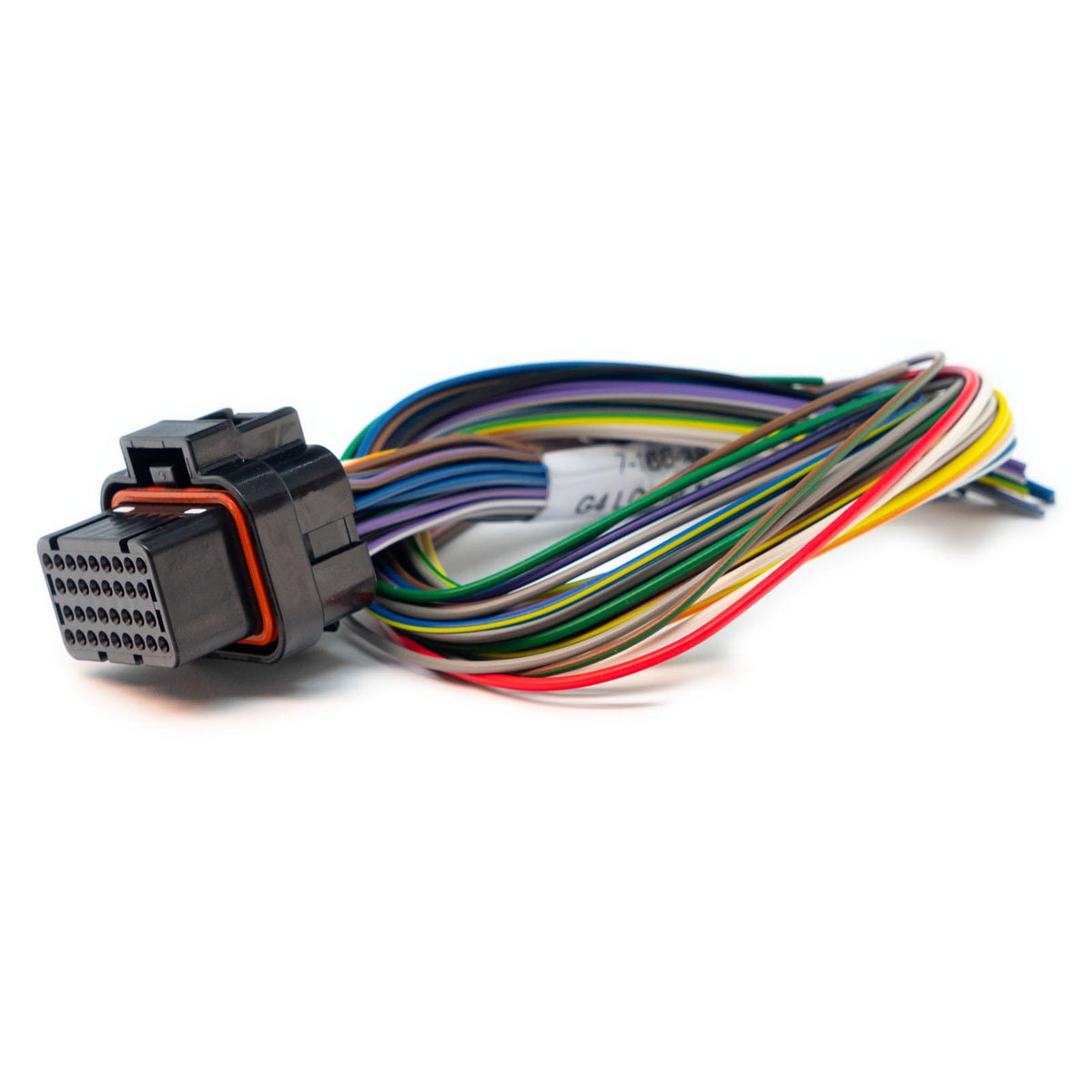

Available from JDM Mods NQ, the Link B Loom Short - 400mm (0LB) is a wiring component for the compatible Link installation listed below. Use the fitment, technical and package details below to select the correct part for your build.

Manufacturer part number: 101-0003

Models Supported

• Link G4X Storm (Loom A also required)
• Link G4X and G4+ Fury (Loom A also required)
• Link G4X, G4+ and G4 Xtreme (Loom A also required)
• Link G4+ Thunder (Note: Loom A and connector kits C and D may also be required)
• Link G4+ Storm Black (Loom A also required) - Note: Loom B is not required for the older Silver or Blue G4 or G4+ Storm models
• Vipec V88 (Loom A also required)
• Vipec i88 (Loom A also required)

Warnings

• Does not suit earlier G4 (Pre G4+) Atoms.
• This loom is also available in 2.5m and 5m lengths.

Product Dimensions

• 400mm(L)x40mm(W)x30mm(H)
• 15.75in(L)x1.57in(W)x1.18in(H)

Product Weight

• 140 grams (4.94 ounces)

Electrical

• Operating Voltage Range: 0-24V
• Maximum Input Voltage: 60V
• Maximum Continuous Current Draw: 5A & 14A
• Gauges of wire: 20AWG/0.5mm2 & 19AWG/0.75mm2

What's in the Box

• Loom B 400mm Cable

Connector

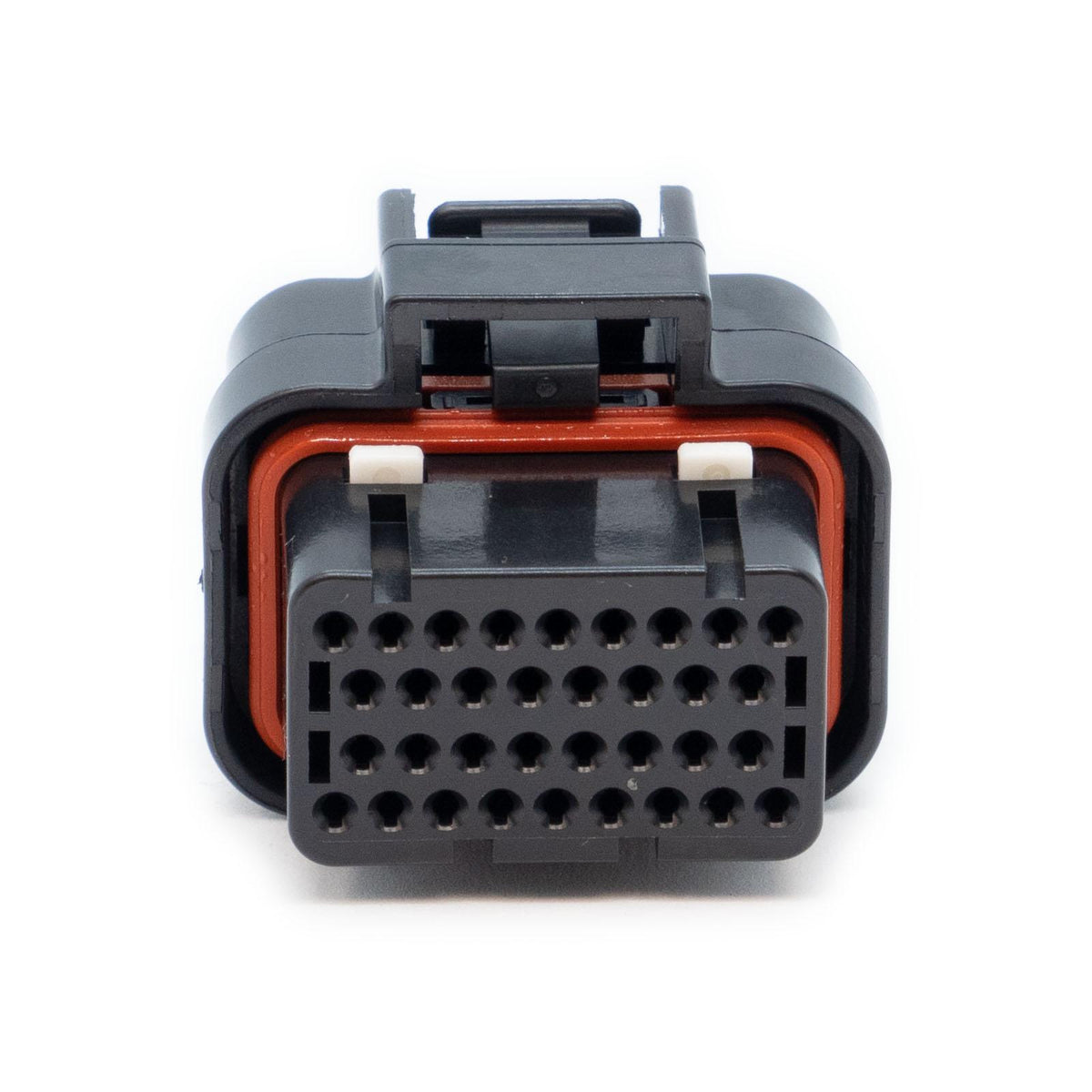

• Link A SUPERSEAL 1.0

Installation and ordering

Confirm connector type, wiring, supply voltage and compatibility with the ECU or connected device before purchase. Follow the relevant Link wiring diagram, calibration and mounting instructions. CAN devices require a compatible CAN configuration and correct bus termination. Accessories are included only where they are explicitly listed below.

Installation and Compatibility Checks

Confirm the specified ECU or device connector, wire routing and pin assignments. Electrical installation should follow the correct wiring diagram, with protection and CAN termination where required.
