Link A Loom Long - 5m (5LA)

Link A Loom Long - 5m (5LA)

Available from JDM Mods NQ, the Link A Loom Long - 5m (5LA) is a wiring component for the compatible Link installation listed below. Use the fitment, technical and package details below to select the correct part for your build.

Manufacturer part number: 101-0008

Models Supported

• All Link G5 Wire-in ECUs
• All Link G4X Wire-in ECUs
• Link G4+ Atom and Atom II
• Link G4+ Monsoon
• Link G4+ Storm Blue & Storm Black
• Link G4+ Fury
• Link G4+ Xtreme
• Link G4+ Thunder
• Link G4 Storm
• Link G4 RX
• Link G4 Xtreme
• Vipec V44
• Vipec i44
• Vipec V88
• Vipec i88

Warnings

• Does not suit earlier G4 (Pre G4+) Atoms.

Product Dimensions

• 5000mm(L)x40mm(W)x35mm(H)
• 196.85in(L)x1.57in(W)x1.38in(H)

Product Weight

• 1,790 grams (63.14 ounces)

Material

• 5 meters

Electrical

• Operating Voltage Range: 0-24V
• Maximum Input Voltage: 60V
• Maximum Continuous Current Draw: 5A & 14A
• Gauges of wire: 20AWG/0.5mm2 & 19AWG/0.75mm2

What's in the Box

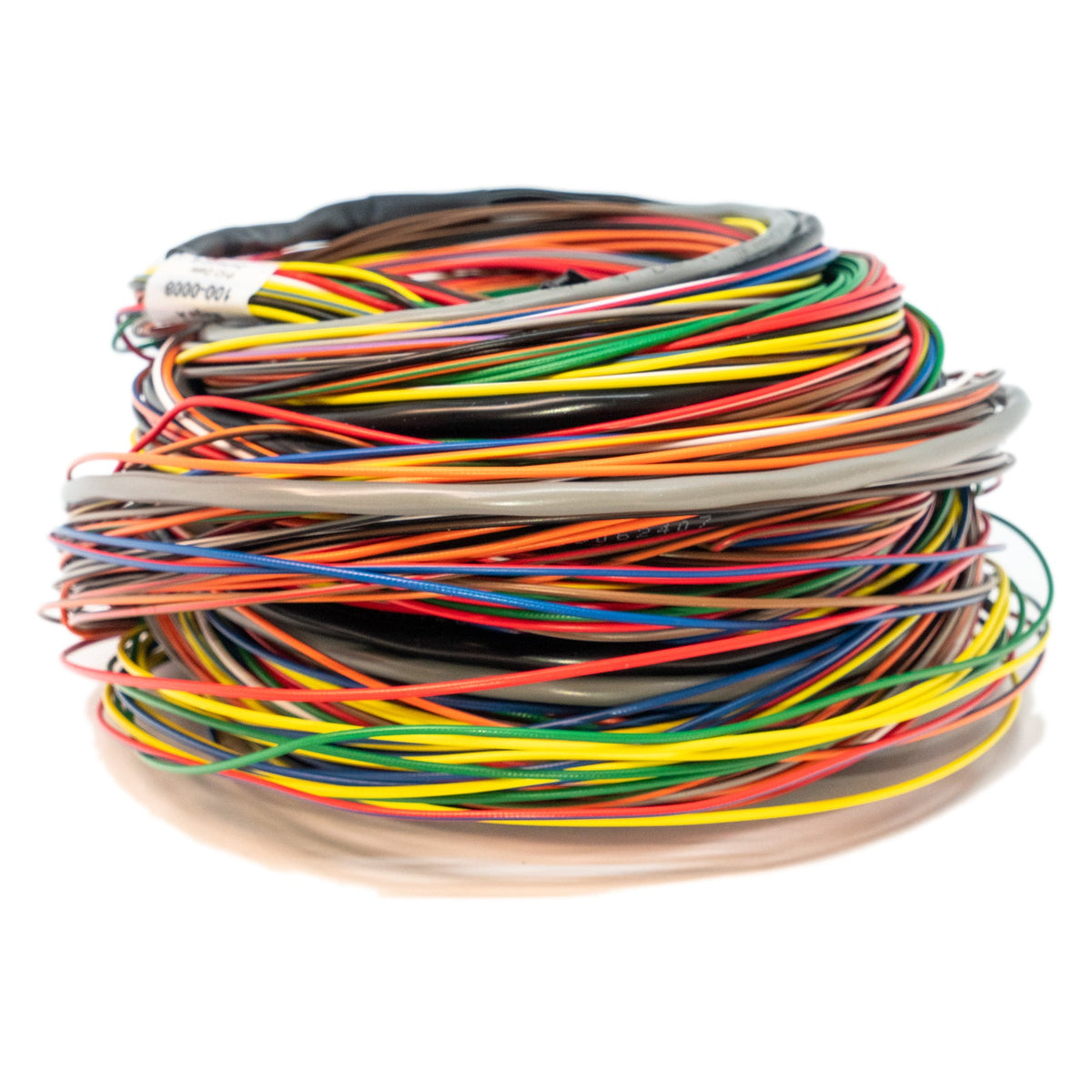

• Loom A 5m

Connector

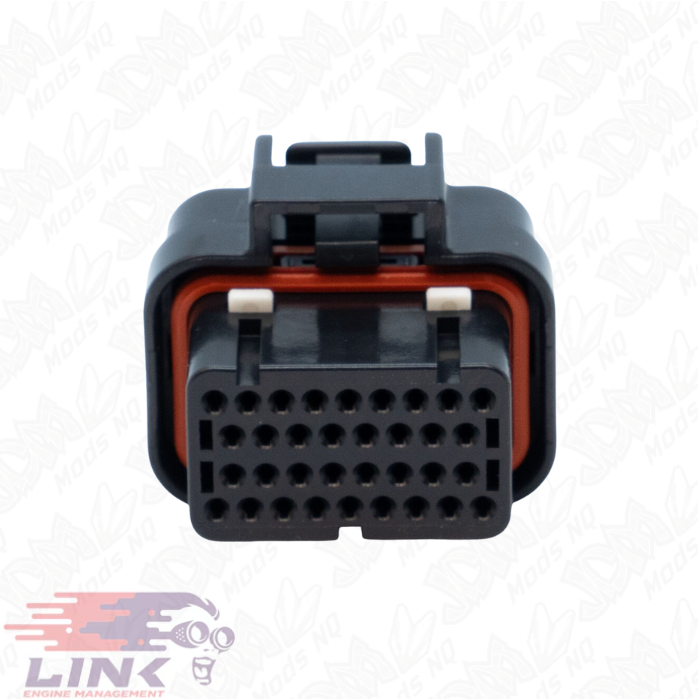

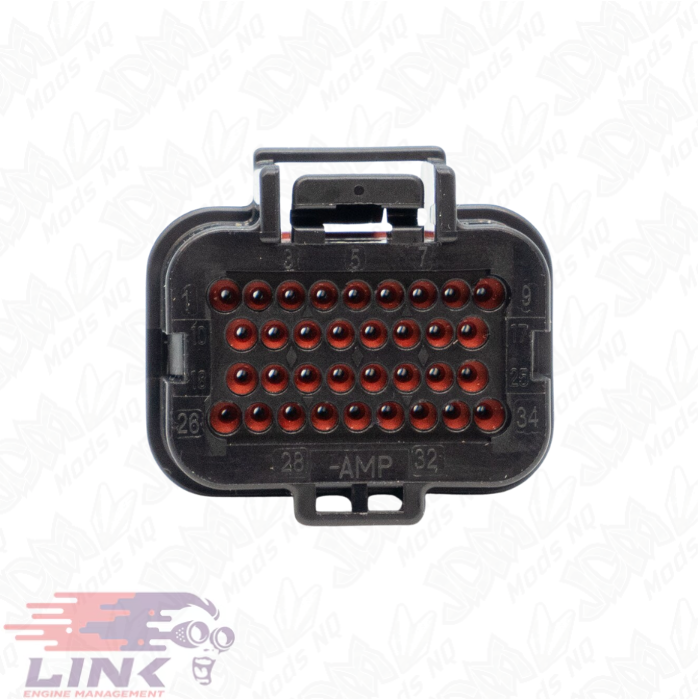

• Link A SUPERSEAL 1.0

Installation and ordering

Confirm connector type, wiring, supply voltage and compatibility with the ECU or connected device before purchase. Follow the relevant Link wiring diagram, calibration and mounting instructions. CAN devices require a compatible CAN configuration and correct bus termination. Accessories are included only where they are explicitly listed below.

Installation and Compatibility Checks

Confirm the specified ECU or device connector, wire routing and pin assignments. Electrical installation should follow the correct wiring diagram, with protection and CAN termination where required.
