Link 5 Bar MAP Sensor EU (MAP5EU)
2Low stock
2In stock, ready to ship
Couldn't load pickup availability
Fast Shipping
Free Returns
Best Deals
Get notified by email when this product becomes available
Have a question?
Product Description
Link 5 Bar MAP Sensor EU (MAP5EU)
Available from JDM Mods NQ, the Link 5 Bar MAP Sensor EU (MAP5EU) is a measurement component for a compatible engine-management installation. Use the fitment, technical and package details below to select the correct part for your build.
Manufacturer part number: 101-0295
Models Supported
- All Link ECUs.
- Other aftermarket ECUs with a 5V ratiometric analogue input.
- Turbocharged and supercharged engines running up to 58 psi (4.0 bar) of boost.
Warnings
- Designed for use with a regulated 5V sensor supply.
- Using Link G4/G4+/G4X/G5 ECU's select the MAP sensor type in PC Link as 'Variohm 5 Bar'.
- Not recommended for naturally aspired engines or boost levels exceeding 4 BAR / 58psi.
Highlights
- The Link 5 Bar MAP Sensor has the following specifications:
- Pressure range: -1 to +4 bar (-14.5 to +58 psi).
- 0.5-4.5V ratiometric output.
- 5V supply voltage.
- High-accuracy piezoresistive sensing element.
- Stainless steel housing.
- Fast response time (<1ms).
- Excellent vibration and shock resistance.
- Operating temperature: -40degC to +125degC.
- IP66 rated.
- Packard Metri-Pack connector.
- 1/8" NPT Male pressure port.
- Comes with TI Sensor Connector Kit.
Product Dimensions
- 70mm(L)x30mm(W)x30mm(H)
- 2.76in(L)x1.18in(W)x1.18in(H)
Product Weight
- 65 grams (2.29 ounces)
Electrical
- Operating Voltage Range: 5V
- Maximum Input Voltage: 5V
What's in the Box

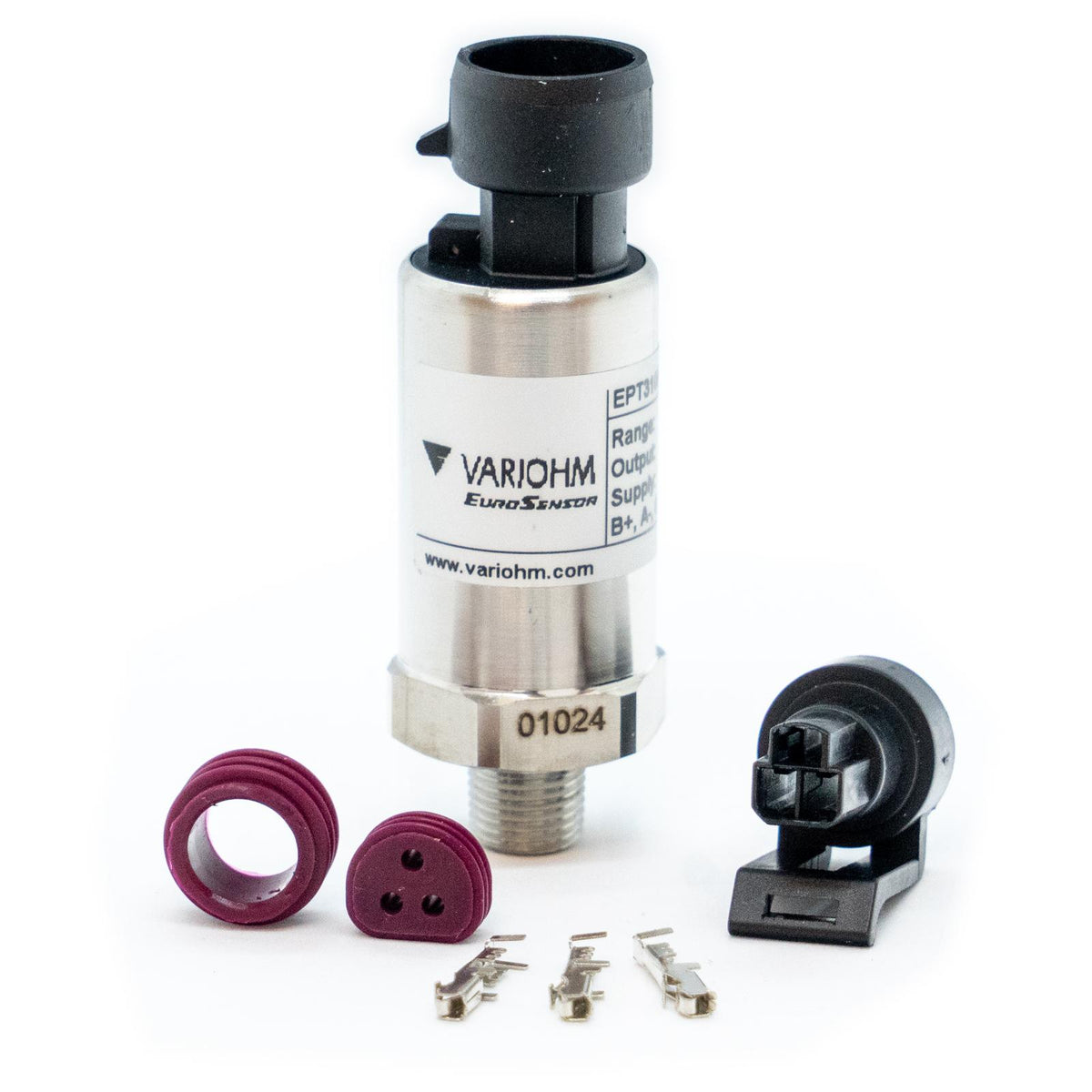

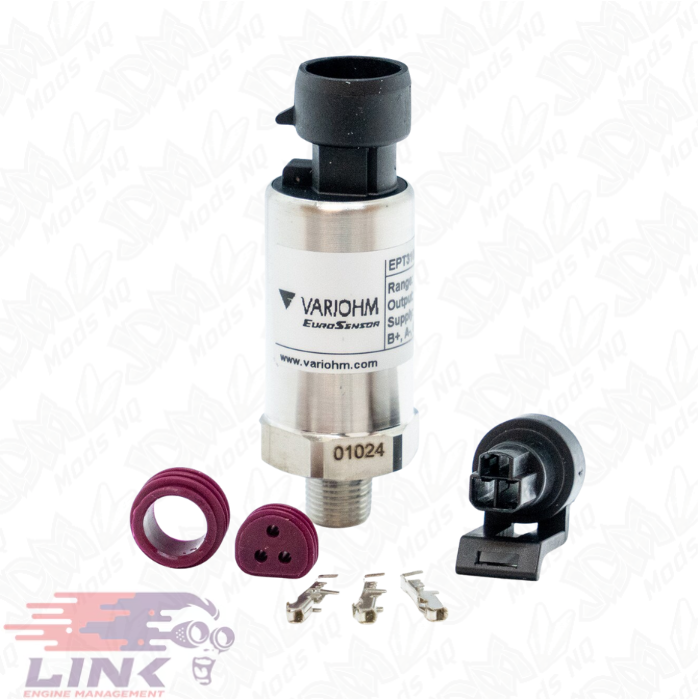

- MAP Sensor 5 Bar
- TI Sensor Connector Kit
- Printed Accessory instructions
PCLink Calibration Name
- "5 Bar Variohm"
Raw Calibration Specs
- 0.5V = 0kPa, 4.5V = 500kPa
Connector
- TI Sensor Connector Kit 101-0130
Installation and ordering
Confirm connector type, wiring, supply voltage and compatibility with the ECU or connected device before purchase. Follow the relevant Link wiring diagram, calibration and mounting instructions. CAN devices require a compatible CAN configuration and correct bus termination. Accessories are included only where they are explicitly listed below.
Installation and Compatibility Checks
Verify the measurement range, pressure reference, thread and supply voltage. Set the correct sensor calibration in the ECU and confirm leak-free mounting.
