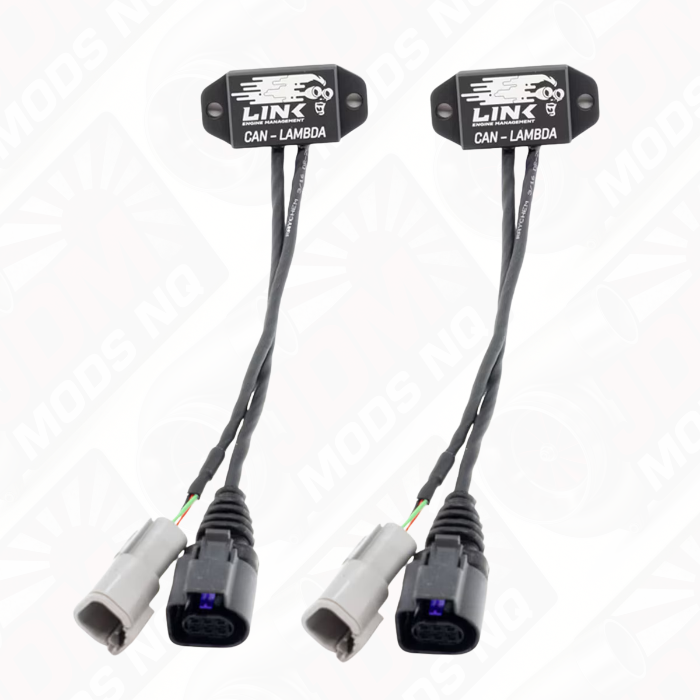

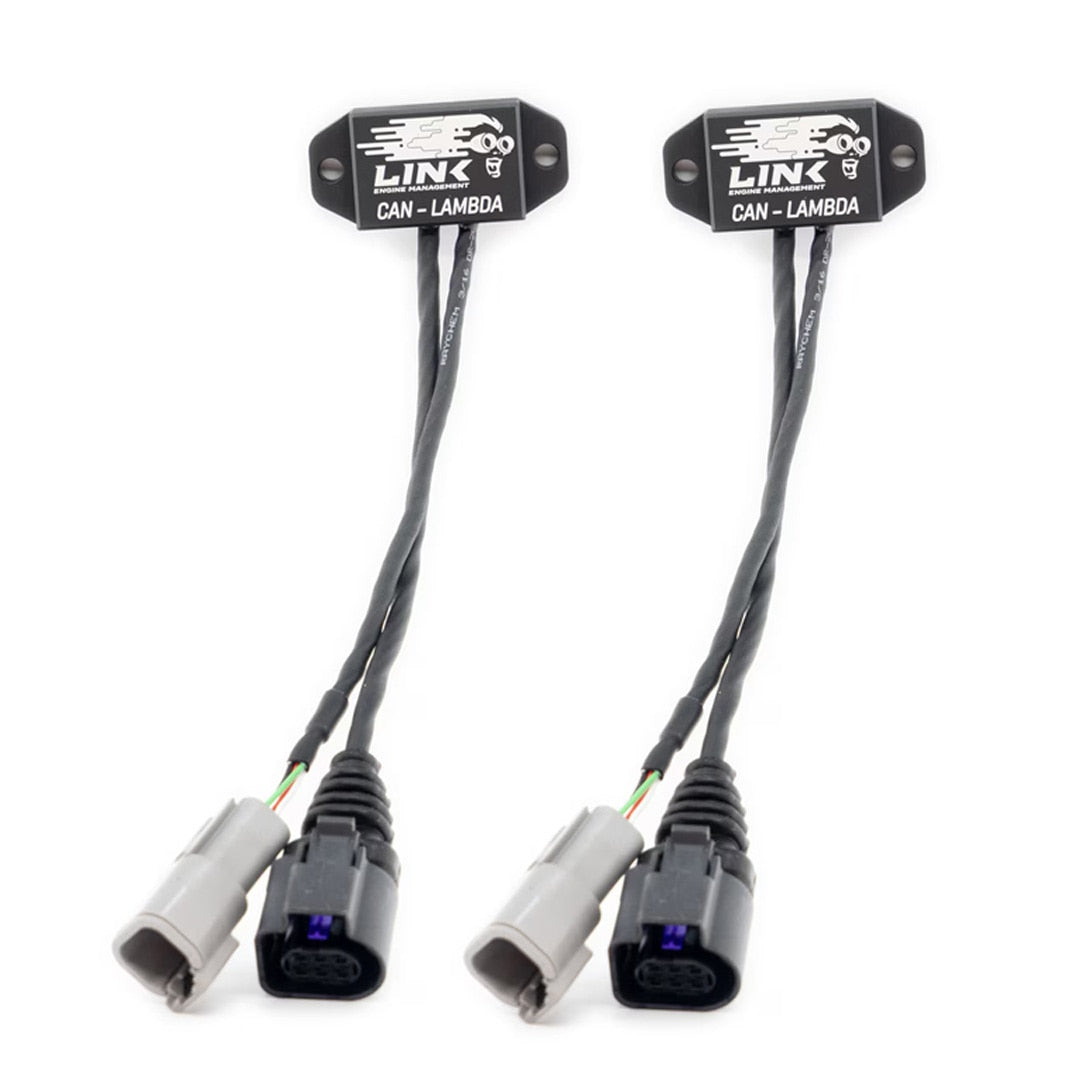

Link 2 x CAN Lambda Kits (CANLAM)

Link 2 x CAN Lambda Kits (CANLAM)

Available from JDM Mods NQ, the Link 2 x CAN Lambda Kits (CANLAM) is a wideband oxygen-measurement component for compatible engine-management systems.

Manufacturer part number: 125-9200B

Provides two independent wideband controllers for a compatible CAN installation. Specifications below apply to each CAN Lambda kit. Use the correct model-specific ECU CAN connection cable and follow the CAN Lambda installation manual.

Bundle contents

• 2 × Link CAN Lambda kits (125-1000)

Models Supported

• All Link G4+, G4X and G5 ECUs.
• Other aftermarket ECUs supporting the Link CAN Lambda protocol.

Warnings

• One CAN Lambda module is required for each wideband sensor.
• Supports up to eight CAN Lambda modules on a compatible Link ECU.
• Modules are supplied pre-configured for a single-sensor installation.
• When used with a Link G4+/G4X Plug-in ECU, a Link CANPCB cable (PN 101-0022) and CANF (PN 101-0020) field-installable CAN plug are required to access the ECU CAN port.
• The Bosch LSU4.9 sensor is sold solely for aftermarket use. As Bosch's warranty excludes aftermarket applications, no warranty is provided on the LSU 4.9 Sensor.
• LinkECU have prepared some information about how to increase sensor lifespan below.

Specifications

• Designed and manufactured by LinkECU.
• Includes Genuine Bosch LSU4.9 wideband lambda sensor.
• Fully digital CAN communication.
• No free-air calibration required.
• Lambda measuring range: 0.67 to 10.
• CAN bit rates: 1 Mbit/s, 500 kbit/s, 250 kbit/s and 125 kbit/s.
• Includes Deutsch 4-way connector kit
• Includes O2 bung and plug

Electrical

• Operating Voltage Range: 6-23V
• Maximum Input Voltage: 37V
• Maximum Continuous Current Draw: 3A

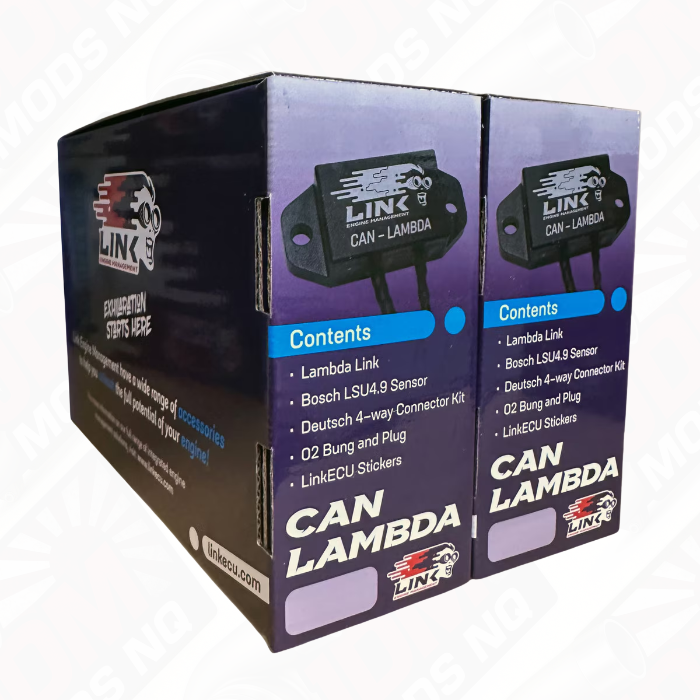

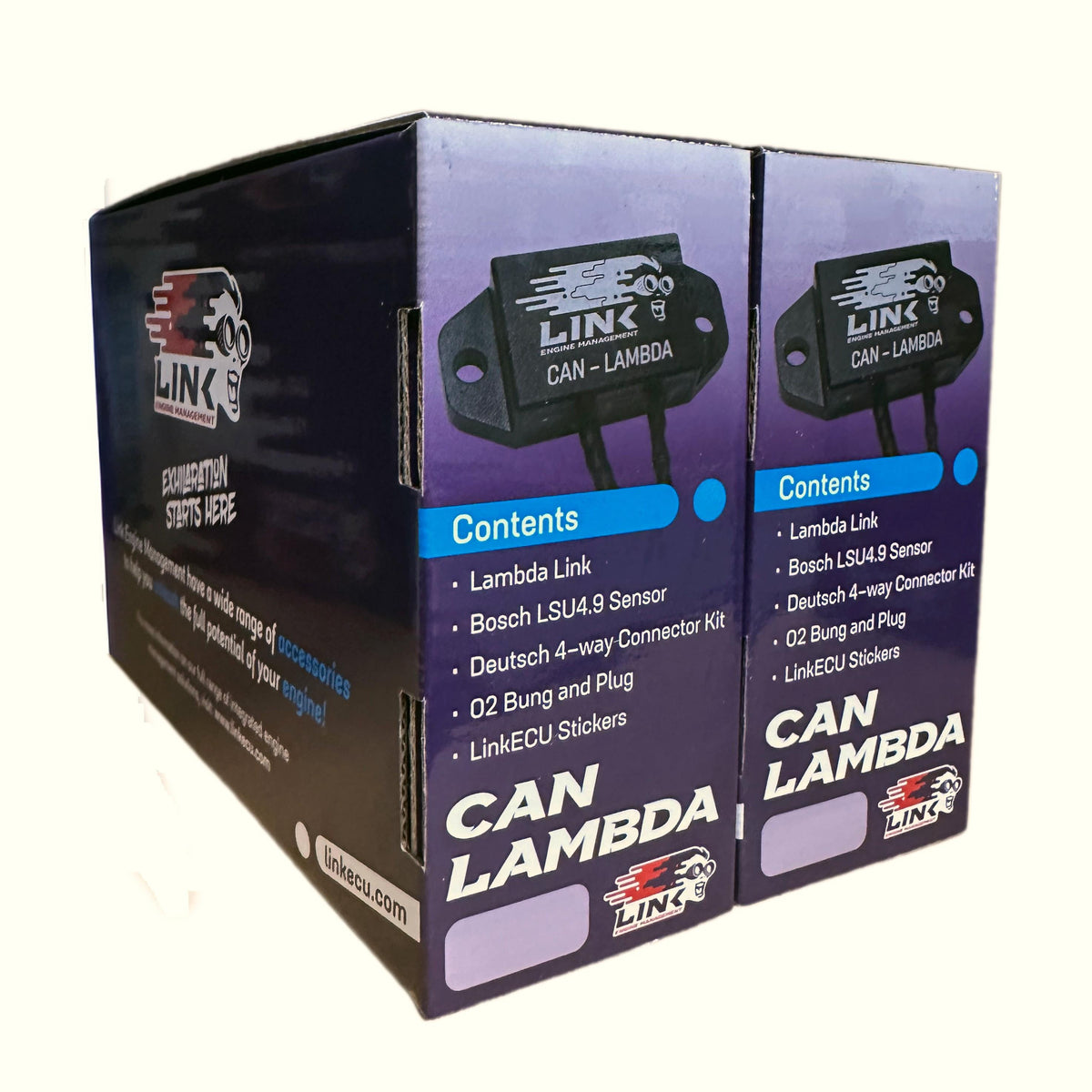

What's in the Box

• CAN Lambda Module
• Bosch LSU4.9 Sensor
• Deutsch 4-Way Connector Kit
• O2 Bung and Plug
• Link Stickers
• Quick Start Guide

Connector

• Deutsch 4-Way Connector Kit

Installation and ordering

Confirm connector type, wiring, supply voltage and compatibility with the ECU or connected device before purchase. Follow the relevant Link wiring diagram, calibration and mounting instructions. CAN devices require a compatible CAN configuration and correct bus termination. Accessories are included only where they are explicitly listed below.

Official Link bundle information

Installation and Compatibility Checks

Confirm the specified device compatibility, connectors and installation requirements before ordering. Use a qualified installer for vehicle electrical work.
